INSTALLATION SHEET

LED Wall Sconce

START FROM HERE

WS70130

19054 28th Avenue Surrey, BC Canada V3Z 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W: kuzcolighting.com

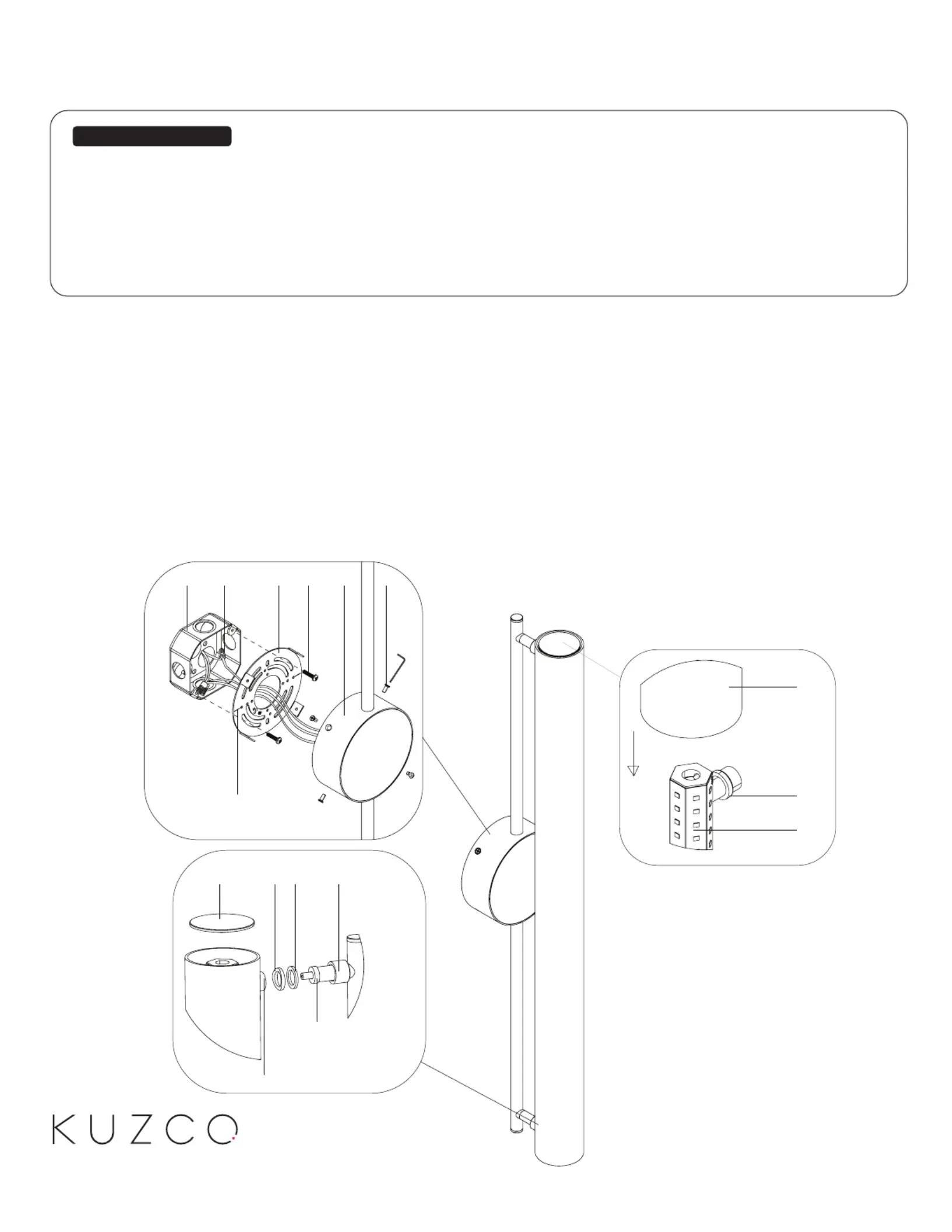

1a.1b.1c.

Levelling Mark

1d.

4b.

4f.

4a.

4d.4c.3d.4e.

2c.2a.

20200623

• Make sure is POWERCOMPLETELY OFF at the fuse box

• Have your fixture installed by a qualified licensed electrician

• Prepare everything in a clear area

• Wear gloves at all time during this installation

• Read instructions carefully before you start assembly

• Keep this installation sheet for future reference

Technical Support: 1-855-855-8926

Please Note:

• This Kuzco LED fixture comes with pre-wired LED module(s)

• Unless instructed, Do Not touch any part of the LED module(s) as any unnecessary

contact with the module could cause permanent damage

• Use ELV (Electronic Low Voltage) or TRIAC type of dimmer for dimming application

Remove the fixture from its original packaging1.

Separate the mounting plate from the canopy (1c)(2a)

by removing the four screws with allen key(2c)

Attach the mounting plate to the electrical junction (1c)

box using the two screws provided in the (1a)(1d)

hardware package (keep back plate level when Note:

mounting to octagon box with leveling marks as guide)

2.

3.

Make proper electrical connections (black to hot “L”,

white to neutral “N”, ground to “GND”) with wire nuts

(1b) provided in hardware package

4.

Attach canopy to mounting plate with screws (2a)(1c)(2c)

using allen key

5.

3c.

4b.

Gently slide LED assembly into glass tube until (4f)(4a)

connector receptacles can be exposed through on (4b)

glass, secure by installing end caps (4e)

6.

Insert rubber wave washer followed by flat washer (4c),(4d)

onto each connector receptacle post, and then insert (4b)

coaxial connector to make electrical connection, secure (3c)

with threaded cap (3d)

7.
