INSTALLATION SHEET

PD22723

LED Pendant

START FROM HERE

Please Note:

•All Kuzco LED fixtures come with pre-wired LED module(s).

• Unless instructed to do so, please do not touch any part of the LED module(s) as any

unnecessary contact with the module could cause permanent damage.

• For dimming, an ELV (Electronic Low Voltage) type of dimmer is required.

•

Make sure power is completely off at the fuse box.

•

Have your fixture installed by a qualified licensed electrician

•

Prepare everything in a clear area.

•

Wear gloves at all times during this installation.

•

Read instructions carefully before you start assembly.

•

Keep this instruction sheet for future reference.

Technical Support: 1-877-452-6858

19054 28th Avenue Surrey, BC Canada V3S 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W: kuzcolighting.com

20170113

1.

2.

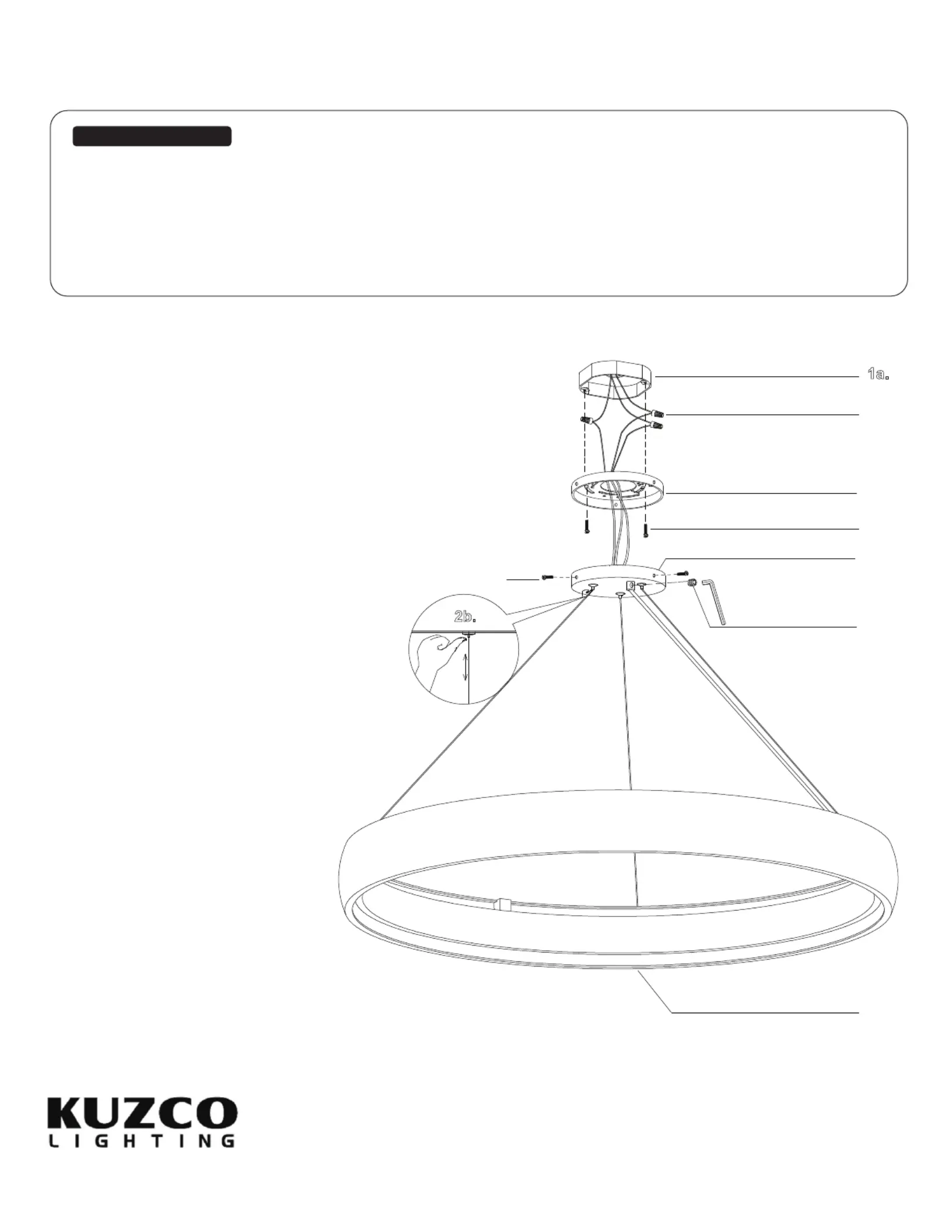

Remove the fixture from its original packaging. Next,

remove the mounting plate from within the (1c)

canopy by un-threading the two screws .(2a) (2d)

Secure the mounting plate to the junction box (1c)

(1a)(1d) with screws provided in the hardware

package.

Before you mount the canopy to the mounting plate

select the desired length you wish the pendant (3a)

to hang.To shorten or lengthen the pendant (3a)

push up on the canopy nipples and push/pull (2b)

on the cable, release to secure. Now loosen the set

screw (2c) until the wire can move freely. You can

now push/pull the wire to lengthen or shorten. When

you have selected the desired length, tighten the set

screw (2c).

You are now ready to mount the canopy. First,

connect all wires correctly black to black “L”, white to

white “N” and the ground wire with provided

marrettes from the hardware package Align (1b).

the threaded studs with the holes on the (1d)

surface of the canopy . Next, push the canopy (2a)

(2a)(1c) to the mounting plate thread on the two

nuts on to the threaded studs . This will (2d)(1d)

secure the canopy to the mounting plate.

You have now completed the installation of your

fixture, enjoy.
