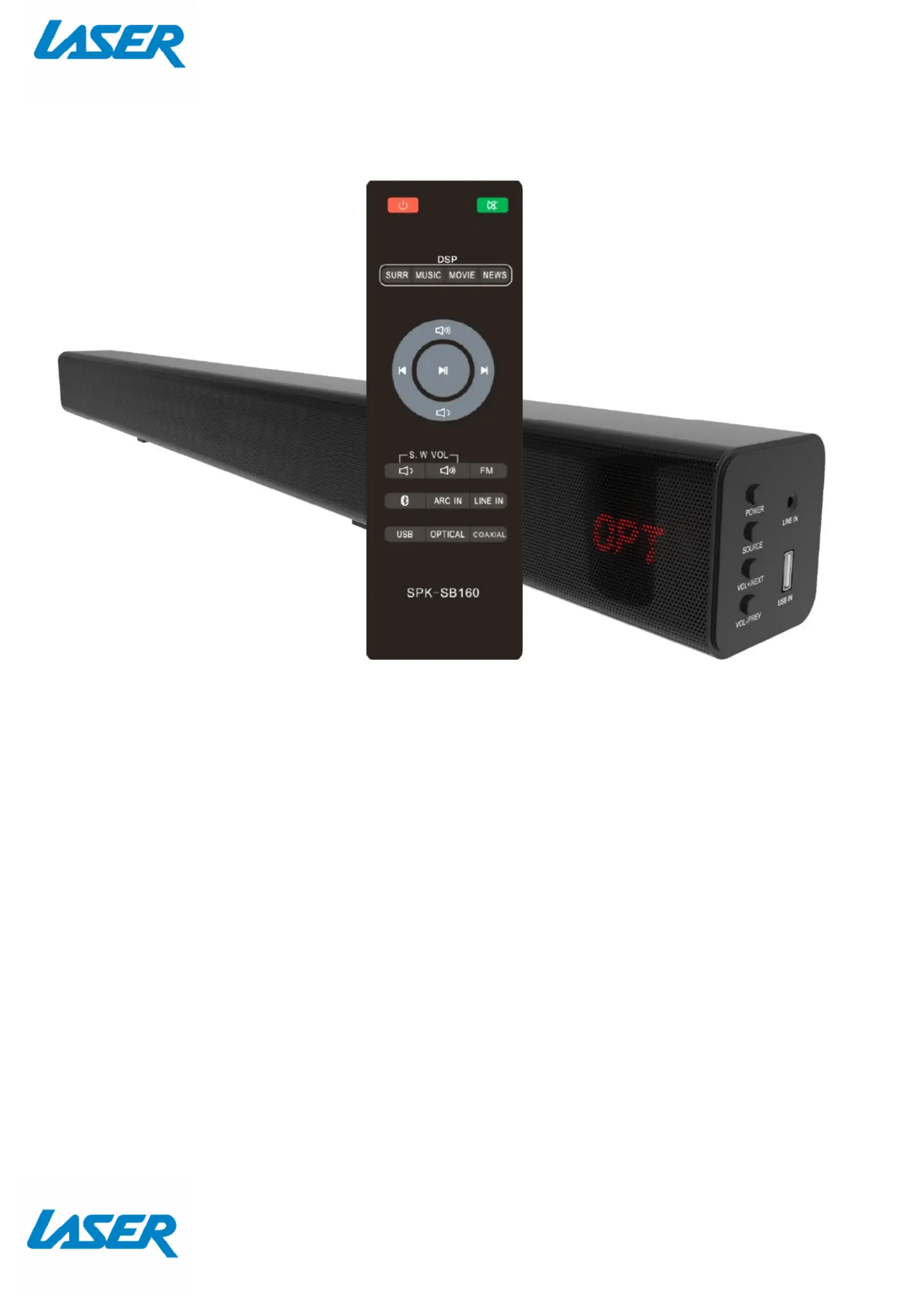

QUICK USER MANUAL SPK-SB160 (With HDMI)
1
IMPORTANT SAFETY INSTRUCTIONS AND PRECAUTIONS
- Read all instructions carefully before use.
- Retain manuals for future reference.
- Use this product only in the manner described.
- Only use a water-dampened soft-cloth to clean the surface of this product.
- The following will damage this product: any liquid such as water or moisture, extreme heat; cold;
humidity, dusty or sandy environments.
- Only place this device on stable surfaces and ensure that any attached cables are secure and will not
cause the device to fall.
- There are no user serviceable parts in this product.
- Un-authorized attempts to dismantle or repair this product will void product warranty
- Using this device near other electronic devices may cause interference.
PACKAGE INCLUDES
1 X Sound Bar, 1 x Optical Fibre Cable, 1 x 3.5mm Audio Jack Cable, 1 x Mains Power
Adapter, 1 x Quick User Manual.
QUICK USER MANUAL SPK-SB160 (With HDMI)
2
1
5
4
3
2
CONNECTIONS
THE REMOTE CONTROL
1 Output to subwoofer (not supplied)
2 HDMI (ARC) Input
3 Coaxial Input
4 DC In 12v (Power for speaker bar)
5 Optical input (Audio)
1 ON / OFF Turn Sound Bar On or O
2 MUTE Mute or Unmute audio
3 SURR Surround sound (sound eects
equaliser)
4 MUSIC Music sound (sound eects equaliser)
5 MOVIE Movie sound (sound effects equaliser)
6 NEWS News (sound eects equaliser)
7 VOL + Increase Volume (of sound bar)
8 CH - Previous music le / Radio station
9 PLAY/PAUSE
Pause or Play Audio while playing
10
CH + Next music le / Radio station
11
VOL - Decrease Volume (of sound bar)
12
SUB VOL - Decrease Volume (of Subwoofer)
*Not supplied
13
SUB VOL + Increase Volume (of Subwoofer)
*Not supplied
14
FM Select Audio Input FM Radio
15
BLUETOOTH
Select Audio Input via BLUETOOTH
16
ARC IN Select Audio Input via HDMI
17
LINE IN Select Audio Input via LINE IN
18
USB Select Audio Input via USB
19
OPTICAL Select Audio Input via OPTICAL INPUT
20
COAXIAL Select Audio Input via COAXIAL
1
3
8
12
2
4
5
6
7
10
9
11
13
14
15
18
19
17
16
20
QUICK USER MANUAL SPK-SB160 (With HDMI)
3
ON DEVICE CONTROLS / HARDWARE INPUTS
ON DEVICE DISPLAY
REPLACING THE BATTERIES
1. Open the battery compartment by
sliding the cover back.
2. Insert the new battery as pictured
making you have observed the
correct polarity
3. Close the battery compartment.
Note: the remote control has
a usable angle of 30 degrees from
the speaker IR receiver.
1 POWER Turn Sound Bar On or O
2 SOURCE Toggle between audio input sources
3 VOL+ /NEXT
Increase volume of sound bar OR
select next song (or radio station)
4 VOL-/PREV
Decrease volume of sound bar OR
select previous song (or radio station)
5 LINE IN
Connect any audio device via a 3.5mm
headphone audio socket
6 USB IN
Connect your thumb drive via the USB
socket
1 LINE Select LINE IN Audio Input
2 FM Select FM RADIO Audio input
3 ARC Select HDMI Audio input
4 USB Select USB Audio input
5 BLUE Select BLUETOOTH Audio input
6 OPT Select OPTICAL Audio input
7 COA Select COAXIAL Audio input
1
2
3
4
5
6
