Overview
OSW 1031 is an outdoor switch. It is integrated switch, optical tray, breaker, lightning -PoE of PoE fiber air
arrester etc. It has IP55 can be for outdoor using.It can be applied for surveillance monitoring, protection grade,
forest etc.monitoring,
Features
120W DC52V power module inside.
With 8*10/100/1000M PoE downlink ports and 2*1000M SFP uplink ports.
The maximum PoE power of single port is 30W, and the maximum PoE power of the whole machine is 115W.
Supports PoE Auto-check function, which is specially designed to solve the problems of equipment frozen. It can
automatically detect the frozen PD equipment and restart the ports’ output of PSE, and restart the PD device. It
greatly reduces the maintenance diculty of engineering.
6KV surge protection, 6KV contact / 8KV air ESD protection.
The box adopts waterproof (protection level IP55), anti-rust treatment, suitable for long time outdoor use.
Outdoor PoE
Outdoor PoE
Outdoor PoE
Outdoor PoE Outdoor PoE switch
switch
switch
switch switch

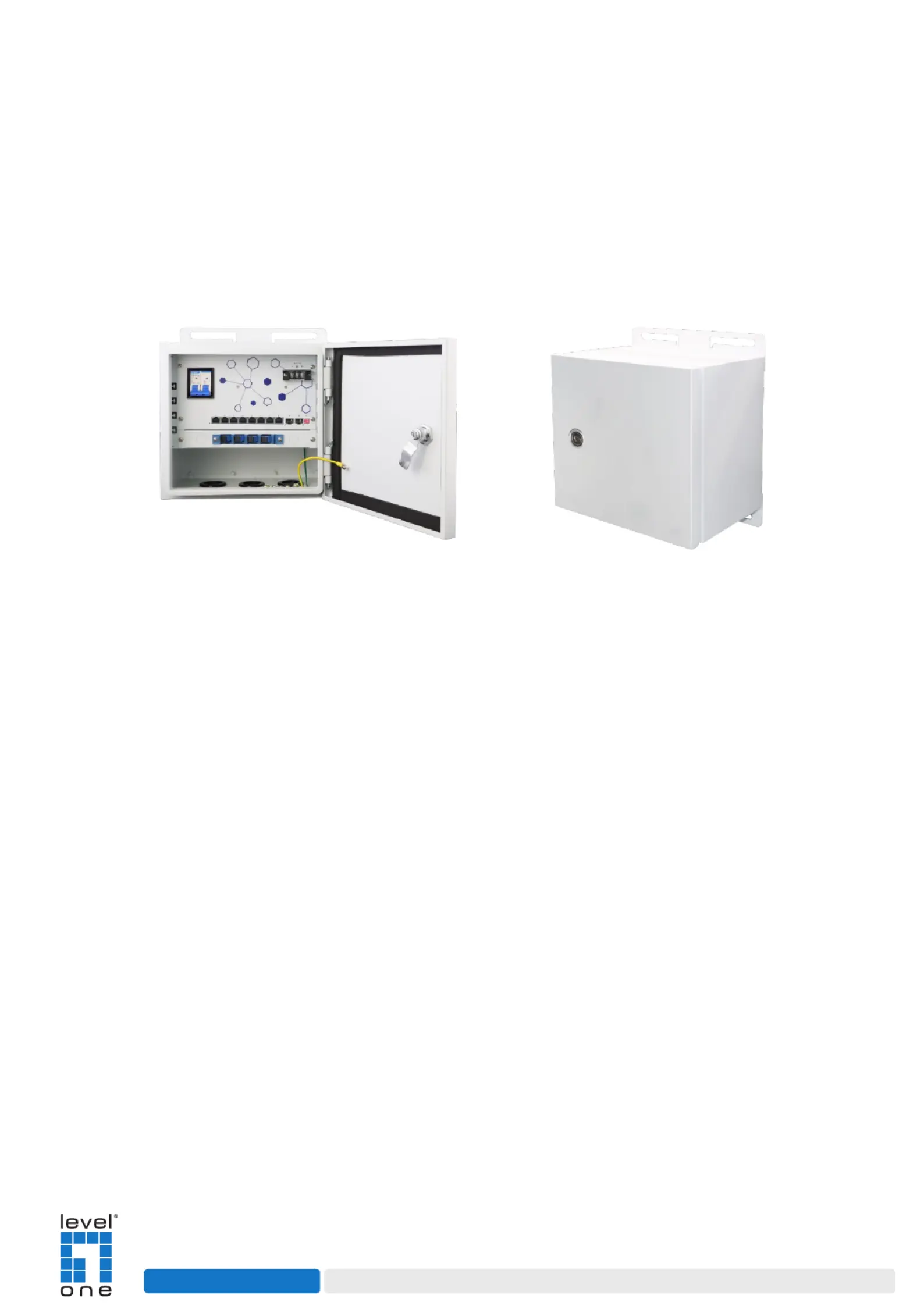

10-Port Gigabit Ethernet PoE Switch, 8 PoE Outputs
10/100/1000Mbps +2 uplink Gigabit SFP port
OSW-103
OSW-103
OSW-103
OSW-103OSW-1031
1
1
11
w w w . l e v e l 1 . c o m
Hardware specification
Parameter
Specifications
Power supply
AC100-240V, 50/60Hz
Consumption
Self consumption<5W, PoE output max. 1 W 15
Downlink ports
Ports 1~8 10/100/1000Base-T 30W PoE RJ45(IEEE 802.3af/at)
Uplink ports
Ports 9~10 1000Base-X SFP
PoE ports
Ports 1~8 support IEEE802.3af/at, end-span, 30W per port Max.
PoE Auto-check
If detect the frozen PD device, restart it
Working mode
V:VLAN: 1~8 ports are isolated, only can communicate with the uplink ports; restrain the networkt
storm; close ow control.
P:PoE Auto-Check: PoE Auto-Check function is open/ closed by dip switch.
The switch always auto detect 1~8 ports whether frozen, if some ports are frozen, the switch will
restart them,but other ports are unaected.
Cable and distance
Use cat5e/6,100m max.
Standard
IEEE802.3, IEEE802.3u, IEEE802.3z
Switch fabric
5.6Gbps
Though put
4.2Mpps
Buer
12KB
MAC address table
4K
Indicator
Power: 1 *red ;
Downlink 1~8: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE
Uplink9, 10: On RJ45 green LEDs indicate Link/Act
Protection
Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact 8KV: air, standard:IEC61000-4-2
SPD
AC lightning arrester, 385v AC@20KA , 2p, - , lower incoming line, dxh06-fcs / 2r40 40 ～70 ℃
Working temperature
-20 ~ ℃70℃
Storage temperature
- ~85 40℃ ℃
Humidity
0~95%(No condensation)
Dimension(L×W×H)
280mm×200 260 mm× mm
Material
Metal
Color
White
Net weight-
8KG
w w w. l e v e l 1 . c o m
Structure
Ordering information
Model escriptionD
OSW- 1031
w w w . l e v e l 1 . c o m
10-Port Gigabit Ethernet PoE Switch,
8 PoE Outputs 10/100/1000Mbps +2 uplink Gigabit SFP port
