ASSEMBLING & INSTALLATION INSTRUCTIONS
The drawing shown may not exactly match the product enclosed.
However, the installation instructions do apply to this product.
1073 1074 1075 1076 and 1003 1005 1006 1009
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJONCTEUR.

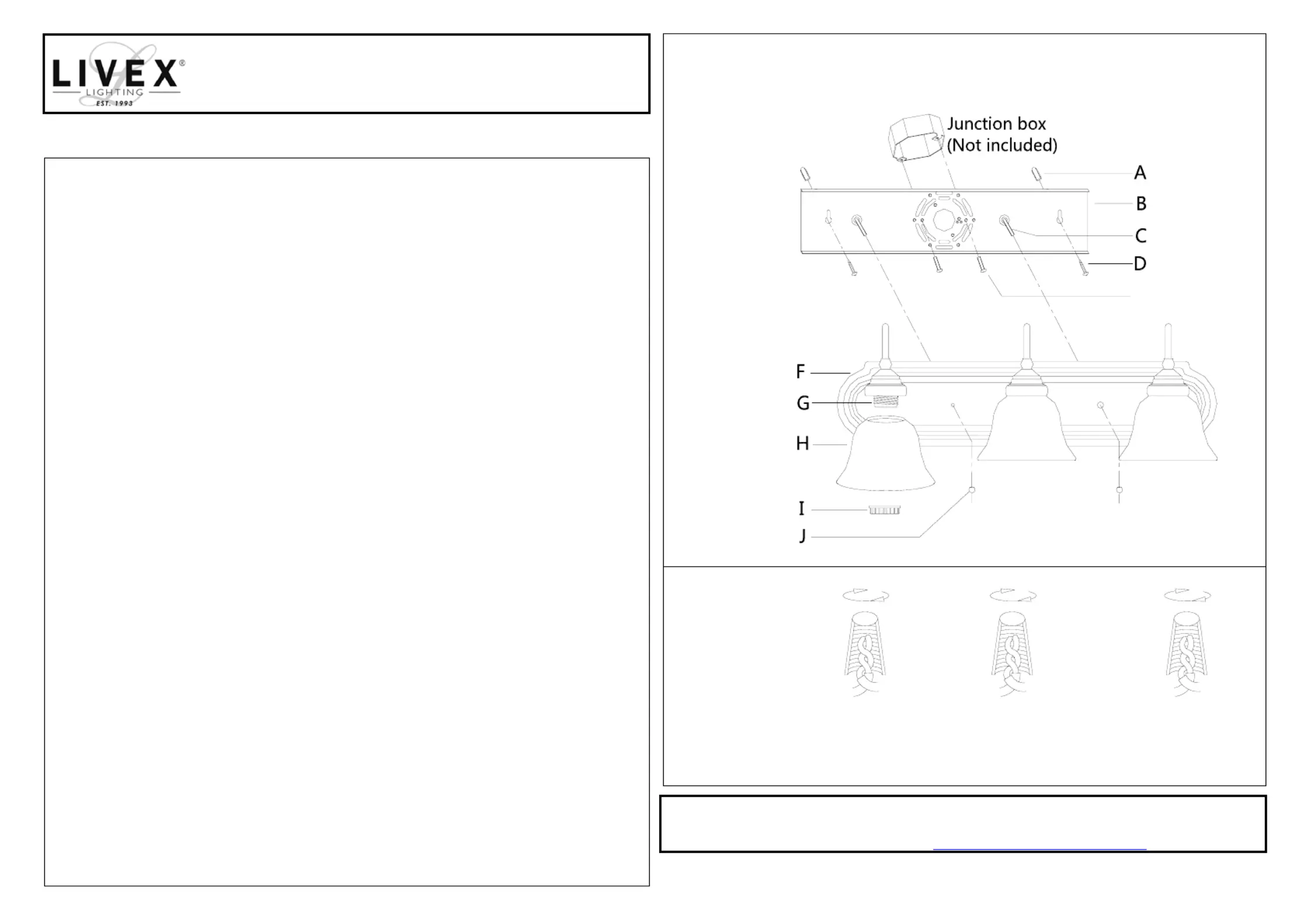

ASSEMBLING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker box. Remove old fixture and
all hardware from Junction Box.
2. Carefully unpack your new fixture and lay out all the parts on a clear
area. Take care not to lose any small parts necessary for
installation.
3. Drilling two holes in the wall, distance and the same distance from
the keyhole of mounting plate, then loaded plastic anchors(A).
Mount the back plate(B) to the wall with the plastic anchors(A), the
wood screw (D) and the two box screw (E). The side of the back
plate marked “GND” must face out. The junction box is not
included.
4. Guide fixture wires through hole in center of back plate.
5. Follow wiring instructions carefully. (see fig.2)
6. Place the lamp body(F) onto the back plate so that the back plate
studs protrude through the cover plate holes and lock it securely
with the ball nut(J).
7. Raise the glass shade(H) to bottom of the lamp holder(G), and
using the check ring(I) by turning it clockwise until tight.
8. Install the light bulbs(Not included) in accordance with the fixture’s
specifications. NOTE: DO NOT EXCEED THE MAXIMUM
WATTAGE RATING!
CONNECTING THE WIRES (Fig.2)
1. Connect the electrical wires as follows. Connect the Black wire from
the fixture to the black house (hot) Wire. Connect the white wire from
the fixture to the white (neutral) house wire. Make sure all wire nuts
are secured. You may wrap the connections with electrical tape. If
your outlet box has a ground wires (green or bare copper) connect
fixture’s ground wire to it. Otherwise attach the bare copper fixture
wire to the green ground screw on the mounting plate.
2. Tuck the wire connections neatly into the wall junction box.
Your installation is now complete Return power to the junction box
and test the fixture.
E
FIXTURE
WIRES
Black or
Smooth
HOUSE
WIRES
Black(Hot)
FIXTURE
WIRES
White or
Ribbed
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
White
(Neutral)
HOUSE
WIRES
Green or Bare
Copper(Ground)
Thank you for purchasing a LIVEX product.
Need assistance with parts or assembly? Please call customer service at: 800-761-8056
Or visit us on-line at: WWW.LIVEXLIGHTING.COM
©COPYRIGHT ALL RIGHTS RESERVED.LIVEX LIGHTING,INC. DOC20151201076
FIG.2
FIG.1
