Resources

• You can use a RJ45 coupler or switch (not included) to connect male

ends of Ethernet cable together.

• To extend the cable run beyond 300ft (92m), a switch will be required

(sold separately).

LNB8973_QSG_EN_R1

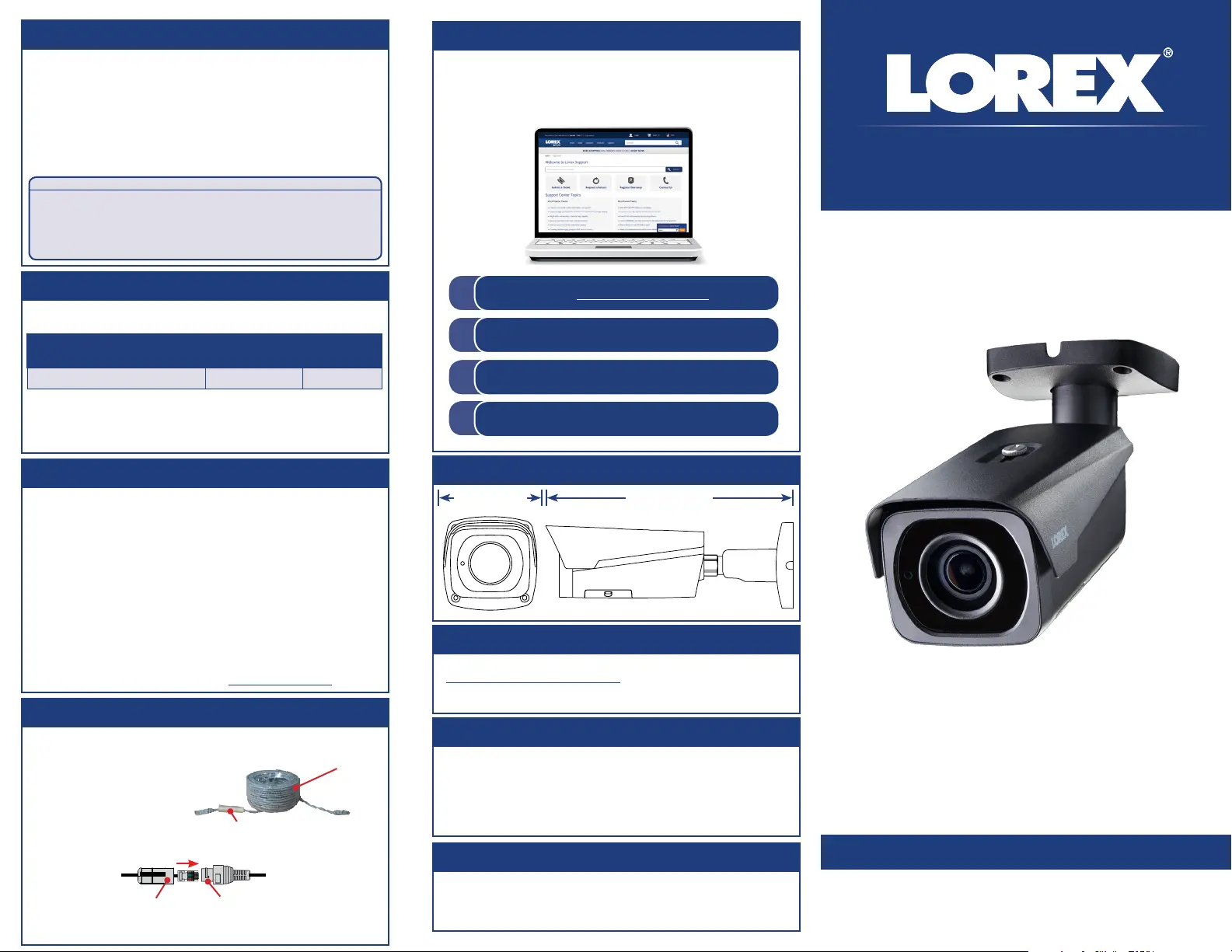

4K Motorized Varifocal HD IP Bullet

Security Camera

• 4K Motorized Varifocal HD IP Bullet Security Camera

• 4× Mounting Screws & Drywall Anchors*

• CAT5e Ethernet Extension Cable with Pre-attached

RJ45 Cable Gland*

• Allen Key*

• Mounting Template*

• Read this guide carefully and keep it for future reference.

• Follow all instructions for safe use of the product and handle with care.

• Use the camera within given temperature, humidity and voltage levels

noted in the camera’s specifications.

• Do not disassemble the camera.

• Do not point the camera directly towards the sun or a source of

intense light.

• Use only the supplied regulated power supply provided with the

product. Use of a non-regulated, non-conforming power supply can

damage the product and void the warranty.

• Periodic cleaning may be required. Use a damp cloth only. Do not use

any harsh, chemical-based cleaners.

• The supplied cable is rated for surface mounting only. Cables for

in-wall and floor-to-floor installations are sold separately (CMR type).

These and other cables are available at lorextechnology.com

• Point the camera where there is the least amount of obstructions

(i.e., tree branches).

• Install the camera where vandals cannot easily reach.

• Secure cabling so that it is not exposed or easily cut.

• This camera is rated for outdoor use. Installation in a sheltered

location is recommended.

* Per camera in multi-camera packs.

Copyright © 2017 Lorex Corporation

As our products are subject to continuous improvement, Lorex reserves

the right to modify product design, specifications and prices, without

notice and without incurring any obligation. E&OE. All rights reserved.

Quick Start Guide

English Version 1.0

LNB8973 SERIES

Package Contents

ATTENTION:

It is recommended to connect the camera to the NVR or an external PoE

switch. If using a DC power adapter (not included) with the camera, a

REGULATED power supply is REQUIRED for use with this camera. Use of

a non-regulated, non-conforming power supply can damage this product

and voids the warranty.

Safety Precautions

Installation Tips

Dimensions

10.8” / 273mm

3.7” / 95mm

Need Help?

Visit us online for up-to-date software

and complete instruction manuals

Click on the Downloads tab

4

Visit lorextechnology.com

Search for the model number

of your product

Click on your product in the

search results

3

2

1

www.lorextechnology.com

Extend the cable run for your camera. Additional extension cables sold

separately. See table below:

Cable Extension Options

Cable Type

Max Cable Run

Distance

Max # of

Extensions

CAT5e (or higher) Ethernet cable300ft (92m)3

• For a full list of compatible recorders, visit

lorextechnology.com/compatibility

• Not intended for submersion in water. Installation in a sheltered

location recommended.

Disclaimers

CAT5e

Ethernet

Extension

Cable

RJ45 Cable Gland

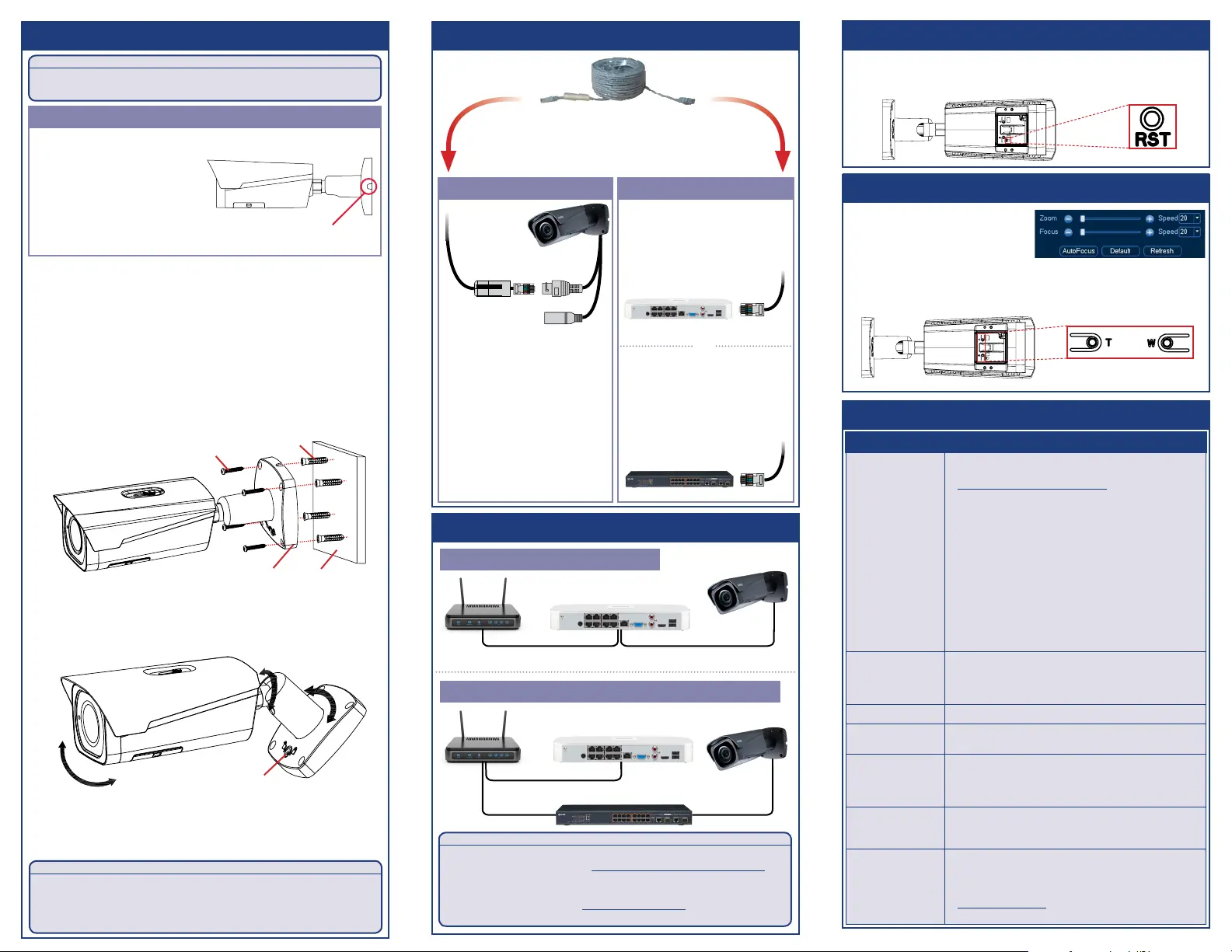

Using the RJ45 Cable Gland(Optional)

The RJ45 cable gland is pre-attached to the

included CAT5e ethernet extension cable.

The RJ45 cable gland covers the camera’s Ethernet connector and the RJ45 plug to

provide weather-resistance and protection from dust, dirt and other environmental

contaminants.

To use the RJ45 cable gland:

RJ45 Cable

Gland Barrel

Camera Ethernet

Connector

NOTE: The RJ45 cable gland is weather-resistant. Seal the cap with silicone and/or

electrical tape for additional sealing if it will be exposed to precipitation regularly.

Twist the RJ45 cable gland barrel securely onto the camera Ethernet connector.
