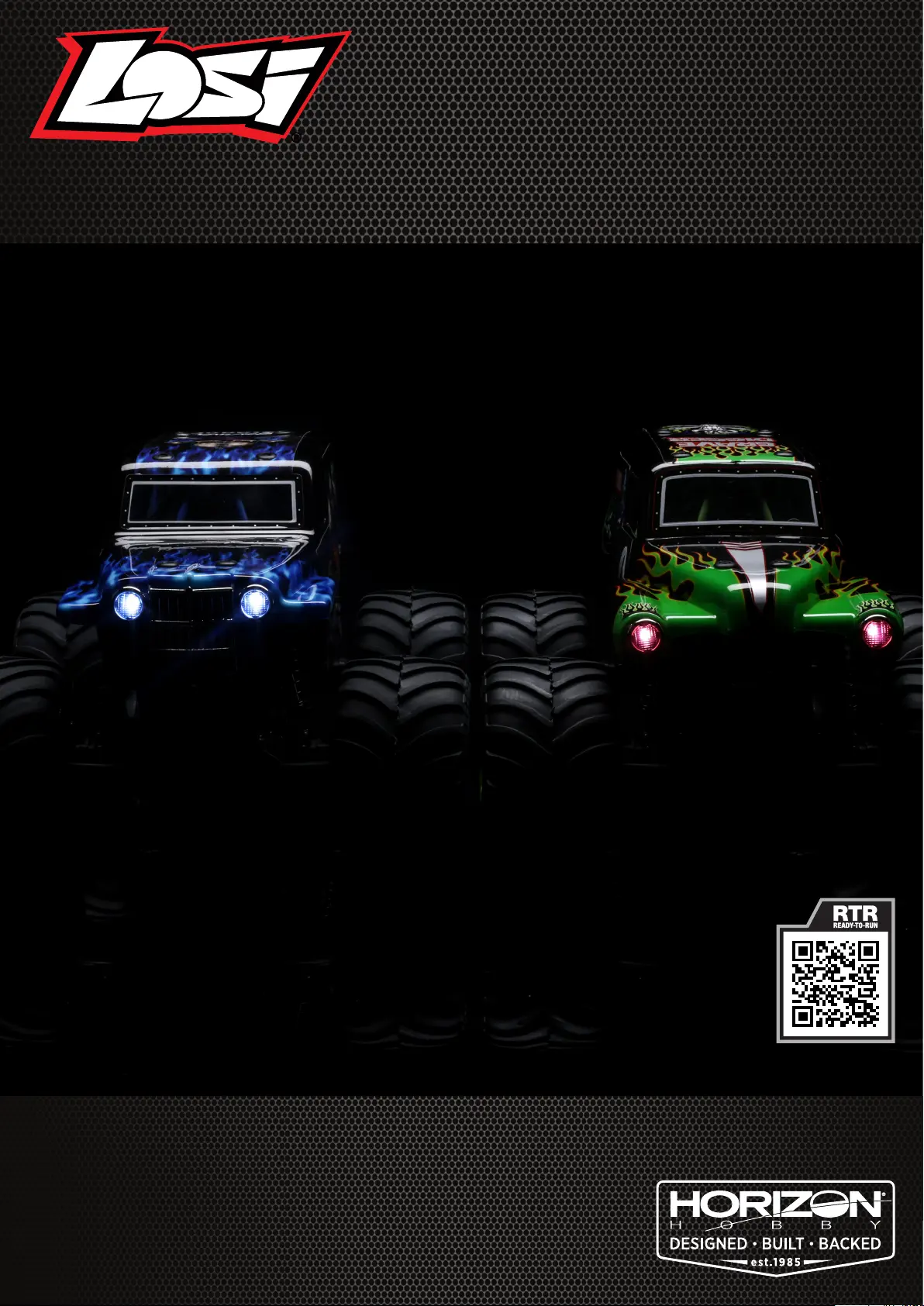

Seite 1/20

INSTRUCTION MANUAL

BEDIENUNGSANLEITUNG

MANUEL D’UTILISATION

MANUALE DI ISTRUZIONI

Before operating this vehicle, please read all

printed materials thoroughly. Horizon Hobby is not

responsible for inadvertent errors in this manual.

Updated 7/23

468669.1

MINI LMT

1/18

SCALE 4WD MONSTER TRUCK

LOS01026T1/T2

Scan the QR code and select the Manuals and Support quick links from the

product page for the most up-to-date manual information.

Scannen Sie den QR-Code und wählen Sie auf der Produktseite

die Quicklinks Handbücher und Unterstützung, um die aktuellsten

Informationen zu Handbücher.

Scannez le code QR et sélectionnez les liens rapides Manuals and Support

sur la page du produit pour obtenir les informations les plus récentes sur

le manuel.

Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto

dalla pagina del prodotto per le informazioni manuali più aggiornate.

Age Recommendation: Not for children under 14 years. This is not a toy.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in

damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible

manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible

components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential

to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature,

visit www.horizonhobby.com or www.towerhobbies.com and click on the support or resources tab for this product.

MEANING OF SPECIAL LANGUAGE

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superﬁcial injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury.

SAFETY PRECAUTIONS AND WARNINGS

• Always keep a safe distance in all directions around your model to avoid collisions

or injury. This model is controlled by a radio signal subject to interference from

many sources outside your control. Interference can cause momentary loss of control.

• Always operate your model in open spaces away from full-size vehicles, trafﬁc and people.

• Always carefully follow the directions and warnings for this and any optional support

equipment (chargers, rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything electrical out of the reach of children.

• Always avoid water exposure to all equipment not speciﬁcally designed and protected

for this purpose. Moisture causes damage to electronics.

• Never place any portion of the model in your mouth as it could cause serious injury

or even death.

• Never operate your model with low transmitter batteries.

updates and more. Click on the Support tab at www.LOSI.com and follow the product

registration link to stay connected.

COMPONENTS

• Losi

Mini LMT RTR 4WD Monster Truck (Gravedigger / Son-uva digger)

• Spektrum® 2-CH 2.4GHz Transmitter (SPMRSLT320)

• Spektrum ESC/Receiver 2.4GHz: 1/18 (SPMXSE3025RX)

• Losi 25T Brushed 380 Size Motor (LOS11002)

• Spektrum SX108 Micro Metal Gear Servo (SPMSSX108)

• Spektrum 7.4V 810mAh 2S LiPo Hardcase: IC2 (SPMX812SH2)

• Smart G2 2s LiPo (IC2) USB-C Charger (SPMXC0040)

• 4 AA batteries (for transmitter)

RECOMMENDED ACCESSORIES

• Soft bristle brush for cleaning

• Startup Tool Set: Metric (DYN2834)

• Thread Lock

TOOLS INCLUDED

• 4-Way Wrench

• Misc. tools

Use only Dynamite

tools or other high-quality tools. Other tools can cause damage to the

small screws and parts used on this model.

TABLE OF CONTENTS

CONTENTS .......................................................................................................................... 3

GENERAL PRECAUTIONS ..................................................................................................... 3

WET CONDITIONS MAINTENANCE ......................................................................................3

WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS ..........................................3

QUICK START ......................................................................................................................3

CHARGING WARNINGS .......................................................................................................4

CHARGING THE BATTERY ....................................................................................................4

SLT2 TRANSMITTER .............................................................................................................4

INSTALLING THE TRANSMITTER BATTERIES ..........................................................................5

UNLOCKING THE BODY LATCHES ........................................................................................5

INSTALLING THE BATTERY AND POWERING ON THE VEHICLE ..............................................6

CONTROL TEST ...................................................................................................................7

DRIVING PRECAUTIONS ......................................................................................................7

RUN TIME ...........................................................................................................................7

TO IMPROVE RUN TIMES .....................................................................................................7

TUNING, ADJUSTING AND MAINTAINING THE VEHICLE ........................................................8

SHOCK CLEANING ..............................................................................................................8

ADJUSTING RIDE HEIGHT ....................................................................................................8

BINDING .............................................................................................................................8

SERVICE/REPAIR .................................................................................................................. 8

RADIO/SPEED CONTROL AND MOTOR .................................................................................8

MAINTENANCE ................................................................................................................... 8

CLEANING ..........................................................................................................................8

TROUBLESHOOTING GUIDE ................................................................................................. 9

LIMITED WARRANTY ........................................................................................................10

WARRANTY AND SERVICE CONTACT INFORMATION .........................................................10

COUNTRY OF PURCHASE ..................................................................................................10

HORIZON HOBBY .............................................................................................................10

CONTACT INFORMATION ..................................................................................................10

ADDRESS ..........................................................................................................................10

FCC INFORMATION ........................................................................................................... 11

IC INFORMATION .............................................................................................................. 11

COMPLIANCE INFORMATION FOR THE EUROPEAN UNION ................................................11

PARTS LISTINGS ...............................................................................................................39

OPTIONAL PARTS .............................................................................................................41

EXPLODED VIEW .............................................................................................................43
