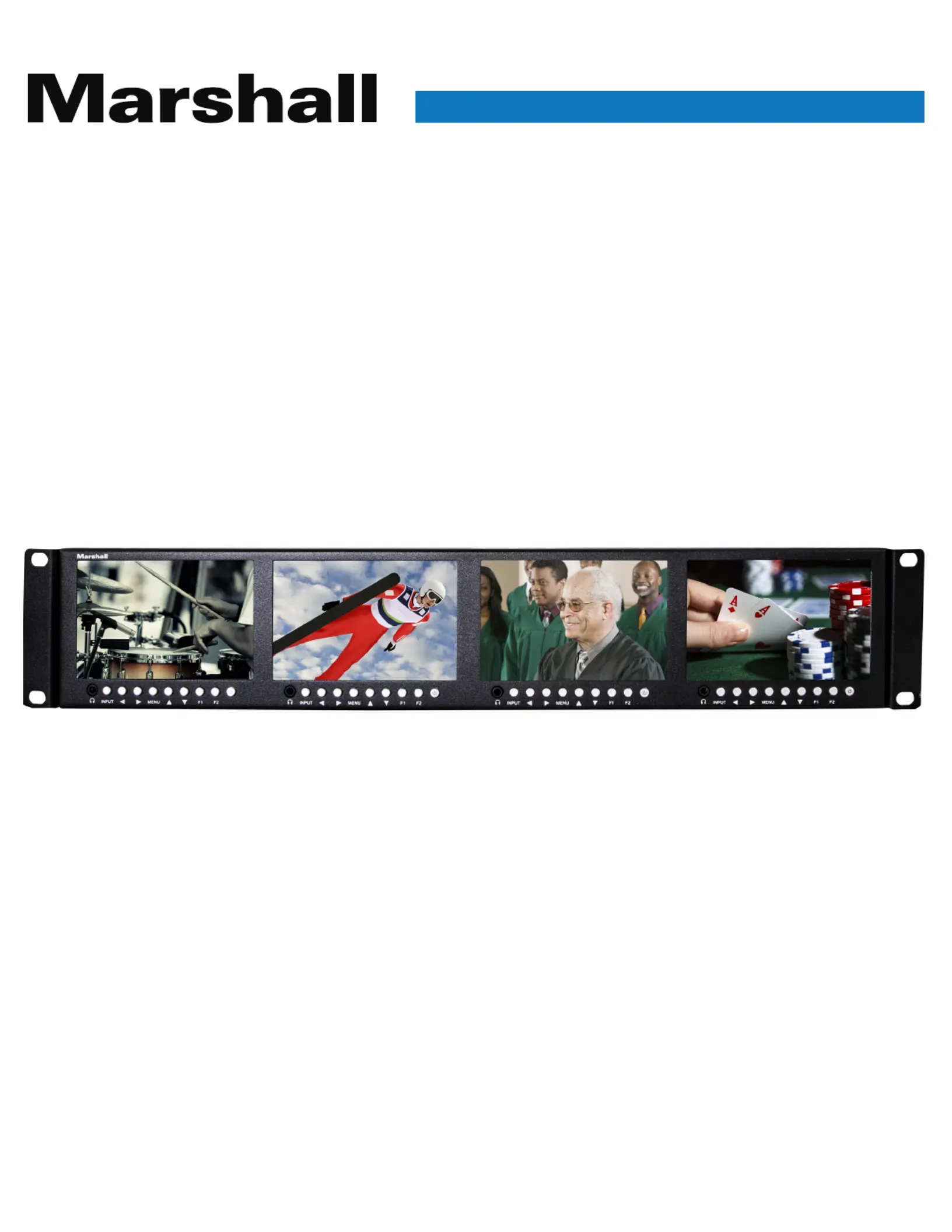

ML-454-V2
Quad 4.5” Rack Mount Monitor with
3G-SDI, HDMI and Composite Inputs
User Manual
1
Table of Contents
2. Unpacking
3. Installation
4. Basic Operation
5. Menu Functions
6. Specifications
Warranty
1. Overview
02
02
04
06
09
10
02
ML-454-V2 Manual
www.marshall-usa.com 2
1. OVERVIEW
The ML-454-V2 provides four independent wide-screen displays in only 2RU rack height and very
slim 1.4” (35.8 mm) depth. Each display has inputs for 3GSDI, HDMI and standard composite
(CVBS) analog video sources. The SDI digital inputs provide active loop-through connections while
the composite input is self-terminating with passive loop-through.
Controls are conveniently placed on the front panel (computer not required). Menus are straight-
forward and intuitive. Front panel headphone jacks allow monitoring of embedded digital audio
(SDI and HDMI) as well as analog audio (for composite video AV input). On-screen three-color tally
borders operate from standard GPI connections (contact closure or open-collector pull-down) for
maximum compatibility with existing systems.
2. UNPACKING
Carefully unpack the ML-454-V2 monitor and verify the following items are included:
1. ML-454-V2 Monitor
2. 12 Volt Power supply with AC cord. ML-454PS
Inspect the unit for any physical damage that may have occurred during shipping. Should there be
any damage, immediately contact Marshall Electronics at (800) 800-6608. If you are not located
within the continental United States, call +1 (310) 333-0606.
3. INSTALLATION
The ML-454-V2 is designed to mount in a standard 19” equipment rack using the pre-installed
mounting ears. Once mounted, the monitor may be tilted to the ideal viewing position. Care should
be taken to allow sufficient slack in cables attached to the monitor so as not to bind when the
monitor is tilted. Also, check that the ventilation holes are not obstructed by other equipment in
the rack.
