Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 3/27/24 INST107-HO1
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
I N S TA L L AT I O N I N S T R U C T I O N S
107-HO1
Patent Pending
KIT FEATURES
Designed specifically for Pioneer modular 6.8” radios like the
DMH-C2550NEX and DMH-WC5700NEX.
†† Refer to the radio manufacturer for current models
• Requires the Pioneer extension cable (sold separately)
• Textured and painted to match the factory finish.

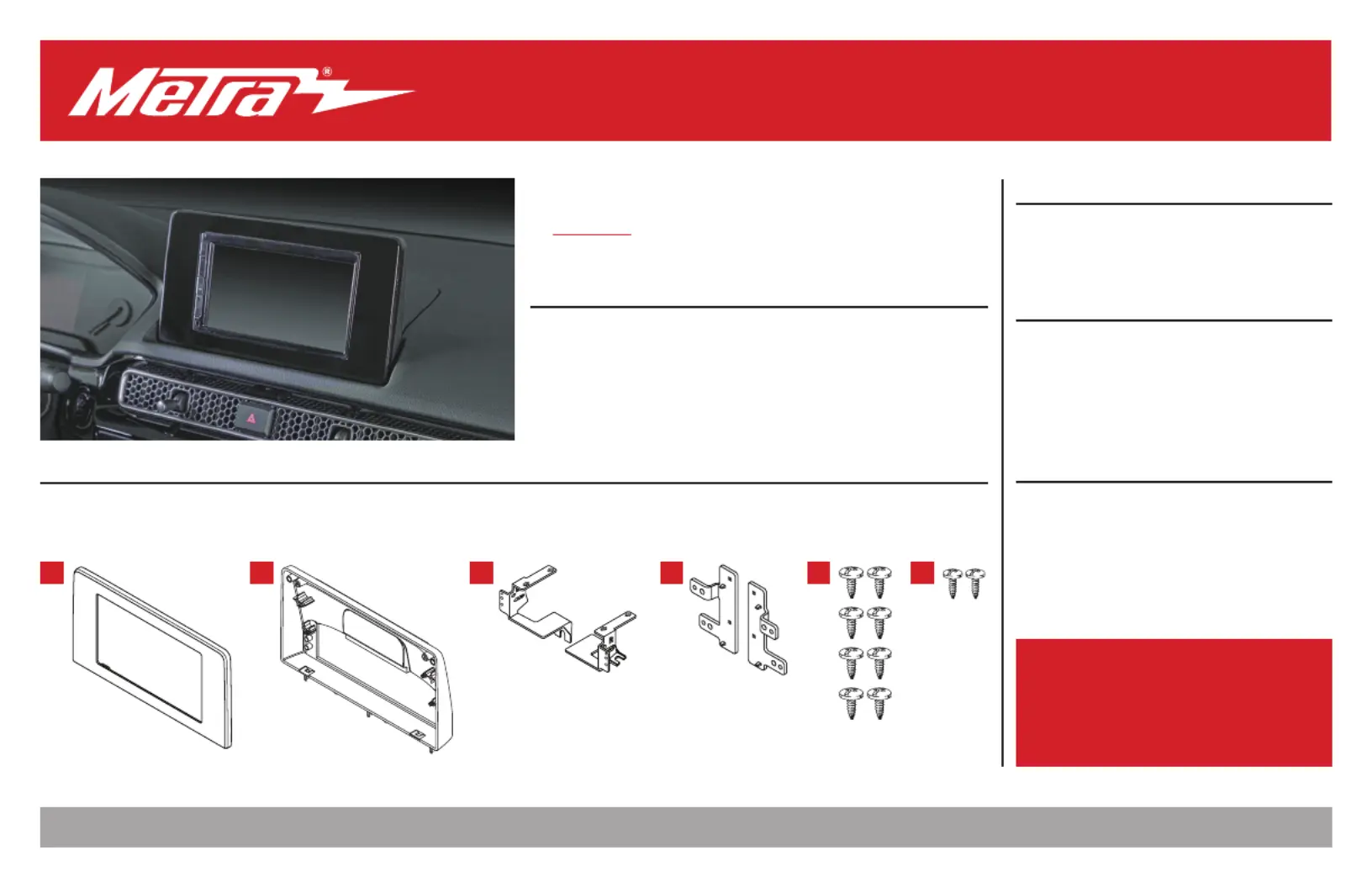

KIT COMPONENTS
• A) Radio display front panel • B) Radio display back panel • C) • Radio chassis brackets • D) Radio display brackets
• E) #8 x 3/8” Phillips screws (8) • F) #4 x 3/8” Phillips screws (2)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
TABLE OF CONTENTS
Dash Disassembly 2 ..................................................
Kit Assembly .......................................................... 3
WIRING & ANTENNA CONNECTIONS
(sold separately)
Visit metraonline.com for audio/video and
steering wheel control interface options.
Wire harness: AXTC-HN1
Antenna adapter: 40-HD11
A B C D E
F
Honda Civic 2022-2024
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
386.257.1187
|
MetraOnline.com
2
(Figure B) (Figure D)
(Figure A) (Figure C)

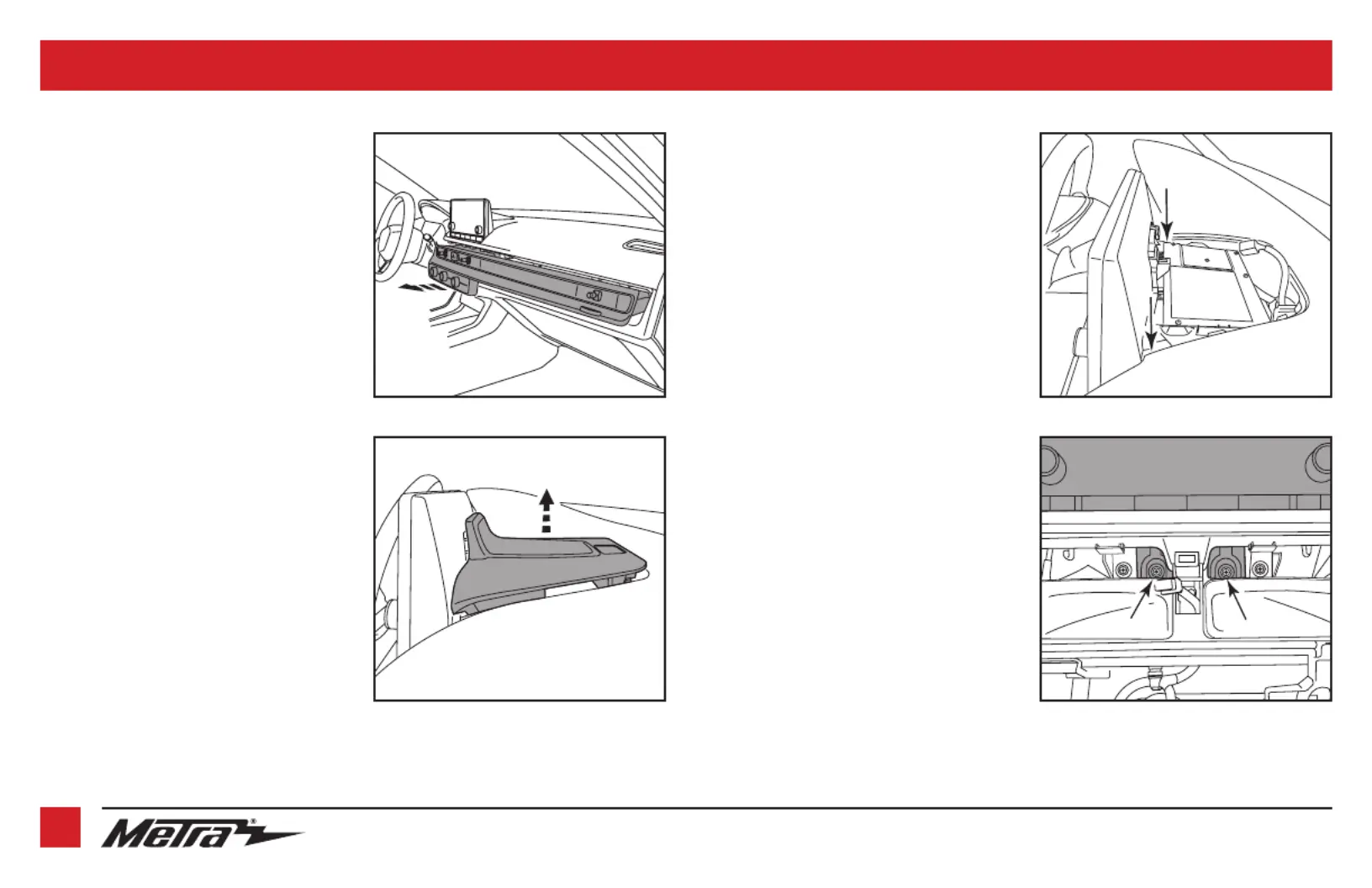

DASH DISASSEMBLY
1. Unclip and remove the trim panel below
the radio screen that includes the A/C
control and A/C vents. (Figure A)
2. Unclip and remove the trim panel from
the top of the dash behind the radio
screen. (Figure B)
3. Remove (2) Phillips screws under trim
panel on top of dash behind radio
screen. (Figure C)
4. Remove (2) Philips screws securing
the radio and screen then unclip and
remove the assembly from the dash.
(Figure D)
Continue to Kit Assembly
REV. 3/27/2024 INST107-HO1
3

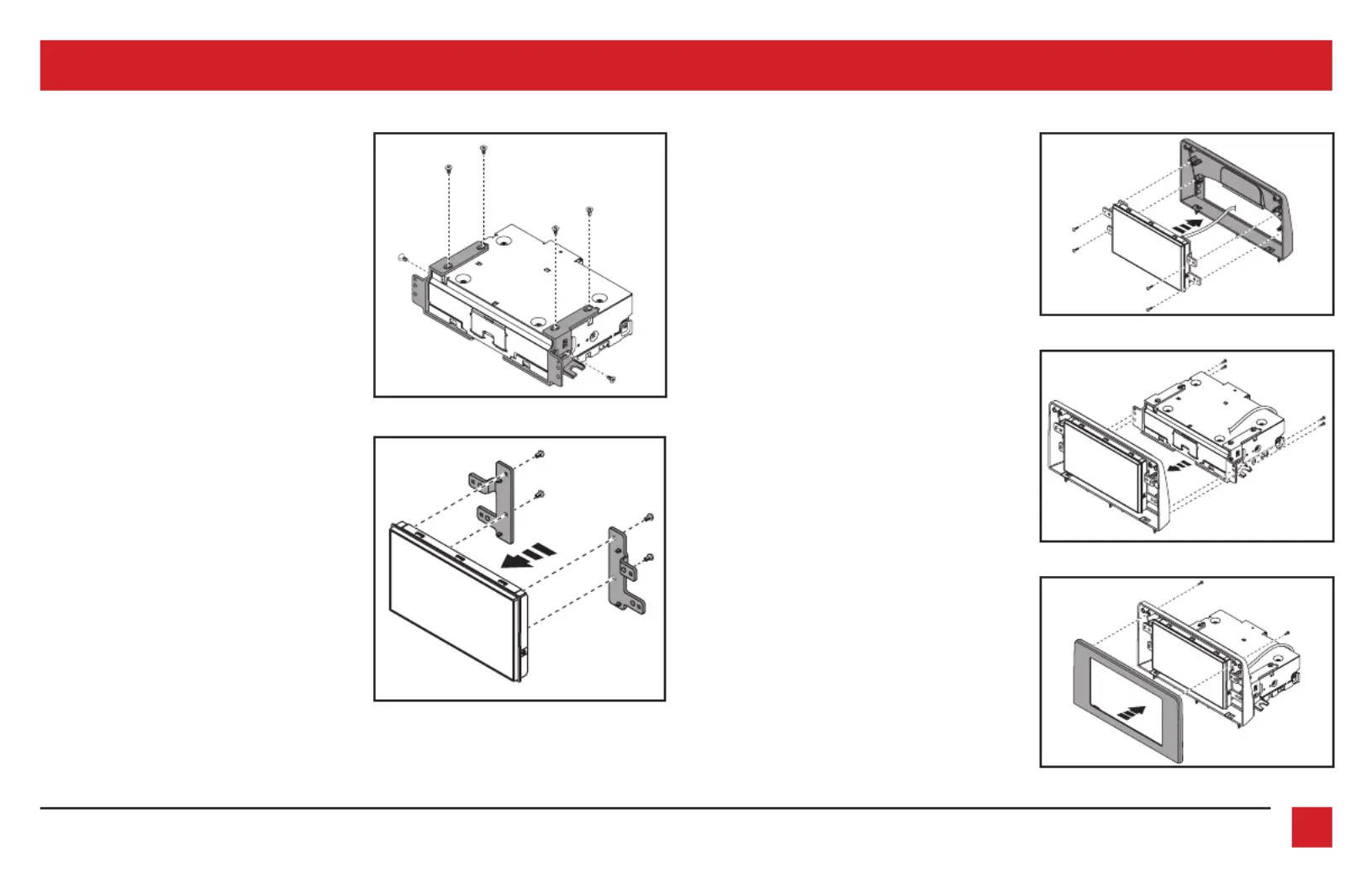

KIT ASSEMBLY
(Figure B)
(Figure A)
1. Place the three factory panel clips onto
the bottom of the radio display
back panel
Note: For steps 2 and 3, reference the
installation manual provided with the radio
for which hardware to use. The display
screen and radio chassis use two different
types of screws.
2. radio chassis bracketsSecure the to the
radio chassis using (6) screws supplied
with the radio. (4 on top one each side)
(Figure A)
3. radio display brackets Secure the to the
radio display using (4) screws supplied
with the radio. (Figure B)
4. radio Route cable from chassis through
display back panel and plug into to
radio display.
5. Secure radio display assembly to the
radio display back panel using (4) of
the supplied #8 screws. (Figure C)
6. Secure the radio chassis to the back of
the using (4) radio display front panel
of the supplied #8 screws. (Figure D)
7. radio display Clip the bottom of the
front panel radio display back to the
panel and secure using (2) of the
supplied #4 x 3/8” Phillips screws.
(Figure E)
8. Locate the factory wiring harness and
antenna connector in the dash and
complete all necessary connections to
the radio. Metra recommends using
the proper mating adapter from Metra
and/or Axxess. Test the radio for proper
operation.
9. Clip the radio assembly into to the dash,
then secure using the factory screws.
10. Reassemble the dash in reverse
order of disassembly to complete the
installation.
(Figure C)
(Figure D)
(Figure E)
