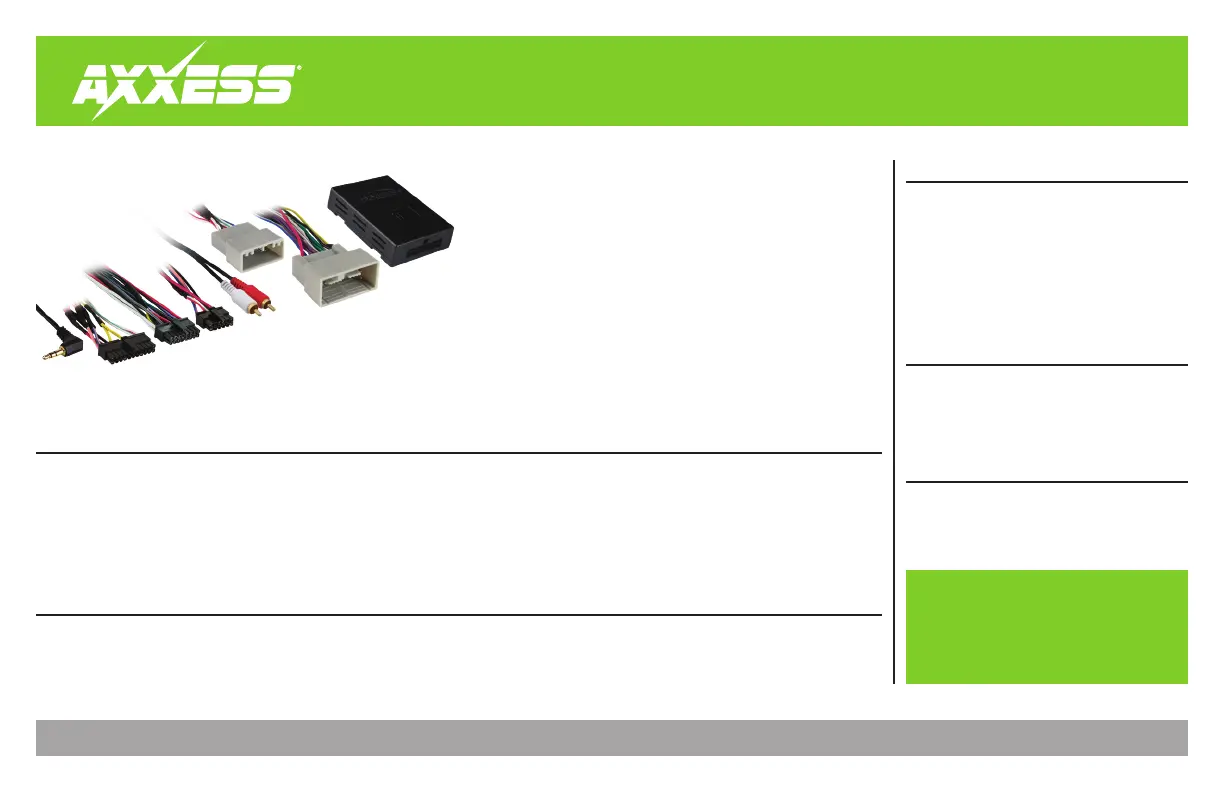

CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
AXHN-1
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 1/22/20 INSTAXHN-1
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Small flat-blade
screwdriver • Tape • Wire cutter • Zip ties
TABLE OF CONTENTS
Connections to be made .......................................2
Installing the AXHN-1............................................. 3
Programming the AXHN-1 ..................................... 3
Setting the factory clock ....................................... 3
Troubleshooting..................................................... 3
Honda Clock Retention 2012-2014
APPLICATIONS
• Provides accessory power (12-volt 10-amp)
• Can be used in non-amplified, or amplified models
• Provides NAV outputs (parking brake, reverse, speed sense)
• AXSWC harness included (AXSWC sold separately)
• Retains balance and fade
• Retains the ability to set the factory clock
• Retains the factory AUX-IN jack
• Micro-B USB updatable
• AXHN-1 interface • AXHN-1 harness
• 8-pin subwoofer harness
• 16-pin harness with stripped leads
HONDA
Civic * (without NAV) 2013
CR-V (without NAV) 2012-2014
* All trims except LX
2
CONNECTIONS TO BE MADE
From the 16-pin harness with stripped leads to the aftermarket radio:
• Connect the Red wire to the accessory wire.
• Connect the Orange/White wire to the illumination wire. If the aftermarket radio does not
have an illumination wire, tape it off and disregard it.
• Tape off and disregard the Gray, Gray/Black, White, White/Black, and Brown wires, they
will not be used in this application.
The following (3) wires are only for multimedia/navigation radios that require these wires.
• Connect the Light Green wire to the parking brake wire (if applicable).
• Connect the Blue/Pink wire to the VSS or speed sense wire (if applicable).
• Connect the Green/Purple wire to the reverse wire (if applicable).
From the AXHN-1 harness to the aftermarket radio:
• Connect the Black wire to the ground wire.
• Connect the Yellow wire to the battery wire.
• If the vehicle is equipped with a factory amplifier, connect the Blue/White wire to amp
turn-on wire.
• If the vehicle is equipped with a factory AUX-IN jack and desired to be retained, connect the
Red & White RCA jacks to the AUX-IN jack.
For the following (8) wires, if the vehicle does not have a factory amplifier, cut off the RCA jacks
to expose the speaker wires.
• Connect the White wire to the left front positive speaker output.
• Connect the White/Black wire to the left front negative speaker output.
• Connect the Gray wire to the right front positive speaker output.
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the Green wire to the left rear positive speaker output.
• Connect the Green/Black wire to the left rear negative speaker output.
• Connect the Purple wire to the right rear positive speaker output.
• Connect the Purple/Black wire to the right rear negative speaker output.
From the 8-pin subwoofer harness to the aftermarket radio (amplified models only):
• Connect the White RCA to the subwoofer output.
12-pin pre-wired AXSWC harness:
• This harness is to be used along with the optional AXSWC (not included) to retain steering
wheel audio controls. If the AXSWC is not being used, disregard this harness. If it will be
used, please refer to the AXSWC instructions for radio connections and programming.
Disregard the harness that comes with the AXSWC.
• For the CR-V 2014: If the vehicle is equipped with Bluetooth controls, and desired to be
retained, connect the Gray/Blue wire to the Yellow wire (pin-15) in the 32-pin harness at the
factory Bluetooth module located in the center of the dash, below the radio.
