SY58052AU
Ultra-Precision CML Data and Clock
Synchronizer with Internal Input and Output
Termination
Precision Edge
®
AnyGate and Precision Edge are registered trademarks of Micrel, Inc.
Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (408) 944-0800 • fax + 1 (408) 474-1000 • http://www.micrel.com
February 11,
2014
Revision 1.0
FOMhelp@micrel.com or (408) 955-1690
General Description
The SY58052AU is an ultra-fast, precision, low jitter data-
to-clock resynchronizer with a guaranteed maximum data
throughput of 10.7Gbps and a maximum clock of 10.7GHz.
The SY58052AU is an ideal solution for backplane
retiming or retiming after the data passes through long
trace lengths. Serial data comes into the data input, and
the CML output is synchronous to the input reference
clock’s rising edge.
The SY58052AU differential inputs include a unique,
internal termination design that allows access to the
termination network through a V
T
pin. This feature
allows the device to easily interface to different logic
standards, both AC- and DC-coupled, without external
resistor-bias and termination networks. The result is a
clean, stub-free, low-jitter interface solution. The
differential CML output is optimized for 50Ω environments
with internal 50Ω source termination and a 400mV output
swing.
The SY58052AU operates from a 2.5V or 3.3V supply and
is guaranteed over the full industrial temperature range
(−40°C to +85°C). The SY58052AU is part of a Micrel’s
Precision Edge
®
product family.
Datasheets and support documentation are available on
Micrel’s web site at: www.micrel.com
.

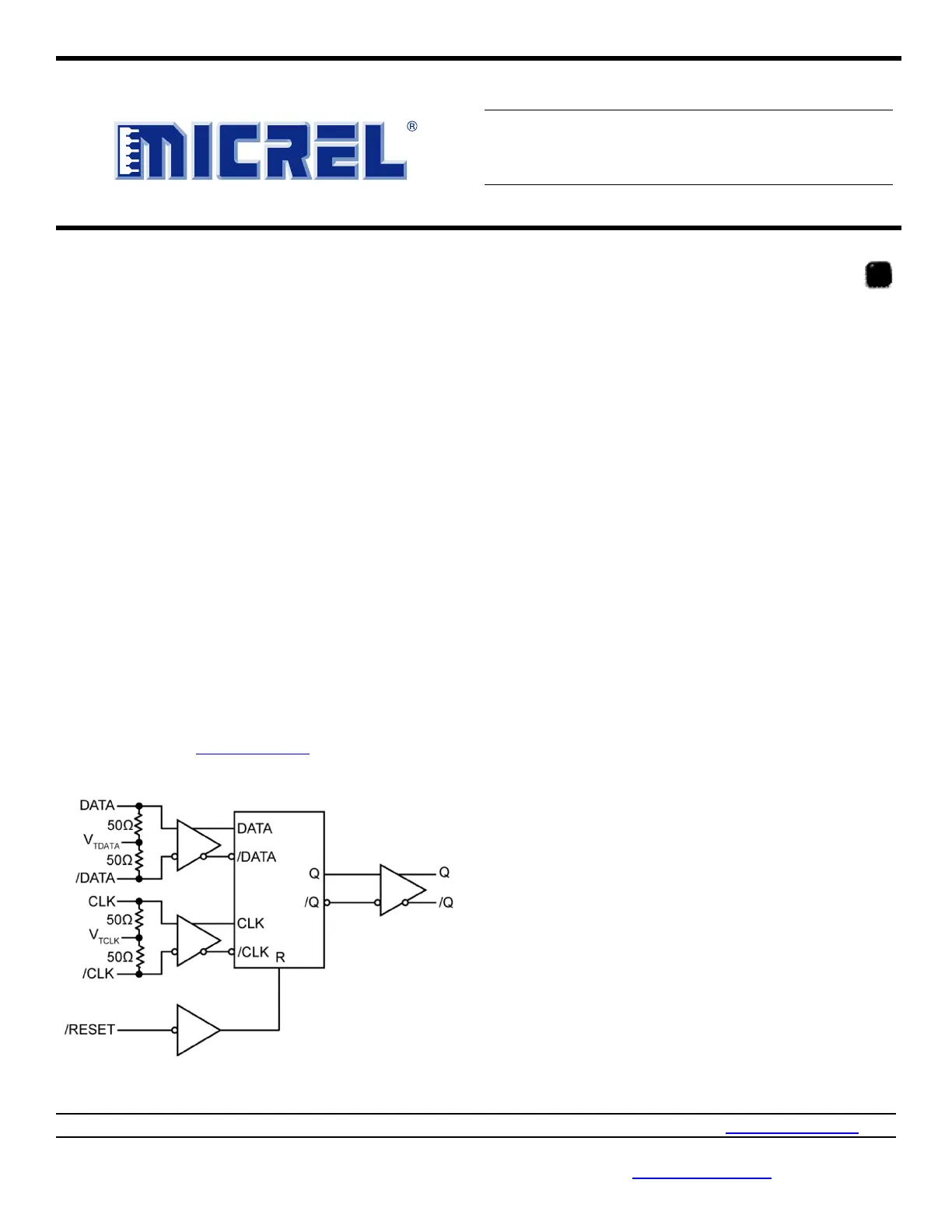

Functional Block Diagram
Precision Edge
®
Features
• Resynchronize data to a reference clock
• Guaranteed AC performance over temperature and
voltage:
− DC-to > 10.7Gbps data rate throughput
− DC-to > 10.7GHz clock f
MAX
− 160ps any in-to-out t
PD
− 30ps typical Rise/Fall time
• Ultra low-jitter design:
− 0.3ps
RMS
typical random jitter
− 3ps
PP
typical deterministic jitter (data)
− < 10ps
PP
total jitter (clock)
• Internal 50Ω input termination
• Unique input termination and V
T
pin accepts DC- and
AC-coupled inputs (CML, PECL)
• Internal 50Ω output source termination
• 400mV CML output swing
• Power supply: 2.5V ±5% or 3.3V ±10%
• −40°C to +85°C industrial temperature range
• Available in a 3mm × 3mm 16-pin QFN package
Applications
• Data communications systems
• Serial OC-192, OC192+FEC data-to-clock realignment
• Parallel 10Gbps for OC-768
• All SONET OC-3 − OC-768 applications
• Fiber channel
• Gigabit Ethernet
• ATE
• Test and measurement
Micrel, Inc.
SY58052AU
February 11, 2014
2
Revision 1.0
FOMhelp@micrel.com or (408) 955-1690
Typical Application
Ordering Information
(1)
Part Number
Package Type
Operating Range
Package Marking
Lead Finish
SY58052AUMG 3mm × 3mm QFN-16 Industrial 052A with Pb-Free Bar Line Indicator NiPdAu Pb-Free
SY58052AUMG TR
(2)
3mm × 3mm QFN-16 Industrial 052A with Pb-Free Bar Line Indicator NiPdAu Pb-Free
Notes:
1. Contact factory for die availability. Dice are guaranteed at T
A
= 25°C, DC electricals only.
2. Tape and reel.
Pin Configuration
16-Pin 3mm × 3mm QFN
