Seite 1/8

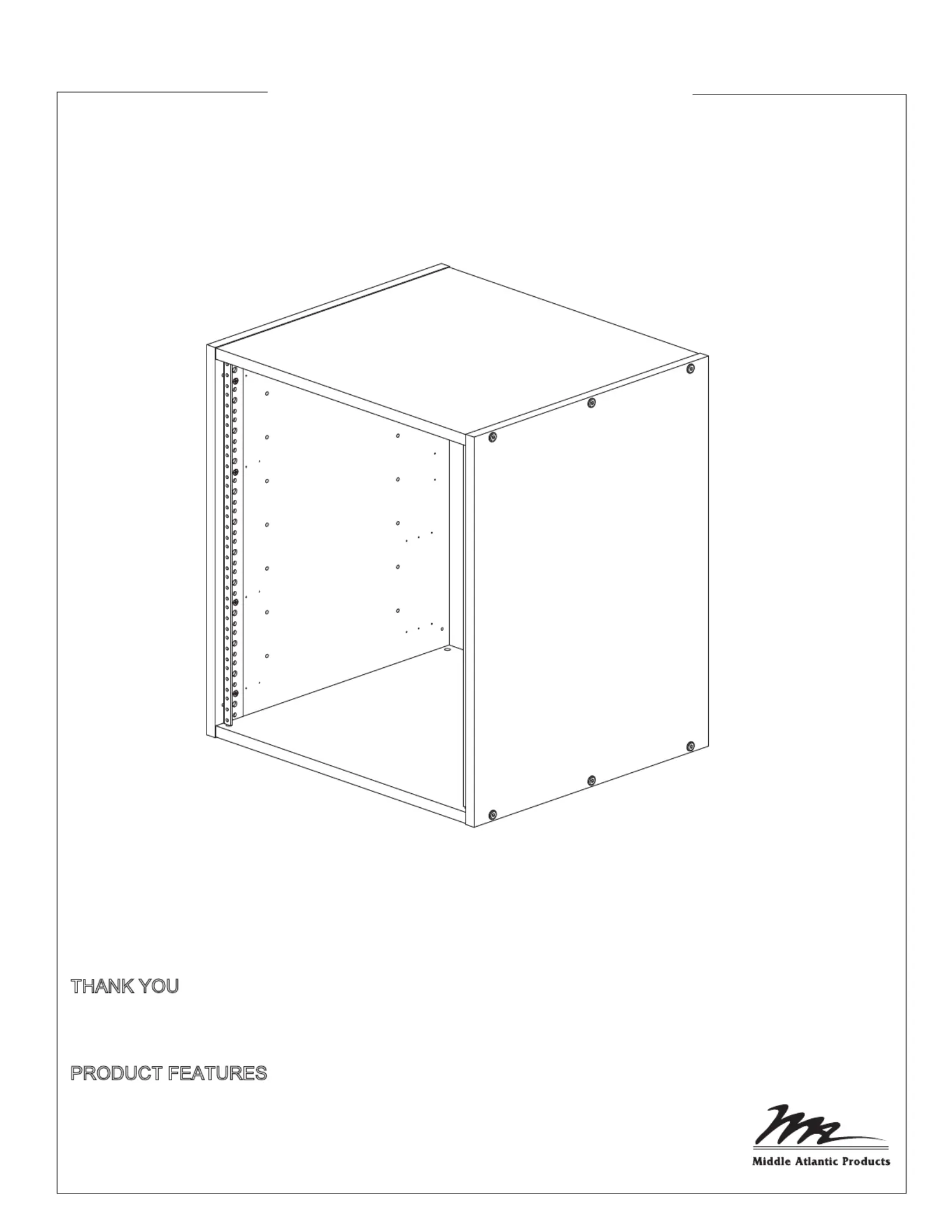

I-1101 Rev E
BRK/RK SERIES
Black Laminate Rack
Instruction Sheet
THANK YOU
Thank you for purchasing the BRK/RK Series Black Laminate Rack. Please read
these instructions thoroughly before assembling this product.
PRODUCT FEATURES
- Sturdy design
- Multiple options for full customization
Page 2

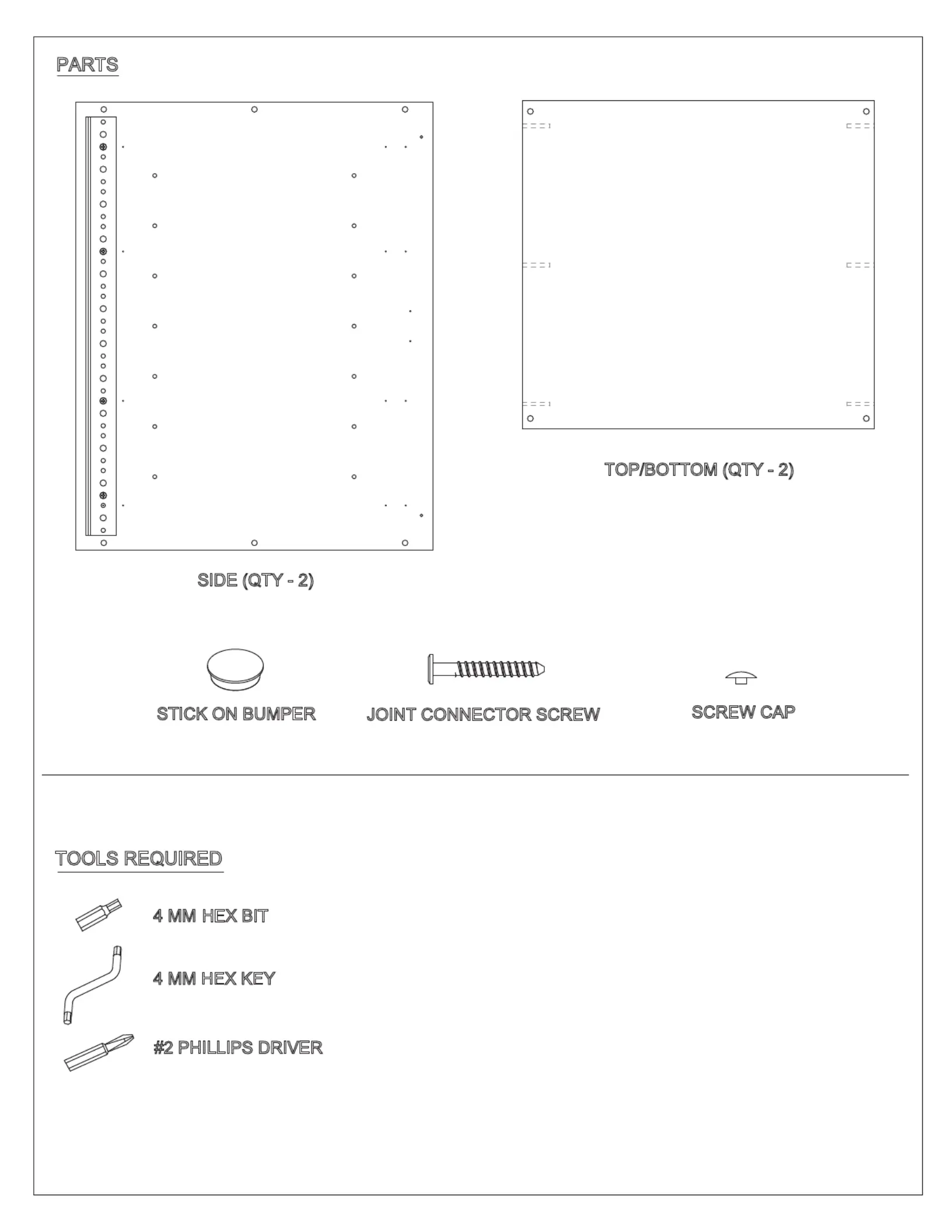

TOOLS REQUIRED
4 MM HEX BIT (Included)
4 MM HEX KEY (Included)
#2 PHILLIPS DRIVER (for options only)
SIDE (QTY - 2)
(Sides are interchangeable)
TOP/BOTTOM (QTY - 2)
(Top and Bottom are interchangeable)
PARTS
(QTY - 5 - One Extra)
JOINT CONNECTOR SCREW
(QTY - 12)
SCREW CAP
(QTY - 12)
Page 3

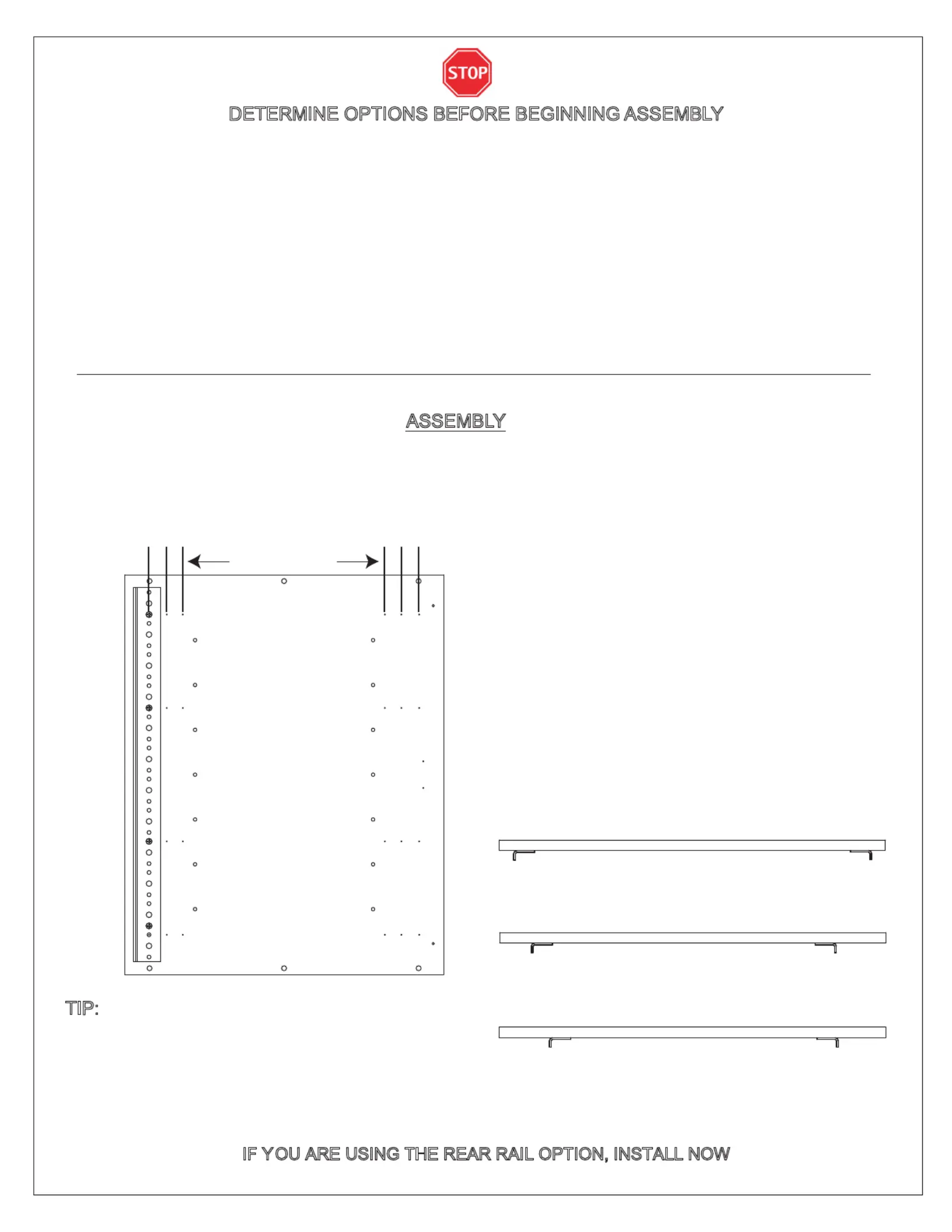

1) Lay out the sides as shown and determine rail mounting requirements. The front rackrail comes
pre-installed in mounting location 1.
TIP:
When moving the front rackrail to the
setback position, relocate and mount
the rail on the opposite side of the
panel to obscure the 1st set of
mounting holes.
IF YOU ARE USING THE REAR RAIL OPTION, INSTALL NOW
Smoked, tempered glass door, Part # - RK-GDxx
Rear rackrail, Part # - RK-RRxx
Quick-Position Shelf , Part # - SH-BRK (BRK Models only, cannot be installed with front or
Casters, Part # - RKW
P ower Strip, refer to our catalog or middleatlantic.com for a complete listing
_
_
_
_
_
Rear Access Panel, Part # - RK-RAPxx (Not available for 6 space racks)
_
100 CFM DC Fan Kit, Part # - DCFANKIT-4.
_
ASSEMBLY
DETERMINE OPTIONS BEFORE BEGINNING ASSEMBLY
3 2 11 2 3
FRONT
- If the Door (RK-GDxx) and the Rear Access
Panel (RK-RAPx) are not being used,
the front and rear rackrail can be installed
in any one of the three mounting locations.
- If the Door (RK-GDxx) and the Rear Access
Panel (RK-RAPx) are being used,
the front rackrail must be installed in
location two and the rear rackrail must be
installed in location three.
Top view showing front rackrail and rear rackrail
Top view showing front rackrail and rear rackrail
Top view showing front rackrail installed in location 2,
and rear rackrail installed in location 3
(Options not available for RK2 and RK4 models)
MOUNTING HOLE
LOCATIONS
FRONT
rear rackrail in the 3rd setback location - see below)


Produktspezifikationen

Marke: Middle Atlantic
Kategorie: Nicht kategorisiert
Modell: BRK6
Breite: 518 mm
Tiefe: 455 mm
Produktfarbe: Schwarz
Höhe: 304 mm
Material: MDF-Platten
Höchstgewichtskapazität: 90.7 kg
Verpackungsbreite: 609.6 mm
Verpackungstiefe: 533.4 mm
Verpackungshöhe: 127 mm
Paketgewicht: 11790 g
Warentarifnummer (HS): 85381000
Typ: Freistehendes Gestell
Größe (Imperial): 19 "
Nachhaltigkeitszertifikate: RoHS
Schrauben enthalten: Ja
Rack-Kapazität: 6U
Innere Breite: 452 mm
Innere Tiefe: 442 mm
Innenhöhe: 267 mm
Anzahl von Schrauben: 12
Abnehmbare Seitenpanele: Nein
