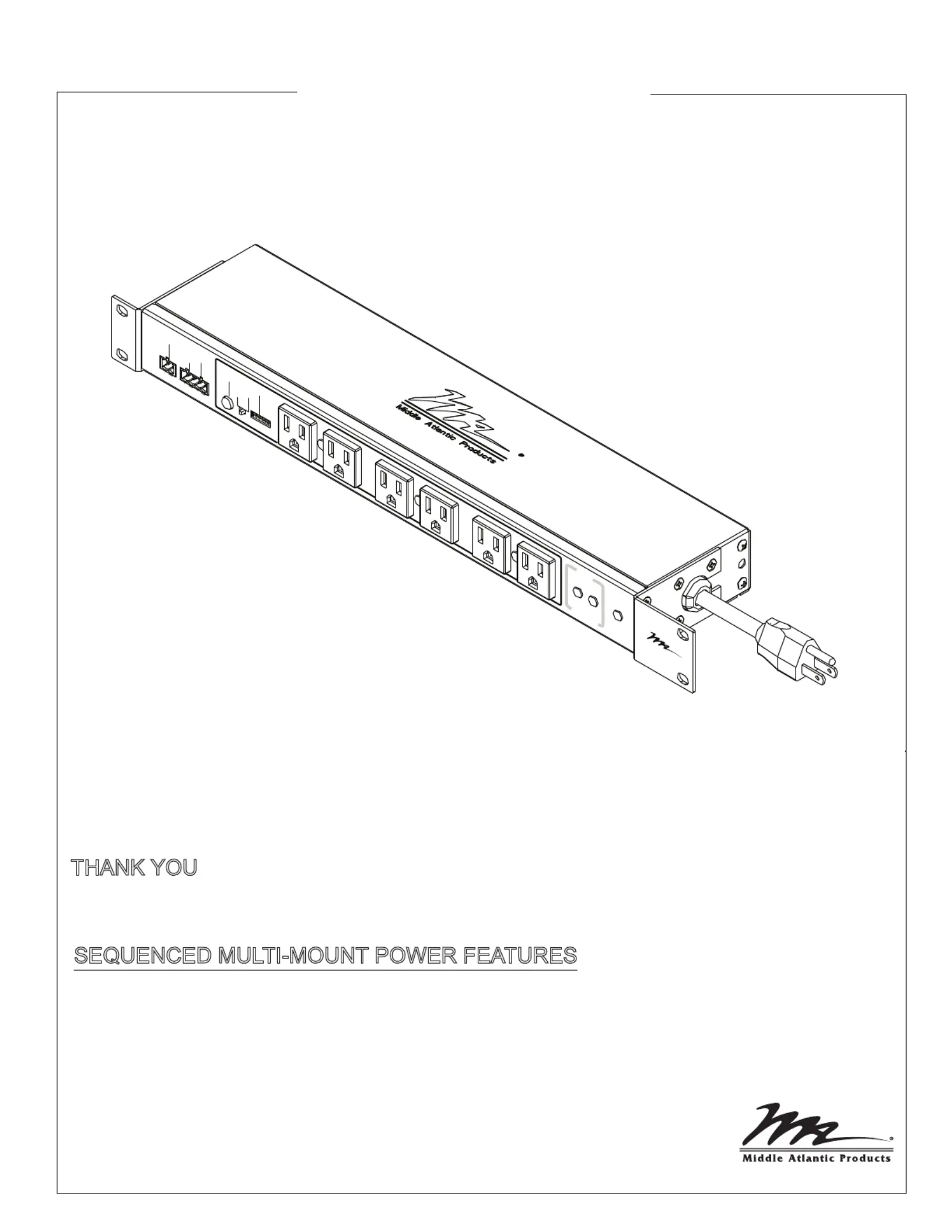

THANK YOU
Thank you for purchasing Sequenced Multi-Mount Series Power. Please read
these instructions thoroughly before installing and connecting to this product.
™
SEQUENCED MULTI-MOUNT POWER FEATURES
- 3 Step sequencing with multiple delay options
- Universal sequence control
- 2 Stages of surge and spike protection with dry contact surge status notification
based on model
- Provides a high outlet density in a compact size
- Adjustable mounting ears for flexible installation options
- Mixed outlet spacing to accommodate various plug types
I-00429 Rev E
Instruction Sheet
PDS-SERIES
SEQUENCED MULTI-MOUNT
™
STEP 3
STEP 2
STEP 1
Sequence
Up / Down
C
los ed o
n
Sequence Com
p
lete
Sequence
Compl ete
Cl
osed if
Com
prom i
se
d
n o i t c
e t o r P e g r
u
S
Status
R
em
ote
In i
t
ia te
Local
Sequence
Ini tiate
Rem
ote
Local
C
ONTROL
POWER
Sequence
Settin gs
P
ROTECTION
SURGE
DETCETORP
TIL NEHW
Stage 1 Stage
2
IMPORTANT NOTES
Page 2
DANGER HAZARDOUS VOLTAGE/DANGER HAUTE
TENSION
The lightning flash with the arrowhead symbol, within an
equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
L'éclair avec le symbole de flèche dans un triangle
équilatéral est destiné à alerter l'utilisateur de la présence
d'une tension dangereuse non isolée dans l'enceinte du
produit qui peut être d'une ampleur suffisante pour constituer
un risque de choc électrique pour les personnes.
CAUTION/
FCC STATEMENT
ATTENTION
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
Le point d'exclamation dans un triangle équilatéral est
destiné à alerter l'utilisateur de la présence d'importants
instructions d’opération et de maintenance (entretien) dans la
documentation accompagnant l'appareil.
READ AND SAVE THESE INSTRUCTIONS!
CONSERVER CES INSTRUCTIONS!
• Contains switched receptacle(s). To reduce risk of shock , disconnect the
device from the power source before servicing any connected
equipment
Contient de(s) receptacle(s) commuté(s). Pour réduire les risques
d'électrocution, débranchez l'appareil de la source d'alimentation
avant l'entretien de tout équipement connecté
• Do not overload the wall outlet where this device is being connected. Do not
overload this device. Ensure the total load to this device does not exceed that
which is listed in the specifications section of this manual
Ne surchargez pas le réceptacle de mur ou le circuit qui fournit l'énergie à ce
appareil. Ne pas surcharger cette appareil. S'assurer que la charge totale à cet
appareil ne dépasse pas celle qui est répertoriée dans la section des
spécifictions de ce manuel
• Ensure this device is connected to a properly grounded AC power source.
Ensure the device is plugged into a source providing the required 120V. Do not
use a plug adapter that defeats the ground pin of the AC plug
Assurez-vous cet appareil est connecté à une source d'alimentation C/A avec
mise à la terre. Assurez-vous cet appareil est branché sur une source
d’alimentation fournissant les nécessaires 120V. Ne pas utiliser un adaptateur
qui contrecarre la broche de terre de la prise du cordon d’alimentation
• There are no user-serviceable components within this device. Removal of the
cover from this device may present a shock hazard, and void the warranty
Il n'ya pas de composants réparables par l'utilisateur au sein de cet appareil.
Retrait de la couverture de cet appareil peut présenter un danger
d'électrocution et annuler la garantie
• To be used indoors in a dry location only
Pour être utilisé en intérieur dans un endroit sec seulement
• Do not operate with a damaged cord or plug
Ne pas faire fonctionner avec un cordon ou une prise endommagée
• Clean only with dry cloth
Nettoyer avec un chiffon sec seulement
NOTE: The MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall
remain readily operable. The socket-outlet shall be installed near the equipment and shall be easily accessible.
• lnstall power strip in a 19” EIA-310 compliant rack or cabinet.
IMPORTANT SAFETY INSTRUCTIONS
Part #
Circuit
Breaker
Breaker
Location
PDS-1615R One 15
Amp
PDS-1620R-NS One 20
Amp
# Rear
outlets
# Front
outlets
# outlets per
step
Sequence
delay (in Sec)
Cord
length
Surge Protection
Power on
Indication
6
(Sequenced)
2, with LED Status
2, with LED Status
# Sequence
steps
3
3
0, 1, 2, 6, 10,
30, 60, 90
0, 1, 2, 6, 10,
30, 60, 90
10
(Unswitched)
10
(Unswitched)
6
(Sequenced)
LED on
Front
LED on
Front
9’
9’
N/A
2 stage with N/O remote
dry contact notification
Rear
SEQUENCED MULTI-MOUNT FEATURE CHART
Rear
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to PART 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
LOCAL SEQUENCE INDICATOR - Only active when “Local / Remote” switch set to “Local”
LOCAL / REMOTE SWITCH - “Local” to enable local sequence initiate switch / “Remote” to
enable dry contact sequence control
SEQUENCE SETTINGS - Set sequence delay and control type. For more information, see
"Sequence Control Options" on page 5.
™
NEMA 5-15R SEQUENCED OUTLETS - 3 Steps, 2 outlets per step. Power status LEDs
2 STAGE SURGE PROTECTION INDICATOR - Full protection when both LEDs are lit.
Protection is compromised if one or both LEDs are not lit
POWER INDICATOR LIGHT - When lit, indicates unit is energized
4
5
6
7
8
9
13
10
11
12
7

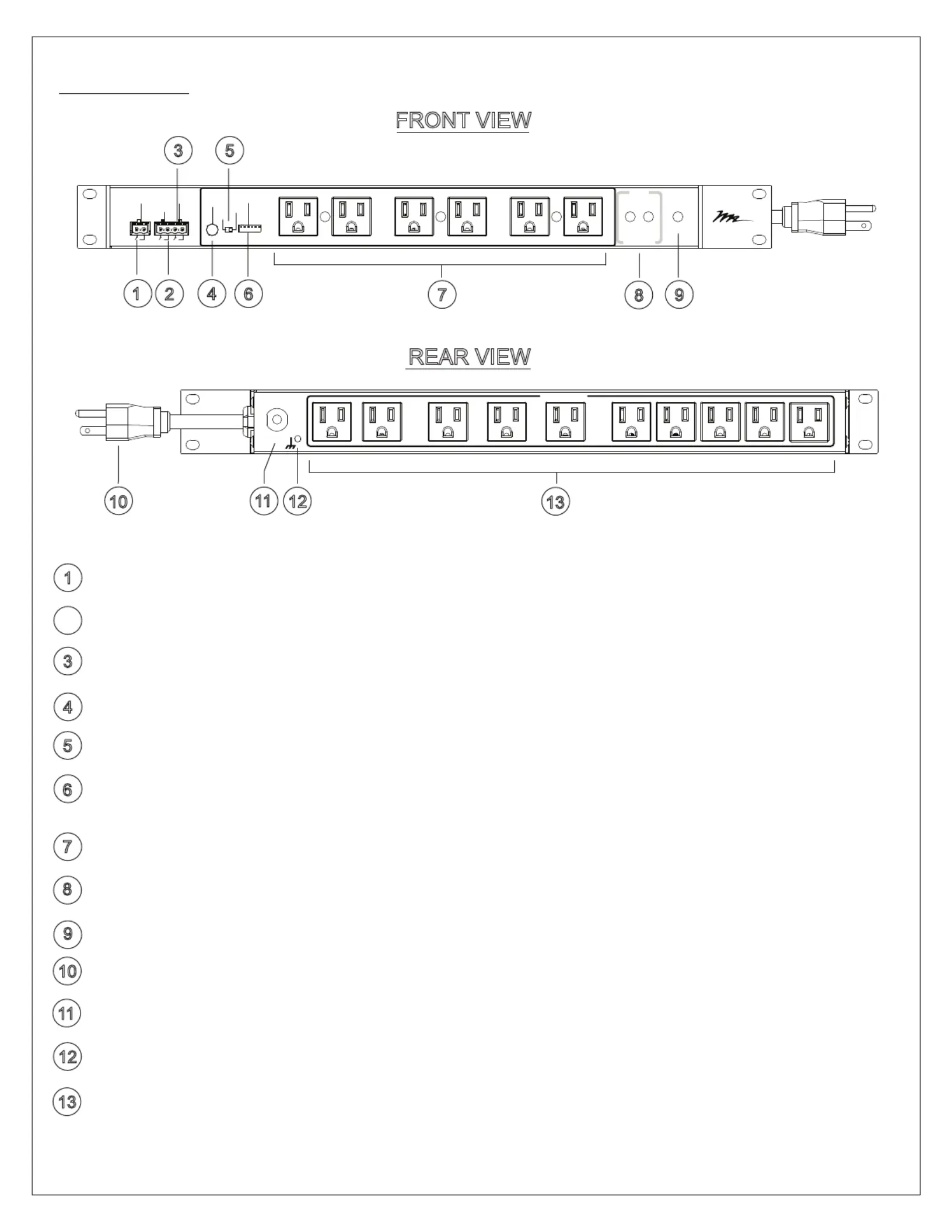

FRONT VIEW
REAR VIEW
1
2
4
6
5
8
9
SURGE PROTECTION STATUS - “Normally Open” remote notification dry contact, closed if
compromised
1
3
2
SUPPLEMENTAL BONDING POINT - Supplemental bonding of this unit to the metal
rack / enclosure helps ensure optimum performance of your electronic system
NEMA 5-15R OUTLETS - All rear outlets unswitched
12
13
9', 14 AWG, 3 CONDUCTOR (SignalSAFE ) POWER CORD WITH NEMA 5-15P PLUG
15 AMP CIRCUIT BREAKER - Provides protection for both front and rear outlets
10
11
3
STEP 3STEP 2STEP 1
Se quenc e
Up / Down
Cl o sed o n
Se quen ce Co mp lete
Se quenc e
Co m plete
Cl o sed i f
Co m prom ised
Su rge Protec tion
St atus
Remot e
Init iate
Loca l
Se que nc e
In iti ate
Re mo te
Lo c al
SEQUENCED OUTLETS
CONTROL
POWE R
Se que nc e
Se tti ng s
PROTECTION
SURGE
PR OT EC TED
WH EN LIT
St age 1
St age 2
UNSWITCHED
PDS-1615R
15A
RESET
Page 3
PDS-1615R
SEQUENCE UP / DOWN TERMINALS - Remote initiate
SEQUENCE COMPLETE TERMINALS - Closed on sequence power up , Open on
sequence power down.
