I-00636 Rev A

Installation Instructions

SNE Series

SNE Bottom Blank Plate

Panel With Two Brushed Access Points

Panel For Use With Removable Two Space Access Panel

Removable Two Space Panel

Cage Nuts

10-32 Truss Head Phillips Screws

15” Bond Wire

QTY

DESCRIPTION

1

1

1

4

8

2

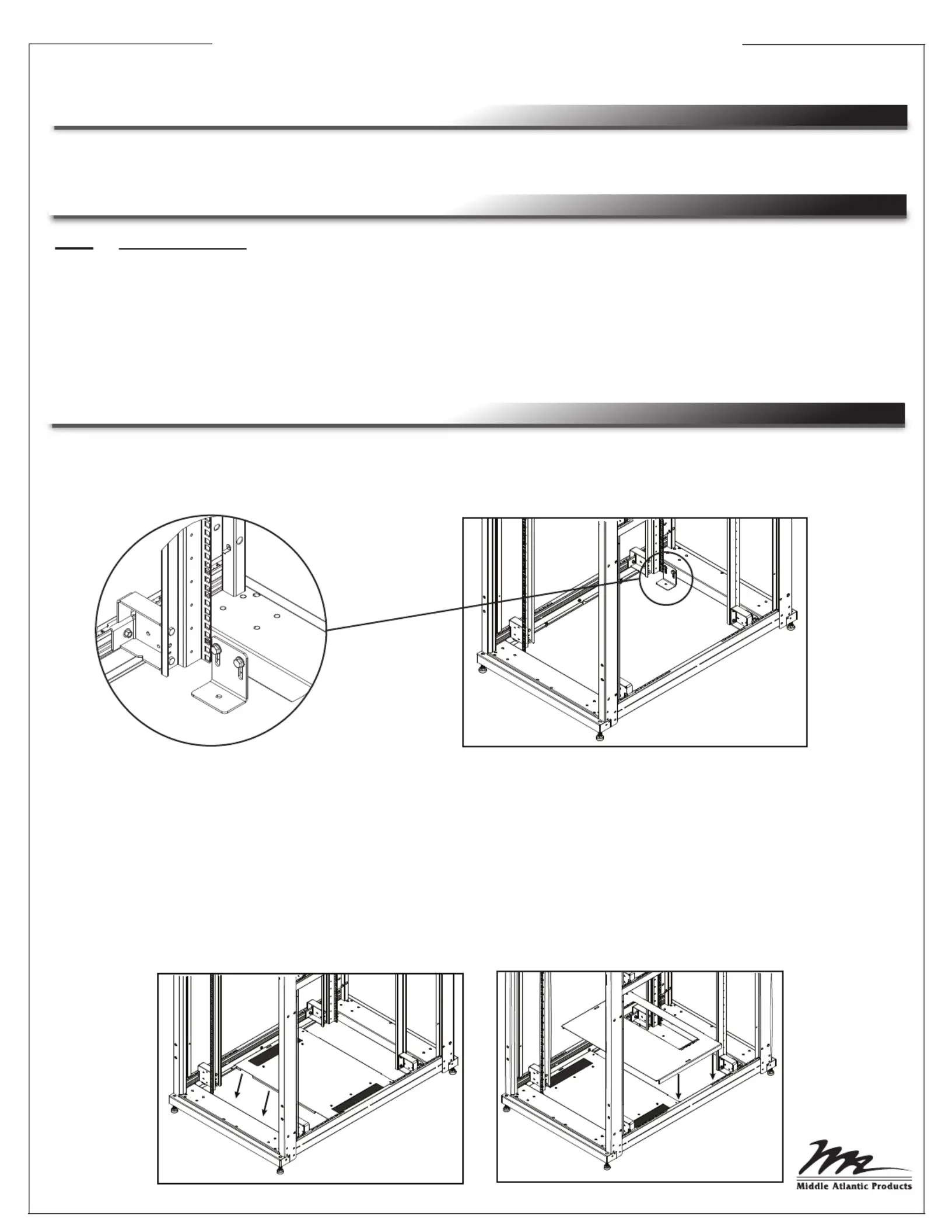

1) Using a 1/2” wrench, remove the shipping brackets, four places. (FIGURE A)

NOTE: Chimney must be positioned and secured prior to installing bottom blank plate.

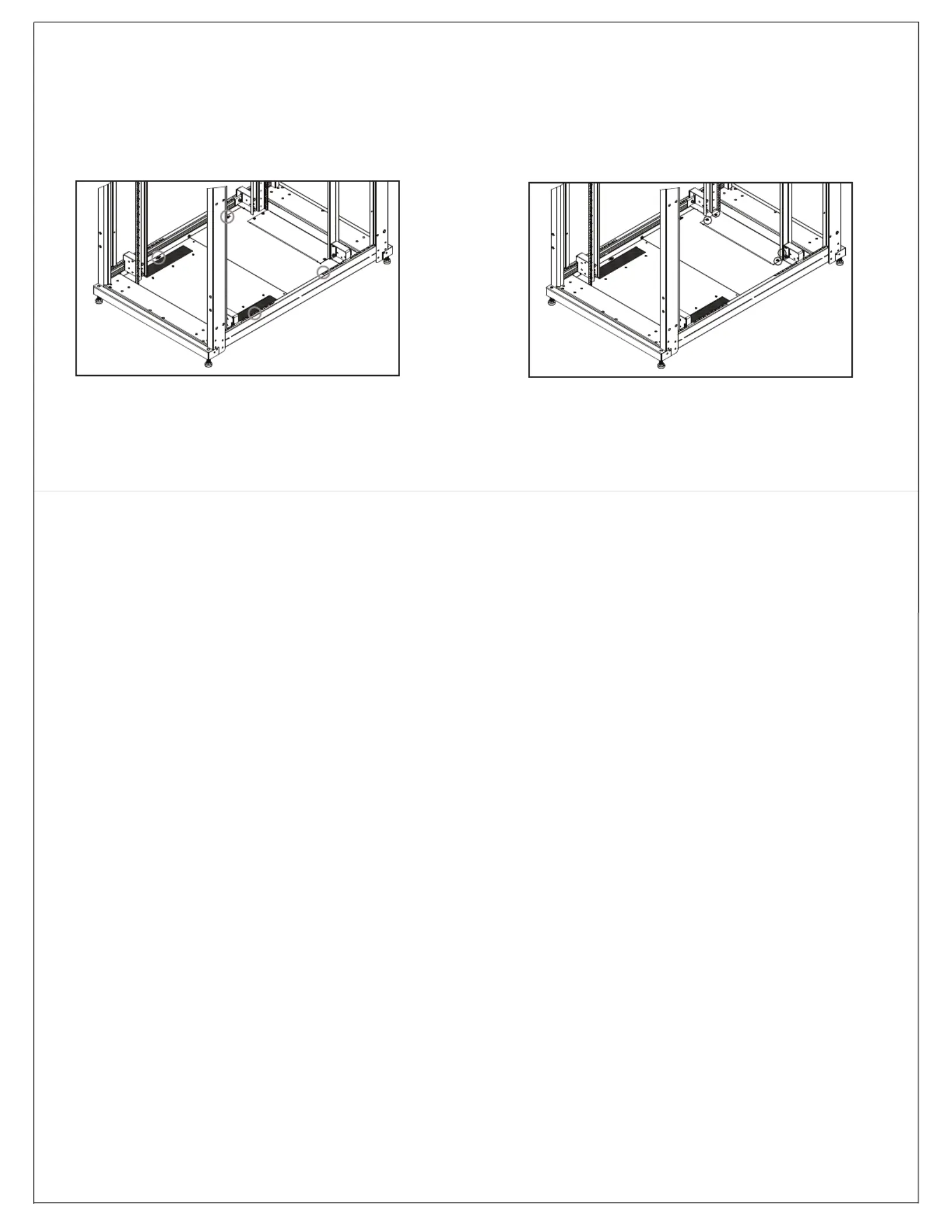

3) Place the panel with the brushes in the bottom of the enclosure first . Place the other (FIGURE B)

panel on the opposite side. The panels can be installed in either the front or back of the enclosure.

(FIGURE C)

#2 Phillips Screwdriver

1/2” Wrench

FIGURE A

FIGURE B

FIGURE C

INSTALLATION

PARTS LIST

TOOLS REQUIRED

2)Before installing panels, attach the 15” bonding conductor to the panels and SNE frame. The

bonding conductor terminates in a 10/32 ring terminal for connection to the panel and a 1/4-20 ring

terminal for connection to the protective earth terminal (PET) on the SNE frame. The main protective

earth ground needs to be the first terminal placed on the PET and this terminal needs to be secured

on its own (with nut). The bonding conductor for the base plate can be added to the PET after the

securing nut for the main ground.
