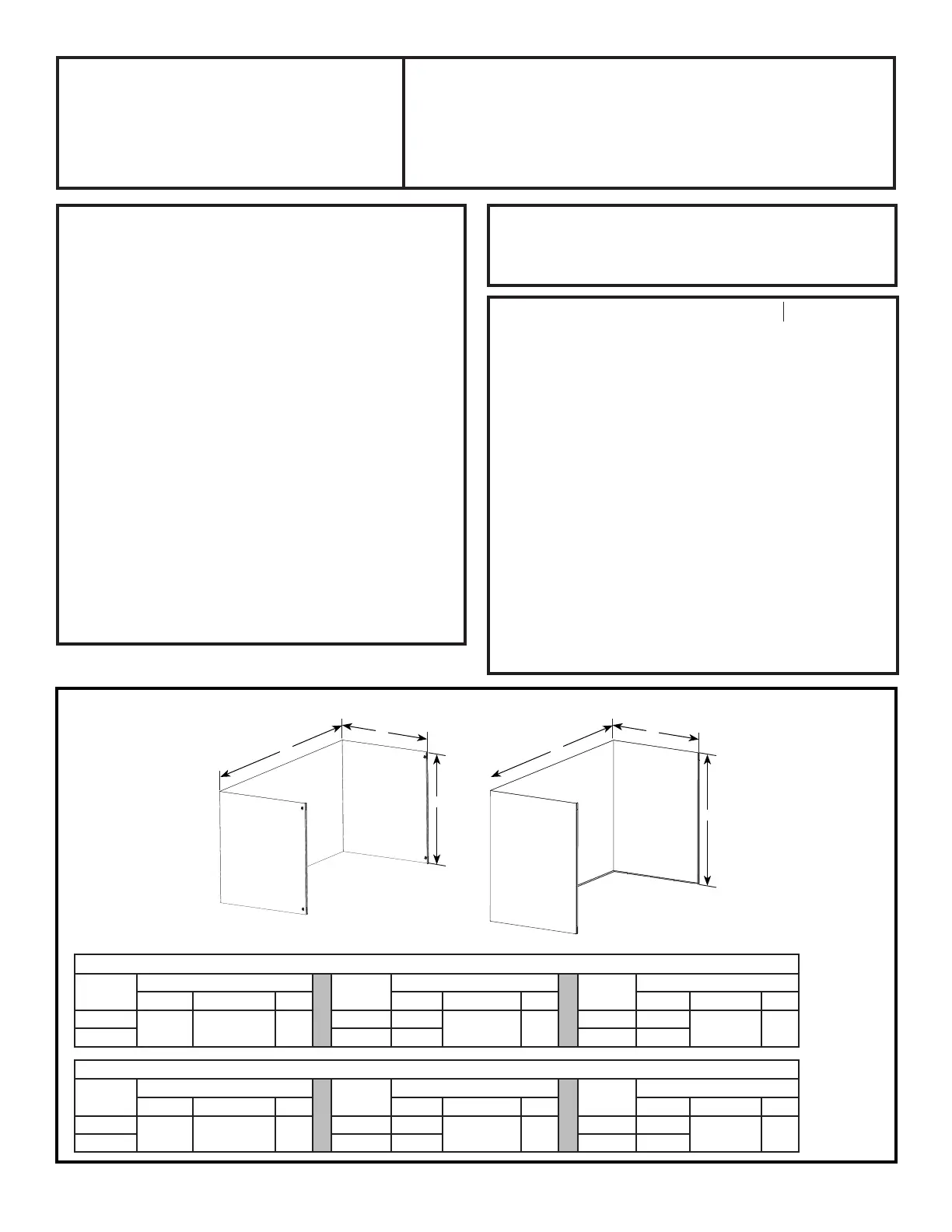

ZX8D13SPXX, ZX8D14SPXX

ZX10D13SPXX, ZX10D14SPXX

ZX12D13SPXX, ZX12D14SPXX

8’, 10’, & 12’ Duct Cover Kits

BEFORE YOU BEGIN

Read these instructions completely and carefully.

■IMPORTANT — Save these instructions

for local inspector’s use.

■IMPORTANT — Observe all governing

codes and ordinances.

■Note to Installer — Be sure to leave these

instructions with the consumer.

■Note to Consumer — Keep these instructions with

your Owner’s Manual for future reference.

■These instructions are applicable to 8’, 10’, and 12’

duct cover kit.

■The duct cover kits include an upper and a lower

duct cover.

■The upper duct cover telescopes within the lower

duct cover to reach the desired ceiling height.

■The installation hardware includes wall brackets to

secure duct covers to the wall.

Installation

Instructions

TOOLS AND MATERIALS REQUIRED

■Glovestoprotectagainstsharpedges

■Safetyglasses

■#2Phillipsscrewdrivers

■Drillwith1/8”bits

■Level

■Pencil

This Kit Includes

■UpperDuctCover

■LowerDuctCover

■2wallBrackets

■Hardwarepackagewith

-Screws3.1x9.5P013QTY:10

-WallAnchorsQTY:4

-Screw4.2x44PZ1QTY:4

31-2000879 Rev. 0 04-21GEA

NOTE: Before making any holes for installations,

determine which venting method will be used and

calculate all measurements.

H

D

W

H

D

W

UpperDuctCoverLowerDuctCover

36” Models

Duct

Cover

8’ KitDuct

Cover

10’ KitDuct

Cover

12’ Kit

HWDHWDHWD

Upper

4-1/2”23-1/4”15”

Upper17”

23-1/4”15”

Upper27”

23-1/4”15”

LowerLower20”Lower34”

48” Models

Duct

Cover

8’ KitDuct

Cover

10’ KitDuct

Cover

12’ Kit

HWDHWDHWD

Upper

4-1/2”35-1/4”15”

Upper17”

35-1/4”15”

Upper27”

35-1/4”15”

LowerLower20”Lower34”

■Seetablesbelowforproductdimensions.
