w w w . n e u t r i k . c o m

C a b l e t o C o n n e c t o r G u i d e

L o o k f o r t h e L o g o t o i d e n t i f y t h e o r i g i n a l

2 0 0 7 - 1 1

B e l d e n

CANARE

C O M M S C O P E

C A N F O R D

D R A K A M U L T I M E D I A C A B L E

G E P C O

S U H N E R

O T H E R S

L-4CFB NBNC75PLS9 NBNC75BLP9 NBNB75GLP9 6.47

L-5CFB NBNC75BYY11 8.23

LV-61S NBNC75PNS7 NBNC75BLP7 6.47

LV-77S NBNC75BYY9 8.23

V(3-5)-3C NBNC75PGE7 NBNC75BGG7 5.00

V(3-5)-4CFB NBNC75PLE9 NBNC75BJJ9 5.41

V(3-5)-5C NBNC75PVS9 NBNC75BRS9 7.01

V(3-5)-5CFB NBNC75PVS11 NBNC75BWS11 7.01

L-1.5C2VS NBTC75BLI4 4.06

2065V NBNC75PIE9 NBNC75BIJ9 5.41

2279V NBNC75PQS11 NBNC75BQP11 6.47

5563 NBNC75PNS7 NBNC75BLP7 6.47

5565 NBNC75PLS9 NBNC75BLP9 NBNB75GLP9 6.47

5765 NBNC75PTS11 NBNC75BTU11 7.36

7536 (03-05) NBTC75BXX6 5.00

7538 NBNC75PDE6 NBNC75BDD6 4.53

1277R, 1278R, 1279R NBTC75BNN5 4.53

1406B, 1407B, 1417B NBTC75BVV5 5.00

1426A NBNC75PLS9 NBNC75BLP9 NBNB75GLP9 6.47

1505A NBNC75PLS9 NBNC75BLP9 NBNB75GLP9 6.47

1505F NBNC75PLS9 NBNC75BJP9 6.47

1506A NBNC75PIE9 NBNC75BIJ9 5.41

1520A, 1521A, 1522A, 179DT NBTC75BFI4 NBTB75CFI4 4.06

1694A NBNC75PTS11 NBNC75BTU11 7.36

1694F NBNC75PTS11 NBNC75BTY11 8.23

1695A NBNC75PQS11 NBNC75BQP11 6.47

1855A NBNC75PDE6 NBNC75BDD6 4.53

1865A NBTC75BXX6 5.00

1855ENH NBNC75PFE7 NBNC75BFG7 5.00

7731A NBLC75BVZ17 9.73

8218 NBTC75BXX5 5.00

8241 NBNC75PNS7 NBNC75BLP7 6.47

8241F NBNC75PLS9 NBNC75BLP9 NBNB75GLP9 6.47

8281 NBNC75BXY9 8.23

8281F NBNC75BYY9 8.23

9221 NBTC75BLI4 4.06

SDV, SDM NBNC75PFE7 NBNC75BFG7 5.00

SDV-L, SDV-F NBNC75PVS11 NBNC75BWS11 7.01

SDV-HD NBLC75BVZ17 9.73

SDV-F-HD NBNC75BWU13 7.36

VPM2000 NBNC75PLS9 NBNC75BLP9 NBNB75GLP9 6.47

VSD2001 NBNC75PTS11 NBNC75BTU11 7.36

G02233 NBTC75BFI4 NBTB75CFI4 4.06

G04233D NBNC75PNS7 NBNC75BLS7 7.01

S02223 NBTC75BLI4 4.06

S04233, S04263 NBNC75PLS9 NBNC75BLP9 NBNB75GLP9 6.47

S05133-07 NBNC75PTS11 NBNC75BTU11 7.36

S05163-02 NBNC75PTS11 NBNC75BTU11 7.36

Push Rear Rear Twist Cable Jack Cable Jack Hex Crimp

Pull Twist Tiny Tiny Panel in mm

Push Rear Rear Twist Cable Jack Cable Jack Hex Crimp

Pull Twist Tiny Tiny Panel in mm

0.31 / 1.45 AF, 753-1304(2), 755-1302 NBTC75BFI4 NBTB75CFI4 4.06

0.41 / 1.9 AF, 753-1104, 755-1103, 755-1101 NBTC75BNN5 NBTB75CNN5 4.53

0.51 / 2.3 Dz, 757-1001, VADN 7243 NBTC75BVX6 5.00

0.6 / 2.8 AF, 0.6 L / 2.8 AF NBNC75PFE7 NBNC75BFG7 5.00

0.6 / 3.7, 0.6L / 3.7 NBNC75PNS7 NBNC75BLP7 6.47

0.6 / 3.7 Dz NBNC75PNS7 NBNC75BLS7 7.01

0.8 / 3.7 AF, 755-801(803, 804) NBNC75PLS9 NBNC75BLP9 NBNB75GLP9 6.47

0.8 / 4.9 Dz NBNC75BXY9 8.23

1.0 / 4.8 AF, 755-901/5, Image 1000 NBNB75PTS11 NBNC75BUU11 NBNB75GUU11 7.36

1.2L / 4.8Dz, 1.2L / 4.95AF NBNC75BWU13 7.36

1.4 / 6.6 AF NBLC75BSX14 9.73

1.6 / 7.3AF NBLC75BVZ17 9.73

AT&T 735

COMM-TEC RGBHV

NBTC75BSS5 4.53

BBC PSF 1/3* NBNC75PNS7 NBNC75BLS7 7.01

CAE MC75 NTBC75BLI5 NBTB75CLI5 4.06

CAE MC75.39 NBTC75BVX6 5.00

CAE KX6A NBNC75PNS7 NBNC75BLP7 6.47

CAE VCB75 NBNC75PNS9 NBNC75BNP9 6.47

CAE VCB 100 NBNC75BXU13 7.36

Cordial CVI 3-7 NBNC75PFE7 NBNC75BFG7 4.53

Cordial CVI 06-28 NBNC75PFE7 NBNC75BFG7 5.00

Cordial CVI (CVM) 06-37 NBNC75PNS7 NBNC75BLP7 6.47

COVID CVD 1300-1500 NBTC75BLI5 NBTB75CLI5 4.06

ELF Inc. cable NBNC75PTS11 NBNC75BWS11 7.01

Eupen 705 CRT 5V-HS/ELF

Inc. Cable

NBNC75PTS11 NBNC75BTS11 7.36

Extron BNC-5HR NBTC75BNN5 NBTB75CNN5 4.53

Extron BNC-5RC NBNC75PGE7 NBNC75BFG7 5.00

Helix 734 NBNC75PNS9 NBNC75BNP9 6.47

Helix 735 NBTC75BSS5 4.53

Hirschmann KOKA 712Cu NBNC75PTS9 NBNC75BTS9 6.47

Kansai 0.5M3C-2V NBNC75PGE7 -

Kansai 3C-5S NBNC75PFE6 NBNC75BFH6 5.00

KLOTZ

V06/28, VMXx75Y NBNC75PFE7 NBNC75BFG7 5.00

V06/37 NBNC75PNS7 NBNC75BLP7 6.47

V10/48 NBNB75PTS11 NBNC75BUU11 NBNB75GUU11 7.36

V16/72 NBLC75BVZ17 9.73

KROSCHU (341 270, 341 280) NBTC75BLI4 4.06

Nexans

HF 75 0.6/2.9 02YS(ST)CH NBNC75BFG7 5.00

HF 75 1.6/7.2 02Y(ST)C(ST)H NBNC75BVZ17 9.73

HF 75 0.6/3.7 2YCY NBNC75BLP7 6.47

RG11 NBLC75BVZ17 9.73

RG59B/U NBNC75PNS7 NBNC75BLP7 6.47

RG179B/U NBTC75BLI4 4.06

SOMMER

600-0051 (M/L/S) NBNC75PNS7 NBNC75BLP7 6.47

600-0054 (M/L/S) NBNC75PNS7 NBNC75BLP7 6.47

600-0101M NBNC75PFE7 NBNC75BFG7 5.00

600-0104M NBNC75PFE7 NBNC75BFG7 5.00

600-162(F) NBNC75PLS9 NBNC75BLP9 6.47

600-025* -03 (05)

600-0701

600-020* -03 (05)

NBTC75BLI5 NBTB75CLI5 4.06

600-0451 NBNC75PLS9 NBNC75BLP9 NBNB75GLP9 6.47

600-0751 NBTC75BVX6 5.00

Wisi MK 99A NBNC75PVS12 NBNC75BWS12 7.01

ZNK CM14B NBTC75BFI4 NBTB75CFI4 4.06

* Registered trademark of BBC

w w w . n e u t r i k . c o m

C o n n e c t o r t o C a b l e G u i d e

F o r f u r t h e r t e c h n i c a l i n f o r m a t i o n p l e a s e r e f e r t o w w w . n e u t r i k . c o m

2 0 0 7 - 1 1

Pin crimp Hex crimp Inner

Insulator Cable O.D. Cable Type

mm (square) mm Conductor

P U S H P U L L

NBNC75PDE6 1.6 N / A

0.6

2.65 4.0 - 5.0 Belden 1855A; CommScope 7538

NBNC75PFE6 1.6 N / A

0.6

2.85 4.0 - 5.0 Kansai 3C-5S

NBNC75PFE7 1.6 N / A

0.7

2.85 4.0 - 5.0 Belden 1855ENH; Cordial CVI 06-28, CVI 3-7; Canford SDM, SDV-LFH; Draka 0.6/2.8 AF, 0.6L/2.8 AF; Sommer 600-0101M, 600-0104M, KLOTZ V06/28, VMXx75Y

NBNC75PGE7 1.6 N / A

0.7

3.2 4.0 - 5.0 Canare V(3-5)-3C; Extron BNC-5RC

NBNC75PIE9 1.6 N / A

0.9

3.5 4.0 - 5.0 Belden 1506A; CommScope 2065V

NBNC75PLE9 1.6 N / A

0.9

3.65 4.0 - 5.0 Canare V(3-5)-4CFB

NBNC75PLS9 1.6 N / A

0.9

3.65 6.0 - 7.0 Belden 1505A, Belden 1505F; 8241F; CommScope 5565; Canare L-4CFB; Draka 0.8/3.7 AF, 755-801 (803,804); Gepco VPM2000; Suhner S04263; Sommer 600-0451, 600-162(F), 804)

NBNC75PNS7 1.6 N / A

0.7

3.75 6.0 - 7.0 Belden 8241; BBC PSF 1/3, CAE KX6A; CommScope 5563; Cordial CVI (CVM) 06-37; Suhner G04233D; Canare LV-61S; RG59B/U; Draka 0.6/3.7, 0.6/3.7 Dz, 0.6L/3.7;

Sommer 600-0051 (M,L,S), 600-0054 (M,L,S), KLOTZ V06/37

NBNC75PNS9 1.6 N / A

0.9

3.75 6.0 - 7.0 CAE VCB75; Helix 734

NBNC75PQS11 1.6 N / A

1.1

4.3 6.0 - 7.0 Belden 1695A; CommScope 2279V

NBNC75PTS9 1.6 N / A

0.9

4.6 6.0 - 7.0 Hirschmann KOKA 712Cu

NBNC75PTS11 1.6 N / A

1.1

4.6 6.0 - 7.0 Belden 1694A, 1694F; CommScope 5765; Draka 1.0/4.8 AF, 755-901/5, Image 1000; Eupen 705 CRT 5V-HS; Gepco VSD2001; Suhner S05133-07 S05163-02, KLOTZ V10/48

NBNC75PVS9 1.6 N / A

0.9

4.9 6.0 - 7.0 Canare V(3-5)-5C

NBNC75PVS11 1.6 N / A

1.1

4.9 6.0 - 7.0 Canare V(3-5)-5CFB; Canford SDV-F, SDV-L

NBNC75PVS12 1.6 N / A

1.2

4.9 6.0 - 7.0 Wisi MK 99A

R E A R T W I S T

NBLC75BVZ17 1.75 (Hex crimp) 9.73

1.7

8.0

10.4 Belden 7731A; Canford SDV-HD; Draka 1.6/7.3AF; KLOTZ V16/72; RG11; Nextans HF 75 1.6/7.2 02Y(ST)C(ST)H

NBLC75BSX14 1.75 (Hex crimp) 9.73

1.4

6.6

9.5 Draka 1.4 / 6.6 AF

NBNC75BDD6 1.6 4.53

0.6

2.8

4.3 Belden 1855A; CommScope 7538

NBNC75BFG7 1.6 5.00

0.7

3.1

4.7 Belden 1855ENH; Canford SDM, SDV-S-LFH; Cordial CVI 06-28, CVI 3-7; Draka 0.6/2.8 AF, 0.6L/2.8 AF; Extron BNC-5RC; Sommer 600-0101M, 600-0104M,

KLOTZ V06/28, VMXx75Y; Nexans HF 75 0.6/2.9 02YS(ST)CH

NBNC75BFH6 1.6 5.00

0.6

3.1

4.9 Kansai 3C-5S

NBNC75BGG7 1.6 5.00

0.7

3.2

4.7 Canare V(3-5)-3C

NBNC75BIJ9 1.6 5.41

0.9

3.6

5.3 Belden 1506A,;CommScope 2065V

NBNC75BJJ9 1.6 5.41

0.9

3.8

5.3 Canare V(3-5)-4CFB

NBNC75BJP9 1.6 6.47

0.9

3.8

6.3 Belden 1505F

NBNC75BLP7 1.6 6.47

0.7

3.8

6.3 Belden 8241; CAE KX6A; Canare LV-61S; Cordial CVI (CVM) 06-37; CommScope 5563; Draka 0.6/3.7, 0.6L/3.7 ; RG59B/U; Sommer 600-0051 (M,L,S), 600-0054 (M,L,S),

KLOTZ V06/37; Nextans HF 75 0.6/3.7 2YCY

NBNC75BLP9 1.6 6.47

0.9

3.8

6.3 Belden 1505A, 8241F; Canare L-4CFB; CommScope 5565; Draka 0.8/3.7 AF, 755-801 (803, 804); Gepco VPM2000; Suhner S0426; Sommer 600-0451, 600-162(F)

NBNC75BLS7 1.6 7.01

0.7

3.8

6.9 BBC PSF 1/3; Draka 0.6/3.7 Dz, 755-801 (803, 804); Suhner G04233D (PTT 6010)

NBNC75BNP9 1.6 6.47

0.9

4.1

6.3 CAE VCB75; Helix 734

NBNC75BQP11 1.6 6.47

1.1

4.5

6.3 Belden 1695A; CommScope 2279V

NBNC75BRS9 1.6 7.01

0.9

4.8

6.9 Canare V(3-5)-5C

NBNC75BTS9 1.6 7.01

0.9

4.7

6.9 Hirschmann KOKA 712Cu

NBNC75BTS11 1.6 7.01

1.1

4.7

6.9 Eupen 705 CRT 5V-HS

NBNC75BTU11 1.6 7.36

1.1

4.7

7.3 Belden 1694A; CommScope 5765; Gepco VSD2001; Suhner S05163-02, 05133-07

NBNC75BUU11 1.6 7.36

1.1

4.7

7.3 Belden 1694A; CommScope 5765; Gepco VSD2001; Suhner S05163-02, 05133-07

NBNC75BTY11 1.6 8.23

1.1

4.7

8.0 Belden 1694F

NBNC75BWS11 1.6 7.01

1.1

5.1

6.9 Canare V(3-5)-5CFB; Canford SDV-L, SDV-F

NBNC75BWS12 1.6 7.01

1.2

5.1

6.9 Wisi MK 99A

NBNC75BWU13 1.6 7.36

1.4

5.1

7.3 Canford SDV-F-HD; Draka 1.2L/4.8Dz, 1.2L/4.95AF

NBNC75BXU13 1.6 7.36

1.4

5.1

7.3 CAE VCB 100

NBNC75BXY9 1.6 8.23

0.9

5.1

8.0 Belden 8281; Draka 0.8/4.9Dz

NBNC75BYY9 1.6 8.23

0.9

5.2

8.0 Belden 8281F; Canare LV-77S

NBNC75BYY11 1.6 8.23

1.1

5.2

8.0 Canare L-5CFB

R E A R T W I S T T I N Y

NBTC75BFI4 1.6 4.06

0.4

1.6

2.9 Belden 1520A, 1521A, 1522A, 179DT; Draka 0.31/1.45 AF, 753-1304(2), 755-1302; Suhner G02233, ZNK CM14B

NBTC75BLI4 1.6 4.06

0.4

1.8

2.9 Canare L-1.5C2VS; Suhner S02223; Kroschu (341 270, 341 280); RG 179 B/U; Sommer 600-025-03 (05)

NBTC75BLI5 1.6 4.06

0.5

1.8

2.9 CAE MC75; Procom; Sommer 600-0701, 600-20-03 (05), 600-025-03 (05)

NBTC75BNN5 1.6 4.53

0.5

2.0

3.1 Belden 1277R, 1278R, 1279R; Draka 0.41/1.9AF, 753-1104, 755-1103; Extron BNC-5 HR(P) (Bulk), BNC-5RC

NBTC75BSS5 1.6 4.53

0.5

2.3

3.4 AT&T 735; CommTech RGBHV

NBTC75BVV5 1.6 5.00

0.5

2.5

3.8 Belden 1406B, 1407B, 1417B

NBTC75BVX6 1.6 5.00

0.6

2.5

4.0 CAE NC75.39; Draka 755-1001 (0.51/2.3Dz), 757-1001; Sommer 600-0751; VADN 7243

NBTC75BXX5 1.6 5.00

0.5

2.6

4.0 Belden 8218

NBTC75BXX6 1.6 5.00

0.6

2.6

4.0 Belden 1865A; CommScope 7536

C A B L E J A C K S ( T I N Y & P A N E L V E R S I O N )

NBTB75CFI4 1.6 4.06

0.4

1.6

2.9 Belden 1520A, 1521A, 1522A, 179DT; Draka 0.31/1.45 AF, 753-1304(2), 755-1302; Suhner G02233; ZNK CM14B

NBTB75CNN5 1.6 4.53

0.5

2.0

3.1 Draka 0.41/1.9 AF, 753-1104, 755-1101; 755-1103; Extron BNC 5 HR(P) (Bulk)

NBTB75CLI5 1.6 4.06

0.5

1.8

2.9 CAE MC75; Sommer 600-0701, 600-20-03 (05), 600-025-03 (05)

NBNB75GLP9 1.6 6.47

0.9

3.8

6.3 Belden 1505A, 8241F; Canare L-4CFB; CommScope 5565; Draka 0.8/3.7 AF, 755-801 (803, 804); Gepco VPM2000; Suhner S04263; Sommer 600-0451

NBNB75GUU11 1.6 7.36

1.1

4.9

7.3 Draka 1.0/4.8AF, 755-901/5, Image 1000, KLOTZ V10/48

NBNB75ILP9 1.6 6.47

0.9

3.8

6.3 Belden 1505A, 8241F; Canare L-4CFB; CommScope 5565; Draka 0.8/3.7 AF, 755-801 (803, 804); Gepco VPM2000; Suhner S04263; Sommer 600-0451

NBNB75IUU11 1.6 7.36

1.1

4.9

7.3 Draka 1.0/4.8AF, 755-901/5, Image 1000, KLOTZ V10/48

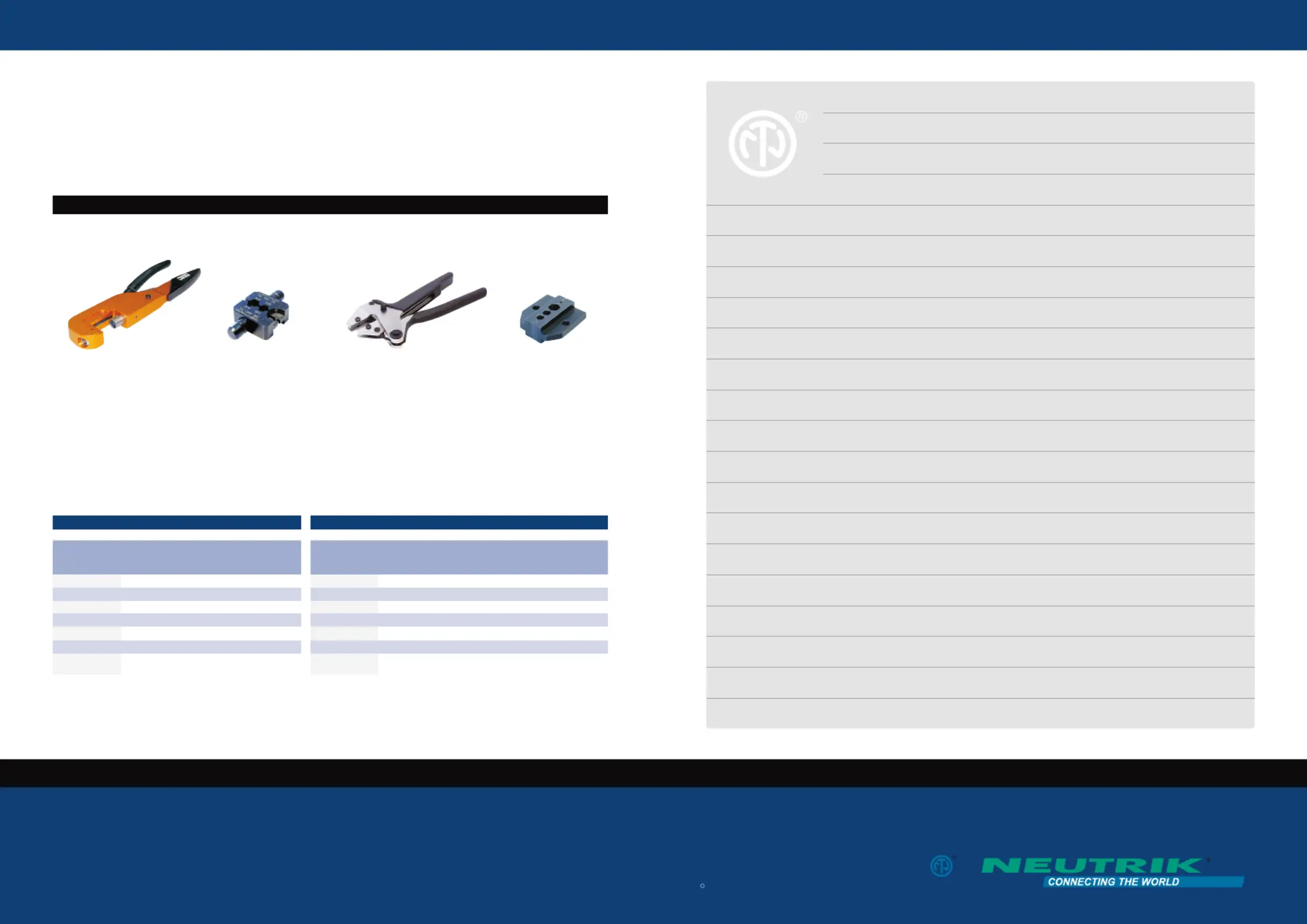

C r i m p t o o l s

Q u a l i t y T h i n k i n g – Q u a l i t y D e s i g n

T o o l s , C r i m p d i e

HX-R-BNC DIE-R-BNC

Crimp tool, frame. Crimp tool die for pin

and shield for HX-R-

BNC.

HX-BNC DIE-BNC

Crimp tool, frame (heavy duty). Crimp tool die for pin and

shield for HX-BNC.

BNC Cable List - 2007-11-12

Data subject to change without prior notice.

2007 NEUTRIK
