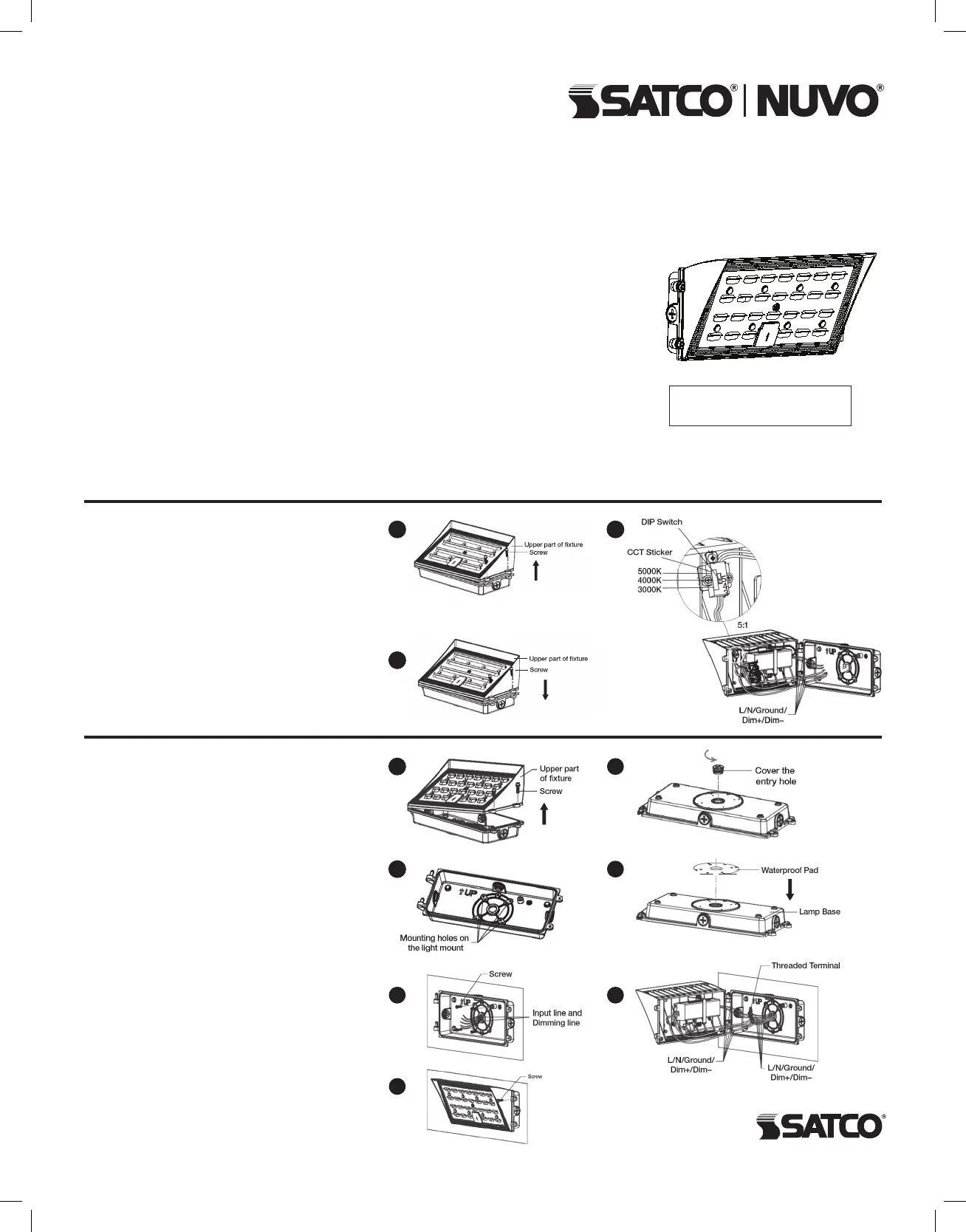

STEP 1: Use a screwdriver to unscrew the lamp

screws and remove the upper part of the xture.

STEP 2: Unscrew the cover of the entry hole on

the lamp base and remove the cover.

STEP 3: According to the embedded terminal

box, punch the corresponding mounting hole

on the light’s mount.

STEP 4: Tear off the adhesive paper of the

waterproof pad and stick the waterproof pad

to the lamp base.

STEP 5: Put the input line and dimming line

from the embedded junction box through the

lamp base and then screw the lamp base to

the embedded junction box.

STEP 6: Install the upper half of the xture on

the lamp base, then use the threaded terminal

to connect L, N, ground wire, dim+ and dim–

separately. Next, plug the threaded terminals

into the embedded junction box.

STEP 7: Close the lamp body and tighten with

screws to complete the installation.

WARNING: Risk of Fire or Electric Shock

• To reduce the risk of re, electrical shock or injury to persons; read and follow all warnings

and installation instructions before installing.

• All installation should be performed by a qualied electrician.

• To avoid electric shock, ensure power is turned off before installation or inspection.

All wiring must be installed in accordance with Electrical Code and local electrical code.

• To prevent re, this xture is rated for use in 120-277V, 50-60Hz protected circuit and

105°C rated supply wire.

• To prevent product malfunction and/or electrical shock, this product must be properly

grounded.

• To avoid damage and/or product malfunction, do not modify the xture or replace

accessories without conrming with the supplier rst.

• To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal

or other sharp objects.

• Suitable for wet locations.

IMPORTANT:This product must be installed in accordance with the applicable installation code by a person familiar with the

construction and operation of the product and the hazards involved.

STEP 1: Remove screws with screw driver,

unscrew the upper part from xture.

STEP 2: Open xture, set up CCT through inside

DIP Switch, default switch gear is 4000K, dial

downward for positioning 3000K, dial upward for

5000K, dial to middle for 4000K. Users can dial

to positions for the CCT needed.

STEP 3: Close the xture after selecting CCT,

tighten the upper part to the back cover with

screws, CCT adjustment is done.

CCT SELECTABLE SEMI CUTOFF

LED WALL PACK

Models: 65/674, 65/675, 65/676

Satco Products, Inc.

Brentwood, NY 11717

CCT INSTRUCTIONS

INSTALLATION

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

© Copyright 2020 Satco Products, Inc. 5/20

4

2

Dimensions

320mmW x 148mmH x 133mmD
