1. HDMI Extender
Sender
DC 5V
HDM I IN
LAN TX
HDMI Extender
User Manual
IMPORTANT SAFETY INSTRUCTIONS
1. Do not unplug the device ,when it is in using,keep distance from inflammable
and explosive devices.
2. Power Supply :DC 5V ,Use only the supplied power supply unit ,Do not use the
power supply if it is damaged.

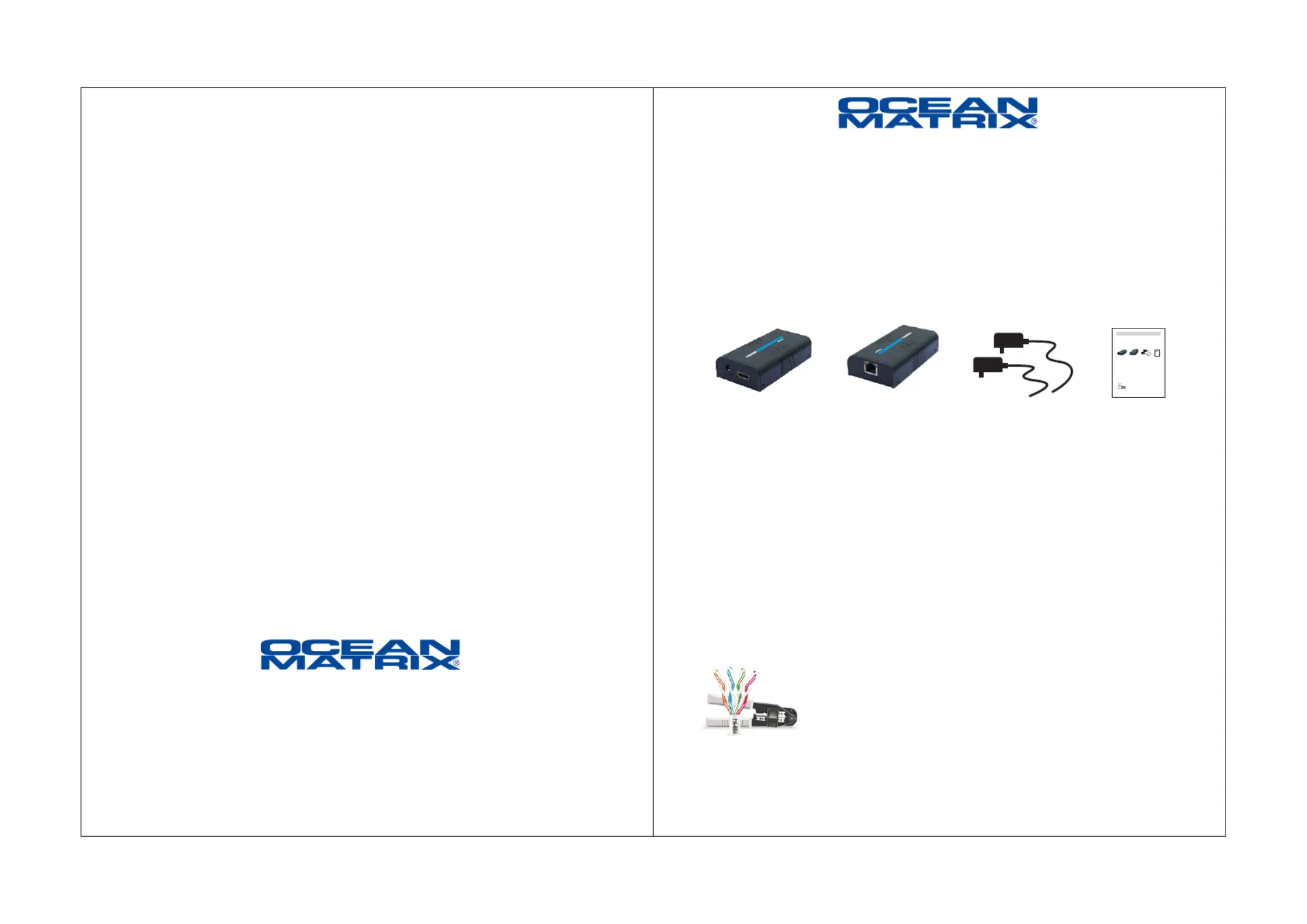

I. Package Contents
3. DC 5V/1A Power
Adapter x 2pc
2. HDMI Extender
Receiver
4. User Manual
1. Extends HDMI up to 100 meters for 1080p over one CAT5.
2. Follow the standard of IEEE-568B
3. Supports resolutions up to 1080p Full HD
4. Supports Ethernet bandwidth: 100M
5. HDCP compliant
6. Extends by Router connection or LAN connection ,Cable length requirements
are as follows
●CAT5 Maximum 80 meters between two Devices
●CAT5e Maximum 100 meters between two Devices
●CAT6 Maximum 120 meters between two Devices
II. Features
1. Cat5e/6 cable Follow the standard of IEEE-568B
III. Installation Guide

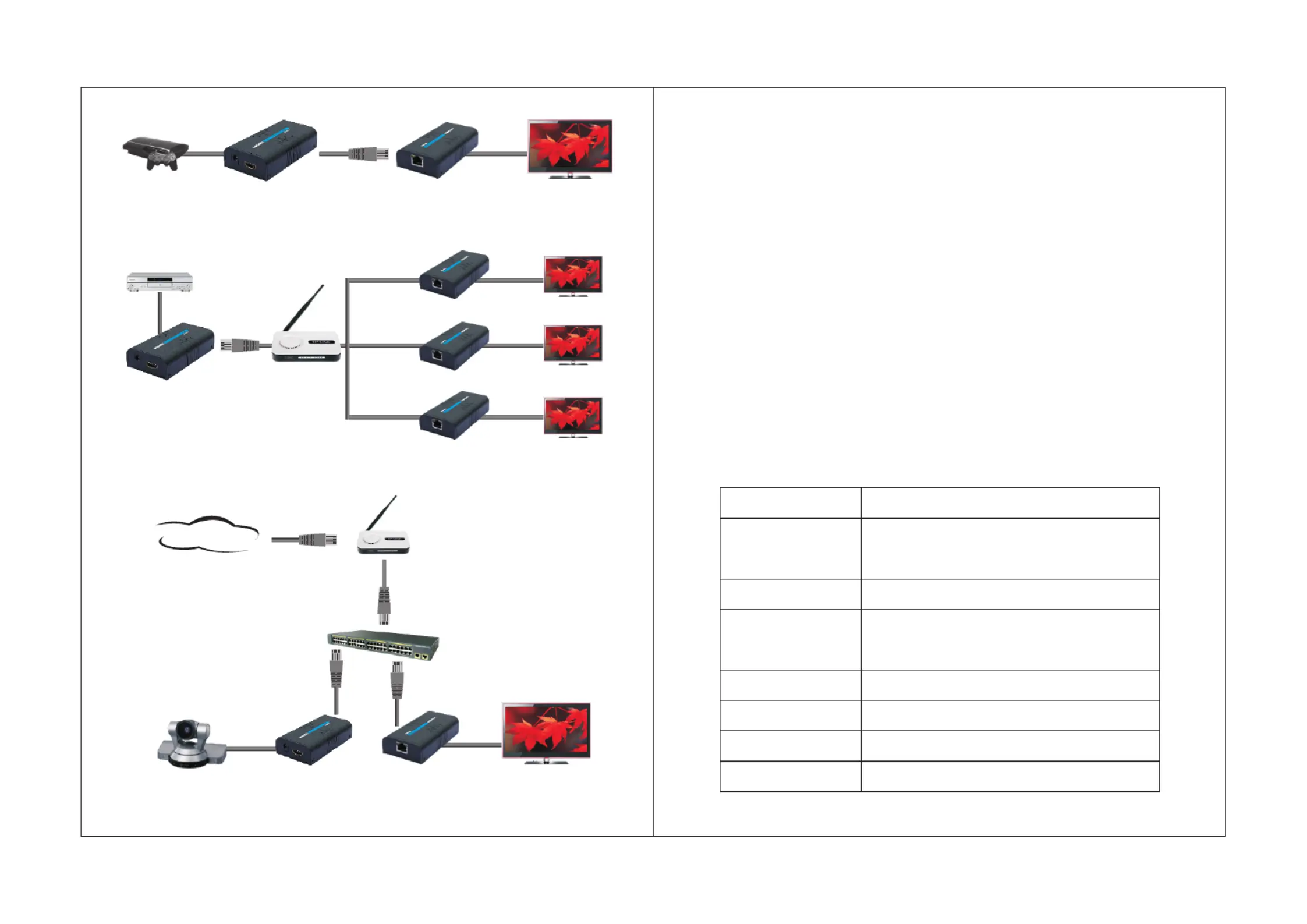

2. General Connection
Transmission distance can be up to 100 meters for 1080p over one CAT5
The product name and brand name may be registered trademark of related
manufacturers.TM and ® may be omitted on the user manual. Design and
specifications of this unit are subject to change without prior notice. Pictures
are for reference only. Products may differ slightly from images shown.1111
Disclaimer
LAN RX
1. HDMI Extender
Sender
DC 5V
HDMI IN
LAN TX
HDMI E xtend er
User Ma nual
IMPORTANT SAFETY INSTRUCTIONS
1. Do not unplug the device ,when it is in using,keep distance from inflammable
and explosive devices.
2. Power Supply :DC 5V ,Use only the supplied power supply unit ,Do not use the
power supply if it is damaged.
I. Package Contents
3. DC 5V/1A Power
Adapter x 2pc
2. HDMI Extender
Receiver
4. User Manual
1. Extends HDMI up to 100 meters for 1080p over one CAT5.
2. Supports LPCM 7.1 Audio,Dolby Digital Plus,Dolby TrueHD and DTS Master
Audio.
3. Follow the standard of IEEE-568B
4. Supports resolutions up to 1080p Full HD
5. Supports Ethernet bandwidth: 100M
6. HDCP compliant
7. Extends by Router connection or LAN connection ,Cable length requirements
are as follows
CAT5 Maximum 80 meters between two Devices●
CAT5e Maximum 100 meters between two Devices●
CAT6 Maximum 120 meters between two Devices●
II. Features
1. Cat5e/6 cable Follow the standard of IEEE-568B
III. Installation Guide
2. General Connection
Transmission distance can be up to 100 meters for 1080p over one CAT5
Cat5e/6 ableC
HDMI Display
PS3
HDMI IN
DC 5V
HDMI IN
LAN TX
HDMI OUT
LAN RX
HDMI Sou rce
3. Router Connection
DC 5V
HDMI IN
LAN TX
LAN RX
HDMI IN
Router
Router
Cat5e/6 Ca ble
Cat5e/6Cable
Cat5e/6 Ca ble
HDMI OUT
HDMI OUT
HDMI OUT
Cat5e/6 Ca ble
LAN RX
LAN RX
4. LAN Connection
Cat5e/6 Cable
Cat5e/6 Cable
Cat5e/6 Cable
internet
LAN Switch
TV
HDMI IN
HDMI IN
HD Camera
DC 5V
HDMI I N
LAN TX
Cat5e/6 Cable
LAN RX
Q: Yellow light of Lan port is flashing but slowly!
A: 1): Check whether HDMI Extender TX and HDMI Extender RX is reversed.
2): Check whether HDMI source device output HDMI signal correctly.
3): Change the HDMI cable of TX.
Q: Yellow light of Lan port is flashing quickly but no display?
A: 1): If HDMI source is graphics card, please set the resolution to be supported
by display device.
2): Check whether HDMI cable of RX is well connected.
3): Change the HDMI cable of RX.
Q: Yellow Led light of Lan port is not light?
A: 1): Check connection of network cable.
2): Network cable is too long.
Q: Abnormal color display or flashing after all the devices are well connected.
1): Pls press reset button of HDMI extender.
2): Follow the standard of IEEE-568B.
IV. FAQ
V. Technical Specifications
Working Temperature
-10 ~60 ℃ ℃
Power Supply
2pc X DC 5V/1A
Supports resolutions
480i@60Hz,480p@60Hz,576i@50Hz,
576p@50Hz,720p@50/60Hz,1080i@50/60Hz,
1080p@50/60Hz
Link Connector
(Sender/Receiver)
UTP/STP CAT5e/6
Power Consumption
3W (max) each
Relative Humidity
20%~90%
Dimensions
110 x 58 x 26 mm
Weight
HDMI Extender
Sender
HDMI Extender
Sender
HDMI Extender
Sender
HDMI Extender
Receiver
HDMI Extender
Receiver
HDMI Extender
Receiver
HDMI Extender
Receiver
HDMI Extender
Receiver
HDMI Media player
239 g
