Seite 1/2

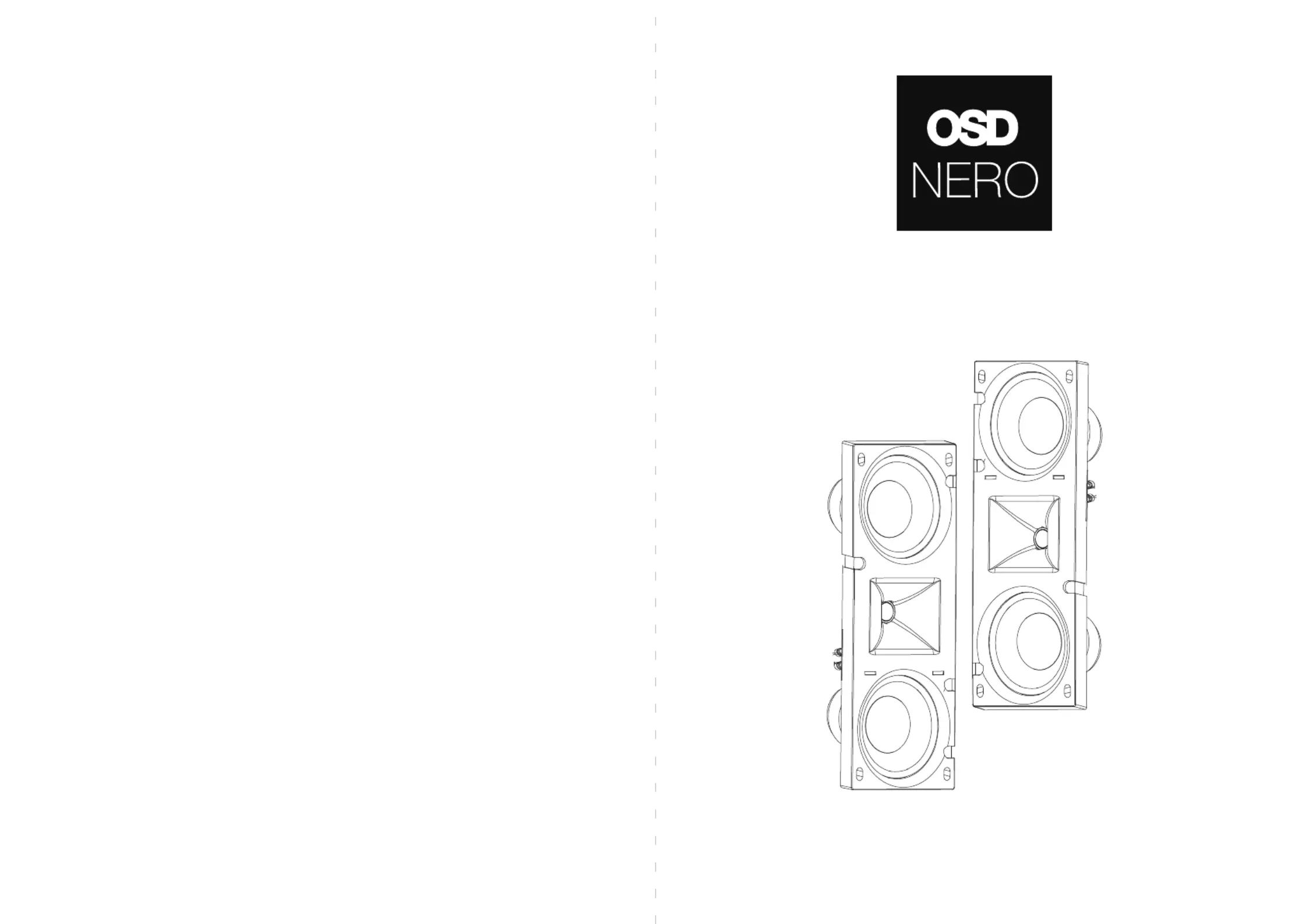

NERO IWLCR53-55
USER MANUAL
Warranty Information
OSD Audio | Brea, CA | osdaudio.com
NERO IWLCR Man. 1/22
All OSD NERO speaker products have a (15) year Limited Warranty against defects in materials and
workmanship. Proof of purchase must accompany all claims. During the warranty period OSD AUDIO will
replace any defective part and correct any defect in workmanship without charge for either parts or labor
OSD AUDIO may replace returned speakers with a product of equal value and performance. In such
cases, some modification to the mounting may be necessary and are not OSD AUDIO’s responsibility.
For this warranty to apply, the unit must be installed and used according to its written instructions. If
necessary, repairs must be performed by OSD AUDIO. The unit must be returned to OSD AUDIO at the
owner’s expense and with prior written permission. Accidental damage and shipping damage are not
considered defects, nor is damaged resulting from abuse or from servicing performed by an agency or
person not specifically authorized in writing by OSD Audio
OSD AUDIO sells products only through authorized dealers and distributors to ensure that customers
obtain proper support and service. Any OSD AUDIO product purchased from an unauthorized dealer or
other source, including retailers, mail over dealers and on-line sellers will not be honored or serviced
under existing OSD AUDIO warranty policy. Any sale of product by an unauthorized source or other
manner not authorized by OSD AUDIO shall void the warranty on the applicable product.
Damage to or destruction of components due to application of excessive power voids the warranty on
those parts. In these cases, repairs will be made on the basis of the retail value of the parts and labor. To
return for repairs, you must email customer service at RMA@ audiogeargroup.com for a Returned
Merchandise Authorization (RMA) number# then the unit must be shipped to OSD AUDIO at the owner’s
expense, along with a note explaining the nature of service required. Be sure to pack the speaker(s) in a
corrugated container with at least 3 inches of resilient material to protect the unit from damage in transit.
This Warranty Does Not Cover:
Damage caused by abuse, accident, misuse, negligence, or improper operation (installation) • Any
products that have been altered or modified • Any product whose identifying number of decal, serial #, etc.
has been altered, defaced or removed • Normal wear and maintenance.
Installation Instructions Product Specifications
1’’ (25 mm) Silk soft dome
50Hz -20kHz
10-150W Peak
88 dB
N/A
8 ohms
Sprung connector
Cut out template, Grille
"17.4" x 7.5" x 4" (100mm x 442mm x 190mm)
ABS
16.33’’ x 6.49’’ (415mm x 165mm )
5’’ x 2 (125 mm) Graphite Cone, Rubber SurroundWoofer
Tweeter
Frequency Range+/-10
Power Handing Peak
Sensitivity
Taps
Impedance
Termination
Included Accessories
Dimensions (H*D*W)
Material
Cut out diameter
Model
NERO-IWLCR53
1’’ (25 mm) Aluminum dome
45Hz -20kHz
10-160W Peak
89 dB
N/A
8 ohms
Sprung connector
Cut out template, Grille
"17.4" x 7.5" x 4" (100mm x 442mm x 190mm)
ABS
16.33’’ x 6.49’’ (415mm x 165mm )
5’’ x 2 (125 mm) Kevlar Cone, Rubber SurroundWoofer
Tweeter
Frequency Range+/-10
Power Handing Peak
Sensitivity
Taps
Impedance
Termination
Included Accessories
Dimensions (H*D*W)
Material
Cut out diameter
Model
NERO-IWLCR55
