B L A C K

S E R I E S

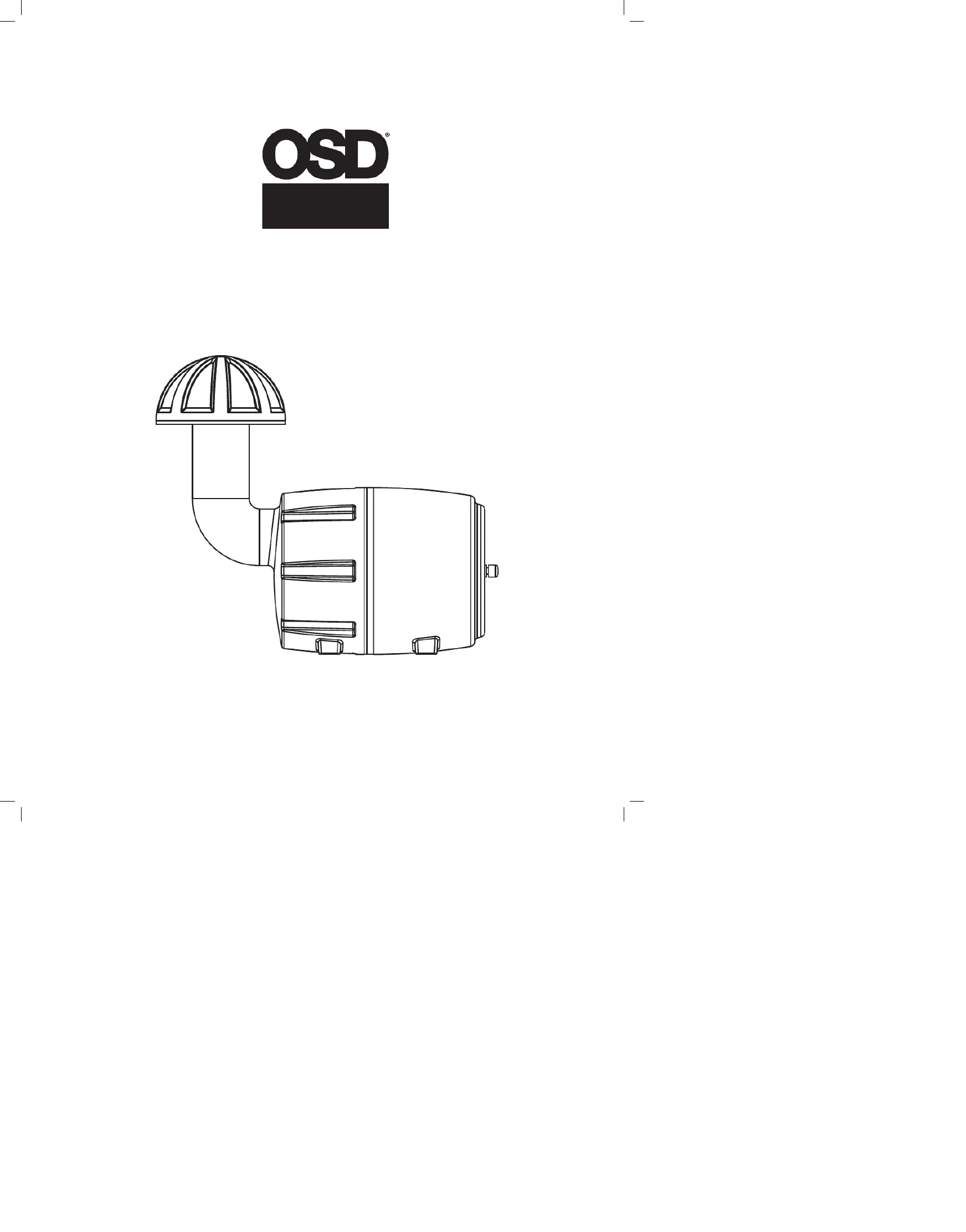

XSUB Series

IN-GROUND SUBWOOFER INSTALL GUIDE

BLACK

S E R I E S

XSUB INSTALL GUIDE

Tools Needed

Pre Installation

Speaker Wire

Step 1

Step 2

- Trench Spade/Shovel

- Wire Cutter

- Measuring Tape

- Direct Burial Cables

- Silicon Cable Connectors (Included)

- Outdoor Volume Control (Optional)

Designate the general area where the subwoofer would be most ideal. The

subwoofer should be placed with in 20 feet of the general listening area for

optimum performance. (See Diagram1) The shape and nish would blend

particularly well in your landscape if it is placed near landscape lighting, water

fountain, open planter or swimming pool.

Measure the distance from the designated speaker location

to your stereo receiver. Try to minimize your distance without

compromising on your overall appeal and safety concern.

Once the route is determined, use your spade and trench

to dig the hole for the subwoofer and a wire route between

8”-12” deep once the trench route is completed, lay the cable

in the route. If using the PVC pipe, cut the pipe to length,

ensure all electrical connections are watertight with silicone

burial connectors. Once the cable layout is done, connect the

subwoofer & rell the trench & subwoofer hole.

(See Diagram 2)

- Where is the best place to install the speakers?

- Where will the speakers sound the best?

- Place the speakers in a location where they

will blend in best with their surroundings.

To determine the length and the gauge of speaker wire, you will

need to measure the distance between your receiver/amplier

and the speakers.

- Always buy more than you think you would need.

- Equal wire lengths should always be used to maintain an equal

balance in sound volume.

- Sound quality is lost when using thin wire gauge over a long

distance.

14 AWG - from ……………………………………………. 1 to 50 ft

12 AWG - from …………………………………………… 50 ft and longer

Subwofer Wire Guide

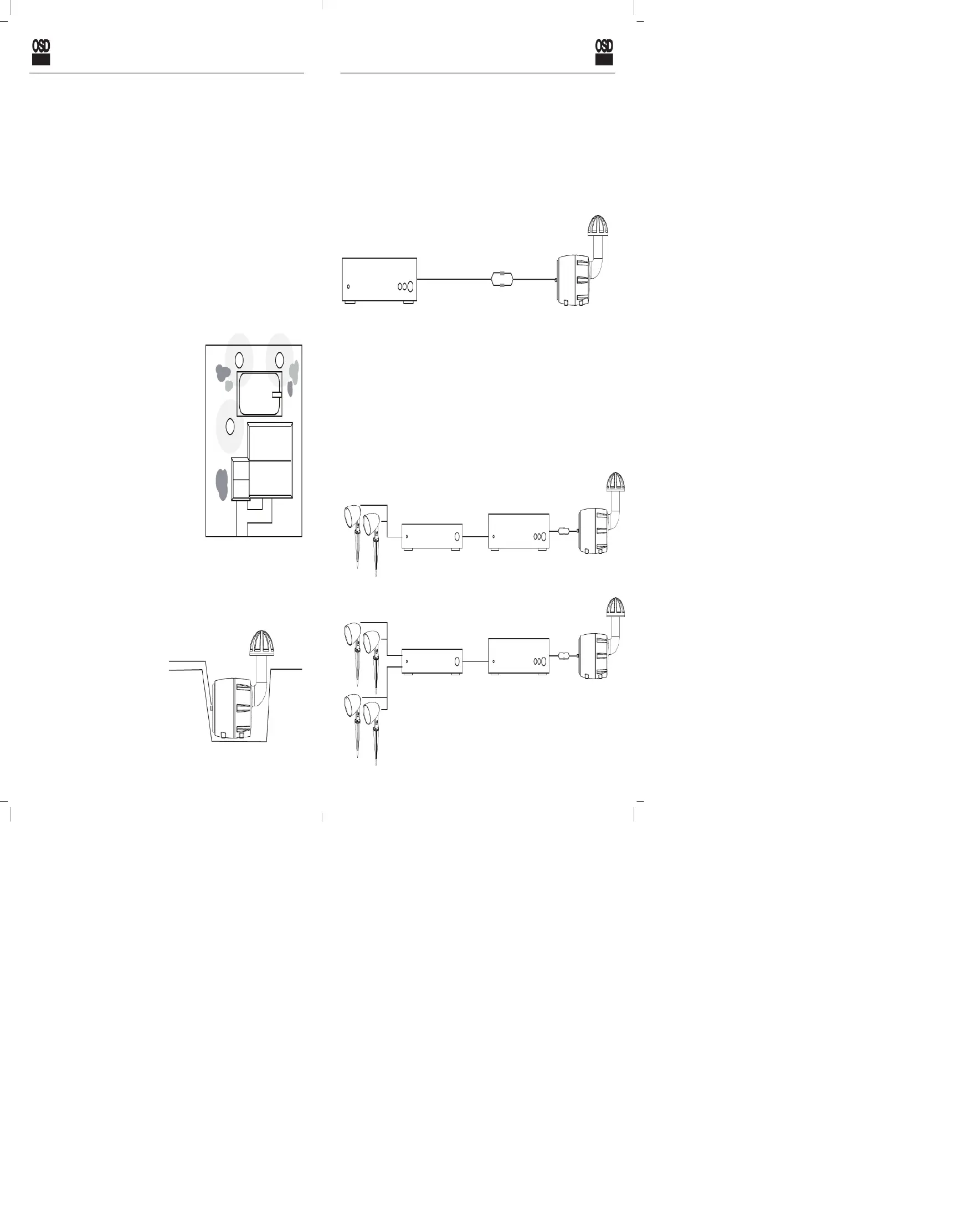

Diagram 2

Diagram 1

? ?

EARTH EARTH

WIRE

BLACK

S E R I E S

XSUB INSTALL GUIDE

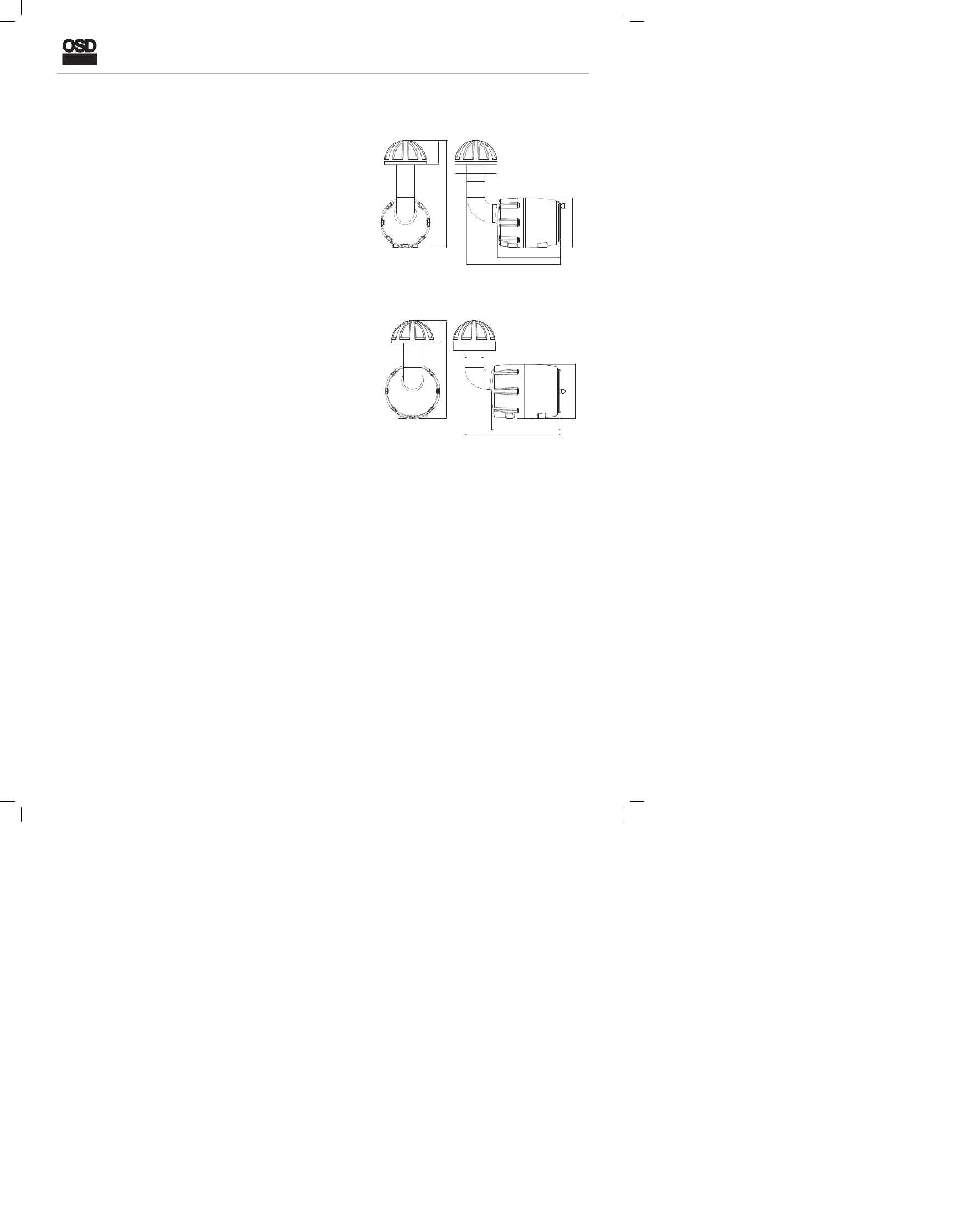

Specications

XSUB8

XSUB12

Warranty Information

XSUB Manual rev2 10/20

Optimal Speaker Design | Brea, CA | osdaudio.com

Woofer 8” Polypropylene Cone With Rubber Surround

Power 300 Watts Max

Freq Response 45 - 200Hz

Sensitivity 80 dB

Impedance 8 Ohm

Dimensions (HxWxD) 21.0” x 18” x 9.75” inch

Woofer 12” Polypropylene Cone With Rubber Surround

Power 600 Watts Max

Freq Response 20 - 150Hz

Sensitivity 84 dB

Impedance 8 Ohm

Dimensions (HxWxD) 24.5” x 24” x 13.75” inch

4.75"

21"

18"

12.25"

9.75"

3.5"

8.25"

5.75"

24.5"

10.5"

4.75"

17.25"

24"

13.75"

All Optimal Speaker Design outdoor speakers have (2) year Limited Warranty against defects in materials and workmanship. Proof of purchase must

accompany all claims. During the warranty period Optimal Speaker Design will replace any defective part and correct any defect in workmanship

without charge for either parts or labor

Optimal Speaker Design may replace returned speakers with a product of equal value and performance. In such cases, some modications to the

mounting may be necessary and are not Optimal Speaker Design’s responsibility.

For this warranty to apply, the unit must be installed and used according to its written instructions. If necessary, repairs must be performed by Optimal

Speaker Design. The unit must be returned to Optimal Speaker Design at the owner’s expense and with prior written permission. Accidental damage

and shipping damage are not considered defects, nor is damaged resulting from abuse or from servicing performed by an agency or person not

specically authorized in writing by Optimal Speaker Design

Optimal Speaker Design sells products only through authorized dealers and distributors to ensure that customers obtain proper support and service.

Any Optimal Speaker Design product purchased from an unauthorized dealer or other source, including retailers, mail order dealers and online sellers

will not be honored or serviced under existing Optimal Speaker Design warranty policy. Any sale of product by an unauthorized source or other

manner not authorized by Optimal Speaker Design shall void the warranty on the applicable product.

Damage to or destruction of components due to application of excessive power voids the warranty on those parts. In these cases, repairs will be

made on the basis of the retail value of the parts and labor. To return for repairs, you must email customer service at RMA@audiogeargroup.com for

a Returned Merchandise Authorization (RMA) number then the unit must be shipped to Optimal Speaker Design at the owner’s expense, along with

a note explaining the nature of service required. Be sure to pack the product(s) in a corrugated container with at least 3 inches of resilient material to

protect the unit from damage in transit.

This Warranty Does Not Cover: Damage caused by abuse, accident, misuse, negligence, or improper operation (installation) • Any products that have

been altered or modied • Any product whose identifying number of decal, serial #, etc. has been altered, defaced or removed • Normal wear and

maintenance.
