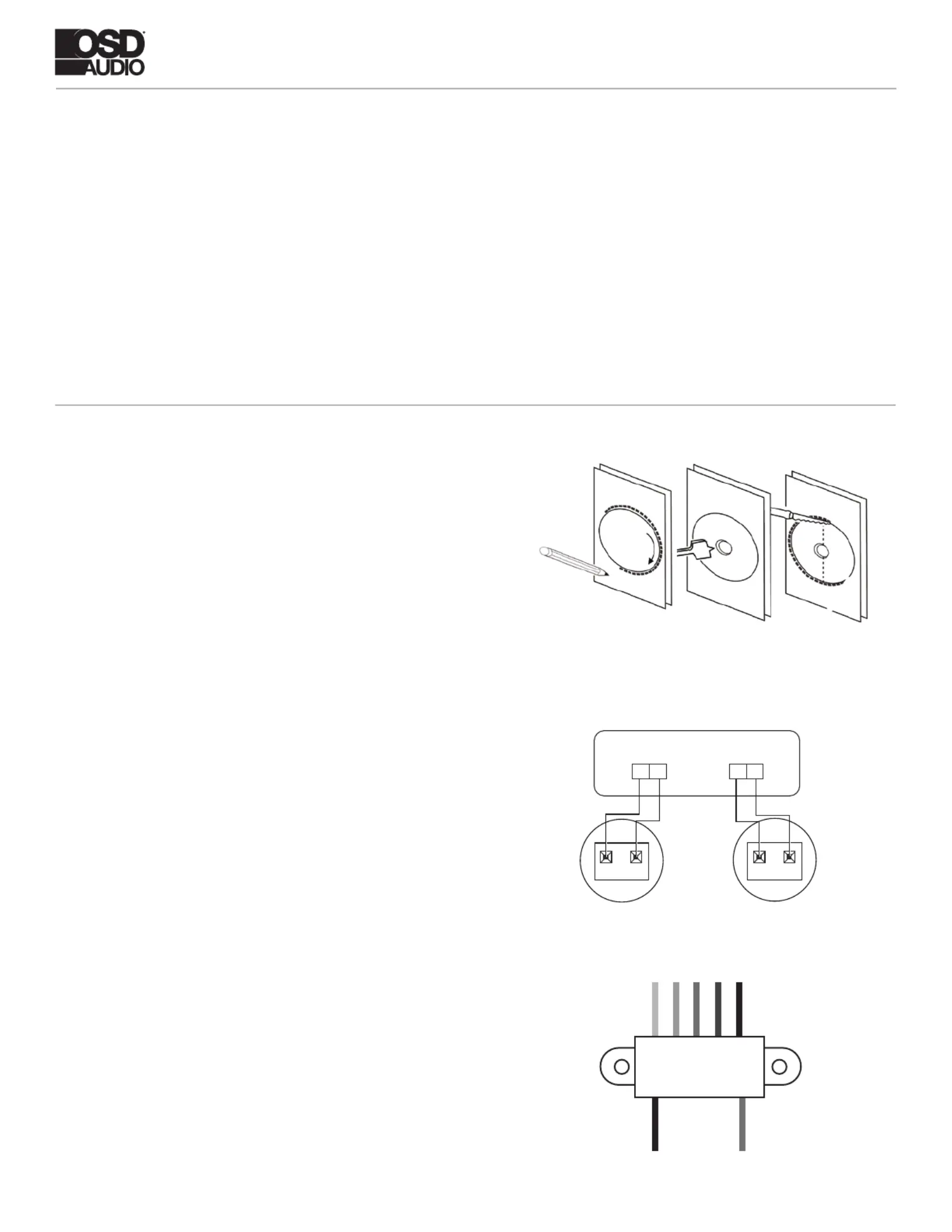

ACE800ST INSTALL GUIDE

Preparation:

Installation:

Tools For InstallationSpeaker Wire Guide

Considerations

Cut Out

- Pencil

- Drill

- Tape Measure

- Wire Cutter

- Phillips Screwdriver

- Utility Knife

- Safety Eye Wear

- Gloves

- Sandpaper

- Where is the best place to install the speakers?

- Where do the speakers sound the best?

- Separate the speakers 6 - 10 feet apart.

NOTE: This is the most important part of the entire installation.

If you are not certain whether any obstructions exist behind the

desired mounting area, you should start by cutting a small hole in

the center of your penciled mounting hole with a drywall saw.

Trace along the included template. Cut along the traced line using a

drywall saw or rotary drill. Use a piece of sandpaper to sand down the

cut out edge for a smoother contour. (See Diagram 1.)

18AWG minimum - for distances up to …………………. 10 ft

16AWG - from …………………………………..…... 10 to 50 ft

14AWG - from …………………………………...… 50 to 100 ft

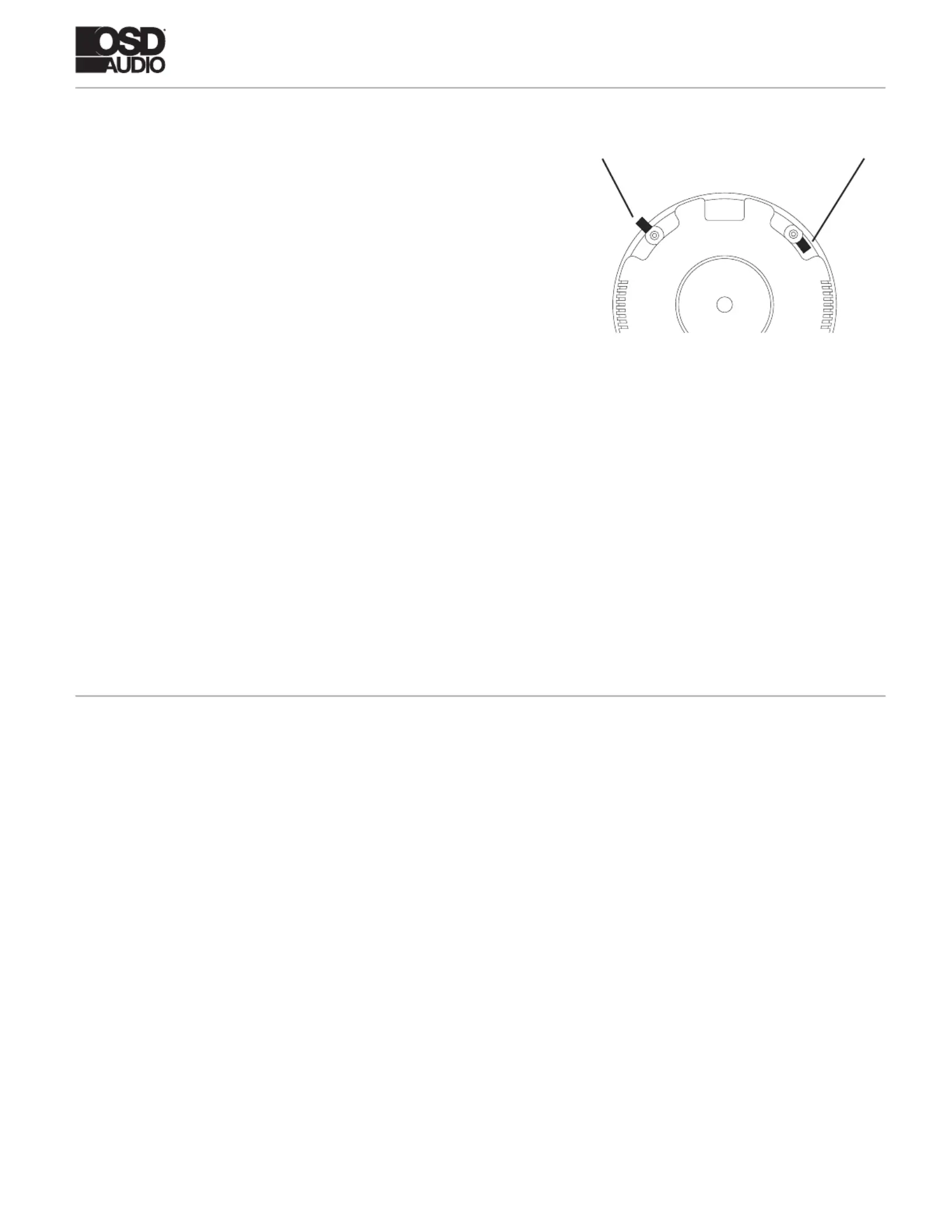

Diagram 1

Connection

Transformer Settings

When connecting any speakers to the amplier always make sure

the power is off. Locate the connection terminals on the back of

your amplier. Always make sure to connect audio out from the

back of your amplier to the speakers.

(See Diagram 2.)

NOTE: Not all Amplier can safely play more than one pair of

speakers at once. Please refer to your amplier owner’s manual for

impedance and wattage compatibility.

Choose the correct wires on the transformer for your particular

application.

(See Diagram 3.)

NOTE: Tap settings may differ slightly from diagram

depending on model.

Left Out

Left Speaker

Amplier

Right Out

Right Speaker

--

++

--

++

Diagram 2

Diagram 3

4W 8W 16W 32W COM

COM 8Ω
