INSTRUCTIONS&PARTSLISTRAPTOR- 9-25-2020

RAPTOR

Double Action-Internal Mix- Gravity Feed-

PTFE Packings.

Size#1Needle,Tip,and Aircap Installed.

WARNING:Spray materials may be harmful if inhaled or allow

ed

to come into contact with the skin or eyes. Consult the product

label and Material Safety Data Sheet supplied for the spray

material. Follow all safety precautions. CAUTION:Well Ventilated

Area Required to remove fumes, dust or overspray

. Secure airhose

t

o

A

i

r

b

r

u

s

h with V-62 Wrench for safety and to prevent air leaks.

Maximum Air Pressure 75 P.S.I.

*Note: Etch lines on Items

23and 21.indicate size.All should

match when installed on airbrush.

For Multi-Language Manuals go to: www.paascheairbrush.com

1.Attach air hose to air supply and to airbrush. If using a regulator set pressure between 20-55 psi .

2.Press down on Finger Button to release air and pull back on button to control quantity of color.

3.Speed of movement controls density of color and fading effects at beginning and end of strokes.

4.Practice this movement until you can spray a fine line or a broad pattern without heavy build up at thebeginning or end of your

strokes.

5.For detail, hold the airbrush very close to the

surface push

down for air and

pull back very

slowly on

the Finger Button to

release a

small

amount of paint.

6.For background work and broad effects, hold the airbrush away from the work

surface and pull back

on Finger Button to release

requiredamount of color.

•Dual Action • Gravity Feed • Internal Mix • Cutaway Handle w/ Pre-set Needle Stop • 1/10th ounce gravity cup •PTFE

Packing

•TT-1 , TN-1, and TA-1components comeInstalled on the Raptor.

Options for Raptor:

.2mm head (TT-0, TN-0and TA-1components)Great for jobs requiring the "extremely fine"detail

.25mm head (TT-1, TN-1, and TA-1 component

.38mm head (TT-2, TN-2 and TA-2 components)

.66mm head (TT-3,TN-3 and TA-3components)Great for spraying Metallics, Pearlescent and ThickerPaints.

Working Pressures:

Operating pressures 15-55 PSI; Maximum pressure 85 PSI. Fan aircap needs 20 PSI or more.

20-30 PSI is best for detail spraying w/ properly thinned paint.

Use the higher pressures for thicker material where fine detail is not critical or thin the paint forlower pressures.

RG Specifications:

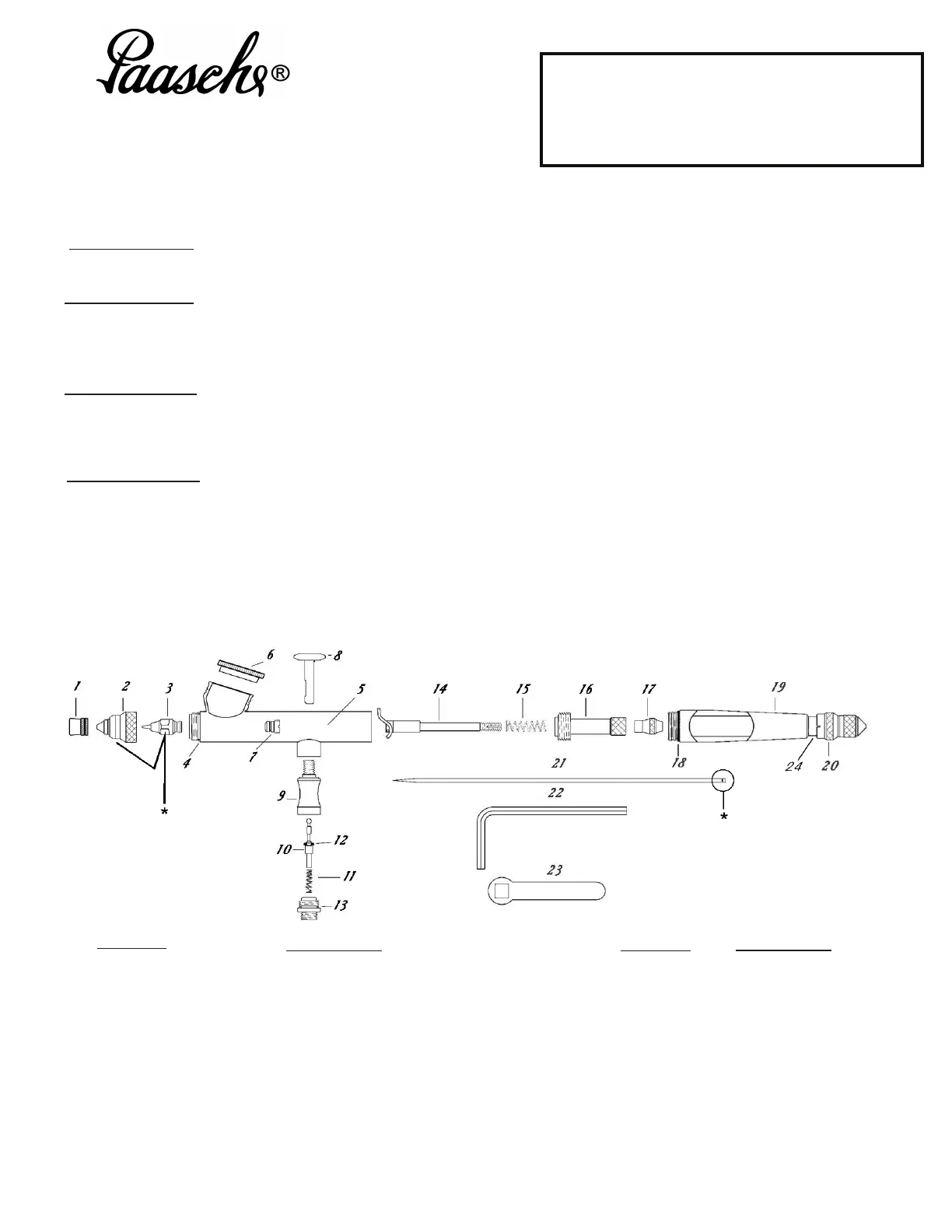

NO. PART

1.XI-41

2.*

TA-1,*TA-2,*TA-3

3.*TT-0,*TT-1,*TT-2,*TT-3

4.MIL-12

5.RG-30

6.RG-8

7.TAL-8

8.TAL-37

9.TAL-14

10.TAL-36

11.A-22

12.TAL-26

13.TAL-15

14.TAL-18

15.MIL-11

16.TAL-17

17.TAL-19

18.MIL-12

19.RG-20

20.TAL-33

21.*TN-1

22.TAL-35

23.TAL-28

24.3A-4

DESCRIPTION

Needle P

rotection Cap

Head(.25mm, .38mm, .66mm)

(Size TA-1 Headis used with size 0 and 1 Tip)

Tip (.2mm, .25mm, .38mm, .66mm)

"O" Ring

Shell

Cup Cover

Packing assembly PTFE

Trigger

Air Valve Casing

Air Valve Plunger

Air Valve Spring

"O" Ring

Air Valve Adapter

Rocker Assembly

Needle Spring

Spring Housing

Needle Locknut

"O" Ring

Handle

Needle Stop

Needle(.25mm)

Allen Wrench

Wrench

"O" Ring

Airbrush Operation:

)

NO. PART

DESCRIPTION
