INSTRUCTIONS AND PARTS LIST TG-TALON
TG TALON – Airbrush
Double Action - Internal Mix - Gravity Feed -
PTFE Packings.
WARNING: Spray materials may be harmful if
inhaled or allowed to come into contact with the
skin or eyes. Consult the product label and material
safety data sheet supplied for the spray material.
Follow all safety precautions. CAUTION: Well
Ventilated Area Required to remove fumes, dust or
overspray. Maximum Air Pressure 75 P.S.I.
TG Specications:
• Dual Action • Gravity Feed • Internal Mix • Cutaway Handle w/ Pre-set Needle Stop • PTFE Packing
TT-2, TN-2, and TA-2 Components come installed on Talon.
Options for Talon:
.2mm head (TT-0, TN-0, TA-0 components) - Great for jobs requiring “extremely ne detail”.
.25mm head (TT-1, TN-1 and TA-1 components) - Great for jobs requiring ne detail
.66mm head (TT-3, TN-3 and TA-3 components) - Great for spraying Metallics, Pearlescent and Thicker
Paints
.66mm Fan Aircap (TAF-3, TN-3 and TT-3) Will give a 2-1/2 to 3 inch fan pattern.
Working Pressures:
• Operating pressures 15-55 PSI; Maximum pressure 85 PSI. Fan aircap needs 20 PSI or more.
• 20-30 PSI is best for detail spraying w/ properly thinned paint
• Use the higher pressures for thicker material where ne detail is not critical or, thin the paint to allow
lower pressures.
Equipment Set-up:
The Airbrush is held in the same manner as a pen, with index nger comfortably over the nger button.
1. Attach air hose to air supply and to airbrush. If using a regulator set pressure between 20 -55 PSI.
Airbrush Operation:
1.Attach air hose to air supply and to airbrush.If using a regulator set pressure between20-55psi.
2.Press down on Finger Trigger to release air and pull back on trigger to control quantity of color.
3.Speed of movement controls density of color and fading eects at beginning and end of strokes.
4.Practice this movement until you can spray a ne line or a broad pattern without heavy build up at the
beginning or end of your strokes.
5.For detail, hold the airbrush very close to the surface push down for air and pull back very slowly on
the Finger trigger to release a small amount of paint.
6. For background work and broad eects, hold the airbrush away from the work surface and pull back
on Finger trigger to release required amount of color.

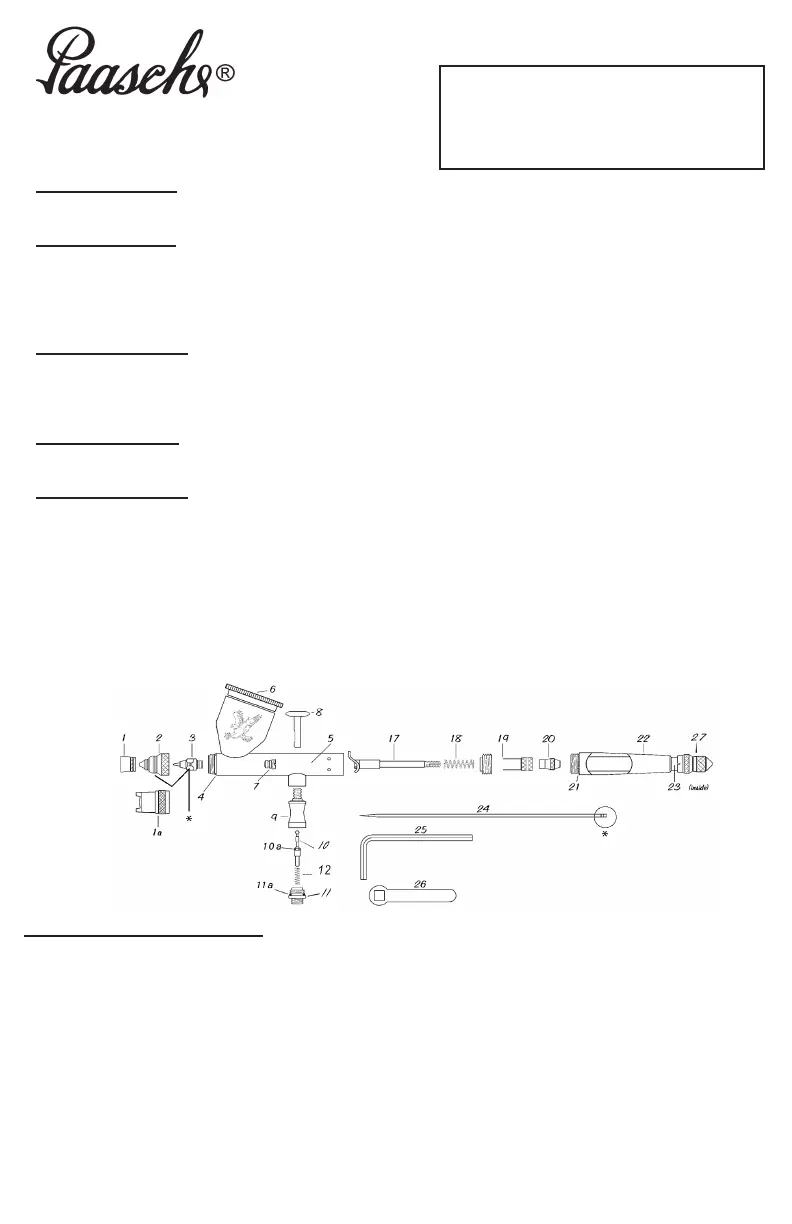

NO. PART DESCRIPTION
1. XI-41 Crown Cap
1a. TAF-3 Fan Aircap for .66mm head -
2. TA-1,TA-2,TA-3 Aircap (.25mm, .38mm, .66mm)
(Size TA-1 head is used with size 0 and 1 tip)
3. TT-0,TT-1,TT-2,TT-3Tip(.2mm,.25mm,.38mm,.66mm)
4. MIL-12 “O” Ring for TG-30 Shell
5. TG-30 Shell Assembly
6. TG-4 Cup Cover
7. TAL-8 Packing Assembly PTFE
8. TAL-37 Trigger
9. TAL-14 Valve Casing
10. TAL-36 Valve Plunger (Includes O-ring)
10a. A-53 (Optional) Pack of (6) O-rings
11. TAL-15 Valve Adapter (Includes O-ring)
11a. TAL-22 (Optional) Pack of (6) O-rings
12. A-22 Spring
17. TAL-18 Rocker Assembly
18. MIL-11 Needle Spring
19. TAL-17 Spring Housing
20. TAL-19 Needle Lock Nut
21. MIL-12 “O” Ring for TG-34 Handle
22. TAL-20 Handle
23. 3A-4 “O” Ring
24.TN-0,TN-1,TN-2, TN-3 Needle
(.2mm .25mm .38mm .66mm)
25. TAL-35 Allen Wrench
26. TAL-28 Wrench
27. TAL-33 Needle Stop
*Note: Etch lines on Items
2 3 and 24. indicate size.
All should match when
installed on airbrush.
