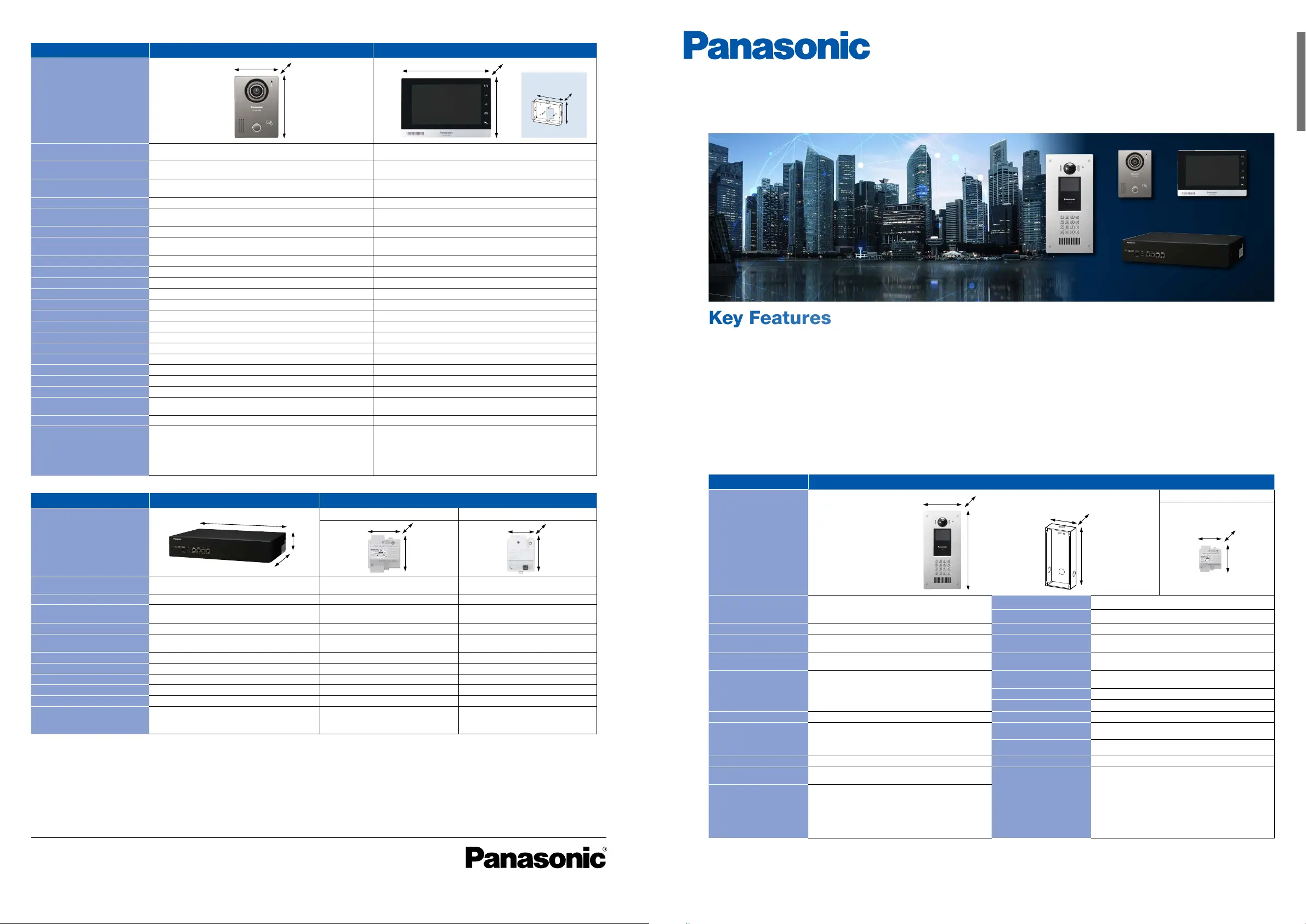

Seite 1/2
Model number and name VL-VN1800 (Control Box) Options
Dimensions
(Unit: mm)
VL-PS240 (Power Supply Unit) VL-RLY1 (Relay Box)
Power source
100-240 V AC, 0.95-0.6 A, 50/60 Hz
Input: 220-240 V AC, 0.2 A (50/60 Hz)
Output: 24 V DC, 0.6 A
Supplied by the door station
Power consumption
Under 50 W - -
Dimensions (H x W x D)
(Excluding protruding sections)
88 x 430 x 340 mm 116 x 100 x 54 mm 92 x 78 x 38 mm
Weight
4.5 kg 230 g 130 g
Operating environment
Ambient temperature: Approx. 0 °C to +40 °C
Relative humidity (non-condensing): up to 90 %
Ambient temperature: Approx. 0 °C to +50 °C
Relative humidity (non-condensing): up to 90 % (indoor use only)
Ambient temperature: Approx. 0 °C to +40 °C
Relative humidity (non-condensing): up to 90 %
Network interface
10BASE-T/100BASE-TX/1000BASE-T (Auto MDI/MDI-X) - -
Network protocol
TCP/IP, UDP - -
Wiring
UTP (cat.5e or higher) - -
Installation method
Mountable to 19-inch racks Wall mount or attach to DIN rail Wall mount or attach to DIN rail
External material
Front Cabinet: ABS, Lower / Upper Cabinet: Steel Flame retardant PC+ABS resin Flame retardant ABS resin
Supported functions
• MobileRemote•Voicemail
• E-mail notification
• Supports up to 2000 SIP devices (embedded SIP server)
- -
Model number and name VL-VN1900 (Lobby Station)
Dimensions
(Unit: mm)
VL-PS240 (Power Supply Unit)
Power source
Power supply unit (VL-PS240)
Input: 220-240 V AC, 0.2 A (50/60 Hz)
Output: 24 V DC, 0.6 A
Image sensor
2.0 M pixels CMOS sensor
Minimum illuminance required
1 lx (within approx. 50 cm from the camera lens)
Power consumption
Standby: 3.5 W, Operating: 8.5 W
Lighting method
White coloured LED lights
Dimensions (H x W x D)
(Excluding protruding sections)
373 x 179 x 6 mm (excluding sections embedded into the wall)
IP rating / IK rating
IP55
*3
/ Compliant with IK07
Weight
VL-VN1900: 1.5kg,
VL-PS240: 230 g
Installation method
VL-VN1900: Flush mount (flush mount box supplied)
VL-PS240: Wall mount or attach to DIN rail
Operating environment
VL-VN1900: Ambient temperature: Approx. -10 °C to +55 °C
Relative humidity (non-condensing): up to 90 %
VL-PS240: Ambient temperature: Approx. 0 °C to +50 °C
Relative humidity (non-condensing): up to 90 %
(indoor use only)
External material
VL-VN1900: Aluminium
VL-PS240: Flame retardant PC+ABS resin
Network interface
10BASE-T/100BASE-TX (Auto MDI/MDI-X)
Network protocol
TCP/IP, UDP
Display
3.5-inch colour display (320x240 pixels)
Wiring
UTP (cat.5e or higher)
Display language
English, Arabic, French, Italian, German, Spanish, Dutch,
Vietnamese and Indonesian
Only user guidance supports multiple language
Resident’s names are only in English
SIP server
Embedded SIP server (up to 200 devices)
Video / Audio format
Video: H.264, Audio: G.711
Talking method
Hands-free
Expanded interface
Support for electric lock releasing (entrance unlocking) x 1
Viewing angle
Horizontally: Approx. 120°, Vertically: Approx. 72°
(15° angle adjusting, vertical only)
Supported functions
• Display a BMP file set by the user (320x220 pixels)
• Room numbers using numbers 0 to 9 and letters A to F
• Phonebook (Room-No., Resident’s name)
• Theft detection buzzer
• Unlock lobby door via a PIN code or RFID card (MIFARE)
• Reception mode (visitor calls are directed to a receptionist)
• Recording images of visitors to NVR
• Lift integration
*2
Card reader (RFID)
13.56 MHz (ISO/IEC 14443 Type A (MIFARE
®
))
(Note)
50,000 RFID card keys can be registered to each Lobby Station.
Each card key must be individually registered/updated (“Issue card”, “Lost/
Found”, and “Delete”) to each Lobby Station with which it will be used.
There are no batch operations to register/update card keys to multiple Lobby
Stations at the same time.
Model number and name VL-VN1500 (Door Station) VL-MN1000 (Room Monitor)
Dimensions
(Unit: mm)
Power source
PoE (IEEE 802.3af compliant, Class 2 device)
or Power supply unit (VL-PS240
*1
) 24 V DC, 0.6 A
PoE (IEEE 802.3af compliant, Class 2 device)
or Power supply unit (VL-PS240
*1
) 24 V DC, 0.6 A
Power consumption
PoE: Standby: 2.5 W / Operating: 5.1 W
VL-PS240: Standby: 2.6 W / Operating: 6.3 W
PoE: Standby: 1.9 W / Operating: 6.3 W
VL-PS240: Standby: 2.1 W / Operating: 6.2 W
Dimensions (H x W x D)
(Excluding protruding sections)
141 x 100 x 28.5 mm 137.5 x 205 x 27.8 mm
Weight
250 g 550 g
Operating environment
Ambient temperature: Approx. -10 °C to +55 °C
Relative humidity (non-condensing): up to 90 %
Ambient temperature: Approx. 0 °C to +40 °C
Relative humidity (non-condensing): up to 90 %
Display
- 7-inch wide colour display with touch screen (800x480 pixels)
Display language
-
English, Arabic, French, Italian, German, Spanish, Dutch, Vietnamese and
Indonesian
Talking method
Hands-free Hands-free
Network interface
10BASE-T/100BASE-TX (Auto MDI/MDI-X) 10BASE-T/100BASE-TX (Auto MDI/MDI-X)
Network protocol
TCP/IP, UDP TCP/IP, UDP
Wiring
UTP (cat.5e or higher) UTP (cat.5e or higher)
Card reader (RFID)
13.56 MHz (ISO/IEC 14443 Type A (MIFARE)) -
Expanded interface
E-lock x 1
*
Relay box VL-RLY1 is required (sold separately) Sensor input x 5 (including emergency / urgency button)
Viewing angle
Horizontally: Approx. 113°, Vertically: Approx. 69° -
Image sensor
1.3 M pixels CMOS sensor -
Minimum illuminance required
1 lx (within approx. 50 cm from the camera lens) -
Lighting method
White coloured LED lights -
Video / Audio format
Video: H.264, Audio: G.711 Video: H.264, Audio: G.711
Recording
- Internal memory (video with audio can be saved)
IP rating / IK rating
IP54
*2
/ - -
Installation method
Surface mount (mounting base supplied)
Surface mount (mounting bracket supplied) or
Flush mount (mount box VL-VN1790 sold separately)
External material
PC+ABS resin
PC+ABS resin
Supported functions
• Unlock individual doors via the RFID card (MIFARE)
• Theft detection buzzer
• Monitoring through the IP camera
• Emergency / Urgency call, Sensor, Door bell
• Intercom calls between monitors (family or neighbours)
• Calls to SIP Phones (guard station, reception, etc.)
• Register up to 32 IP cameras per monitor
• Register up to 18 SIP Phones per monitor
*1 Control Box (VL-VN1800) required. Compatible mobile devices: iPhone 5s and later, iPad Air and later (iOS 10 and later) / Android
TM
devices (Android 4.4 and later), as of June 2019. Some mobile devices
may not be compatible. Supported languages: English, Vietnamese and Indonesian.
*2 A third-party lift controller is required for lift integration. Lift controllers are not available in some areas. For more information about lift controllers and their installation, consult your dealer.
*3 Water resistance is only assured if the lobby station is installed correctly according to the instructions in the Installation Guide, and appropriate water protection measures are taken.
*1 VL-PS240 is sold separately. *2 Water resistance is only assured if the door station is installed correctly according to the instructions in the Operating Instructions, and appropriate water protection measures are taken.
Key Features
Lobby Station
VL-VN1900
Door Station
VL-VN1500
Room Monitor
VL-MN1000
Control Box
VL-VN1800
Full IP system
A pure IP system
The Door Station and Room Monitor support PoE (IEEE 802.3af compliant)
Supports large apartment systems
Up to 200 SIP devices on a system without a Control Box
Up to 2,000 SIP devices on a system with a Control Box
Up to 10,000 SIP devices on a system (up to 5 Control Boxes on a system)
Easy installation, convenient maintenance
Easy Setup (Includes setup tool for mass configuration of large numbers of
devices)
Mobile Remote
*1
Remote visitor answering while checking visitor's live image
Push message with visitor's image
History log in chat form
Sensor notification
Allow visitors to enter the lobby and lift
*2
Others
E-mail Notification (Control Box required)
Voice Mail (Control Box required)
Visitor Recording
Lift Integration
*2
(Third party device required)
Important
- Safety Precaution: carefully read the operating instructions and installation manual before using this product.
- Panasonic cannot be responsible for the performance of the network and/or other manufacturers' products used on the network.
- This system is not designed to provide complete protection from property loss. To the maximum extent permitted by applicable law,
Panasonic will not be held responsible for any damage incurred as a result of property loss.
- When installing or using the product, please take into consideration the rights of others with regard to privacy and rights of portrait.
Trademark
- MIFARE is a registered trademark of NXP B.V. and is used under license.
- iPhone and iPad Air are trademarks of Apple Inc., registered in the U.S. and other countries.
- Android is a trademark of Google LLC.
- The software of this product is based in part on the work of the Independent JPEG Group.
- All other trademarks identified herein are the property of their respective owners.
MG-DHPE020EN 1903TD/ZZZ-2.1
88
430
340
• The actual product may vary slightly from photograph.
• Weights and dimensions are approximate.
• Design and Specications are subject to change without notice.
• These products may be subject to export control regulations.
DISTRIBUTED BY :
IP Video Intercom System
for Apartment complexes
373
116
179
100
6
54
205
27. 8
13 7.5
100
28.5
141
Flush mount box
(included item)
VL-VN1790
(Mount box)
36
170
117
41
(sold separately)
100
116
54
92
38
78
353
159
80
