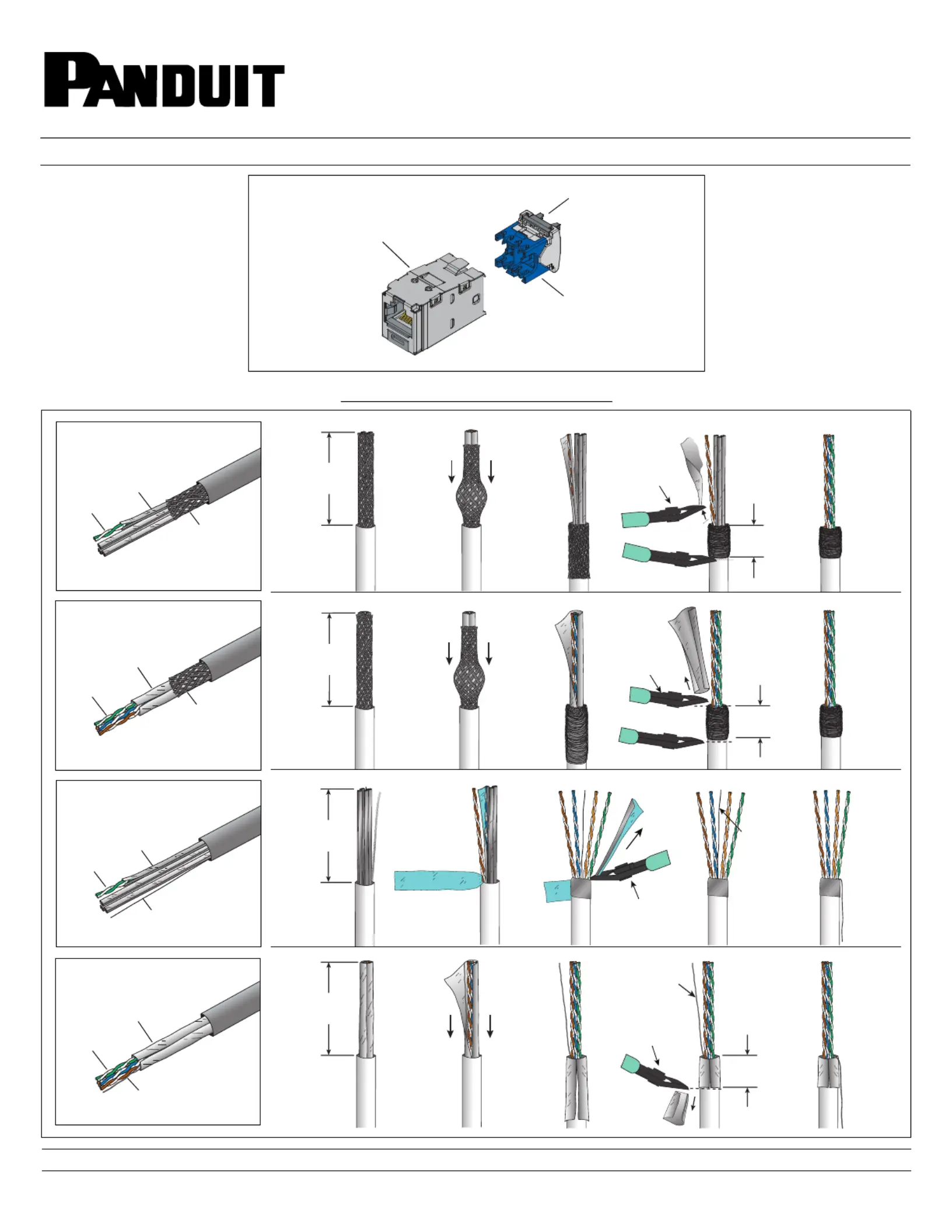

Seite 1/3

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

PN366P

Page 1 of 3

Strain relief clip

Jack

Wire cap

Blue - Cat. 6A

White - Cat. 6

Red - Cat. 5e

2.00"

(50. mm)8

Dr ina

Wire

CW TS

S/FTP

Individual foil

pair screen

Conductors

Braid

U/FTP

Individual foil

pair screen

Conductors

Drain wire

F/UTP

Overall foil

screen

Conductors

Drain wire

SF/UTP

Overall foil

screen

Conductors

Braid

2.00"

(50. mm)8

0.50"

(12.7mm)

CW TS

0.50"

(12.7mm)

CW TS

2.00"

(50. mm)8

2.00"

(50. mm)8

0.50"

(12.7mm)

Drain Wire

CW TS

Mini-Com

Shielded Jack Modules -

TG Style Termination

Part Numbers: CJS6X88TG**Y, CJSK6X88TG**, CJSQ6X88TGBL, CJSH6X88TG**Y, CJS688TG**Y, CJSK688TG**,

CJSQ688TGBL, CJSH688TG**Y, CJS5E88TG**Y, CJSK5E88TG**, CJSH5E88TG**Y

** = color.

CABLE PREPARATION STEPS

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

PN366P

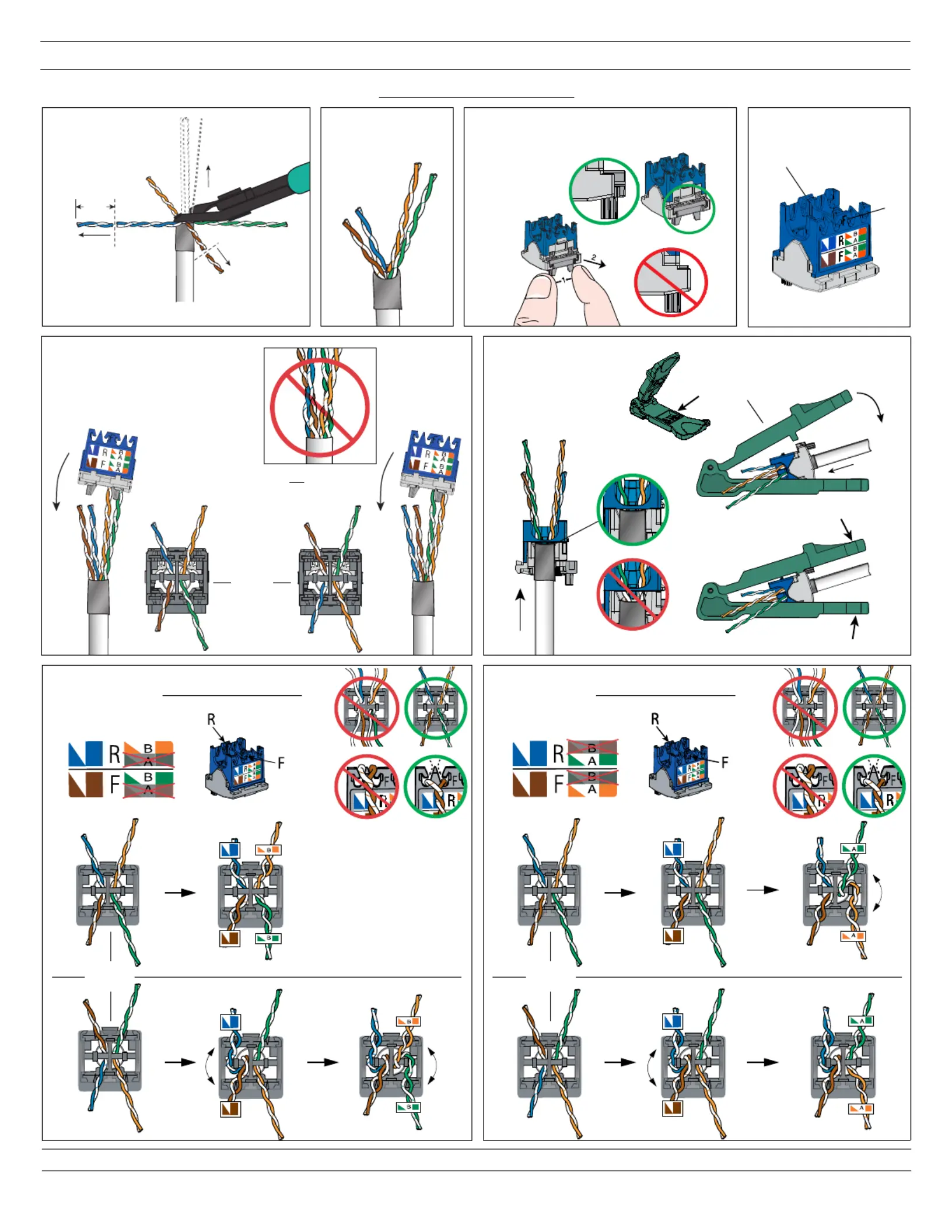

Page 2 of 3

TERMINATION STEPS

EGJT

Do not pre-arrange

conductors.

(OR)

0.5"

(12.7mm)

Trim pair separator and/or ripcord, if present.

T568B Wiring

(OR)

1. 2.

T568A Wiring

(OR)

INSTALLATION INSTRUCTIONS

PN366P

For Instructions in Local Languages

and Technical Support:

www.panduit.com/resources/install_maintain.asp

www.panduit.com

E-mail:

techsupport@panduit.com

Phone:

866-405-6654

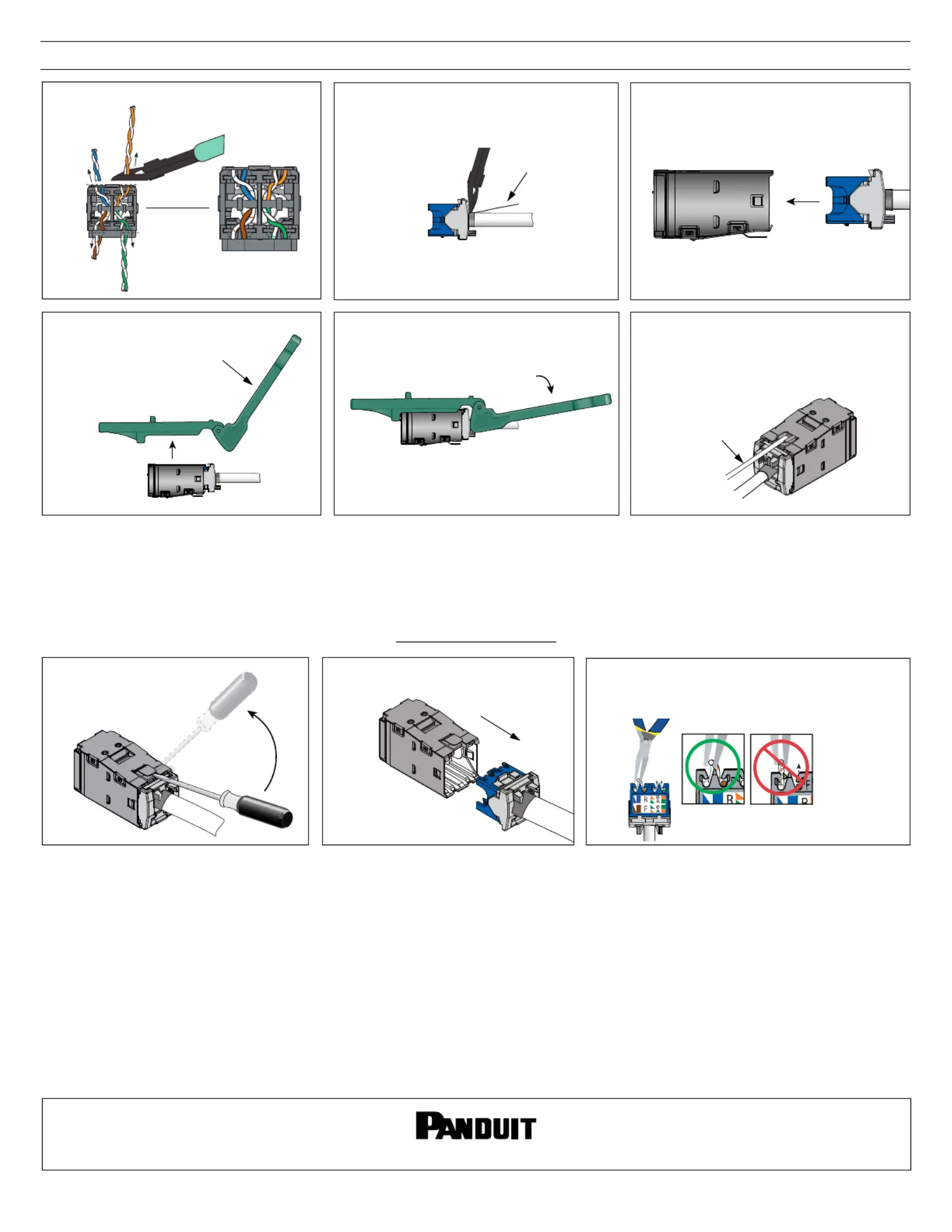

Page 3 of 3

REMOVAL STEPS

Notes:

1. For specified performance, follow TIA/EIA 568-C installation guidelines.

2. Shielded jack modules can terminate 22-26 AWG solid or stranded IWC data cable with 0.062" (1.57mm) maximum insulated conductor outside diameter.

3. Shielded jack modules may be re-terminated a minimum of 20 times.

4. For technical and performance information, contact Panduit Technical Support.

5. CJSGK-X Grounding Kit is REQUIRED for all Mini-Com Modular Patch Panels, but is optional for Mini-Com All Metal Shielded Modular Patch Panels.

As with all Communication Components, the following statements apply:

1. Never install communications wiring during a lightning storm.

2. Never install communications wiring in wet locations unless the jack is specifically designed for use in wet locations.

3. Never touch uninsulated communications wiring or terminals unless the communication line has been disconnected at the network interface.

4. Use caution when installing or modifying communication wiring.

EGJT

Grounding Kit,

(See note 5)

CJSGK-X

Trim conductors

flush

Trim drain wire,

if present

Produktspezifikationen

Marke:	Panduit
Kategorie:	Nicht kategorisiert
Modell:	CJS688TGVLY
Produktfarbe:	Metallic, Violet
Stecker:	RJ-45
Betriebstemperatur:	-10 - 65 °C
Temperaturbereich bei Lagerung:	-40 - 70 °C
Nachhaltigkeitszertifikate:	RoHS
Technologie:	Cat6
