INSTALLATION INSTRUCTIONS JM-INST

Page 1 of 2

For Technical Support: www.panduit.com/resources/install_maintain.asp

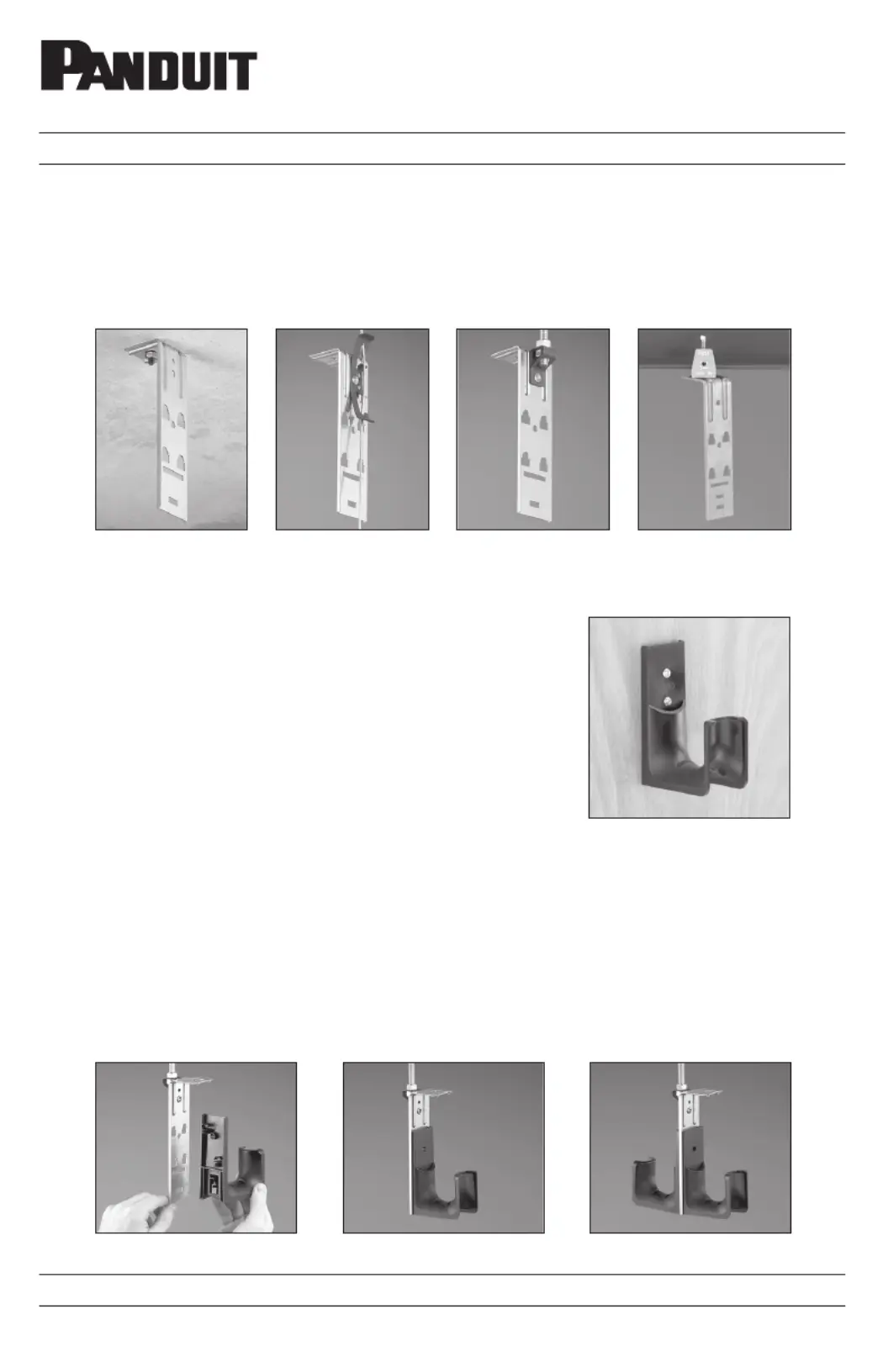

Step 1: Determine Installation Type

Step 2: First-Level Installation

A. If mounting to a structural member, choose appropriate bracket

and use with J Hook JMJH2-X20.

B. If mounting to wall, select J Hook

JMJH2W-X20 and secure with two user

supplied screws to complete installation.

Ceiling Mount

Bracket

Drop Wire

Bracket

Threaded Rod

Bracket

Screw-On Beam

Clamp Bracket

Align snap lock attachment of J Hook with holes of the chosen

bracket and snap J Hook into position. If additional capacity is

needed, a second J Hook can be snapped on the back.

(The photos below show an example of a single-level threaded

rod bracket installation.)

J-Mod Cable Support System

Part Numbers: JMJH2-X20

www.panduit.com

For instructions in Local Languages

and Technical Support:

www.panduit.com/resources/install_maintain.asp

E-mail:

techsupport@panduit.com

Phone:

866-405-6654

Rev. 00Page 2 of 2

INSTALLATION INSTRUCTIONS

JM-INST

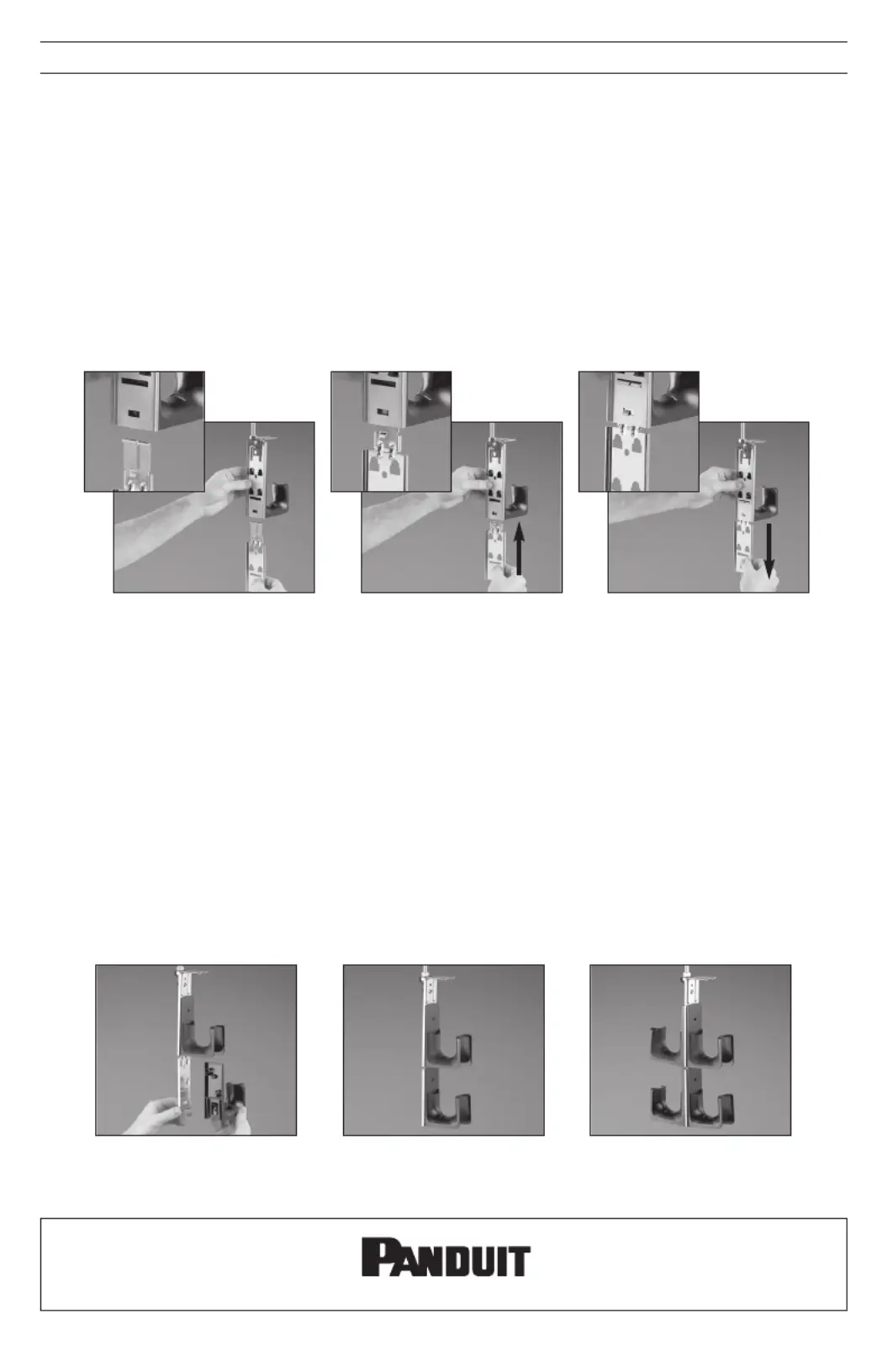

Step 3: Addition of Chaining Bracket

If additional levels are required, install the chaining bracket JMCB-X.

To install the chaining bracket, align it under the assembly. Slide

chaining bracket between the J Hook and the metal bracket until it

snaps into place. The chaining bracket can be inserted in only one

orientation. After the chaining bracket snaps into place, pull down to

fully engage and create a continuous metal backbone.

Step 4: Second-Level Installation

Attach J Hooks as explained in first-level installation above. Repeat

for additional J Hooks as necessary. If required, one additional

chaining bracket may be installed to create a maximum third-level

installation. (Final assembly shown is a second-level installation

consisting of one threaded rod bracket, one chaining bracket, and

four J Hooks.)

Produktspezifikationen

Marke:	Panduit
Kategorie:	Nicht kategorisiert
Modell:	JMJH2-X20
Breite:	86 mm
Tiefe:	120 mm
Produktfarbe:	Schwarz
Material:	Nylon
Höchstgewichtskapazität:	13.61 kg
Zertifizierung:	RoHS
