ISSUED: 07-28-11 SHEET #: 120-9120-2 09-15-11

2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com

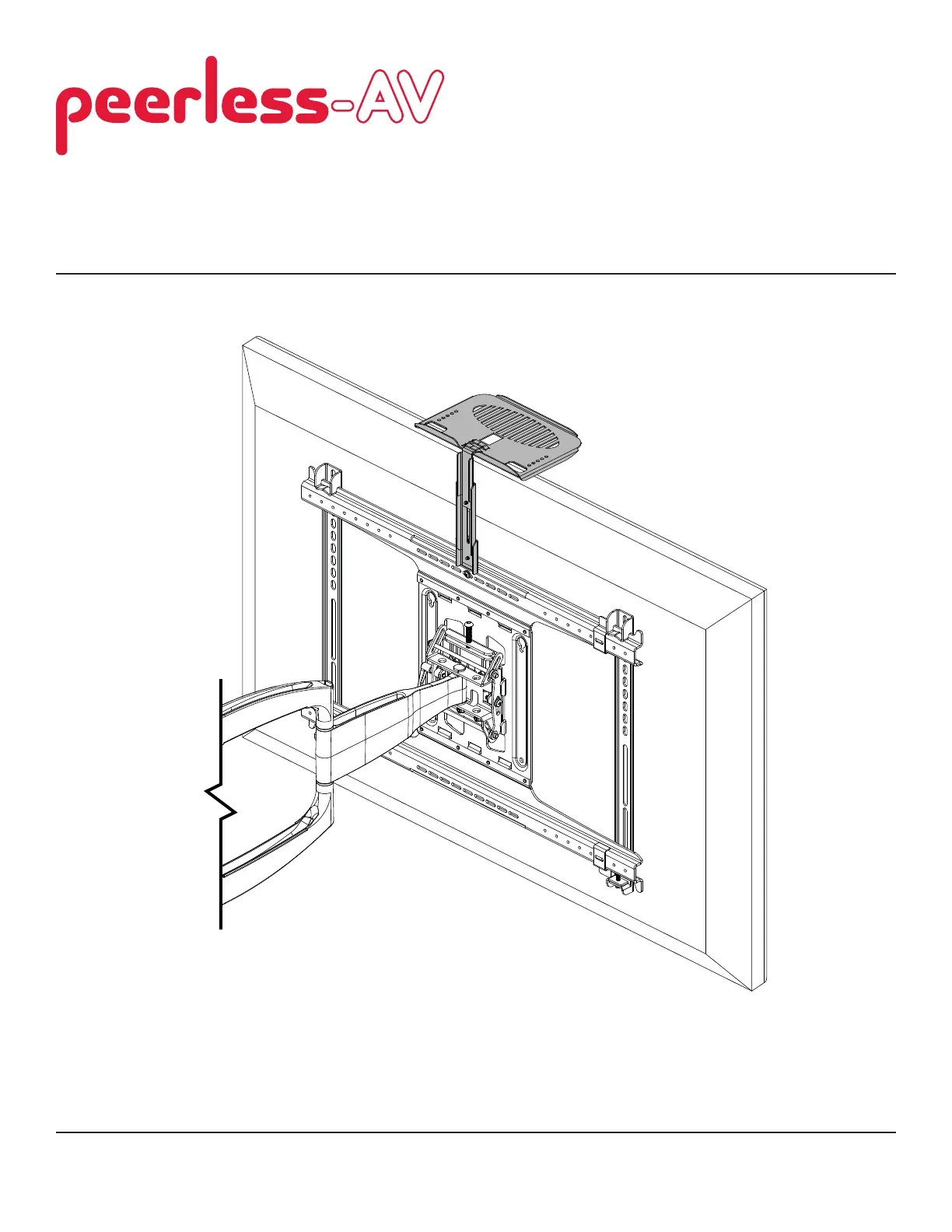

Model: ACCXT300

Installation and Assembly:

Video Conferencing Shelf Accessory Kit

for Large Pivot and Articulating Mounts

2 of 17

ISSUED: 07-28-11 SHEET #: 120-9120-2 09-15-11

NOTE: Read entire instruction sheet before you start installation and assembly.

Tools Needed for Assembly

• phillips screwdriver

• level

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US

customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact

your local distributor.

• This product should only be installed by someone of good mechanical aptitude, has experience with basic building

construction, and fully understands these instructions.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached

hardware and components.

• Never exceed the Maximum Load Capacity. See page one.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws ﬁ rmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.

• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal

injury.

WARNING

Parts may appear slightly different than illustrated.

Before you begin, make sure all parts shown are included with your product.

Description Qty.

Part #

A shelf 1 125-1270

B mount bracket 1 125-1268

C shelf bracket 1 125-1273

D adjustment bracket 1 125-1272

E M5 x 16mm self tapping screw 3 520-9515

F washer 3 540-9400

Parts List

C DB

E F
