ISSUED: 11-01-11 SHEET #: 021-9012-4 06-04-13

2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com

Max Load Capacity:

5 lbs (2.2 kg)

Installation and Assembly:

Universal Tablet Mount

Models: PTM200

Features:

• Adjustable height and width allows mount to ﬁ t virtually any tablet

• Quick and easy installation onto any 75 x 75 mm VESA

Mount

• Theft resistant security kit available

• Sleek hardware covers for a ﬁ nished look

• Holds virtually any 7.68" - 13.75" tablet

2 of 8

ISSUED: 11-01-11 SHEET #: 021-9012-4 06-04-13

NOTE: Read entire instruction sheet before you start installation and assembly.

Table of Contents

Parts List................................................................................................................................................ 3

Cradle Assembly.................................................................................................................................4-5

Attaching Cradle Assembly to Mount..................................................................................................... 6

Tools Needed for Assembly

•phillips screwdriver

Accessories

•ACC954 (security fasteners kit)

• Do not begin to install your Peerless product until you have read and understood the instructions

and warnings contained in this Installation Sheet. If you have any questions regarding any of the

instructions or warnings, for US customers please call Peerless customer care at

1-800-865-2112, for all international customers, please contact your local distributor.

• This product should only be installed by someone of good mechanical aptitude, has experience

with basic building construction, and fully understands these instructions.

• Make sure that the supporting surface will safely support the combined load of the equipment and

all attached hardware and components.

• Never exceed the Maximum Load Capacity. See page one.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws ﬁ rmly, but do not overtighten. Overtightening can damage the items, greatly

reducing their holding power.

• This product is intended for indoor use only. Use of this product outdoors could lead to product

failure and personal injury.

WARNING

3 of 8

ISSUED: 11-01-11 SHEET #: 021-9012-4 06-04-13

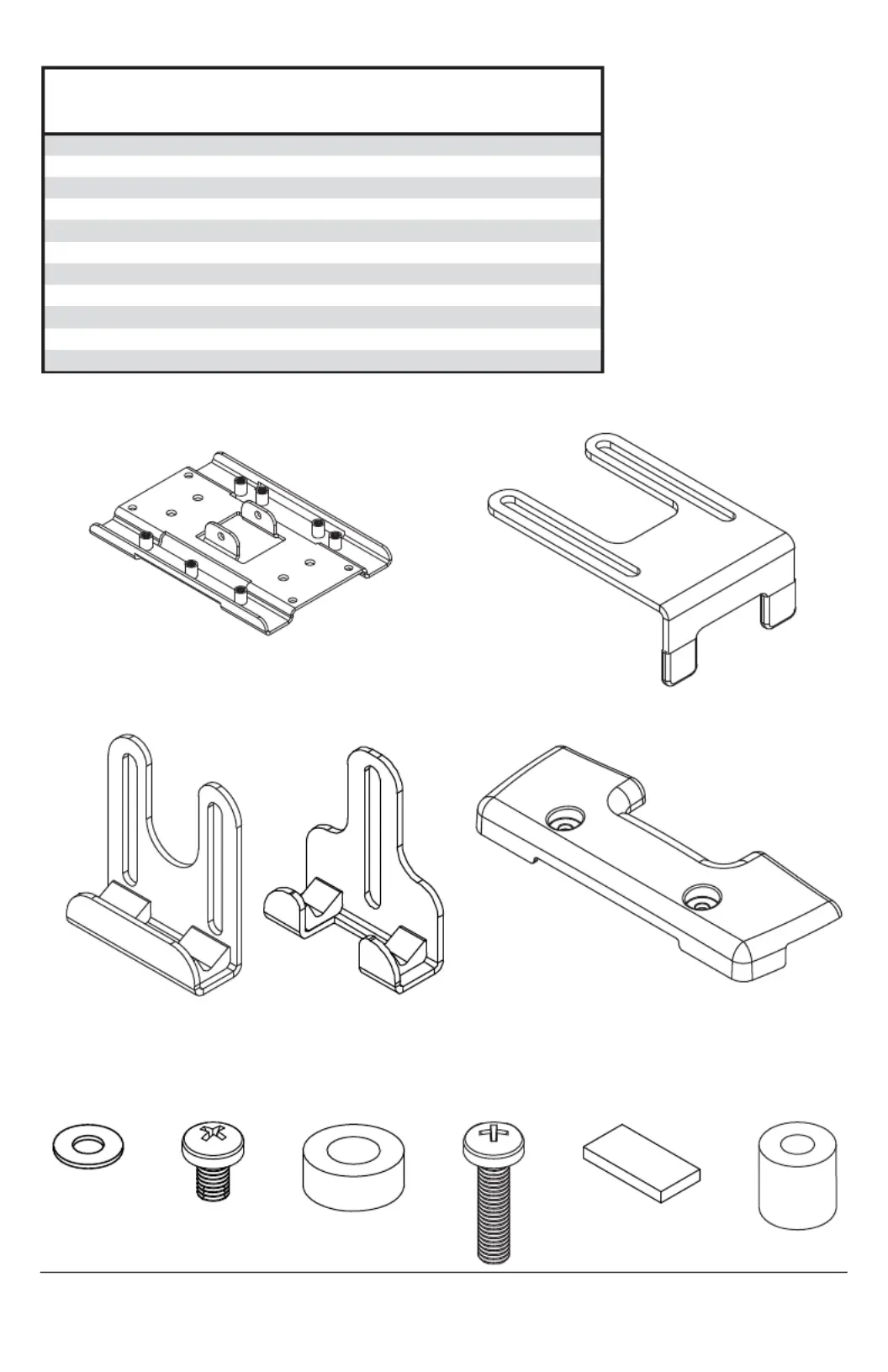

Parts may appear slightly dierent than illustrated.

Before you begin, make sure all parts shown are included with your product.

Black

Description Qty. Part #

main plate 1 021-1045

Bside clamp 2 021-1052

Ctop clamp 1 021-1054

Dbottom clamp 1 021-1069

plastic cover

590-1347

washer

540-2003

M5 x 8mm self tapping phillips screw

520-1167

H1/4" spacer 3 600-1215

IM5 x 20mm phillips screw 4 510-1208

Jadhesive foam pad 4 570-0045

1/2" spacer 4 540-1057

Parts List

F G H JI K
