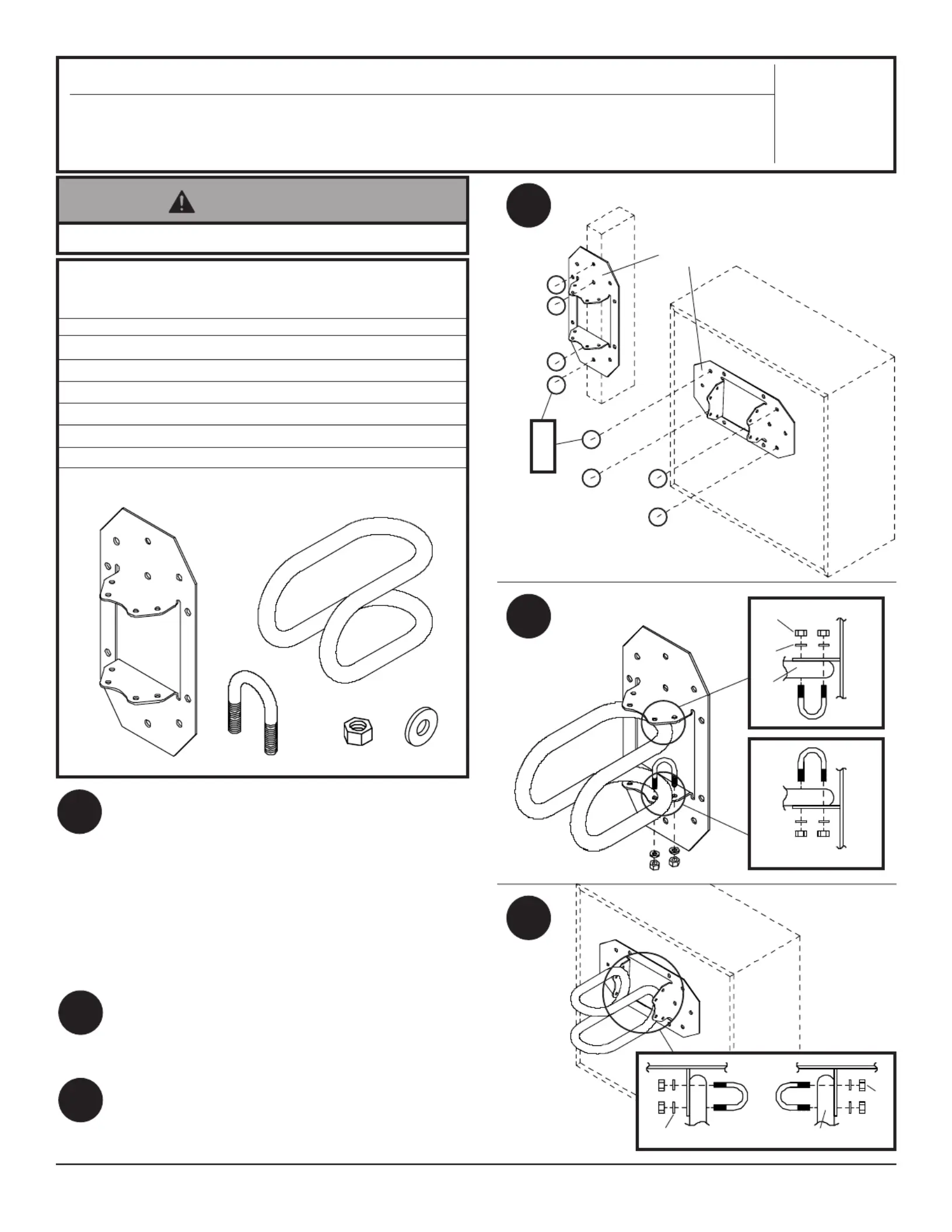

1 of 1 Issued:07-22-91 Sheet #:087-9008-2 07-27-05

Model:

SPK815

Installation and Assembly - Radial Cube Speaker Mount

Note: Read entire instruction sheet before

you start assembly and installation.

Peerless Industries, Inc.

3215 W. North Avenue

Melrose Park, IL 60160

For customer service call:

1-800-865-2112

Visit the Peerless web site at:

www.peerlessmounts.com

A,B

PART # QTY. DESCRIPTION

A087-1038 1 black mounting plate

B087-2038 1 white mounting plate

C6100-172 1 tubing

D520-9242 8 U-bolt

E530-9302 16 hex nut

F540-9402 16 split washer

Parts List

Before you start make sure all parts

listed are included with your product.

Note: Some parts may appear slightly different than illustrated.

Mounting plates (A & B) come in two colors - white and

black. Mount plates according to the color configuration

of speakers / wall.

Note: Fasteners for attaching mounting plates to wall

and speaker are NOT included. It is the installers

respondsibility to securely attach plates to wall and

speaker using appropriate fasteners.

Vertically mount plate (A or B) to wallstud.

(If possible use a stud finder to locate stud.)

Horizontally mount plate (A or B) to speaker.

A or B

Attach speaker/plate assembly to tubing (C) using

remaining U-bolts (D), hex nuts (E) and washers (F).

Hand tighten hex nuts (E). Adjust speaker position.

Once speaker is properly positioned, securely tighten

all hex nuts (E).

Attach tubing (C) to plate on wall using four U-bolts (D)

eight hex nuts (E) and eight washers (F) as shown.

Hand tighten hex nuts (E). Leave hex nuts (E) loose

until speaker has been mounted and proper aimed.

•Speaker weight shall not exceed 75 lb (34 kg).

WARNING

Peerless is a registered trademark of Peerless Industries, Inc.

All other brand and product names are trademarks or registered trademarks of their respective owners.

Produktspezifikationen

Marke:	Peerless-AV
Kategorie:	Sprecher-Unterstützung
Modell:	SPK815
Breite:	153 mm
Tiefe:	232 mm
Gewicht:	1400 g
Produktfarbe:	Schwarz
Höhe:	305 mm
Material:	Stahl
Platzierung:	Wand
Höchstgewichtskapazität:	34 kg
Fernbedienung:	Nein
Neigungswinkelbereich:	-45 - 45 °
