IGS-800T-PN/IGS-820TF-PN

Compact Industrial 8-port Gigabit PROFINET Switch

Compact and Rugged Design for Industrial Environments

PLANET IGS-800T-PN and IGS-820TF-PN are compact industrial PROFINET switches

designed to meet the demanding requirements of smart factories. The IGS-800T-PN

features 8 auto-negotiation 10/100/1000BASE-T RJ45 ports, while the IGS-820TF-PN

provides 6 RJ45 ports and 2 dual-speed 100/1000BASE-X SFP fiber interfaces for

extended deployment flexibility. Both models come in IP30-rated rugged metal cases

and operate reliably within a wide temperature range of -40 to 75°C.

Physical Port

•IGS-800T-PN: 8-port 10/100/1000BASE-T RJ45 with auto-

MDI/MDI-X.

•IGS-820TF-PN: 6-port 10/100/1000BASE-T RJ45 and 2

100/1000BASE-XSFPportsforexibleberuplinkoptions.

Layer 2 Features

•Complies with IEEE 802.3 10BASE-T, IEEE 802.3u

100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet

standard

•Supports auto-negotiation and 10/100Mbps half/full duplex

and 1000Mbps full duplex

•Preventspacketlosswithbackpressure(half-duplex)and

IEEE802.3xpauseframeowcontrol(fullduplex)

•High-performance Store and Forward architecture,

broadcaststormcontrolandrunt/CRClteringeliminate

erroneouspacketstooptimizethenetworkbandwidth

•Switching fabric: 16Gbps

•Integratedaddresslook-upengine,supporting4Kabsolute

MAC addresses

•Supportsjumboframesupto9Kbytes

•Automatic MAC address learning and aging

•Supports CSMA/CD Protocol

•Compliant with PROFINET Conformance Class A

•SupportsPROFINETPTCPlterforreliablecommunication

onPROFINETnetwork

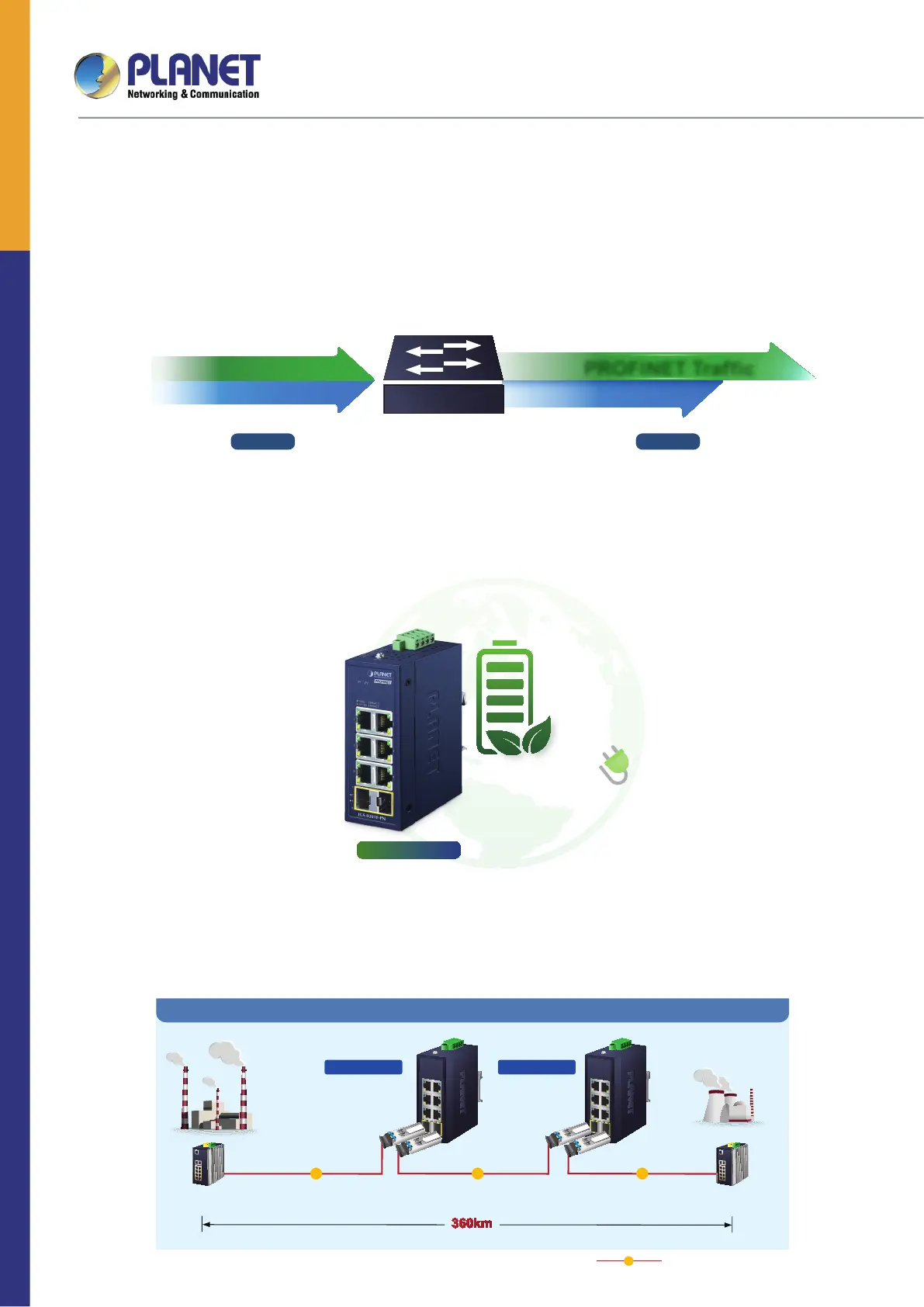

•SupportsPROFINETTrafcPass-throughwithQoS

Industrial Case and Installation

•IP30-rated compact metal enclosure

•Supports both DIN-rail and wall-mount installation

•9~48V DC redundant power input with reverse polarity

protection;includesremovableterminalblockformaster

and slave power connections

•Supports 24V AC power input

•Supports 6000 VDC Ethernet ESD protection.

•Operating temperature range: -40 to 75°C

•Designedtowithstandfreefall,shock,andvibrationin

industrial environments

IGS-800T-PNIGS-801T

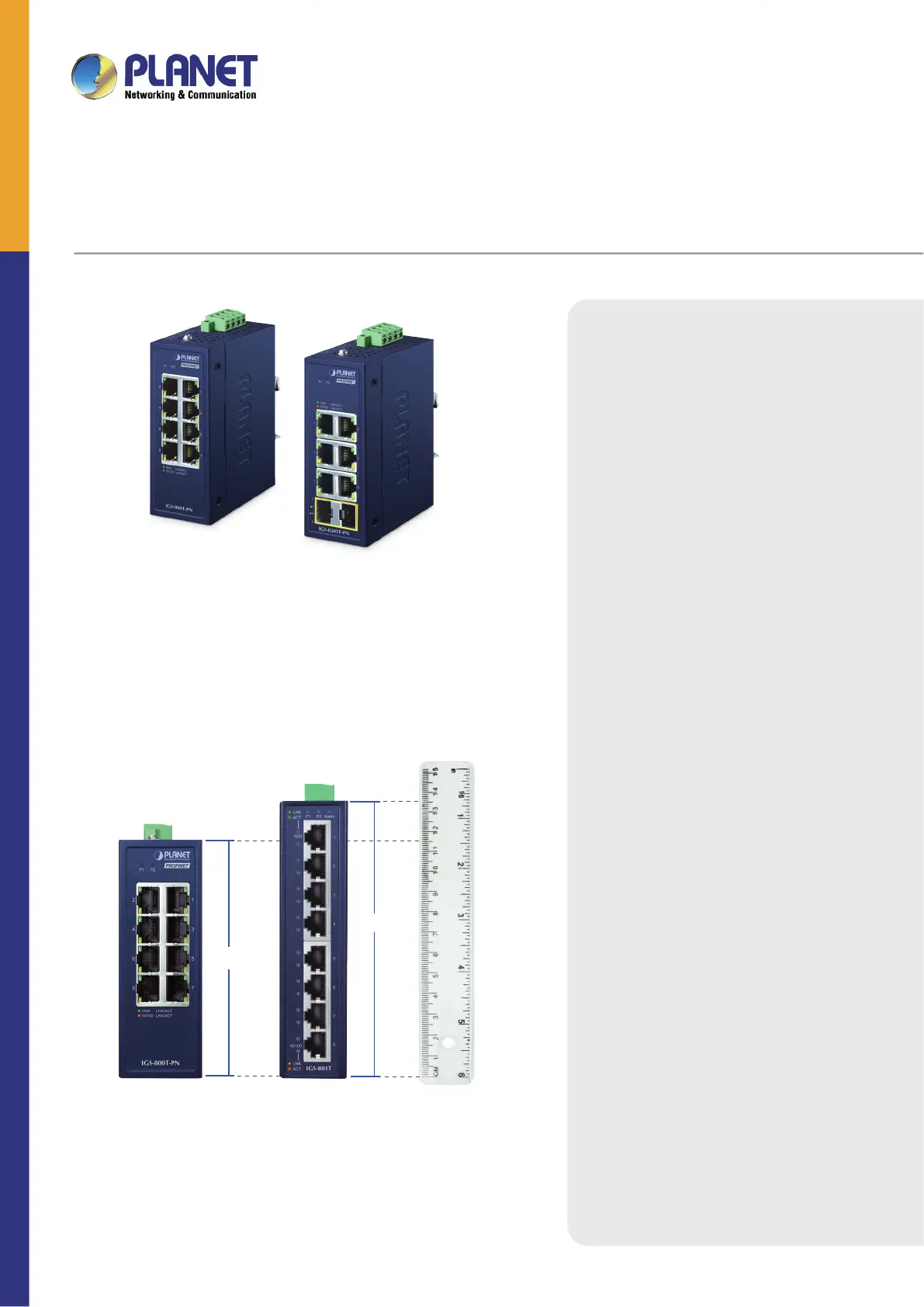

Compact Industrial 8-Port Switch

115mm

135mm

Plug-and-Play Deployment for IIoT and AIoT Systems

As the trend for an IIoT (Industrial Internet of Things) infrastructure continues to

grow,theIGS-800T-PNandIGS-820TF-PNsimplifyindustrialnetworkdeploymentwith

plug-and-play functionality. These switches enable seamless integration of intelligent

systems,allowingvaluabledatacollection,real-timedecision-making,andoperational

efciencyimprovementsacrossavarietyofautomationapplications.
