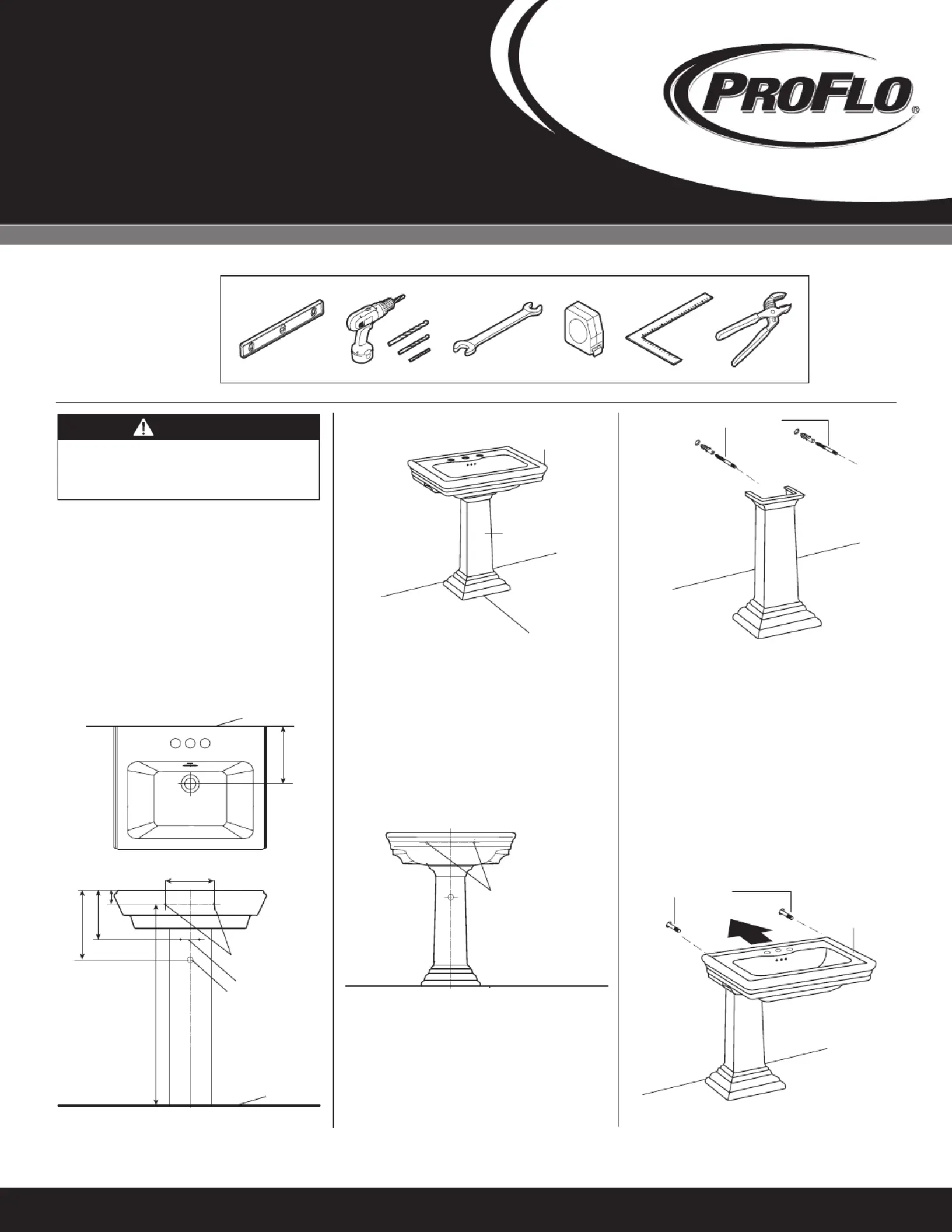

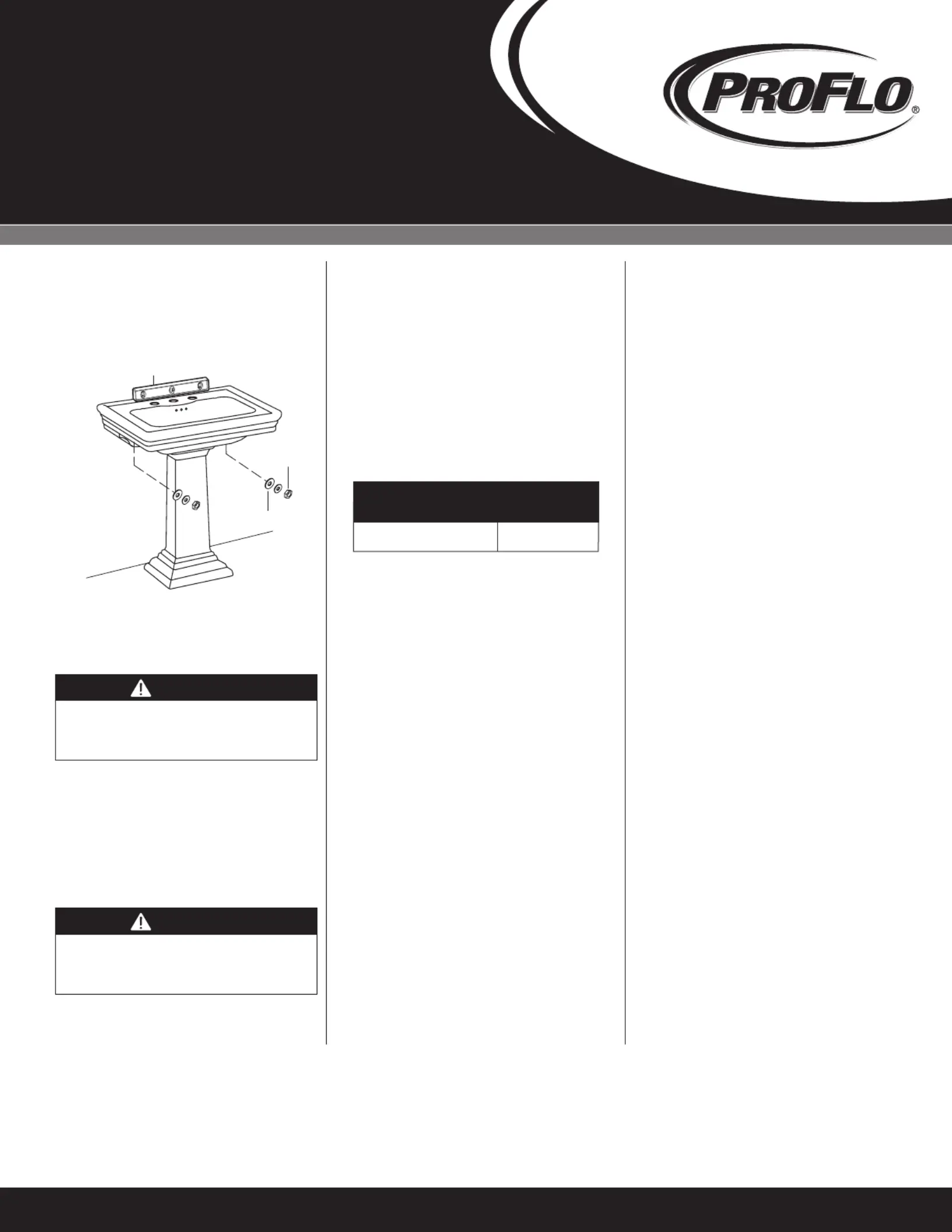

Installation Instructions
PF1081WH
PF1181WH/PF1184WH
Pedestal Lavatory
Risk of personal injury or product damage.
Handle with care. Vitreous china can break or
chip if the product is handled carelessly.
CAUTION
Prior to installation, unpack the new lavatory and
inspect for damage. Return the lavatory to its
protective carton until you are ready to install it.
These instructions are for installing the lavatory to
wood frame construction. For other installations,
supply suitable bracing and fastening devices of
sufficient size and strength.
The walls and floor must be square, plumb, and
level.
Rough-in
Mark the centerline on the floor.
Position the pedestal on the floor centerline.
Carefully set the lavatory on the pedestal.
Move the pedestal as required to ensure proper fit
in the desired location.
Level the lavatory.
NOTE: The lavatory must be supported by the
pedestal.
Drill two 1/4" (6.4mm) hanger bolt holes at the
marks on the wall.
Mount hanger bolts to the wall so approximately
1-1/4" (3.2cm) of each bolt remains exposed.
NOTE: Other fastening devices of sufficient size
and strength may also be used.
Install the faucet and drain to the lavatory
according to the manufacturer’s instructions.
NOTE: Do not fully tighten slip-joint drain
connections at this time.
Check the lavatory placement.
Mark the center of each anchoring hole on the
wall.
Carefully remove the lavatory from the pedestal.
Then remove the pedestal from the area.
Installation
5-7/8"
(150mm)
Finished Floor
Note: Dimensions shown for location of
supplies and waste are suggested.
1-1/4" OD (32mm OD)
2-1/8" (54mm)
11-1/2"
(292mm)
13-1/2" (343mm)
31-1/4" (794mm)
8" (203mm)
Anchor Holes
in Lavatory
Finished Wall
8-1/2"
(216mm)
Tools and Materials
A. Level
B. Drill with assorted bits
C. 9/16˝ wrench
D. Tape measure
E. Framing Square
F. Channel lock pliers
B
C
E
D
F
A
Centerline
Pedestal
Lavatory
Finished Wall
Anchor Holes
in Lavatory
Hanger Bolts
Finished Wall
Hanger Bolts
Lavatory
Finished Wall
