Seite 1/2

I n n o v a t i o n G e r m a n E n t e r p r i s e s .K n o w - H o w . Q u a l i t y . D e s i g n .

FiberX HDMI Optical Extender Pigtail User Guide

FX-P320

Thank you for purchasing FX-P320

The optical HDMI pigtail extender with HDCP support extends HDMI sig-

nals up to 300m using single strand multi-mode optical ber cable. It sup-

ports resolutions up to FullHD (1920x1080) and WUXGA (1920x1200).

Package Contents

Please make sure all of the following items are included in the package:

1 FX-P320 Transmitter & Receiver

2 +5V DC Power supply x 2pcs

3 User Guide

If any of the above items are missing, please contact your supplier for support.

Note: Package content may dier if you have placed a special order or placed order from anywhere other than

PureLink GmbH. PureLink GmbH reserves the right to make changes without further notice to a product de-

scribed herein to improve reliability, design, packaging or function.

Installation

Installation Steps:

1. Connect product transmitter to the HDMI port on your source device.

2. Connect product receiver to the HDMI port on your digital display device.

3. Connect Multi-mode SC type 1 Channel standard ber-optic cable between transmitter and receiver.

4. Connect power adapter to the receiver which has been provided. *Connection of the power

adapter is otional (in case source device cannot supply full voltage from HDMI alone)

5. The Green LED will appear on the transmitter and receiver, after all the product connections

are completed.

Note: The Transmitter and the Receiver modules must be connected to the included power supplies for proper

operation. Transmitter module must be powered on rst.

LED indicator

DC +5V

Power jack

SC type optical port

I n n o v a t i o n G e r m a n E n t e r p r i s e s .K n o w - H o w . Q u a l i t y . D e s i g n .

FiberX HDMI Optical Extender Pigtail User Guide

FX-P320

We, PureLink GmbH hereby warrant the nal purchase of our product as follows. In case of defect, please contact

the reseller from which you purchased this item.

One year limited warranty

Customers are liable to a free of charge repair or replacemenent, if goods are found to be defective with in

1(one) year of the purchase date, providing the unit has not been mistreated.

Out of warranty services

A product is deemed to be out of warranty and may be liable to customer charges when it is past a year in age or

if the defect is not related to manufacturing, as in the following cases:

-Product defects caused by accident, disaster.

-Damage to product caused by the customer’s carelessness or mistaken application.

-Damage to product caused by the application of parts or products not supplied or sold by our company.

-Damage to product and any related defect caused by unwarranted service personnel or any indication that

chassis covers have been removed or tampered with.

Warranty

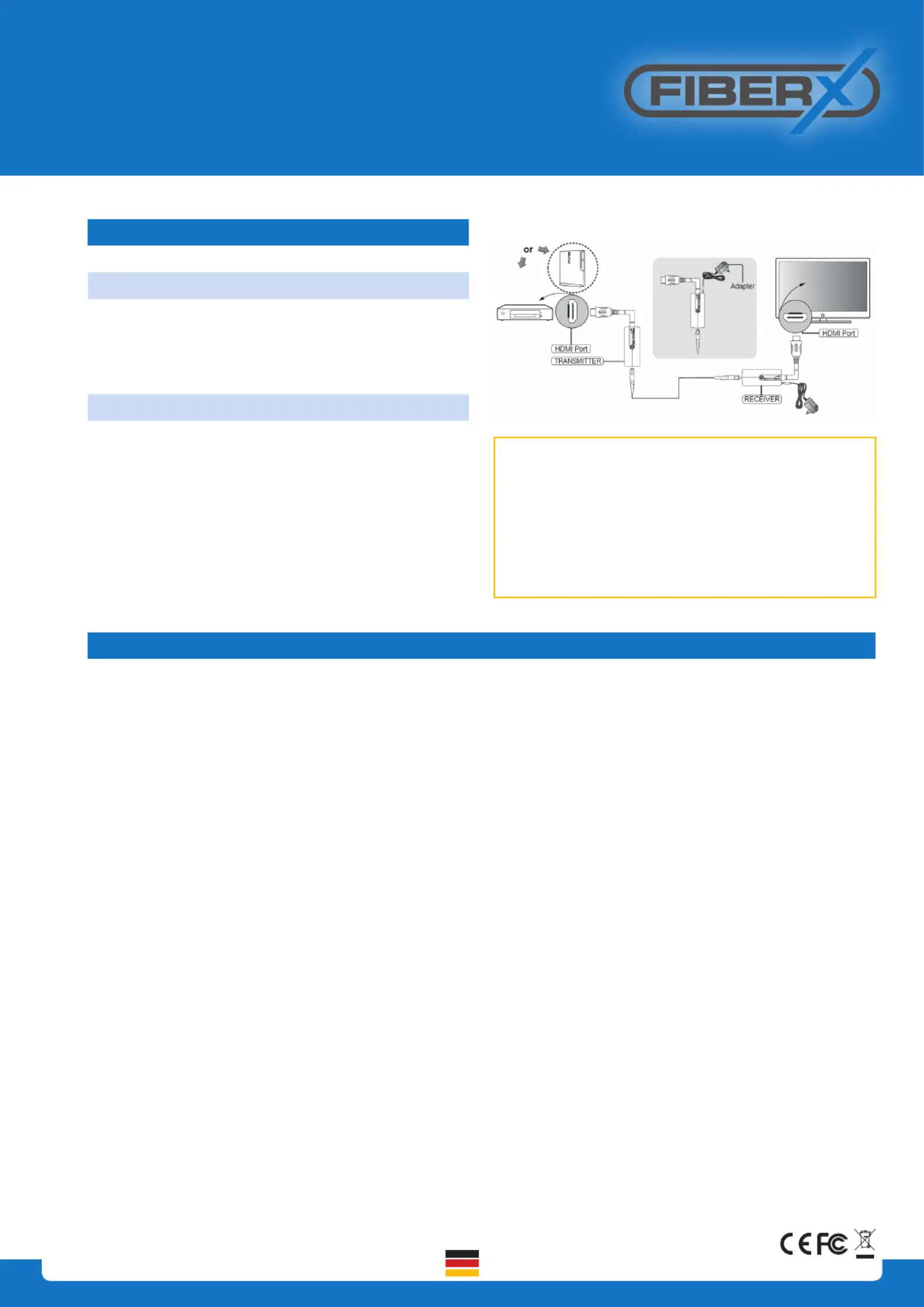

Application

Trouble shooting

Screen is not displayed

- Check if the source device power is on

- Check if connections to the source and display

device are correct

-Turn the source device power o and on again

Noise is shown on the screen

- Check the HDMI connection

- Check the display resolution

If the malfunction is not xed by the above

measures, please contact your reseller.

NOTE: If you are still experiencing problems, It may

be neccessary to clean the module connector or SC

ber cable. Around 80% of connection issues with

Fiber optic systems are due to dirty connectors - for

more information see the Purelink ber cleaning

guide on our website: http://www.purelink.de/lead-

min/purelink/media/sonstige/PureLink_Fiber_Clean-

ingInstructions.pdf

Produktspezifikationen

Marke:	PureLink
Kategorie:	Audio-/Video-Extender
Modell:	FX-P320
AC-Netzadapter:	Ja
Produktfarbe:	Schwarz
Übertragungstechnik:	Kabelgebunden
Material:	Aluminium
AC Eingangsspannung:	100 - 240 V
Gleichstrom-Anschluss (DC):	Ja
Betriebstemperatur:	0 - 50 °C
Zertifizierung:	CE, FCC
Typ:	AV-Sender & -Empfänger
Betriebsanleitung:	Ja
LED-Anzeigen:	Ja
Temperaturbereich bei Lagerung:	-20 - 70 °C
Unterstützte Video-Modi:	1080p
Abmessungen (BxTxH):	300 x 33 x 12 mm
Ausgangsstrom:	2 A
Maximale Auflösung:	1900 x 1200 Pixel
Maximal mögliche Übertragungsstrecke:	300 m
Arbeitsspannung:	5 V
Bandbreite:	225 MHz
Farbtiefe:	12 Bit
HDCP & EDID-Bypass:	Ja
Stromverbrauch (Sender) (max.):	1.3 W
Stromverbrauch (Empfänger) (max.):	1.1 W
