Seite 1/2

I n n o v a t i o n G e r m a n E n t e r p r i s e s .

K n o w - H o w . Q u a l i t y . D e s i g n .

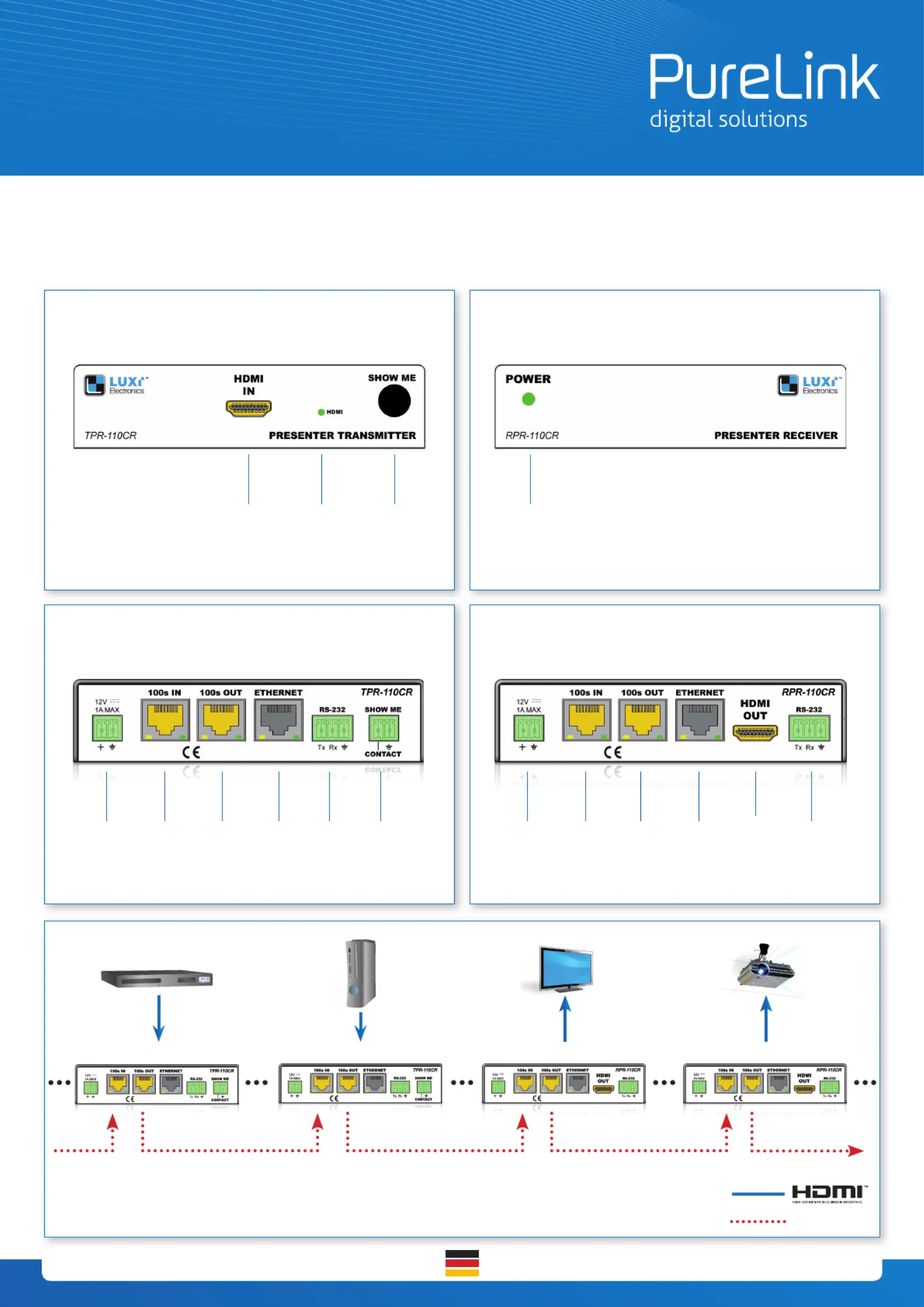

Transmitter - front view

Transmitter - rear view

Receiver - front view

Receiver - rear view

Thank you for purchasing the Luxi Electronics® Presenter product. Please read through this manual before using the product.

How the product functions: Think of the daisy chain as the ow of a river; each transmitter (Tx) connects to a source device and loads

the signal to the river ow; each receiver (Rx) unloads the signal from the river ow and sends it to the display it is connected to.

The front panel and the RS-232 controls determine which source signal goes to which display.

Power options:

This product can draw power from other Presenter products in the chain

or from an optional external power supply.

TX TX RX RX

CAT 5, 6, 7

TITEL 01

System diagram

P R E S E N T E R ™

Q u i c k S t a r t G u i d e

HDMI Input

Power

RS232

HDMI Output

Daisy Chain

Input

Daisy Chain

Input

Daisy Chain

Output

Ethernet

Daisy Chain

Output

Ethernet

Show Me

RS-232 Status LED

Status LED

SHOW ME

Button

I n n o v a t i o n G e r m a n E n t e r p r i s e s .

K n o w - H o w . Q u a l i t y . D e s i g n .

P R E S E N T E R ™

Q u i c k S t a r t G u i d e

Please contact your reseller directly for local support.

See PureLink website for RS-232 commands and user manuals.

One Tx and one Rx connected with a short Cat6 cable. Use the

minimum system to test all devices and cables to be used in bigger

systems rst in order to isolate any potential problems.

Minimum system Support

TRANSMITTER control options RECEIVER control options

Pressing the “Show Me” button on the front panel will select the

source connected to this Tx unit; all displays will show the same

content from this Tx box. An external button can be connected to the

“Show Me” port on the rear panel. A RS-232 host connected to the

rear panel can control all functions of every unit in the chain. Make

sure both DIP switches recessed on the bottom side are in the down

(o) position.

A RS-232 host connected to the rear panel can control all functions of

every unit in the chain. Make sure both DIP switches recessed on the

bottom side are in the down (o) position.

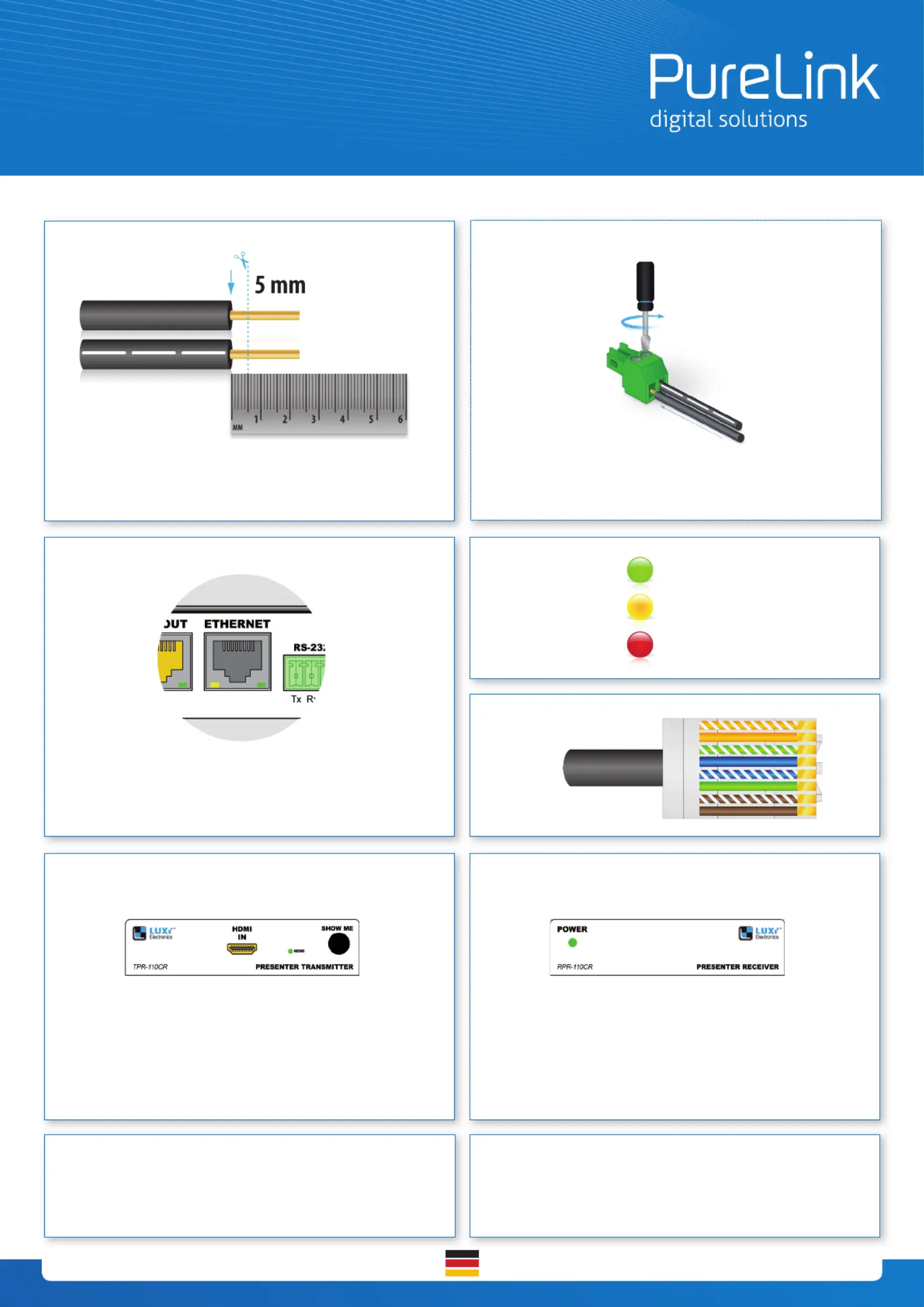

The captive screw plugs for power, RS-232 and contact controls are

supplied with the unit. Separate the wires about 2.5 cm long; strip o

the wire insulation precisely 5 mm from the end.

Identify the positive and negative leads for power; Luxi power supply

has a white stripe on the positive wire. If not sure, use a multi meter

to verify.

Captive screw plug termination Captive screw plug termination

For providing a system wide internet access. Be very careful NOT to

plug the Ethernet cable into the yellow 100s connector or vice versa!

Permanent damage may occur.

This Presenter is selected.

This Presenter is not

selected.

Communication error.

Ethernet port Front panel LED

Follow the standard

EIA 568B pin out.

RJ45 plug termination

RJ45 EIA 568B

Produktspezifikationen

Marke:	PureLink
Kategorie:	Audio-/Video-Extender
Modell:	LU-TPR-150CR
Produktfarbe:	Schwarz
Übertragungstechnik:	Kabelgebunden
Betriebstemperatur:	0 - 50 °C
Relative Luftfeuchtigkeit in Betrieb:	10 - 90 %
Typ:	AV-Sender
Stromstärke:	2 A
LED-Anzeigen:	Ja
Temperaturbereich bei Lagerung:	-40 - 70 °C
Unterstützte Video-Modi:	1080p, 720p
Maximale Auflösung:	1600 x 1200 Pixel
Arbeitsspannung:	5 V
Bandbreite:	18 Gbit/s
HDMI-In:	1
VGA (D-Sub)-Eingangsanschlüsse:	1
RS-232 Eingangs-Ports:	1
RJ-45-Eingangsanschlüsse:	1
RJ-45-Ausgangsanschlüsse:	1
