Features:

Installation

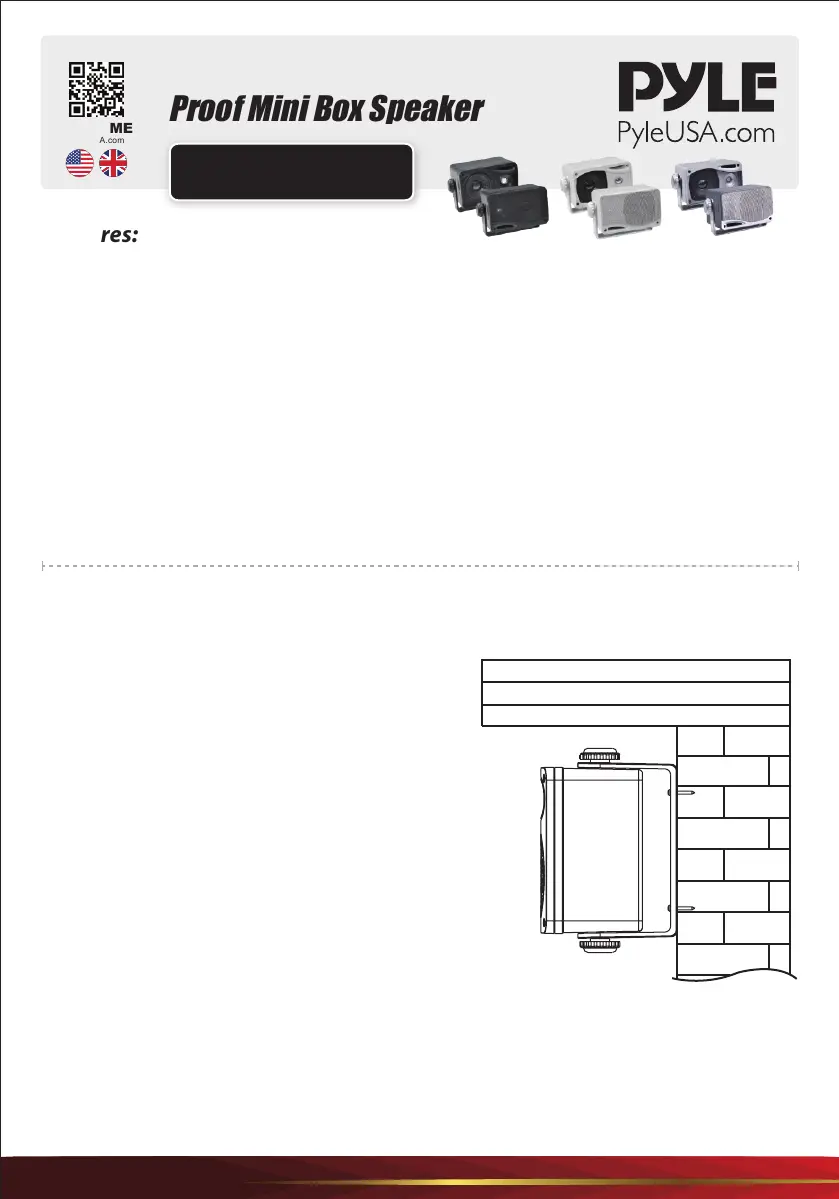

MOUNTING THE BRACKET MOUNTING

1. Remove the bracket knobs and the bracket

from the speaker.

2. Hold the bracket up to the mounting surface.

"PYLE" can be mounted either horizontally

or vertically. Hold the bracket so that the speaker

wire ts through the large, circular wire hole in

the bracket. Align the bracket to be square with

the surrounding. (Use a level for accuracy)

3. Mark the locations of the three shaped screw holes.

Use all of the holes.

4. Drill pilot holes into the mounting surface.

5. Gently pull the speaker wire through the wire hole

in the center of the mounting bracket.

Align the bracket so that the holes all line up.

6. Use your hardware to attach the bracket to the mounting surface.

Visit Our Website

SCAN ME

PyleUSA.com

3.5” 200 Watt 3-Way Weather

Proof Mini Box Speaker System

USER GUIDE

• Excellent for Use On Boats/Marine/

• Decks/patios/Poolside/Outdoors

• Completely Weather Proof

• 3.5” Aluminum Injection Cone Woofer

• 24 Oz. Magnet Structure

• 1.75” Wide Dispersion Cone Midrange

• 1” Super Dome Tweeter

• Capacitor Crossover Network

• Bass Reex Vent for Added Bass Response

• Heavy Duty ABS Construction

• Quick Connect/Disconnect Speaker

Terminals

• Removable Rustproof Mesh Grills

• Power: 100Watts RMS/200Watts Peak

• Frequency Response: 70-21K Hz

• Impedance: 4 Ohms

• Complete Mounting Kit ＆Wires

• Dimensions: 5.25”(W)x3.75”(H)x3.75”(D)

ENG

www.PyleUSA.com

FINAL ADJUSTMENTS

1. After checking that the speaker is in phase and works correctly, angle the speaker for the

best sound.

2. Hand-tighten the bracket knobs only. Power tools may over-tighten the knob and strip

the threads of the insert.

3. Check that the entire installation is safe and secure.

Connecting Your Speakers

California Prop 65 Warning

WARNING:

This product can expose you to chemicals, which is known to

the state of California to cause cancer birth defects and other

reproductive harm. Do not ingest.

For more info go to: www.P65warnings.ca.gov

Questions or Comments?

We are here to help!

Phone: 1.718.535.1800

PyleUSA.com/ContactUs

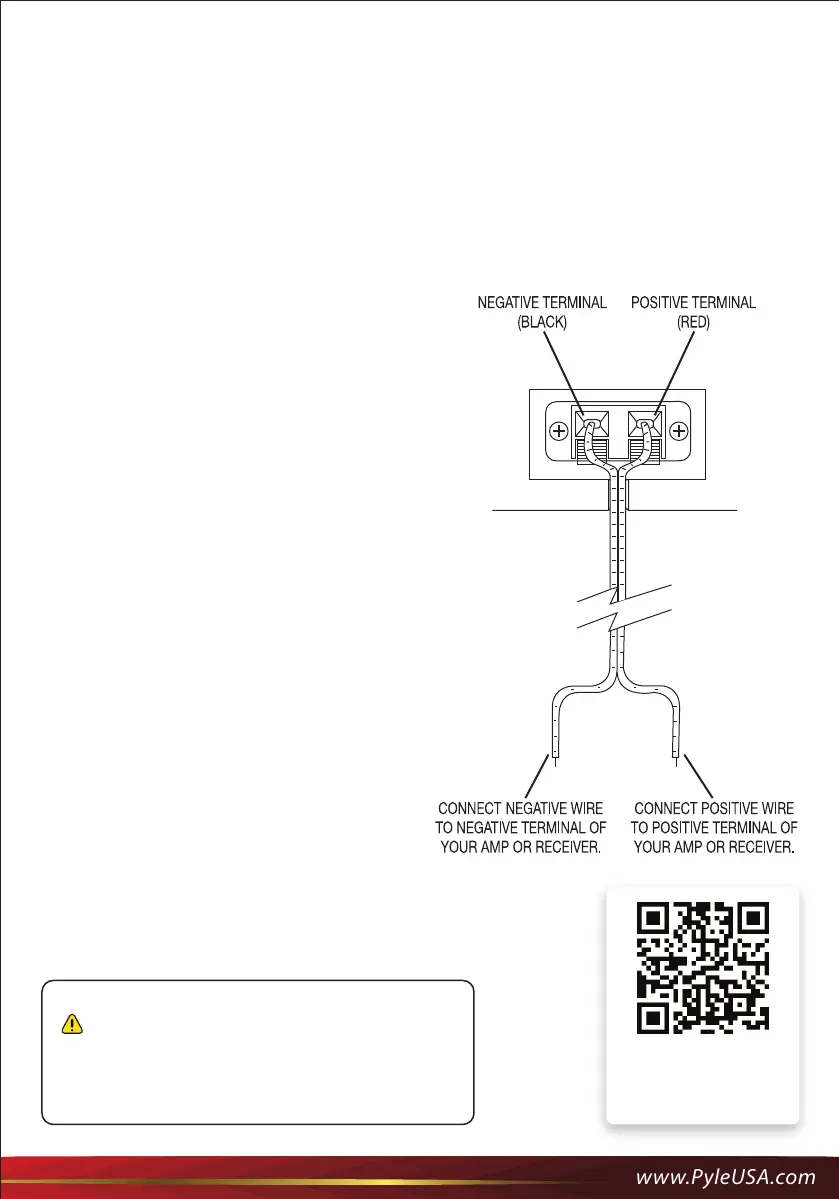

Connecting the speakers to your amplier

or receiver.

•

First, turn your amplier o to avoid

damage which may result from accidental

shorting of the speaker leads.

•

Correct phase polarity is critical for proper

stereo imaging and bass performance.

The red (+) terminal on your amplier or

receiver must be connected to the red (+)

terminal on your speaker; the same applies

to the black (-) terminal.

•

Connect one loudspeaker at a time to

ensure proper connection of left and right

channels. Make sure all wires are rmly

fastened.

•

If you notice a high level of bass or central

image focus, double-check your connections

for proper polarity.
