Seite 1/4
Manual-1
OPERATORS MANUAL
QUICK START
Conect the output from any stereo source such as a mixer or tape deck, and plug the left and right inputs into the
respective INPUT jacks. The Inputs accept balanced or unbalanced sources. Just plug them in. This source is now routed to
each of the four Outputs.
For a single mono source feeding all headphones, connect it to either one of the INPUT jacks and engage the STEREO/
MONO switch. Set the CHANNEL LEVEL controls for individual headphone levels.
Never connect anything except a Rane power supply to the thing that looks like a telephone jack on the rear of the
unit. This is an AC input and requires special attention if you do not have a power supply exactly like the one originally
packed with your unit. See the full explanation of the power supply requirements elsewhere in this manual.
WEAR PARTS: This product contains no wear parts.
HC 4
HEADPHONE AMPLIFIER

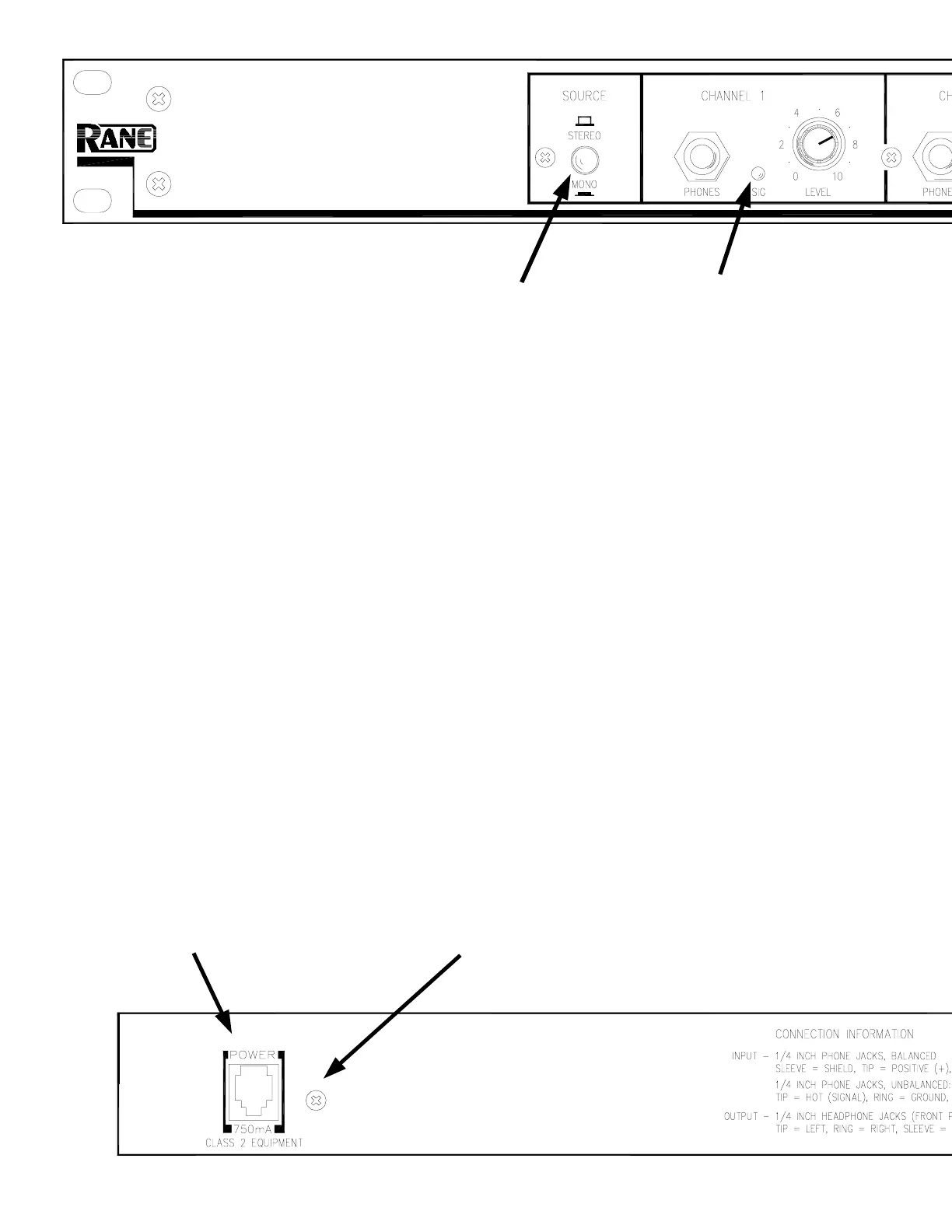

Manual-2
STEREO/MONO switch
Converts the INPUTS from stereo to
mono so that a single input cable drives
both sides of the headphones. In some
instances a STEREO program may be
confusing for live monitoring purposes,
and switching to MONO improves
intelligibility by summing the Left and
Right signals.
OVERLOAD indicators
The red LEDs light when the input
signal exceeds the HC 4’s output
capability (3 dB below maximum).
Occasional flickering is acceptable.The
overload point automatically varies with
the headphones used.
Chassis ground point
A screw is supplied for chassis
grounding purposes. This unit comes
with an outboard power supply which
does not ground the chassis through the
line cord. The HC 4 can be grounded
either to another chassis which is earth
grounded, or directly to the grounding
screw on an AC outlet cover by means
of a wire connected to this chassis
grounding screw.
Remote POWER supply input
The unit is supplied from the factory
with a Model RS 1 remote power supply
suitable for connection to this input
jack. The power requirements of the
unit call for an 18 volt AC center-tapped
transformer only. This is not a tele-
phone jack. Never use a power supply
with your unit other than the one
supplied or a replacement approved
by Rane Corporation. Using any other
type of supply may damage the unit and
void the warranty.
