ASSEMBLY INSTRUCTIONS FOR YOUR
1988
ASSEMBLY INSTRUCTIONS:
(E)

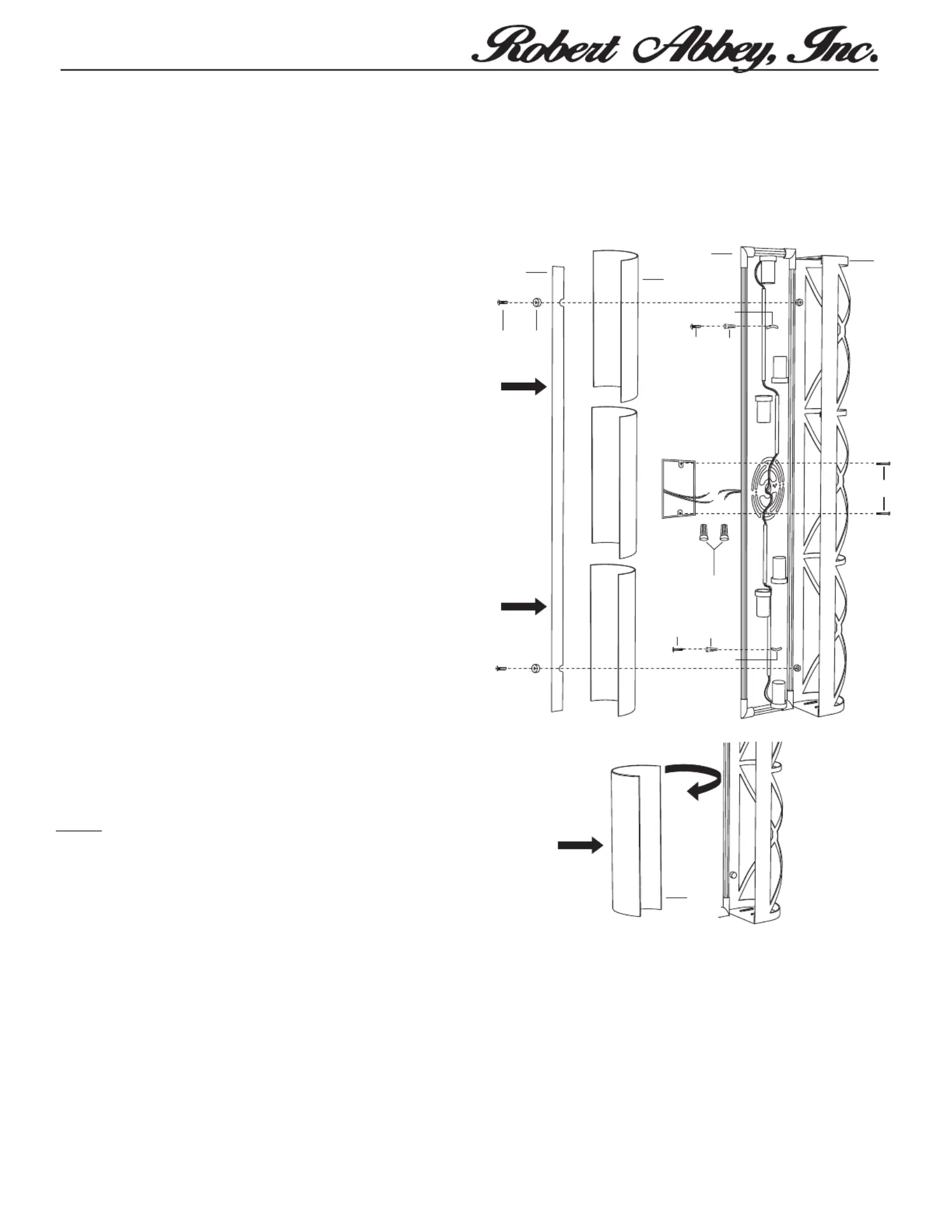

FIGURE A
(A)
(F)
(G)(H)
(B)
(E)
(C)
OUTLET
BOX
(D)
(I)
(I)
(J)
(K)
(J)
(K)
10. Lift backplate (A) to outlet box and make proper electrical connection. A licensed electrician is recommended.
11. Attach ground wire from xture (green or copper in color) to ground wire from outlet box.
12. Attach hot wire from xture (black in color or smooth side of wire) to hot wire from outlet box. Fasten wires together with wire
nut (D) and tightly wrap connection with electrical tape.
13. Attach neutral wire from xture (white in color or ribbed side of wire) to neutral wire from outlet box. Fasten wires together with
wire nut (D) and tightly wrap connection with electrical tape.
14. Gently push wires back into outlet box.
15. Afx back plate (A) to outlet box using mounting screws (C) provided. Thread screws (J) into wall anchors (K).
16. Insert six (6) 60W MAX B-11 Torpedo bulbs into sockets (provided).
17. Carefully close metal frame (B), making sure it connects securely with backplate (A).
Caution: To clean, use a soft cloth only. Do not use any chemical or abrasive cleaners.
1. SHUT OFF ELECTRICAL SUPPLY FROM MAIN FUSE
BOX / CIRCUIT BREAKER.
2. Remove all parts from carton. Do not throw away any parts.
3. Set backplate (A) on level surface. Carefully open metal frame
(B).
4. Remove shade stop (F) from one side of metal frame (B) by
removing screws (H) and washers (G). NOTE: Both sides of metal
frame (B) have a shade stop. Only remove one shade stop.
5. Align glass shade (E) with metal frame (B). Carefully rotate
glass shade (E) into metal frame (B) as shown in FIGURE A.
NOTE: One side of glass shade (E) should rest against step on
shade stop remaining in metal shade (B). Repeat step for each
glass shade.
6. Align loose shade stop (F) with glass shades (E), making sure
step on shade stop (F) rests securely against edges of installed
glass shades (E).
7. Align washers (G) with holes in shade stop (F) and metal frame
(B). Insert screws (H) through openings in washers (G) and shade
stop (F) into threaded holes in metal frame (B).
NOTE: Fixture can be mounted in vertical position or horizontal
position.
8. Lift xture to outlet box. Hold xture in the desired location and
mark holes for frame support holes (I).
9. Gently place xture on at surface. Use screws (J) provided to
make pilot holes in the wall. Remove screw (J) from pilot hole.
Using a hammer (not provided) carefully install wall anchors (K)
into the vacant holes.
IMPORTANT SAFETY INSTRUCTIONS:
*These instructions are provided for your safety. It is very important
that they are read completely before beginning the installation of
your xture.
*WE STRONGLY RECOMMEND INSTALLATION BY A
LICENSED ELECTRICIAN.
*Turn off power at switch before replacing bulbs, making sure
xture has had sufcient time to cool down.
*DO NOT subject the xture to any shock while lit as
shattering of bulbs may result.
CHASE 36”
BATH SCONCE
