Reference Manual

Contents

Panel Descriptions ...................................... 2

Top Panel/Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Rear Panel (Connecting Your Equipment) .................. 3

Getting Ready ........................................... 4

Main Screen .............................................. 4

Turning the Power On/O ................................. 7

About SD Cards ........................................... 7

Operating the Menu ...................................... 8

Setting the Date and Time ................................ 8

How the P-20HD is Organized ............................. 9

Video Input/Output Settings ........................... 11

Setting the Video Input/Output Format .................... 11

Specifying the Input Format (EDID) ........................ 12

Setting the Output Format ................................ 12

Creating a Project ....................................... 13

Creating a New Project .................................... 13

Opening an Existing Project ............................... 13

Conguring the Project Settings .......................... 13

Video Operations ....................................... 14

Recording and Playback .................................. 14

Using Clips ............................................... 15

Clip List Operations ....................................... 19

Pad Operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Using the Palettes ........................................ 20

Other Palette Operations ................................. 21

Using Still Images ......................................... 22

Using Audio Files ......................................... 23

Adjusting the Video ..................................... 24

Audio Operations ....................................... 26

Adjusting the Volume ..................................... 26

Applying Eects to the Input Audio ....................... 26

Applying Eects to Output Audio ......................... 27

Muting Only Specic Audio (Mute) ........................ 28

Switching Between Audio Output from Each Output

Connector ................................................ 28

Annotation .............................................. 29

Connecting a Pen Display/ Pen Tablet ..................... 29

Getting Ready to Use Annotation. . . . . . . . . . . . . . . . . . . . . . . . . . 29

Drawing on the Screen .................................... 30

Other Functions ......................................... 31

Saving this Unit’s Settings to a SD Card/USB Flash Drive .... 31

Formatting an SD Card .................................... 32

Turning O the Power from the Menu ..................... 32

Returning to the Factory Settings (Factory Reset) .......... 33

System Settings .......................................... 33

Menu List ................................................ 34

1: Project ................................................. 34

2: Transition .............................................. 35

3: Playlist ................................................. 35

4: Pad .................................................... 36

5: Video Input ............................................ 36

6: Video Output ........................................... 38

7: Audio Input ............................................ 39

8: Audio Output .......................................... 40

9: Audio Rec Level ........................................ 42

10: SD Card/USB Memory ................................. 42

11: Annotation ........................................... 42

12: System ................................................ 42

CLIP LIST ................................................. 44

PALETTE .................................................. 44

STILL ..................................................... 44

AUDIO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

List of Shortcut Keys ...................................... 45

Appendix ................................................ 46

Troubleshooting .......................................... 46

Error Message List ........................................ 47

Approximate Recording Times ............................ 47

Main Specications ....................................... 48

Dimensions .............................................. 49

Video Block Diagram ...................................... 50

Audio Block Diagram ..................................... 51

Version 1.1 and later

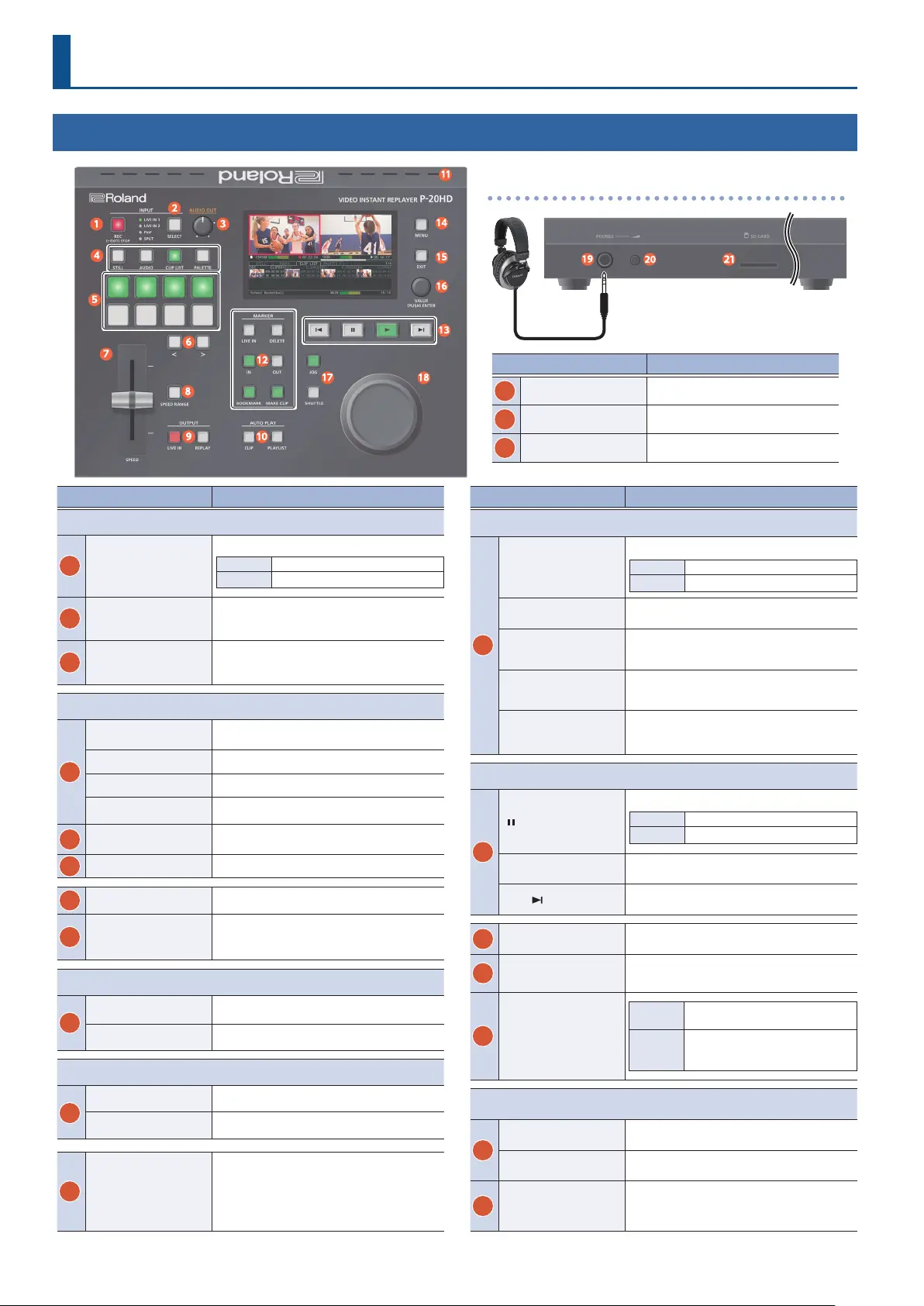

Panel Descriptions

Top Panel/Front Panel

Name Explanation

INPUT section

[REC] button

Starts/stops recording.

Lit Recording

Unlit Recording stopped

[SELECT] button

Switches between input video (LIVE IN1/LIVE

IN2/PinP/SPLIT). The LED for the selected input

lights up.

[AUDIO OUT] knob

Adjusts the output volume.

Pad section

[STILL] button

Switches the pad functions to select still image

clips.

[AUDIO] button

Switches the pad functions to select audio clips.

[CLIP LIST] button.

Switches the pad functions to select video clips.

[PALETTE] button

Switches the pad functions to select video clips

within a palette.

Pads [1]–[8]

Used for selecting the clip (video/still image/

audio) assigned to each pad.

[<]/[>] button

Switches the pad page.

[SPEED] lever

Adjusts the playback speed.

[SPEED RANGE]

button

Switches between ranges of playback speeds

that can be adjusted using the [SPEED] lever.

OUTPUT section

[LIVE IN] button

Outputs video from the live in bus.

[REPLAY] button

Outputs video from the replay bus.

AUTO PLAY section

[CLIP] button

Plays back the clip.

[PLAYLIST] button

Plays back the playlist.

Cooling vents

Heat from inside the P-20HD is released from

these vents.

* Do not block the cooling vents. If the cooling vents are

blocked, the internal temperature might rise, causing

the unit to malfunction.

Name Explanation

MARKER section

[LIVE IN] button

Switches between marker reference times.

Lit LIVE IN time

Unlit REPLAY time

[DELETE] button

Deletes a bookmark.

[IN]/[OUT] button

Sets the clip’s start time (IN point) and end time

(OUT point).

[BOOKMARK]

button

Sets a marker (bookmark) in the le.

[MAKE CLIP] button

Creates a clip whose OUT point is the moment at

which you press the button.

TRANSPORT section

[

] button

Pauses the video and audio of the replay bus.

Video Paused

Audio Muted

[

] button

Plays the video and audio of the replay bus.

[

]/[ ] button

Jumps to the next bookmark (or previous

bookmark).

[MENU] button

Shows or hides the menu.

[EXIT] button

Exits a menu level or cancels an operation.

[VALUE] knob

(ENTER)

Turning

Selects a menu item, or edits the

value of a setting.

Pressing

Conrms a selected menu item or

an edited setting. Also executes an

operation.

JOG/SHUTTLE section

[JOG] button

Sets the [JOG/SHUTTLE] dial to jog mode. (p. 14)

[SHUTTLE] button

Sets the [JOG/SHUTTLE] dial to shuttle mode. (p.

14)

[JOG/SHUTTLE] dial

In jog mode/shuttle mode, adjust the frame

advance, frame rewind, and playback speed.

Front Panel

Name Explanation

PHONES jack

Connect your headphones here.

[PHONES] knob

Adjusts the headphone volume.

SD card slot

Insert an SD card here.

Produktspezifikationen

Marke:	Roland
Kategorie:	Regeln
Modell:	P-20HD
Display-Typ:	TFT
Bildschirmdiagonale:	4.3 "
Unterstützte Audioformate:	PCM, WAV
Breite:	265 mm
Tiefe:	216 mm
Gewicht:	2100 g
AC-Netzadapter:	Ja
Mitgelieferte Kabel:	AC
Produktfarbe:	Schwarz
Höhe:	87 mm
Energiequelle:	AC
Eingebautes Display:	Ja
Anzahl USB 2.0 Anschlüsse:	1
Gleichstrom-Anschluss (DC):	Ja
Betriebstemperatur:	0 - 40 °C
Anzahl Ethernet-LAN-Anschlüsse (RJ-45):	1
Stromverbrauch (max.):	36 W
Betriebsanleitung:	Ja
HD-Typ:	WUXGA
Ethernet LAN Datentransferraten:	1000 Mbit/s
Anzahl Kanäle:	2 Kanäle
Audioeingang (L, R):	1
Audio (L,R) Out:	1
Unterstützte Video-Modi:	720p, 1080i, 1080p
Unterstützte Videoformate:	H.264, MPEG2-TS
Unterstützte Bildformate:	BMP, PNG
Video-Auflösung:	800 x 600,1024 x 768,1280 x 1024,1280 x 800,1366 x 768,1400 x 1050,1600 x 1200,1920 x 1200 Pixel
Ausgangsstrom:	3 A
Verkabelungstechnologie:	10/100/1000Base-T(X)
Anzahl der HDMI-Ausgänge:	2
HDMI-In:	2
Videoverarbeitung:	8 Bit
Kompression Verhältnis:	4:2:2
Display-Auflösung:	480 x 272 Pixel
Ethernet/LAN:	Ja
Digitale Videoeffekte (DVE):	Ja
