L

N

M

NC

NO

COM

OR

MAX

3 (1) A

AC 230 V

RT310

Thermostat

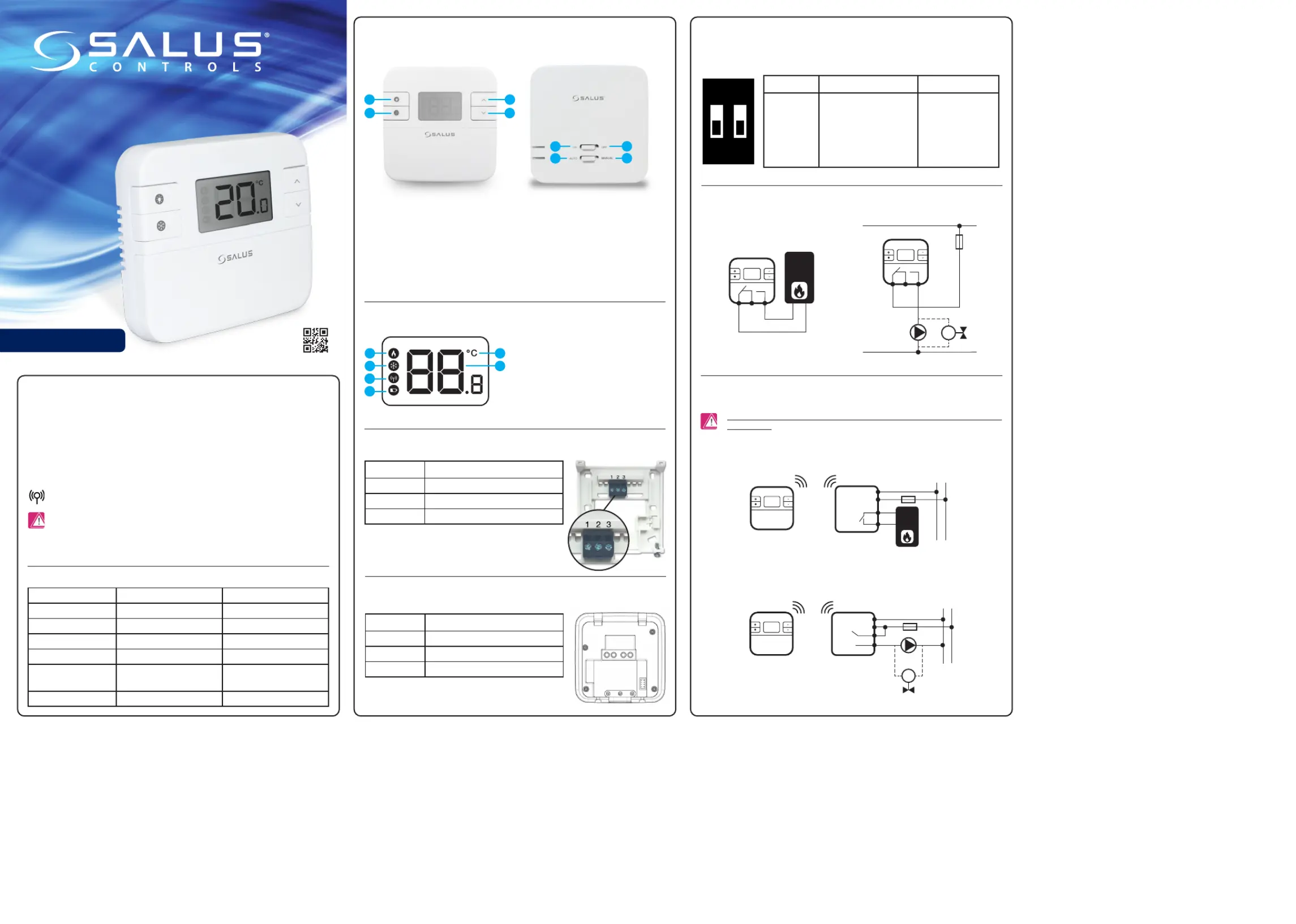

Introduction

RT310 / RT310TX / RT310RF is a digital room thermosat used to control room temperature. Device

launching heating system by shorting terminal blocks, simultaneously informing the action and

showing this information on the LCD display. Before use please read this manual carefully. Use only

AA 1.5 V alkaline batteries in the thermostat. Place the batteries into the battery slot located under the

cover. Do not use rechargeable batteries.

Product compliance

This product complies with the essential requirements and other relevant provisions of the following EU Directives:

EMC 2014/30/EU, LVD 2014/35/EU, RED 2014/53/EU and RoHS 2011/65/EU. Full text of the EU Declaration of

Conformity is available on www.saluslegal.com

Safety Information

Use in accordance to national and EU regulations. Use the device as intended, keeping it in dry condition.

Product for indoor use only. Installation must be carried out by a qualied person in accordance to

national and EU regulations.

Technical specication

LCD Icon description

Button functions

RT310 Terminals description

RXRT510 Receiver terminals description

RT310 Wiring diagram

RT310RF Wiring diagram

RT310RT310TX

Thermostat supply2 x AA alkaline batteries2 x AA alkaline batteries

Receiver supply-230 V AC

Thermostat rating max3 (1) A-

Receiver rating max-16 (5) A

Outputs

Voltage free

NO / COM /NC terminals

Voltage free

NO / COM terminals

Temperature range5 - 35°C5 - 35°C

TerminalDescription

1 - COMCommon Terminal

2 - NCSwitched Live OFF

3 - NOSwitched Live ON

TerminalDescription

NOSwitch Terminal

COMCommon Switch Terminal

L, NSupply (230 V AC)

RT310 / RT310TX ThermostatRXRT510 Receiver

1

5

6

7

8

3

2

4

1. Turn on the LCD backlight

2. Turn On/O the Frost Mode

3. Increase button

4. Decrease button

1. Heating Mode ON

2. Frost Protection Mode ON

3. RF signal indicator (only in RT310RF)

4. Low battery status

5. Temperature unit

6. Room / setpoint temperature

5. When in Manual Mode,

ON will turn the boiler on.

6. When in Manual Mode,

OFF will turn the boiler o.

7. Receiver operates in automatic mode

according to the thermostat

8. Receiver output is controlled

by the On/O slide switch.

15

6

3

2

4

NO COM L N

DIP Switch Settings

NC

NO

COM

RT310

Thermostat

L

L

RT310TX

Thermostat

NO

N

N

COM

RXRT510

Receiver

AC 230 V

COM

RT310TX

Thermostat

L

L

M

N

N

NO

OR

RXRT510

Receiver

AC 230 V

MAX

16 (5) A

Note: If you are using the RT310RF pack, the pairing between the thermostat and the receiver

is already done.

RT310, RT310TX, RT310RF

1

6CPHTPI

9CPH

Span

±0.25°C

2

ONON

The DIP Switches can be found on the rear of your thermostat.

Control featureTPISpan

OperationWhen TPI is selected on DIP

switch № 2, the DIP switch №

1 is functional. You can choose

the Cycles Per Hour between

a lower comfort level (6CPH)

and a higher comfort level

(9CPH).

When Span is selected

on DIP switch № 2,

the DIP switch № 1 is

not functional. The

temperature accuracy of

your thermostat is set to

± 0.25 °C.

868.0-868.6MHz; <13dBm

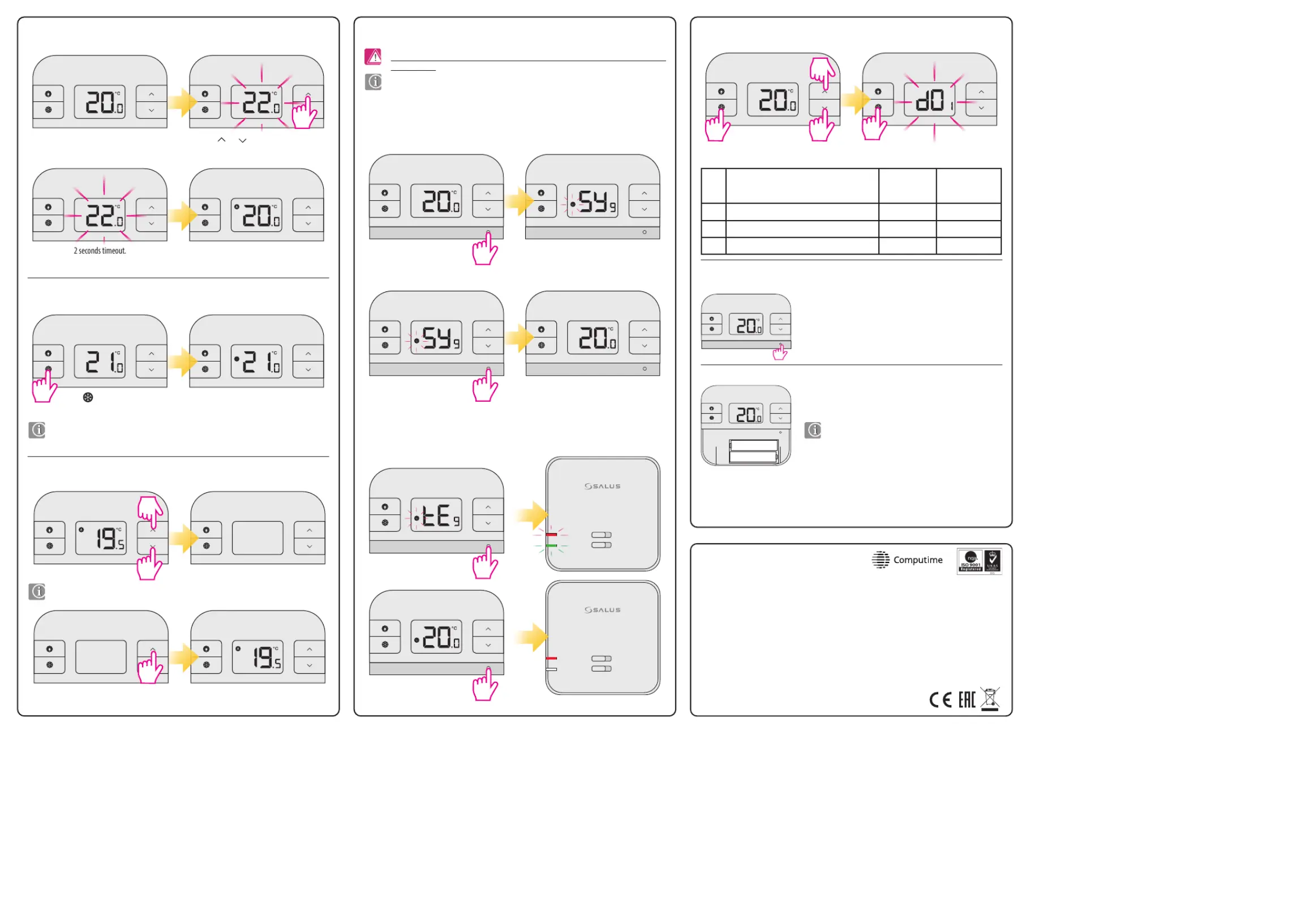

Quick Guide
