WARNING: Risk of Fire or Electric Shock

•

Disconnect power before installation or any maintenance of the

fixture.

• I nstall this kit only in the luminaries that have the construction features and

dimensions shown and where the input rating of the retrofit kit does not exceed

the input rating of the luminaire.

• I nstallation should be performed by a qualified electrician in accordance withthe

National Electrical Code and relevant local codes.

• Do not make or alter any open holes in an enclosure of wiring or electrical

components during kit installation.

• Do not expose wiring to edges of sheet metal or other sharp objects.

• Suitable for indoor wet locations.

•Suitable for insulated ceilings.

• This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and

(2)this device must accept any interference received, including interference that

may cause undesired operation.

IMPORTANT:This product must be installed in accordance with the applicable

installation code by a person familiar with the construction and operation of the

product and the hazards involved.

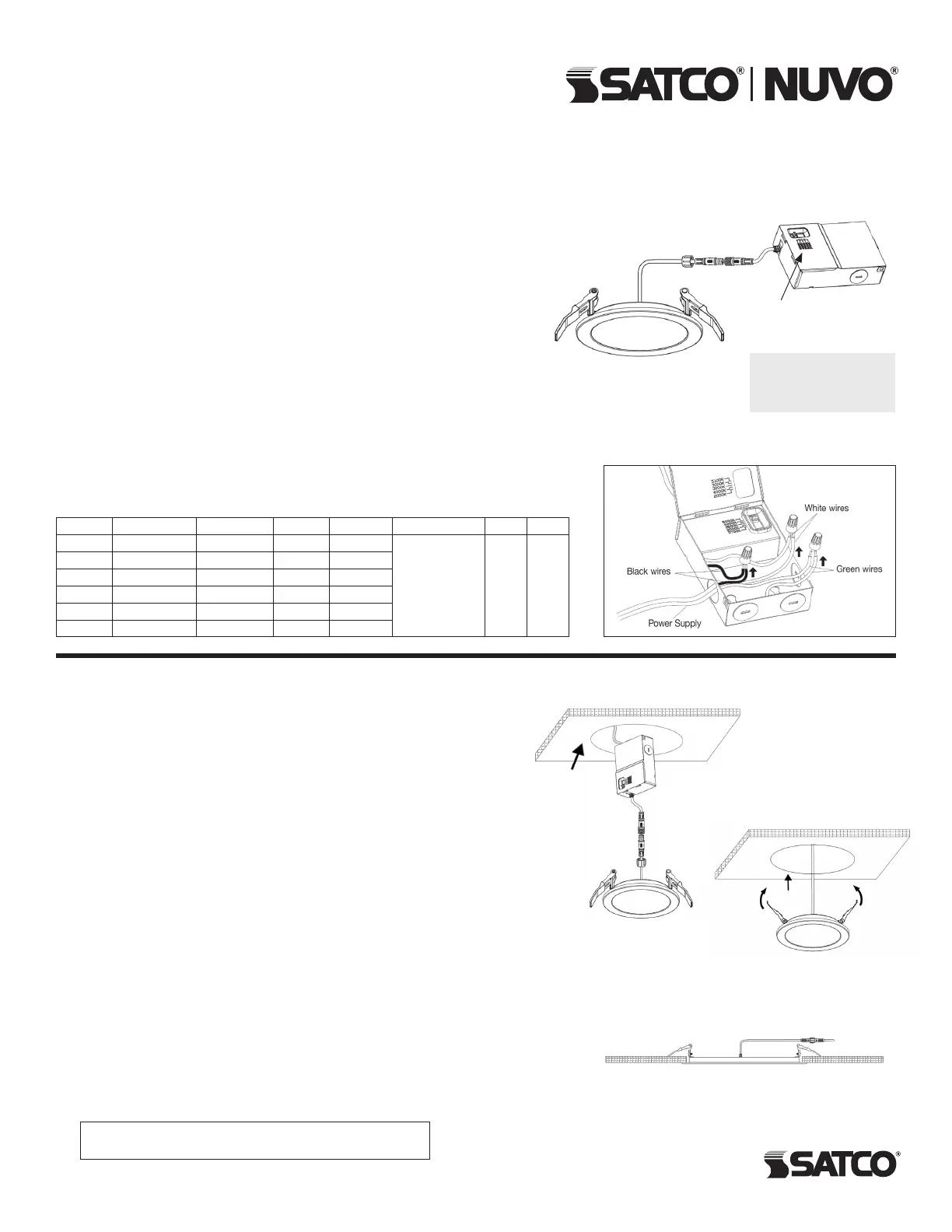

LED 4" & 6" FIRE RATED

SLIM FIT DOWNLIGHTS

Flat Lens & Stepped Bafe, Remote Driver

Models: S11864, S11865, S11866, S11867, S11868, S11869

Satco Products, Inc.

Brentwood, NY 11717

INSTALLATION

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

© Copyright 2023 Satco Products, Inc. 4/23 v1.3

ModelTrimDimensionsWattsVoltsCCT SelectableCRIFinish

S11864

Flat Lens

4 inches10W120V

2700K/3000K/

3500K/

4000K/5000K

90White

S11865

Stepped Bafe

4 inches10W120V

S11866

Flat Lens

6 inches13W120V

S11867

Stepped Bafe

6 inches13W120V

S11868

Flat Lens

4 inches10W120–277V

S11869

Flat Lens

6 inches13W120–277V

WIRING DIAGRAM

TOOLS REQUIRED: Screw driver, wirecutters, hole saw, measuring

tape and connector cables (as needed).

NOTE: Use extensions if necessary. Available connector cables are

6' (1.8m). Connector cables are linkable.

1.Turn power OFF from the electrical panel before starting installation.

2. Cut a hole in the ceiling for the downlight in a suitable position. Refer to

Hole Cut Dimension chart (below).

3. Run the electrical wire from the switch (power supply wire) through the

mounting hole. Use NMD90 Romex or BX cable. See Figure B.

4.

Open the Junction Box swing cover and remove the appropriate knockouts.

5.I nsert the power supply wire through the knockout and fasten with a cable

connector (not included).

6.Connect wires inside the Junction Box using the quick connect terminals.

Connect green ground with the green box wire. Connect the black and white

power leads with the matching black and white box wires. See Wiring Diagram.

7.Put all wires and connections back into the box and close the cover securely.

8.Choose the color temperature using the switch on the side of the remotedriver.

See Figure A.

9.NewConstructionApplications: Junction Box shall be firmly secured to

the studs,joistsor similarfixed structuralunits.

RemodelApplications: Do not require the Junction Box to be firmlysecured

to fixed structural units.

10.Bend back the two torsion springs and slowly fit the fixture through the ceiling

hole. The torsion springs will pull the fixture into place. The spring loaded clips

are designed to use in a double layered 5/8" gypsum ceiling. See Figures C & D.

11.Once installation is complete, turn power ON to confirm the fixture is working

properly.

Hole Cut Dimensions:

4" Round: Ø 3 7/8" (99mm) | 6" Round: Ø 5 7/8" (149mm)

Figure B

Figure C

Figure D

Fixture Includes:

1 LED Lamp

1 Junction Box

Figure A

CCT Selection Switch
