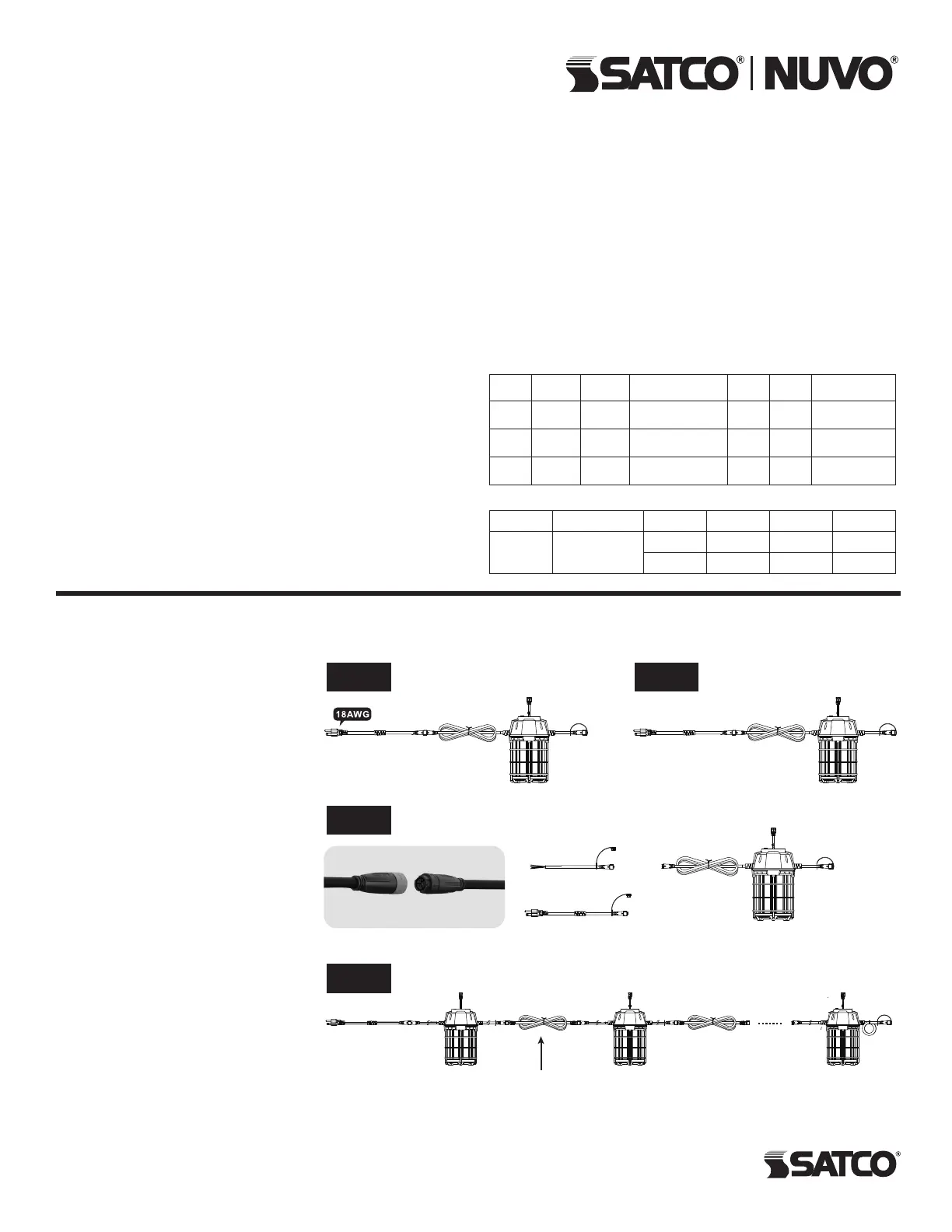

HI-PRO LED WORK LIGHT

Models: S13170, S13171, S13172

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

Satco Products, Inc.

Brentwood, NY 11717© Copyright 2024 Satco Products, Inc. 02/24 v2.0

WARNING:

• Please read this manual carefully before use, make sure the

application is in accordance with the instructions before use.

• To reduce the risk of electric shock and re, do not exceed

string maximum wattage including any additional string loads.

Maximum number of connection lamps:

120V : 60W – 10PCS, 100W – 6PCS, 150W – 4PCS

277V : 60W – 23PCS, 100W – 13PCS, 150W – 9PCS

• Suitable for dry and damp locations.

• Disconnect the power to avoid shock when the equipment is wet.

• This device is not intended for use with emergency exits.

• This lamp should not be installed in high heat or corrosive

environments or in a sealed environment.

• To reduce the risk of electric shock and re, ensure the surface of

the work light is clean and free of any debris or liquids.

• Please check the product carefully after opening the package. If

product is damaged, please keep the packaging and contact the

local dealer.

PRODUCT FEATURES AND SPECIFICATIONS

The new generation Hi-Pro LED Work Lights are designed with handle

and lamp pads, making it suitable for use as portable lights. The

lamp also features a hook structure, providing convenient hoisting

capabilities. The lamp is designed to IP64 standards, which can be

used in a dry or damp environment. The custom plug and socket

feature allows for the selection of either 120V or 277V operation and

the connection of two or more lamps (see maximum linking chart).

The lamp has a wide luminous angle and high power, making it

well-suited for installation in open work spaces.

INSTALLATION INSTRUCTIONS

• Turn OFF power before installation.

• For one product, follow installation

steps: 1, 2 and 3.

• For two or more products, follow

installation steps: 1, 2, 3 and 4.

• Close the Cap of the last lamp,

when no other lamp connections

are needed.

• Turn ON power.

Max number of ganged lamps

and fuse reset:

The maximum number of lamps is

determined by the chart above.

Exceeding the maximum number

of xtures could open the fuse.

To reset the fuse in the case of an

overload, unplug the extra lamps for

a minimum of 10 seconds. Then

reconnect the plugs and turn the

lamps back on.

Follow the information below regarding

maximum weight requirements:

S13170 : 24lbs per set

S13171 : 26lbs per set

S13172 : 30lbs per set

Ensure the xed wall or object is

durable and in good condition and

able to hold the maximum weight

stated above.

Maximum Linkable Quantity

Hang on secure xed wall or object

by the base hook.

277V adapter

120V plug

If used in the 277V application, remove the 120V plug,

connect the 277V ADAPTER (80/861).

10' EXTENTION CORD (80/862 )

25' EXTENSION CORD (80/863 )

Connect the plug and socket to make sure two or more lamps are joined together.

STEP 1

STEP 3

STEP 4

Plug in and TURN ON the power

(AC 120V-277V).

STEP 2
