156 (DIA) X 60 (H) mm in format S16-L2 (For models S39059, S39061,

LED EDGE LIT DIRECT

WIRE DOWNLIGHTS

Models:

S39059, S39061, S39062, S39063

Satco Products, Inc.

Brentwood, NY 11717

•

Installation requires knowledge of electrical systems.

If not qualied, do not attempt installation. Contact a

qualied electrician.

•

Do not use if xture housing is damaged.

•

To reduce risk of re and over-heating, conrm all

connections are secure.

•

TURN OFF the electrical power before proceeding.

•

Direct Wire Downlights must be installed in accordance

to the dimensions and features shown in the installation

instructions.

•

These downlights are rated for IC or NON-IC installations.

•

These products are approved for use in damp locations.

•

The Direct Wire Downlights are dimmable. Please visit

our website www.Satco.com for dimmer compatibility list.

•

To prevent wiring damage or abrasion, do not expose

wiring to edges of sheet metal or other sharp objects.

•

Do not make or alter any openings in the wire housing

or make any modications to the electrical components.

•

Do not alter, relocate or remove wiring, lamp holders,

power supply or any other electrical component with

the xtures.

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

© Copyright 2019 Satco Products, Inc. 05/19

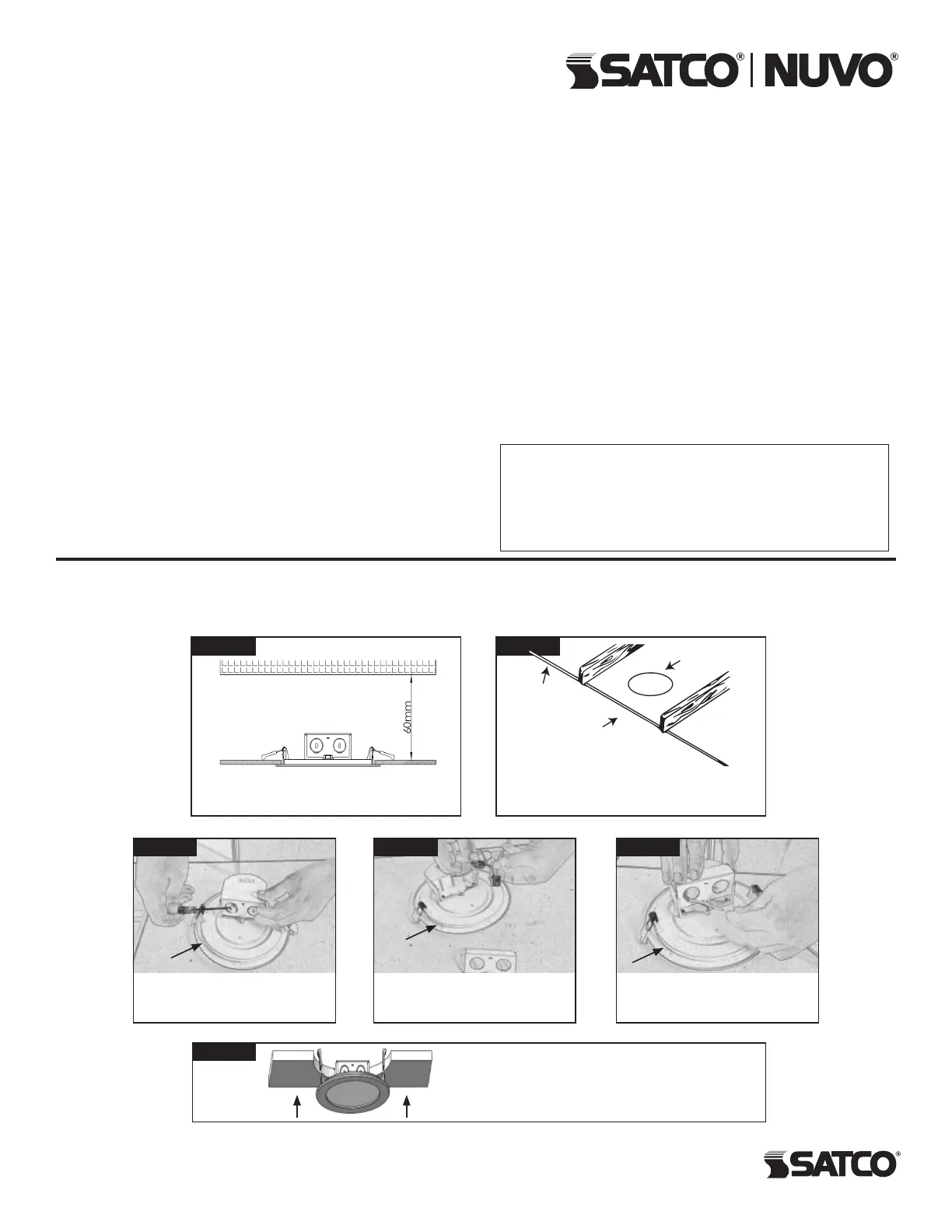

INSTALLATION INSTRUCTIONS

NOTE: Before installing these products or doing any maintenance, make sure to turn OFF the power supply and check the

through branch wiring marking.

Make electrical connections as per

local code requirements.

Cut the required size hole in the ceiling. Ensure to

avoid wires and obstructions when choosing the

hole location.

Replace wiring compartment door.

Ensure it is closed securely.

Open the wiring compartment door.

Remove knock-outs as needed using

a screwdriver.

Hold spring clips in upright position. Guide xture into hole

until spring clips pull xture rmly up against the ceiling.

Allow adequate space in ceiling cavity for heat

dissipation. Height of cavity should be at least

60mm.

For Round Airtight Stickers

For Round Airtight Stickers

For Round Airtight Stickers

STEP 1

STEP 6

STEP 3STEP 4STEP 5

STEP 2

Minimum Lamp Compartment Dimensions:

S39062, S39063)

107 (DIA) X 60 (H) mm in format S16-L2 (For models S39055, S39056,

S39057, S39058)

WARNING: Risk of Fire or Electric Shock

Use Drywall Saw

Ceiling

Hole

S11716, S11717, S11718, S11719

220 (DIA) X 60 (H) mm in format S16-L2 (For models S11716, S11717,

S11718, S11719)

S39055, S39056, S39057, S39058
