18AWG

LED TEMPORARY WORK LIGHT

Models: S13173, S13174

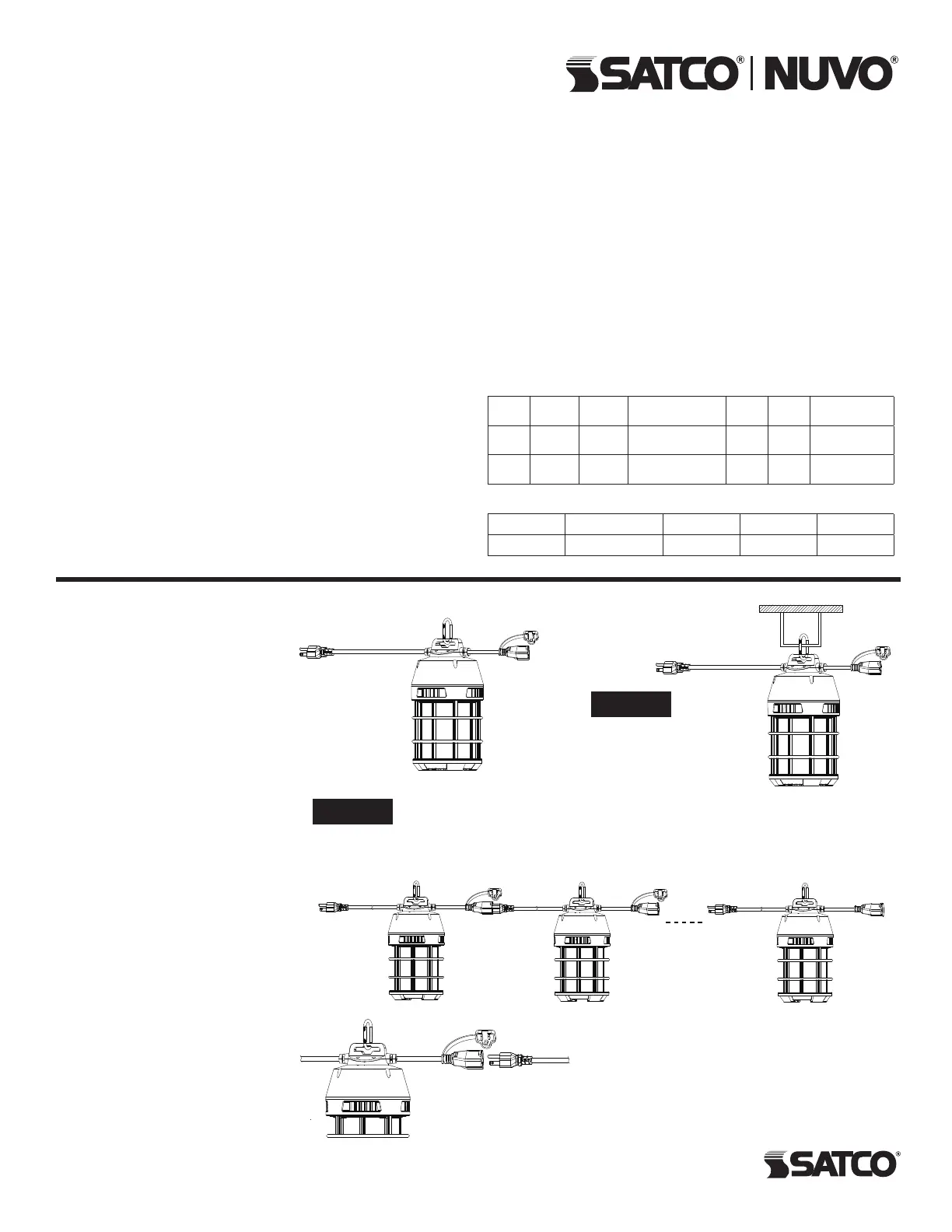

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

Satco Products, Inc.

Brentwood, NY 11717© Copyright 2024 Satco Products, Inc. 06/24 v4.0

WARNING:

• Please read this manual carefully before use, make sure the

application is in accordance with the instructions before use.

• To reduce the risk of electric shock and re, do not exceed

string maximum wattage including any additional string

loads. Maximum number of connection lamps:

120V: 100W – 6PCS, 150W – 4PCS

• Suitable for dry and damp locations.

• Disconnect the power to avoid shock when the equipment

is wet.

• This device is not intended for use with emergency exits.

• This lamp should not be installed in high heat or corrosive

environments or in a sealed environment.

•

To reduce the risk of electric shock and re, ensure the surface

of the work light is clean and free of any debris or liquids.

• Please check the product carefully after opening the

package. If product is damaged, please keep the packaging

and contact the local dealer.

PRODUCT FEATURES AND SPECIFICATIONS

The new generation temporary LED work lights are designed

with a carabiner clip, making it suitable for use as portable

lights. The custom plug and socket feature allows for

connection of two or more lamps together. The lamp has a

wide luminous angle and high power, making it well-suited for

installation in open work spaces. See chart for specications

and linkability.

NOTE: The luminaire standard cable length is 6ft.

INSTALLATION:

• Turn OFF power before

installation.

• Follow step 1 for a

single xture

• Follow steps 1 – 2 for

multiple xtures.

• Close the cap on the

last xture.

• Turn ON power.

Hang on secure xed

wall or object by the

base hook.

If desired, link other units via plug in connector. Ensure the xed wall or object is strong

enough to hold the weight noted above.

STEP 1

18AWG

18AWG

STEP 2

NOTE: Total 5A maximum in parallel connection. In case of overload 5A, reset fuse

in driver and disconnect multiple lamps. Wait 10 seconds for fuse to cool.

Max number of ganged lamps

and fuse reset:

The maximum number of lamps

is determined by the chart above.

Exceeding the maximum number

of xtures could open the fuse.

To reset the fuse in the case of an

overload, unplug the extra lamps

for a minimum of 10 seconds.

Then reconnect the plugs and

turn the lamps back on.

Follow the information below

regarding maximum weight

requirements:

S13173: 24lbs per set

S13174: 26lbs per set

Ensure the xed wall or object is

durable and in good condition and

able to hold the maximum weight

stated above.

WattInput

Light

Effect

Lamp Dimension

Wire

Length

Lamp

Base

Operating

Temperature

100W120

V

120Im/W

ø 5.43" x 9.96"

(ø 138 x 253mm)

6 FTHOOK

-22° to +140°F

(-30˚C to 60˚C)

150W120V120Im/W

ø 5.43" x 11.54"

(ø138 x 293mm)

6 FTHOOK

-22° to +140°F

(-30˚C to 60˚C)

CordBuilt-In Smart FuseVoltage100W150W

18AWG5A120V6pcs4pcs

Maximum Linkable Quantity

18AWG
