CPE 310
Quick Start Guide
www.sauermanngroup.com
EN FR ES
English
Quick Start Guide
Flush-mount multifunction
pressure transmitter

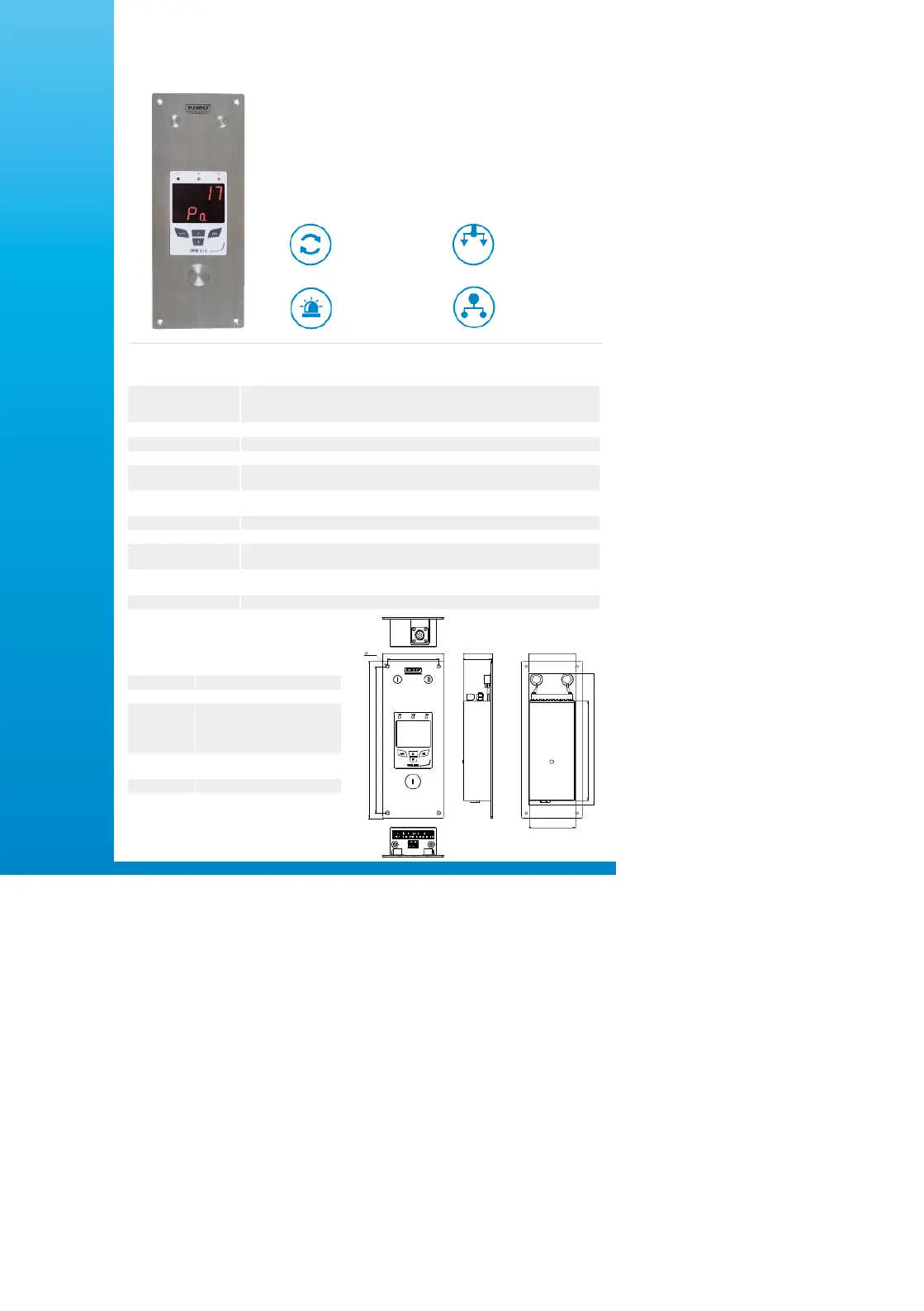

General features
Front face Brushed stainless steel 316 L
Back housing Flush-mount in stainless steel 304 L
Protection IP65 in front face
Display
Electroluminescent alphanumeric
(38 x 48 mm)
Protection screen made of inactinic
red PMMA
Height of the
digits
14 mm
Back ttings Barbed tting Ø 5.2 mm
Weight 640 g
Features of the housing
Power supply 24 Vac / Vdc ±10%
Output
3 x 0/4-20 mA or 3 x 0-5/10 V (4 wires)
Common mode voltage
Maximum load: 500 Ohms (0/4-20 mA) / Minimum load: 1 K Ohms (0-5/10 V)
Galvanic isolation On the output
Consumption 5 VA
Conformity 2014/30/EU EMC; 2014/35/EU Low Voltage; RoHS 2011/65/EU (EU)2015/863; 2012/19/EU WEEE
Electrical connection
Screw terminal block for cables from 0.05 to 1.5 mm
2
or from 30 to 16 AWG
Carried out according to the code of good practice
RS485 communication
Digital: ModBus RTU protocol, congurable communication speed from 2400 to 115200 Bauds
(optional)
Visual alarm Blinking of the value
Audible alarm Buzzer (70 dB at 10 cm)
Environment and type of
uid
Air and neutral gases
Conditions of use
(°C/%RH/m)
From -10 to +50 °C. In non-condensing condition. From 0 to 2000 m
Storage temperature From -10 to +70 °C
234 mm
92 mm
44 mm
42.5 mm
70 mm
196 mm
3.2
218 mm
76 mm
69 mm
147.3 mm
CPE 310
3 analogue outputs
0-5/10 V or 0/4-20 mA
Input for
interchangeable probe
(Class 310)
MODBUS network
RS485 system
(optional)
3 audible and visual
alarms
0-5 / 10 V
4-20 mA
Conguration
Class 310 transmitters allows you to set all the parameters managed by the transmitter: units, measuring ranges, alarms,
outputs, channels... via the different methods shown below:
• Via the keypad, only on models with display. A code-locking system for keypad guarantees the security of the
installation. See conguration manual.
• Via software (optional): simple and user-friendly. See LCC-S user manual.
Mounting

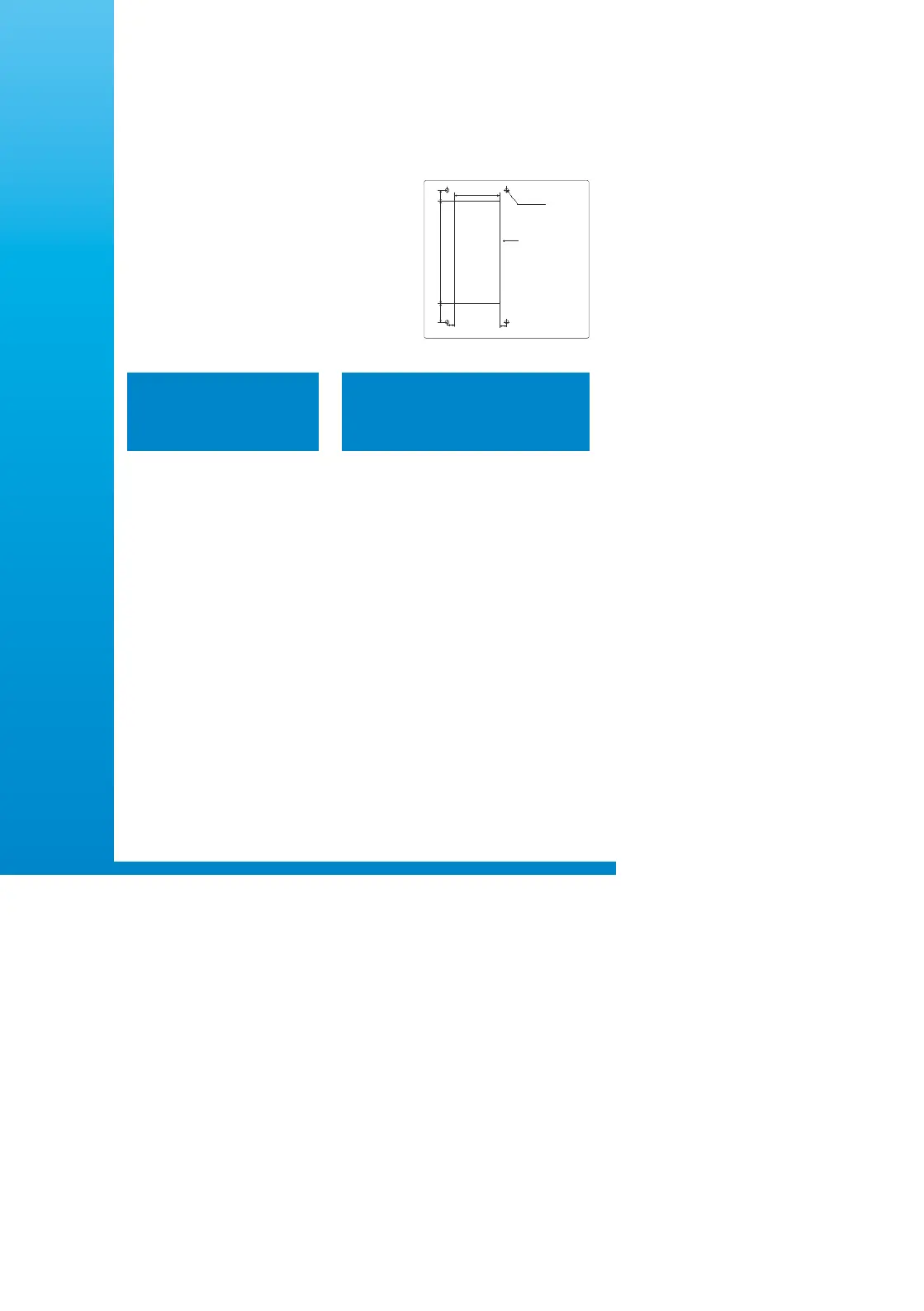

To install a transmitter on a wall, make a cutting of 198 x 72 mm in the wall.
Then drill 4 holes around the cutting as shown beside.
Insert the transmitter into the wall and x it with the 4 screws (supplied with
the transmitter).
Accessories
Maintenance: please avoid any aggressive
solvents. Please protect the transmitter
and its probes from any cleaning product
containing formalin, that may be used for
cleaning rooms or ducts.
Precautions for use: please always use the device
in accordance with its intended use and within
parameters described in the technical features in order
not to compromise the protection ensured by the
device.
Please refer to the data sheet to get more information about
available accessories.
Ø2.2 mm
Cut-out depth = 43 mm
70 mm
10 mm
196 mm
12 mm
3 mm
3 mm
