Si-ATE320
Flush-mount display
DATA SHEET

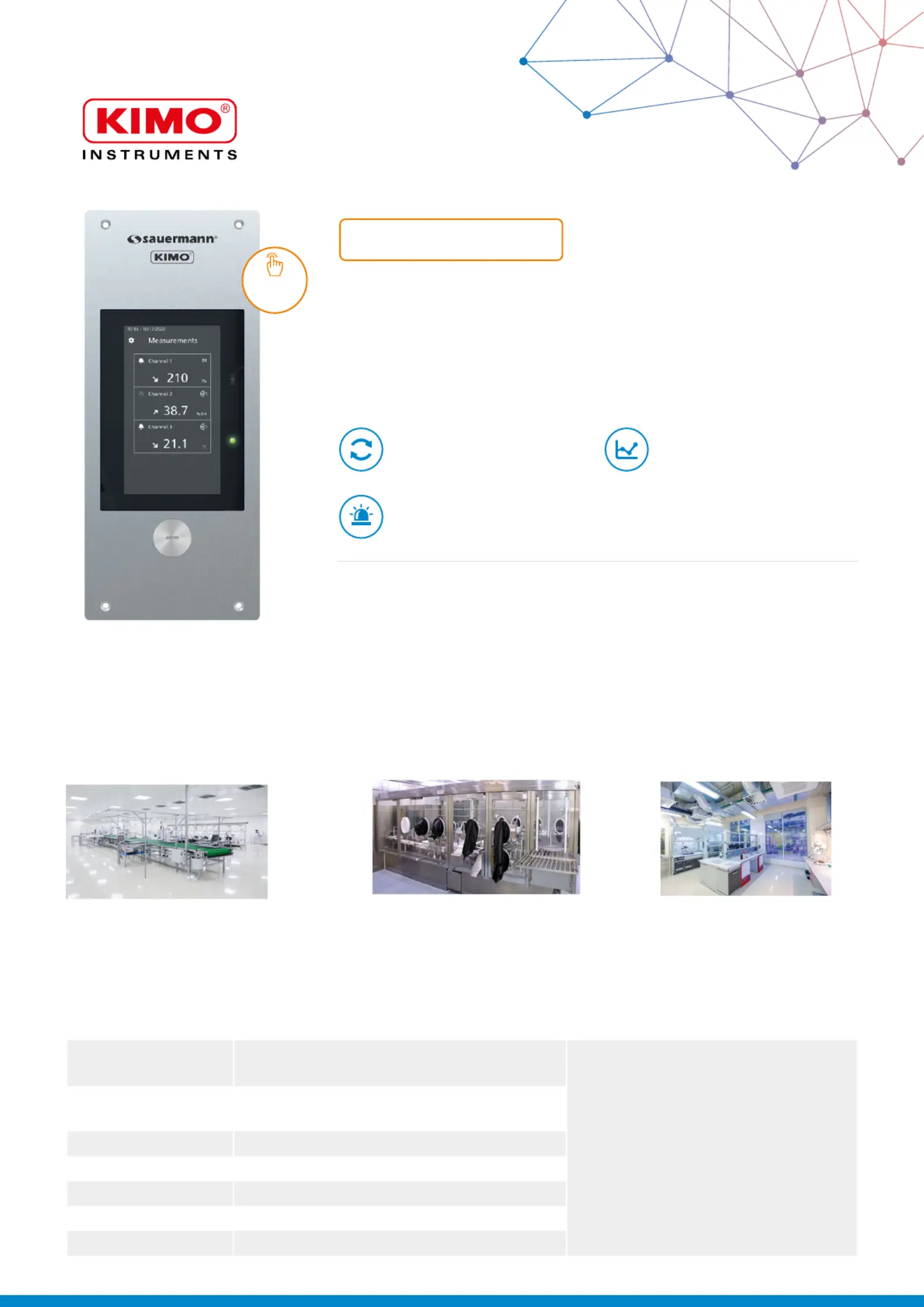

FEATURES
• RS485 MODBUS protocol
communication
• IP 66, VHP* resistant
• 30 pre-programmed units and custom
units
Graphic Touch display
Display of 1 to 3 parameters
Visual and acoustic alarms
EXAMPLES OF APPLICATION
Critical environments that require accurate
monitoring of differential pressure and
other key air parameters (clean rooms,
operating rooms, labs, prodution sites...)
Air parameters monitoring (in glove boxes,
fume hoods, isolation cabinets, liquid lling
machines...)
Monitoring the differential pressure,
relative humidity/temperature and
environmental CO
2
levels in labora-
tories where incubators are used
*Vaporized Hydrogen Peroxide
The are a good solution to integrate the measured by other ush-mount displays visualisation of the parameters
sensors/transmitters into a single display device and, simultaneously, transfer these measurements to a BMS or Scada
through modbus RTU.
TABLE OF THE PRE-PROGRAMMED UNITS
TOUCH
SCREEN
Domain Units Resolution
Pressure Pa, mmH
2
O, inwg, mbar, mmHg, daPa, kPa, hPa
1 / 0.1 / 0.01 / 0.001 / 0.0001 / 0.00001
Hygrometry %RH, g/m³ g/kg, kJ/kg, °C
td
, °F
td
, °C
tw
, °F
tw,
°C
tf
, °F
tf
Temperature °C, °F
Air velocity m/s, fps
Airow m³/h, l/s, m³/s, dam³/h, cfm
Gas concentration ppm, ppm, ppb
Air change rate ACH
Power supply
24 V
AC
/ V
DC
±10%
Warning: risk of electric shock
Consumption 15 VA
Electrical
connections
Screw terminal block for cables from 0.05 to
1.5 mm
2
or from 30 to 16 AWG
Carried out according to the code of good practices
RS485 communication Modbus RTU protocol, congurable communication speed from 2400 to 115,200 Bauds
Input x3 modbus RTU protocol inputs
Output x1 modbus RTU protocol output
Audible alarm Buzzer (60 dB at 10 cm)
Environment and type
of uid
Air and neutral gases
Conditions of use
(°C/%RH/m)
From -10 to 50 °C (14 to 122 °F)
In non-condensing conditions
From 0 to 2000 m (0 to 6561’)
Storage
temperature
From -10 to 70 °C (14 to 158 °F)
Security Protection class 2 - Pollution degree 2 - Overvoltage category 2
European directives 2014/30/EU EMC - 2014/35/EU Low Voltage - 2015/863 EU (RoHS 3) - 2012/19/EU WEEE
GENERAL FEATURES
FEATURES OF THE HOUSING
Front face Brushed stainless steel 316 L
Back housing ABS V0
Protection IP66 in front face, resistant against VHP
Display
Graphic touchscreen
Size: 480 x 272 pixels
Height of the
digits
14 mm (0.56’’)
Weight 700 g (1.54 lb)

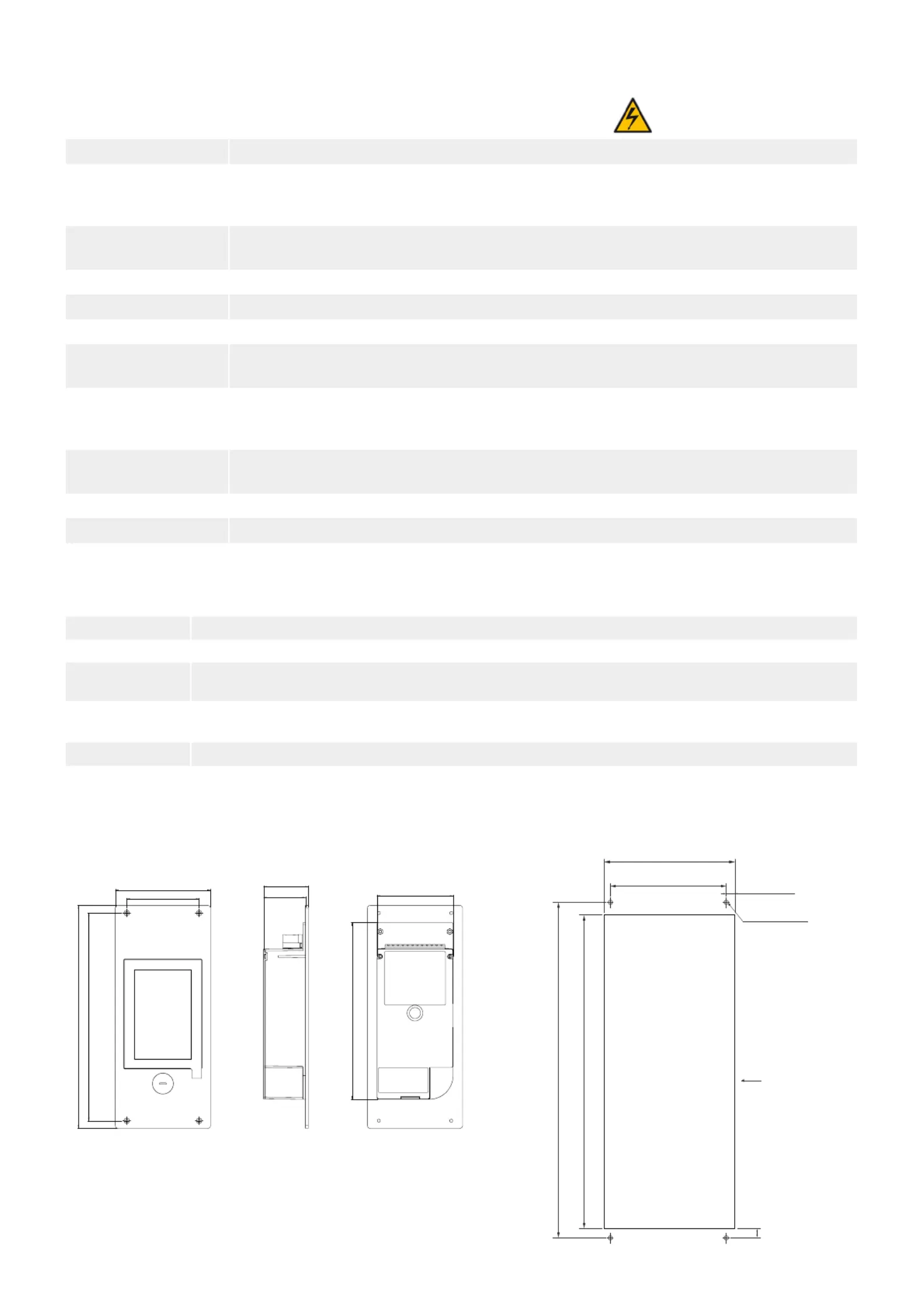

DEVICE DIMENSIONS
100 mm (3.94’’)
234 mm (9.21’’)
218 mm (8.58’’)
76 mm (3’’)
44 mm (1.73’’)
47 mm (1.85’’)
80 mm (3.15’’)
185.5 mm (7.28’’)
MOUNTING TEMPLATE
Ø2.2 mm (0.08’’)
Cut-out depth = 45 mm
(1,77’’)
76 mm (2.99’’)
82 mm (3.23’’)
200 mm (7.87’’)
218 mm (8.58’’)
9 mm (0.35’’)
3 mm (0.12’’)
ACCESSORIES
Only the accessories supplied with the device must be used.
DESIGNATION
Designation Sales reference Description
Si-ATE320 27982
Panel display with touchscreen display and 2x RS485 interface.
Displays measurements provided by Sauermann transmitters with
Modbus RTU or by transmitters connected to a Sauermann converter.
IP66 stainless steel.
More information
about this product
Designation Sales reference Description
Si-ACC-USB-CC 27998
USB-mini DIN interface for connecting of the class 320 transmitters to the conguration PC
software.
KI-AL-750-A 24709
Class 2 power supply. DIN rail mounting. Input voltage: 230 V
AC
.
Output voltage: 24
VAC
. Nominal power 18 VA, intensity 750 mA.
KI-AL-1000-C 13973
Class 2 stabilized power supply. Mounting with integrated brackets. Input voltage: 230 V
AC
,
output voltage: 24 V
DC
. Nominal power: 24 VA. Intensity: 1 A.
KIT CONTENT
• Si-ATE320
• Quick Start Guide
• Screws

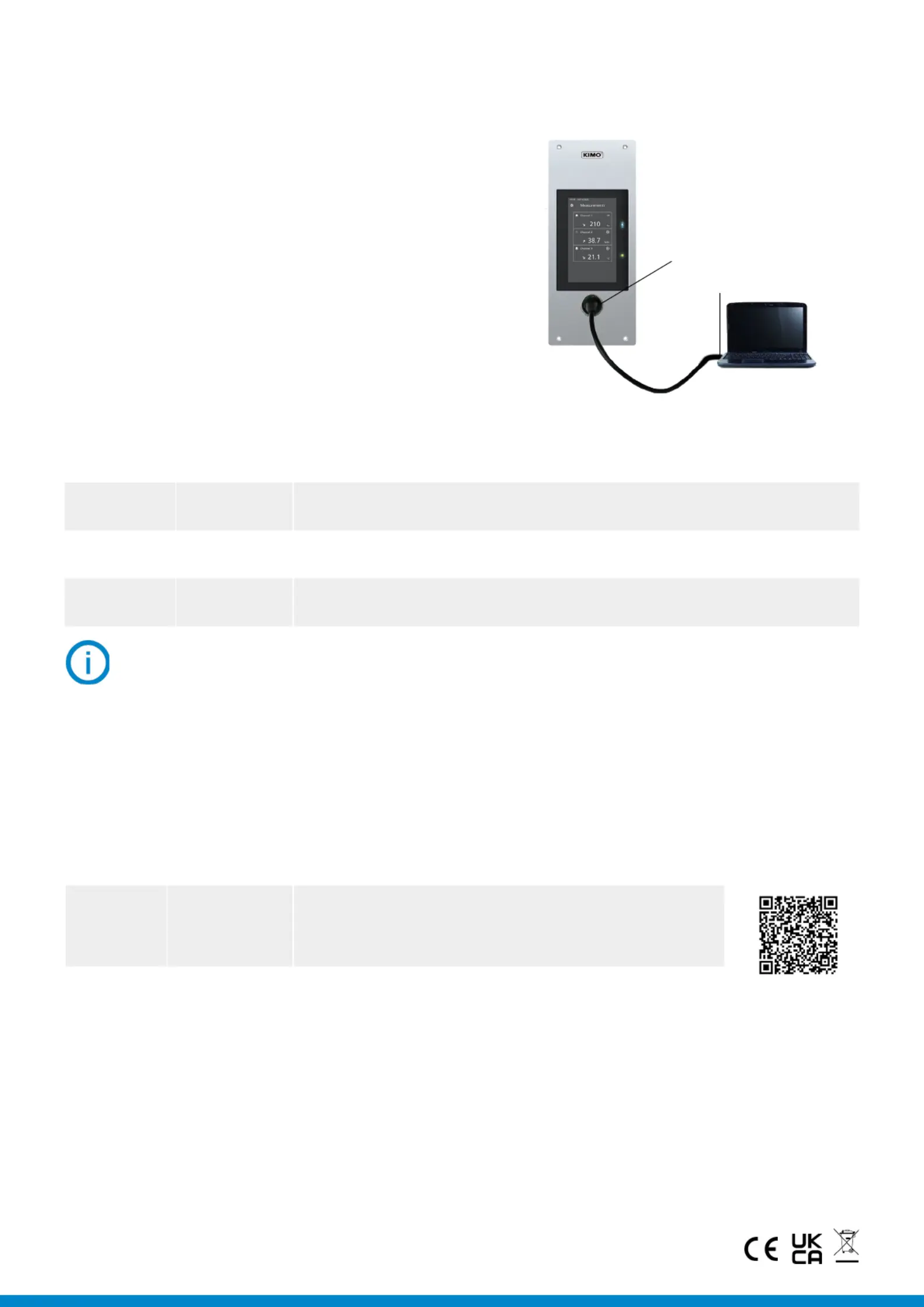

INNOVATIONS
Front face computer connection
USB connection
Mini-DIN connection
ALARMS
The Si-ATE320 ush-mount displays have visual alarms that are
independent and congurable.
Available settings are the followings:
• Time-delay duration: from 0 to 600 s
• Threshold values
• Action of the alarm: rising edge, falling edge or monitoring
DS_EN – Si-ATE320 – 24/01/2025 – Non-contractual document – We reserve the right to modify the characteristics of our products without prior notice.
