Electromagnetic Locks

Installation Manual

E-941SA-1K2DPSQ shown

Model* Holding Force

†

Material

E-941Sx-600DPSQ

‡

600-lb (272kg) Anodized aluminum

E-941Sx-1K2DPSQ

‡

1,200-lb (545kg) Anodized aluminum

E-941Sx-600PQ

600-lb (272kg) Anodized aluminum

E-941Sx-1K2PQ

1,200-lb (545kg) Anodized aluminum

E-941Sx-1K2PD** 1,200-lb (545kg) Anodized aluminum

*"x" is the variable for product color "A" for aluminum, "B" for black, and "D" for dark bronze

†

Holding force has not been verified by UL

‡

With status LED, bond sensor, and door position sensor

With status LED and bond sensor

With status LED, bond sensor, and timer

 MOV surge protection

 Adjustable mounting bracket

 Complete mounting hardware for typical installations

 "L" bracket and "Z" brackets available for easy mounting

 Detachable faceplate

 12/24VDC selectable

NOTES:

 UL294 Indoor use

 The power for the E-941Sx series is to be provided by a Listed (UL294 or UL603) Class 2 Power Supply.

 The E-941Sx series is intended to be used as an access control system accessory which is installed in

accordance with the manufacturer’s installation and operation instructions, ANSI/NFPA 70 and the local

authority having jurisdiction.

 The minimum permissible wire size to be used shall not be less than 22AWG

SECO-LARM Electromagnetic Locks

2 SECO-LARM U.S.A., Inc.

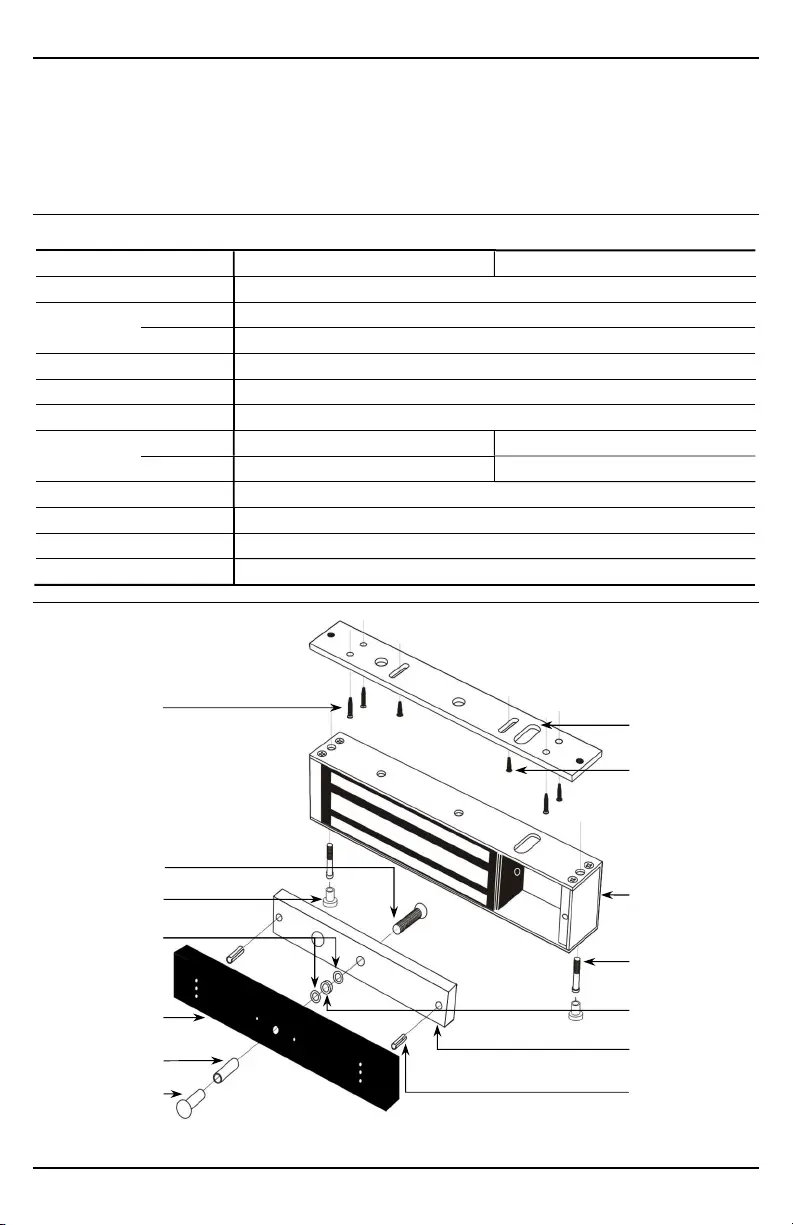

Hex-head

mounting screws

Steel washers x2

Armature screw

Mounting plate

Short self

tapping

screws x2

Door spacer

Armature plate

Rubber washer

Long self

tapping

screws x4

Sexnut bolt

Armature plate

holder*

Electromagnet

Tamper caps x2

Guide pins

Parts List

Electromagnet

rmature plate

Short self

tapping screws

Armature screw

Steel washers

Rubber washer

Long self

tapping screws

Sexnut bolt

Guide pins

Door spacer

Hex

head mounting screws

Mounting plate

Tamper caps

Hex wrenches

Armature plate

holder

Manual

Template

Specifications

Holding Force 600-lb 1,200-lb.

Operating voltage 12/24 VDC

Current

draw

12VDC 500mA

24VDC 270mA

Bond sensor SPDT relay, 1A@30VDC

Door position sensor Reed switch, 0.2A@12VDC

Operating temperature 32°~120° F (0°~49° C)

Dimensions

Magnet 9

"x1

"x1" (250x43x25 mm) 10

"x2

"x1

" (267x62x40 mm)

Armature 7

"x1

" (185x38x12 mm) 7

"x2

" (184x62x16 mm)

Destructive attack Level I

Line Security Level I

Standby power Level I

Endurance Level IV

Overview

*Armature plate holder for E-941Sx-600DPSQ and E-941Sx-1K2DPSQ only

Produktspezifikationen

Marke:	Seco-Larm
Kategorie:	Nicht kategorisiert
Modell:	E-941SA-1K2DPSQ
Gewicht:	4720 g
Produktfarbe:	Schwarz, Silber
Betriebstemperatur:	-10 - 55 °C
Eingangsspannung:	12 - 24 V
Plattenbreite:	185 mm
Plattentiefe:	16 mm
Stromverbrauch (12V):	500 mA
Plattenhöhe:	82 mm
Haftkraft:	544 kg
Breite Elektromagnet:	267 mm
Tiefe Elektromagnet:	40 mm
Höhe Elektromagnet:	62 mm
Elektromagnetische Oberfläche:	Eloxiertes Aluminium
Stromverbrauch (24V):	250 mA
