Seite 1/4

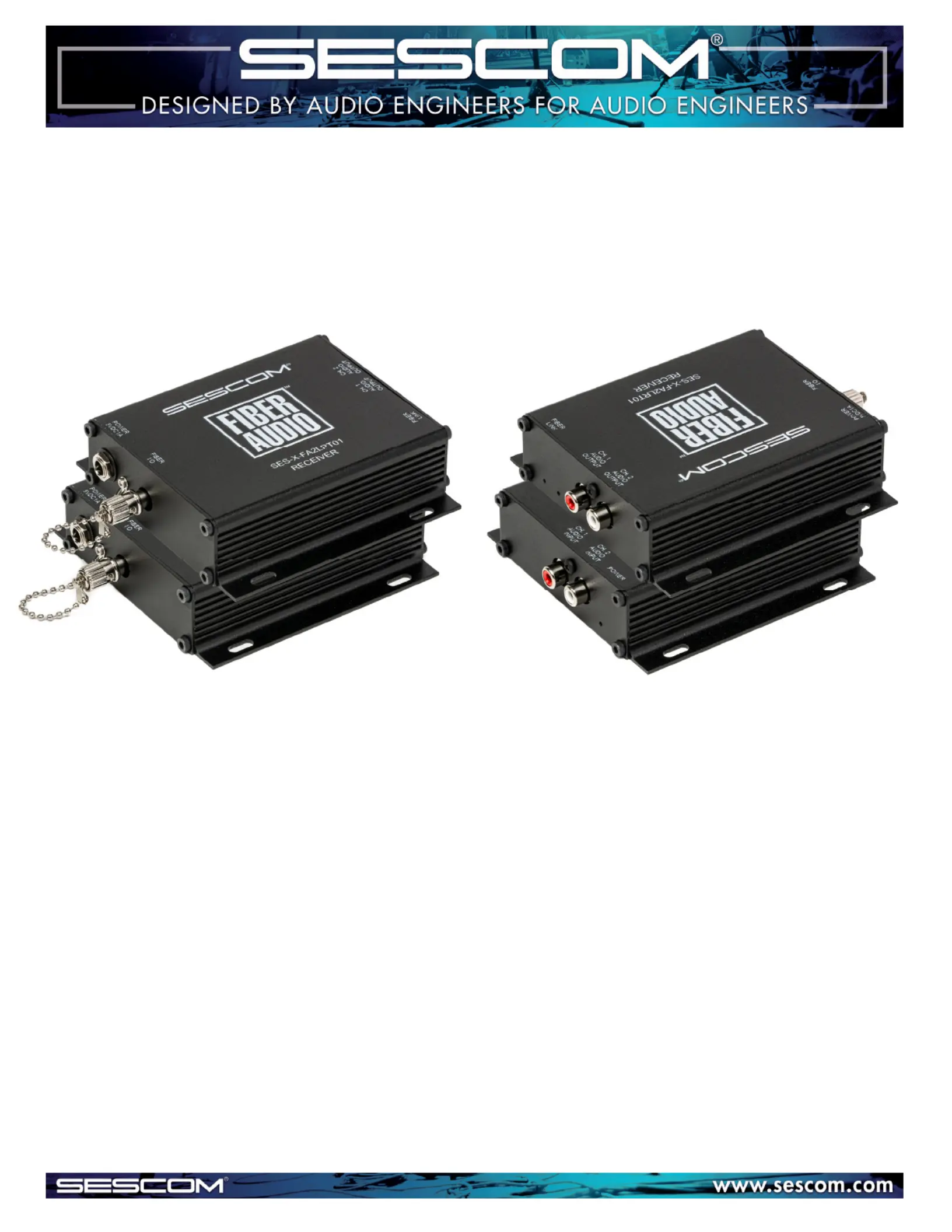

SES-X-FA2LRT01 2 CH Unbalanced RCA Line Level
Audio over Fiber Extender
FEATURES
2-Channel RCA Audio over Fiber with Singlemode Simplex ST Fiber Connector
24-Bit Digitally Encoded Analog Audio
Transmission Distance up to 12.4 miles over Singlemode Fiber
Adjustment Free Plug & Play Operation
Enable Cascaded Audio Setups
1 Year Warranty
FCC & RoHS Compliant
Set Up Instructions
1. Secure the units in a safe location, where they will not be subject to impact and where there is room around the
unit so nothing will interfere with the fiber optic cabling causing it to bend sharply in a tight radius in any way that
can severely affect the signal transfer.
2. Use proper cable management and handling for routing fiber optic cable.
3. Carefully connect your source(s) to the transmitter input(s) and the receiver unit output(s) to your receiving device
input(s) using the RCA connectors on the transmitter and on the receiver unit.
4. CLEAN* the ST fiber optical cable contacts that will be used for connecting the Tx and Rx units and attach the fiber
cable to the ST connections and secure, as you would secure a bayonet BNC. While pressing lightly in on the
connector, twist it in a clockwise direction about 1/8 to 1/4 of a turn and then release. The connector should stay
inserted and have backwards spring pressure holding the bayonet in place.
5. Connect the included power supplies to the transmitter and receiver units, and plug them both into an AC power
source (100-240VAC 50/60Hz).
* CLEAN: All fiber optical cable contacts require cleaning each time before inserting into a device’s outputs or
inputs. Failure to clean the contacts can damage the unit’s optics over time and can also permanently damage
the cable and the device.
Use cleaning kits designed specifically for fiber optics.
SES-X-FA2LRT01 AUDIO FIBER EXTENDER
SPECIFICATIONS
Unity Gain 0dB In, 0dB Out
Total Harmonic Distortion <0.05%
Signal to Noise Ratio
> 90dB Ref. 4dBu, A Weighting
Maximum Balanced Input Signal 7dBu
Max Line Input/Output Voltage 5Vp-p
Optical Wavelength 1310nm
Frequency Response 20Hz—20KHz
Sample Rate 48KHz, 24K bit rate
Input Power 5VDC/1A
Unit Dimensions Each Unit 4.125 x 4.25/5.0 with fiber connectors x 1.25 in
Power Consumption <1W
Includes (2) 5VDC/1A Power Adapters
TRANSMITTER
RECEIVER
1 Channel 1 Right Audio Input
2 Channel 2 Left Audio Input
3 Fiber Link Indicator LED
4 DC Power Input Jack
5 ST Fiber I/O Port
1 LED Fiber Link Indicator
2 LED Power Indicator
3 Channel 1 Right Audio Output
4 Channel 2 Left Audio Output
5 DC Power Input Jack
6 ST Fiber I/O Port
SES-X-FA2LRT01 AUDIO FIBER EXTENDER
3
4 5
2 1
3 4
5 6
2 1
