Figure 1Figure 2

Figure 3 Figure 4

Pin-1 den Gol

Tangle Maer rirk

bothn CPU o

Top and Bo�om

Substrate

Hw Tangle ollori

Maer on the rk

Carer ri

Carer Latches and keying ri

Pin 1 d triangle ma on carrier top solirk

Pin 1 how llo

tangle ma on rirk

carer boom de ri�si

Sd Tangle oliri

Maer on the rk

Carer ri

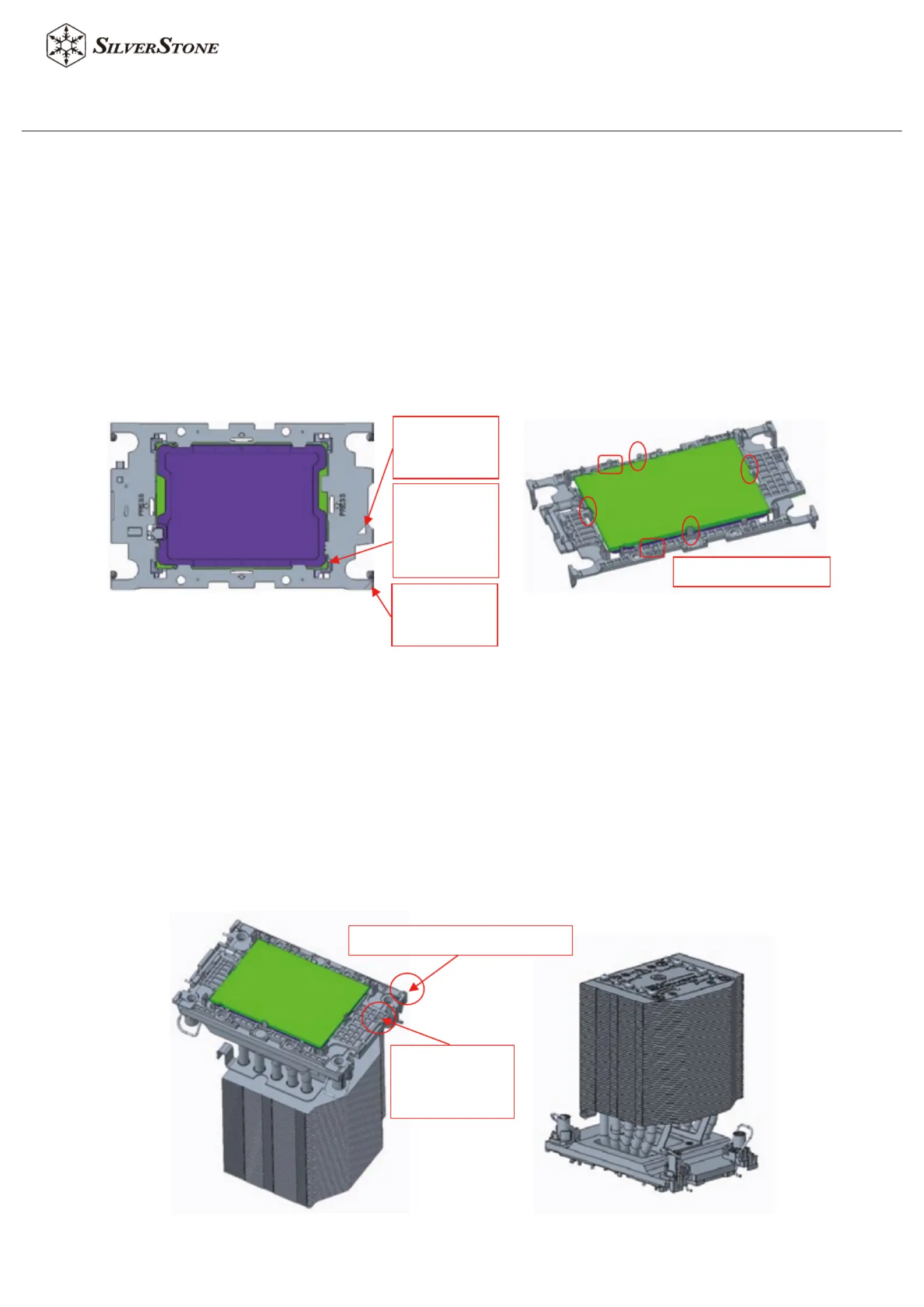

XE02-4677 & XE04-4677 are active heatsinks designed for Intel LGA4677 socket

Please wear ESD gloves to protect the processor and CPU socket before installation process

Install the processor first with the plastic carrier. Align the golden color triangle mark with the hollow triangle mark on the

carrier, then align the key on the processor IHS cover and side, push the processor and confirm the 4 clips securely

locked (Figure 1 &2)

Note: the carrier latches must be fully engaged with the keying slots on the edges of the processor and the processor

must be securely seated on the carrier after insertion.

XE04-4677/XE02-4677

CPU Heatsink Assembly Guide

1.

2.

3.

Remove the heatsink from its packaging and remove the protection cover of Thermal Interface Material (TIM). The

required amount of TIM has been pre-applied on the bottom of the heatsink. Inspect the pre-applied TIM for any

damage before use.

Identify processor Pin 1 and onboard socket Pin 1 to decide the heatsink installation direction; for certain motherboards,

the Pin 1 location will be different with CPU1 and CPU2. (Figure 3 & 4)

Note: The complete assembly of processor, carrier, and heat sink is called Processor Heat Sink Loading Module

(PHLM) or Processor Heat Sink Module (PHM).

4.

5.
