64.0 mm (2.52")

75.0 mm (2.95")

Ø 3.0 mm (Ø 0.12")

Ø 19 mm (Ø 0.75")

Surface mount cable exit

Check dimensions before drilling

6"

150 mm

3 mm

19 mm

WM-3

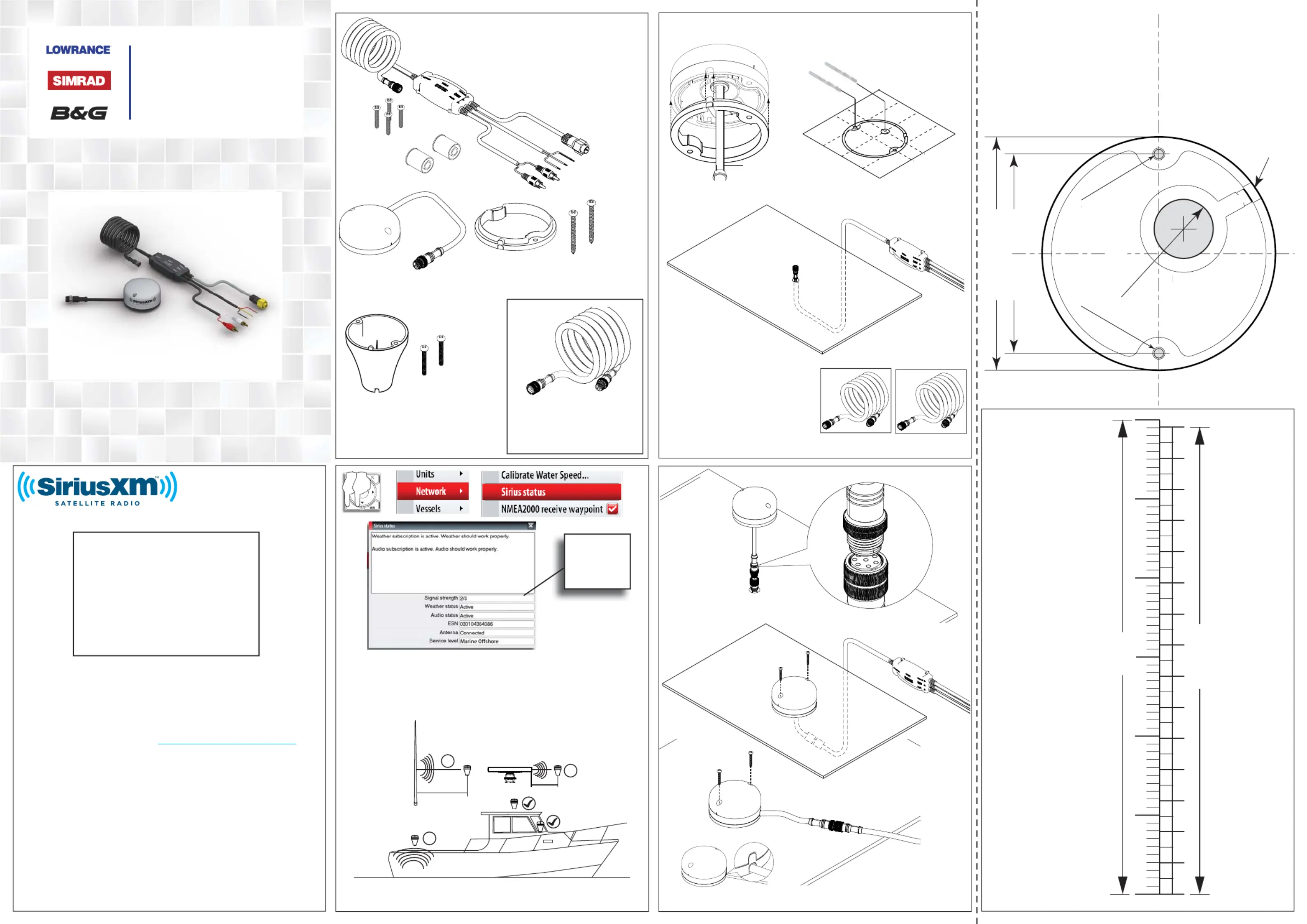

Installation Guide

English

Place the ESN sticker for your WM-3 antenna in the box below.

Place the ESN sticker here

Supplied PartsDrill Template

Activating the WM-3

You must purchase a SiriusXM subscription to use the WM-3 mod-

ule. Individual weather and audio subscriptions are available. You

can also purchase a subscription that includes both weather and

audio.

For more information refer to

www.siriusxm.com/marineweather

To activate a SiriusXM subscription:

1. After the WM-3 module is installed, locate the label on the front

fl ap of the WM-3 carton

2. Record your ESN number (SIRIUS ID) and contact SiriusXM at 855-

796-9847. SiriusXM Marine Weather service can only be activated

by phone. A credit card will be required for subscription to the

SiriusXM service.

3. Access Sirius status screen to make sure subscription (Weather

Status, Audio Status, or both) is listed as Active. If your account is

inactive, contact information for Sirius will be displayed.

4. Check the SiriusXM signal level (1 is weak; 3 is excellent).

X

X

X

Electromagnetic Interference

0.5 m (20”) Min

2 m (6 ft) Min

RADAR

Radio Transmitter

Antenna Mounting Location

1/3 Weak

2/3 Good

3/3 Preferred

Run the antenna cable from

the module to the antenna

location. Extend using optional

extension cable 10 m (33 ft)

Max 2 (p/n 000-11095-001)

Optional extension cable 10

m (33 ft) (p/n 000-11095-

001)

300 mm (12”)

Surface Mount the Antenna

1

2

3

4

5a

5b

MENU

WIN

x2

(Screen-shots taken from Simrad MFD)

*988-10445-001*
