DSK‐2H

Quick Star

Quick StarQuick Start Guide

t Guide

t Guide t Guide

800.AVI.2131

Tel: (818) 503-6200 Fax: (818) 503-6208

11651 Vanowen St. North Hollywood, CA 91605

SmartAVI.com

PART NO. QTY DESCRIPTION

DSK-2H-S 1 2-Port HDMI USB KVM

SWITCH

1 Quick Start Guide

WHAT’S IN THE BOX

NOTICE

The information contained in this document is

subject to change without notice. SmartAVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and fitness for particular purpose.

SmartAVI will not be liable for errors contained

herein or for incidental or consequential damages

in connection with the furnishing, performance or

use of this material.

No part of this document may be photocopied,

reproduced, or translated into another language

without prior written consent from SmartAVI

Technologies, Inc.

20170206

Control and manage USB

keyboard-mouse functions on two

computers with HDMI Monitors

2-P

2-P 2-Por

orort HDMI USB

t HDMI USB

t HDMI USBt HDMI USB KVM Switch

KVM Switch

KVM Switch KVM Switch

TECHNICAL SPECIFICATIONS

VIDEO

Video Format HDMI 1.3a, HDCP Compliant

Video Input (2) HDMI Male

Video Output (1) HDMI Female

Resolution 3840x2160 @ 30Hz

Auto-Scan In-

terval

10 seconds

Audio Supports HD Audio via HDMI

CONTROL

Push Button

Switch between sources 1 &

Hot Keys Via Keyboard

LEDs Blue for PC Selection

Green indicates PC ON-Line

USB

Input (2) USB Type A Male

Output (2) USB Type A Female

Signal Type USB 1.1 & 2.0

OTHER

Dimensions

2.56” x 3.35” x .99”

(65 x 85 x 25 mm)

Weight .728 lbs (330 g)

Power

tion

Operating

Temp.

+23 to +95°F (-5 to +35°C)

Storage Temp. -4 to 185°F (-20 to 85°C)

Humidity 5 to 90% (No Condensation)

INTRODUCTION

Perfect for small office and home settings, the DSK-

2H is an ultra-small 2-port HDMI KVM unit with digital

audio support and easy push-button switching. Using

a USB keyboard and mouse combo with an HDMI

monitor, users can control two connected computer

systems with ease.

The DSK-2H’s HDMI connectivity offers both 4K HD

(3840x2160 @ 30Hz) resolution and digital audio for

the very best picture & sound quality.

The DSK-2H is plug-and-play ready, lightweight, and

simple to integrate into nearly any work setting. KVM

has never been so simple or effective, thanks to the

DSK-2H solution Powered by SmartAVI.

FEATURES

 Supports USB keyboard-mouse control on up to

two connected computer systems

 Compliant with HDMI 1.3a

 HDCP compliant

 Supports USB keyboard Hot-Key Switch

 Push buttons for easy switching

 Supports Auto-Scan function to alternate video

between both computers

 Supports LED display for PC status monitoring

 Supports resolution up to 3840x2160 @ 30Hz

 Self powered through USB connection

 Supports HD audio via HDMI

 Plug-and-play, compact design for simple use &

integration

APPLICATIONS

 Control Rooms

 Offices

 Homes

 Small Businesses

 Production Studios

 Banks

 Industrial Sites

 Hospitals

 Schools & Universities

HARDWARE INSTALLATION

The DSK-2H supports Hot-Swap technology.

The DSK-2H supports Hot-Swap technology. The DSK-2H supports Hot-Swap technology.

All of the peripheral components can be connected

All of the peripheral components can be connected All of the peripheral components can be connected or removed without powering down the

or removed without powering down the

or removed without powering down the or removed without powering down the computers.

computers.

computers. computers.

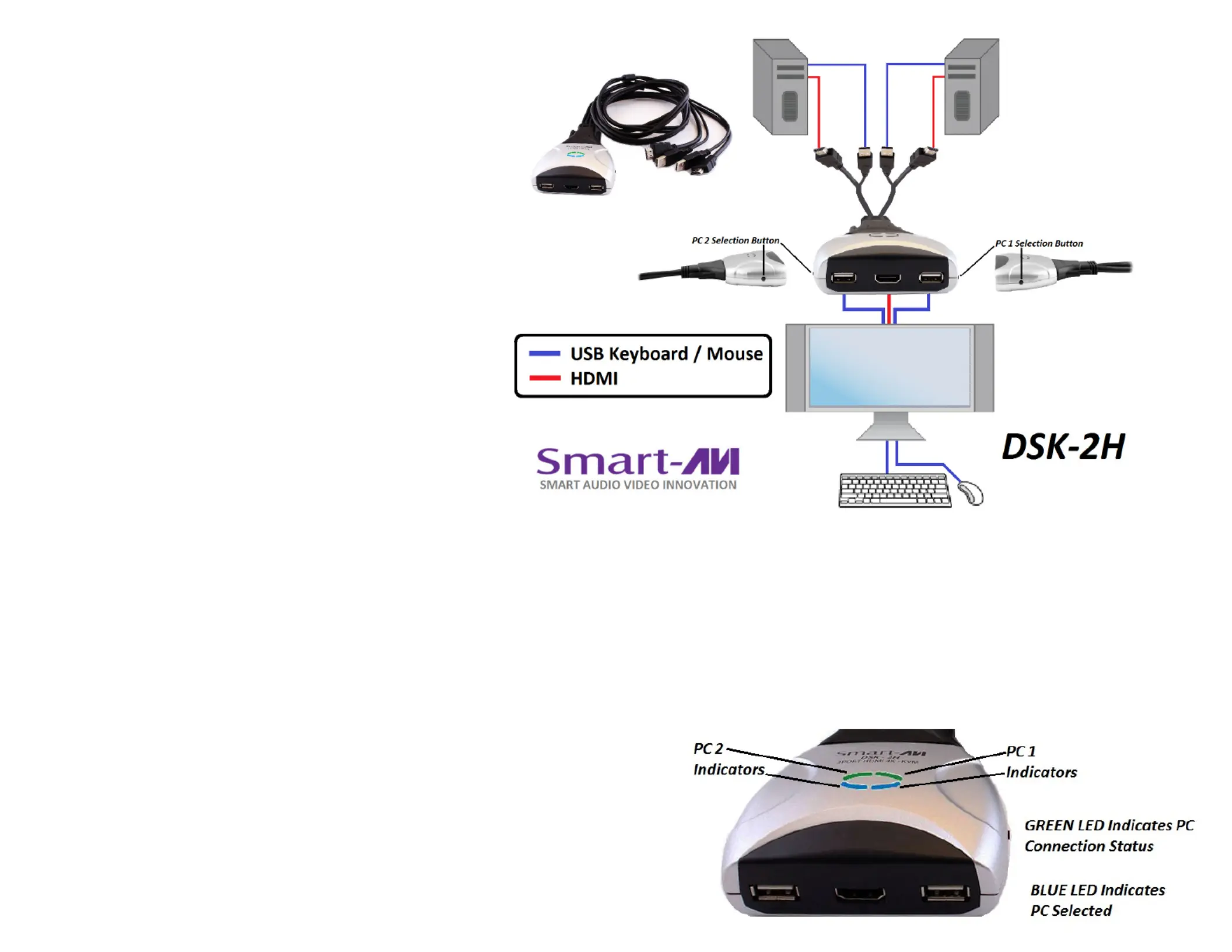

1. Connect USB keyboard, USB mouse and a HDMI monitor to the DSK-2H as shown in the diagram above.

2. Connect the USB connectors to the computers as shown in the diagram above.

3. Connect the HDMI connectors to the computers as shown in the diagram above.

4. Ensure the computers and the HDMI monitor are turned on.

HOT KEY OPERATION

Pressing the [Scroll Lock] key twice

will switch the Keyboard, Mouse

Video and Audio to the other active,

connected PC.

AUTO SCAN

To start Auto Scan mode, press and

hold the PC selection button for

longer than 3 seconds. The auto-

scan time interval is fixed to 10 sec-

onds. Press any button again to exit

Auto Scan mode.

Produktspezifikationen

Marke:	Smart-AVI
Kategorie:	Schalter
Modell:	DSK-2H
Breite:	65 mm
Tiefe:	85 mm
Produktfarbe:	Black, Grey
Höhe:	25 mm
Eingebautes Display:	Nein
Betriebstemperatur:	-5 - 35 °C
Relative Luftfeuchtigkeit in Betrieb:	5 - 90 %
HD-Typ:	4K Ultra HD
Anzahl HDMI-Anschlüsse:	1
Temperaturbereich bei Lagerung:	23 - 95 °C
Rack-Einbau:	Nein
USB-Stecker:	USB Typ-A
Maximale Auflösung:	3840 x 2160 Pixel
Video Porttyp:	HDMI
Anzahl der Computer:	2
Tastatur Porttyp:	USB
Maus-Porttyp:	USB
Datenübertragungsrate (max):	5.4 Gbit/s
Videobandbreite:	30 Hz
