Seite 1/3
©2023 SONNEMAN - A Way of Light
Assembly Instructions
Chimes
Product Information
and Warnings
2046
Round Pendant
IMPORTANT
Always disconnect the power before installing or replacing
Luminaires and before cleaning or other maintenance.
Consult a qualied, licensed electrician to ensure correct branch
circuit conductor.
Consulter un électricien qualié pour vous assurer que les
conducteurs de la dérivation sont adéquats.
Please read all included assembly instructions and warnings carefully
before installation. Contact Customer Service if you have any
questions or concerns. Before installation, please confirm that the
fixture is compatible with your supply voltage and dimming system,
if present.
LEDs are highly sensitive electronic devices, and must be treated
with care. Do not open any factory sealed compartments, and avoid
touching the LEDs with your hands or any object.
Although all our fixtures are equipped with protective devices,
LED electronic systems are vulnerable to power surges and supply
variations. Do not install LED fixtures on the same circuit as any
motors, appliances, or HVAC systems.
Do not remove or bypass any LED Driver or Transformer that is
provided with the fixture, and do not replace or substitute with
another power supply.
Fixtures must be wired in parallel on independent leads; do not
"daisy chain" multiple fixtures together or wire them in series.
All factory-made splices and connections must remain intact. LED
circuits are carefully designed and built, and improper connections
may damage the fixture.
The ends of coaxial pendant cords have been precisely stripped
and split at the factory and must not be field cut. Excess cord or
cable should be neatly coiled and reserved in the fixture canopy.
Any mounting hardware is provided for your convenience
and should be used with discretion. Always use the appropriate
hardware for the mounting surface.
Instructions D'Installation
Multiple U.S. and foreign patents pending.

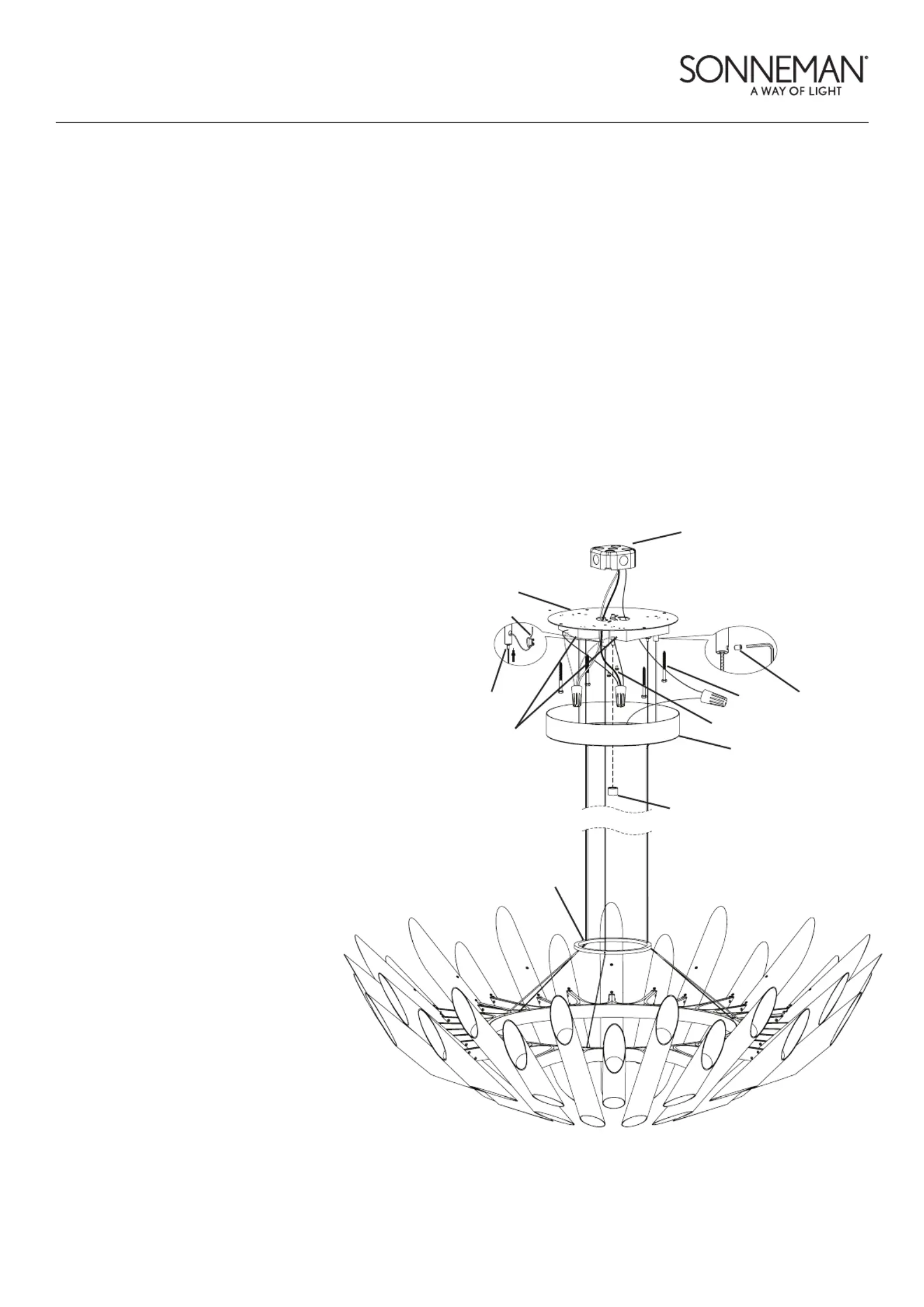

Assembly Instructions
a. Connect the power supply’s live wire to the live supply
wire.
b. Connect the power supply’s neutral wire to the neutral
supply wire.
c. Connect the xture’s ground wire (green or uncoated)
to the ground supply wire. If no ground wire is present
in the outlet box, connect the power supply's ground
wire to the mounting plate (B) using the green screw
(included).
6. Fit the canopy (H) over the mounting plate (B), tucking any
loose wire or cable inside, so that the threaded rod extends
through the center hole. Screw the canopy nut (J) onto the
threaded rod to secure the canopy.
7. Restore power to the outlet box (C).
1. Shut o power to the outlet box (A).
2. CAUTION: Fixture must be supported independent of the
outlet box. Customer is responsible for ensuring appropriate
ceiling construction to support the wieght of the xture.
3. Attach the mounting plate (B) to the outlet box (A) with the
outlet box screws (C). Secure the plate to the ceiling using
the 4 supplied lag screws (D) or other appropriate hardware
for other surfaces.
4. Determine height at which the xture is to be hung. Note
that this xture hangs from three steel cables. The power
cords should not bear weight.
a. Adjust the 3 steel cables to the desired height: To shorten
the cable, push the cable up and it will lock automatically.
To lengthen the cable, lift up on the cable and push up
on the plunger lock (F). While keeping the plunger lock
depressed, lower the cable to the desired length. Release
the plunger lock to set. Adjust the position of the cable
lock (E) close to the cable gripper and tighten the screws.
Reserve extra cable in the canopy (H).
b. Adjust the 2 power cords to the desired length: Use the
Allen wrench to loosen the set screw (G). Adjust length
of power cord. Tighten the set screw to set. Reserve extra
cord in the canopy (H).
c. The location of the spreader ring (K) inside the xture
should not need to be adjusted. In the case that it requires
adjustment, you may loosen the set screws, adjust the
cables and power cords, and re-tighten the set screws.
5. Make appropriate electrical connections to the power
supplies (I) using wire nuts:
Care Instructions:
Use a clean, dry cloth when dusting.
To protect the nish, avoid any harsh
abrasives or chemicals.
Note:
• This xture is dimmable with Electronic Low Voltage (Trailing-Edge)
type dimmers, Incandescent (Leading-Edge) type dimmers, and
0-10V type dimmers only.
(D)
(G)
(B)
(C)(I)
(A)
(F)
(H)
(J)
(K)
(E)

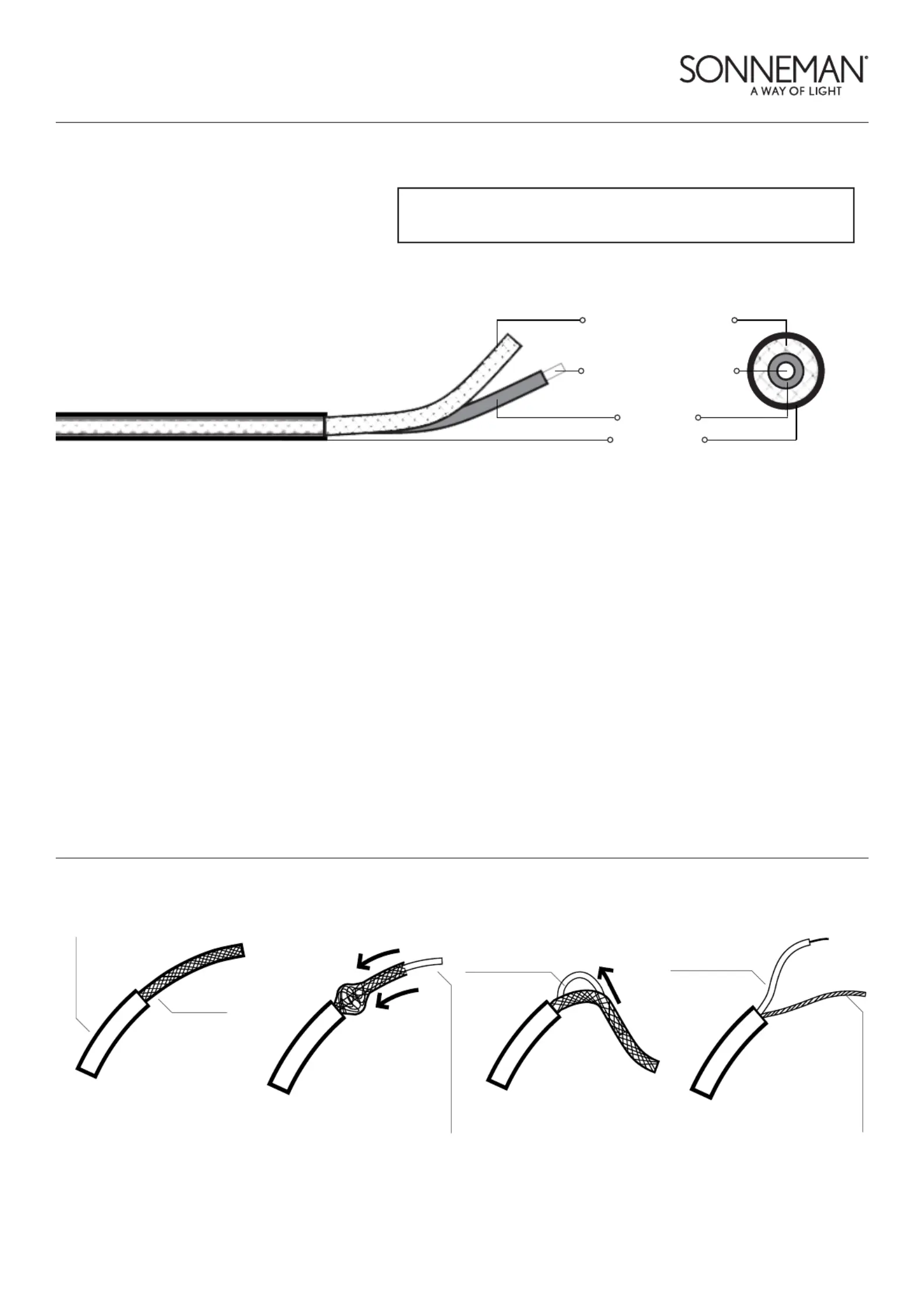

If eld-cutting is required,
please follow these instructions:
1. Make a 1” slice along the length of the cord's outer jacket (Fig. 1).
CAUTION: Do not cut through the outer braided conductor.
2. Carefully strip the outer jacket of the cord and keep the outer
braided conductors intact (Fig. 1).
3. Slide the outer braided conductor back to create a bulge
and reveal the inner stranded conductor (Fig. 2).
4. Bend the cord to create an opening through the bunched-up
portion of outer braided conductor, then pull out the inner
stranded conductor (Fig. 3)
5. Twist together the outer braided conductor to form the negative
wire of the xture, then strip 5/8” o the end of the inner stranded
conductor to form the positive wire of the xture (Fig. 4).
6. Re-splice all power cords.
Appendix A
Inner Stranded Conductor
End
View
Insulation
Outer Jacket
Outer Braided Conductor
FAILURE TO FOLLOW THESE
INSTRUCTIONS WILL VOID THE WARRANTY
Fig. 1 Fig. 2
Fig. 3 Fig. 4
Outer Braided
Conductor
Outer Jacket
Insulated Stranded
Conductor
Insulated
Stranded
Conductor
Negative Wire
(Outer Braided Conductor)
Positive Wire
(Insulated Stranded
Conductor)
Coaxial Power Cord:
Coax Splicing
©2023 SONNEMAN - A Way of Light
Assembly Instructions
